Aprilia Tuono V4 1100 2023 dashboard

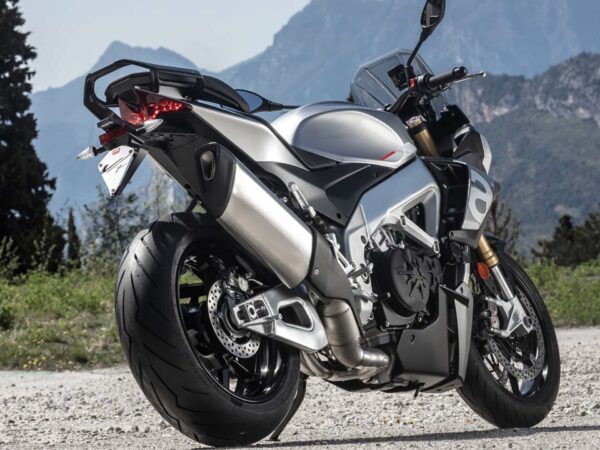

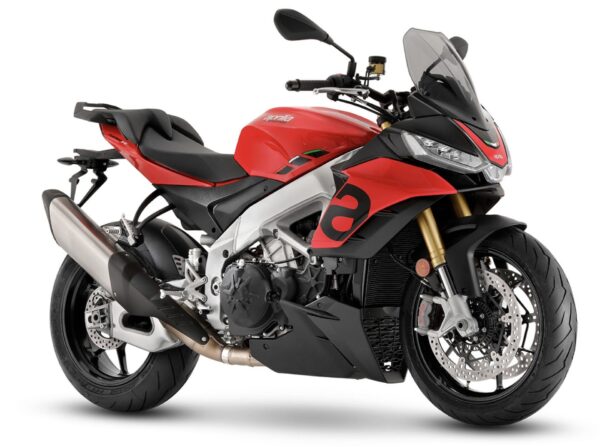

Aprilia Tuono V4 (2021+)

Aprilia Tuono V4 (2021+)

Category: Tag:

Specifications

Engine

1077 cc V4, liquid cooled

Power

175 hp @ 11350 rpm

Torque

121 Nm @ 9000 rpm

Transmission

6-speed manual, Wet multi-plate assist/slip clutch, quick-shifter, chain final drive

Fuel Capacity

18,5 liters

Length

2070 mm

Width

810 mm

Height

1228 mm (estimated)

Weight

209 kg wet

Seat Height

825 mm

Suspension

– Front: 43 mm Sachs inverted fork, fully adjustable, 120 mm travel
– Rear: Sachs mono-shock, fully adjustable, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 200/55-17

Brakes

– Front: 2×330 mm discs, Brembo M50 Monobloc 4-piston radial calipers
– Rear: 220 mm disc, Brembo 2-piston floating caliper
– cornering ABS available

Instruments

TFT display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption

Other

LED lights, riding modes, traction control, wheelie control, launch control, speed limiter, cruise control

Dashboard / Support us

Aprilia Tuono V4 1100 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsAprilia Tuono V4 (2021+) removeYamaha XSR700 (2022+) removeKawasaki Z650 (2023+) removeHonda CB500F (2022+) removeAprilia Tuareg 660 (2022+) removeHusqvarna Vitpilen 401 (2018+) remove
NameAprilia Tuono V4 (2021+) removeYamaha XSR700 (2022+) removeKawasaki Z650 (2023+) removeHonda CB500F (2022+) removeAprilia Tuareg 660 (2022+) removeHusqvarna Vitpilen 401 (2018+) remove

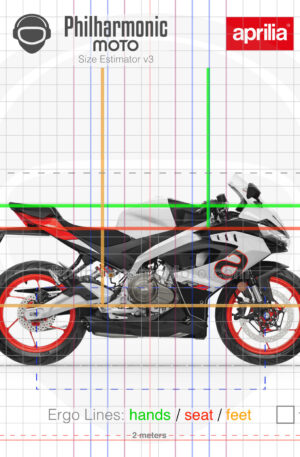

Size Estimator (see "About" page to learn more)Aprilia Tuono V4 1100 2023 Tarmac GreyYamaha XSR700 2022 Historic WhiteKawasaki Z650 2023 Metallic Phantom Silver Metallic Carbon GrayHonda CB500F 2022 Matte Grey MetallicAprilia Tuareg 660 2022 Indaco TagelmustHusqvarna Vitpilen 401 2022 white
Length2070 mm2075 mm2055 mm2080 mm2206 mm (estimated)2004 mm (estimated)
Width810 mm820 mm765 mm800 mm-
Height1228 mm (estimated)1130 mm1065 mm1060 mm1419 mm (estimated)1181 mm (estimated)
Seat Height825 mm835 mm790 mm789 mm860 mm835 mm
Weight209 kg wet188 kg wet188 kg wet189 kg wet204 kg wet151 kg dry
Engine1077 cc V4, liquid cooled689cc Parallel Twin, liquid-cooled650cc Parallel Twin, liquid-cooled, 8 valve DOHC471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank659 cc Parallel-Twin, liquid cooled373 cc Single-cylinder, liquid-cooled
Power175 hp @ 11350 rpm73,4 hp @ 8750 rpm67hp @ 8000 rpm47 hp @ 8600 rpm80 hp @ 9250 rpm43 hp @ 9500 rpm
Torque121 Nm @ 9000 rpm67 Nm @ 6500 rpm64 Nm @ 6700 rpm43 Nm @ 6500 rpm70 Nm @ 6500 rpm37 Nm @ 7000 rpm
Transmission6-speed manual, Wet multi-plate assist/slip clutch, quick-shifter, chain final drive6-speed, Wet multi-plate clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch, chain final drive6-speed, slip/assist clutch, chain final drive
Fuel Capacity18,5 liters14 liters15 liters17,1 liters18 liters9,5 liters
Suspension- Front: 43 mm Sachs inverted fork, fully adjustable, 120 mm travel - Rear: Sachs mono-shock, fully adjustable, 130 mm travel- Front: 41 mm telescopic forks, 130 mm travel - Rear: mono-shock, adjustable preload, 130 mm travel- Front: 41 mm telescopic fork, 125 mm travel - Rear: Horizontal Back-link single shock, adjustable preload, 130 mm travel- Front: Showa 41mm SFF-BP USD forks, preload adjustable, 110 mm travel, - Rear: Prolink mono with 5 stage preload adjuster, 120 mm travel- Front: 43 mm telescopic forks, adjustable rebound damping and compression, 240 mm travel - Rear: mono shock, adjustable preload (remote), 240 mm travel- Front: 43 mm inverted fork, 142 mm travel - Rear: mono-shock, adjustable preload, 150 mm travel
Tyres- Front: 120/70-17 - Rear: 200/55-17- Front: 120/70-17 - Rear: 180/55-17 - Tubeless- Front: 120/70ZR17M/C 58W - Rear: 160/60ZR17M/C 69W- Front: 120/70-17 - Rear: 160/60-17- Front: 90/90-21 - Rear: 150/70-18- Front: 110/70-17 - Rear: 150/60-17
Brakes- Front: 2x330 mm discs, Brembo M50 Monobloc 4-piston radial calipers - Rear: 220 mm disc, Brembo 2-piston floating caliper - cornering ABS available- Front: 298 mm discs, 4-piston calipers - Rear: 245 mm disc, single-piston caliper - ABS available- Front: Dual semi-floating 300 mm petal discs, dual-piston caliper - Rear: 220 mm petal disc, single-piston caliper - ABS available- Front: Dual 296mm discs, Nissin radial-mount two piston calipers - Rear: 240mm disc, single piston caliper - ABS available- Front: 2x 300 mm discs, Brembo 4-piston caliper - Rear: 260 mm disc, Brembo 1-piston floating caliper - Switchable ABS available- Front: 320 mm disc, 4-piston caliper - Rear: 230 mm disc, 1-piston floating caliper - ABS available
InstrumentsTFT display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumptionLCD display with digital tachometer, odometer, speedometer, gear indicator, fuel gauge, clockTFT screen with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, remaining range, current and average fuel consumption, clockLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP IndicatorTFT display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumptionLCD display with tachometer, speedometer, gear indicator, trip meter, odometer, fuel gauge, clock
OtherLED lights, riding modes, traction control, wheelie control, launch control, speed limiter, cruise controlLED lightsLED headlights, smartphone connectivity, traction controlLED lightsLED lights, riding modes, traction control, engine braking, engine maps, cruise controlLED lights
