BMW K 1600 GT (2022+)

BMW K 1600 GT (2022+)

K1600GT


Category: Tag:

Specifications

Engine

1649 cc, Inline-6, oil/liquid cooled

Power

160 hp @ 6750 rpm

Torque

180 Nm @ 5250 rpm

Transmission

6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive

Fuel Capacity

26,5 liters

Length

2324 mm (over luggage carrier)

Width

1000 mm (including side cases)

Height

1440/1600 mm (adjustable windshield)

Weight

343 kg wet

Seat Height

810/830 mm

Suspension

– Front: BMW Motorrad Duolever, central spring strut, 115 mm travel
– Rear: BMW Motorrad Paralever, central spring strut, 135 mm travel
– Dynamic ESA “Next Generation” electronic suspension with fully automatic load compensation

Tyres

– Front: 120/70-17
– Rear: 190/55-17

Brakes

– Front: 320 mm discs, 4-piston caliper
– Rear: 320 mm disc, 2-piston caliper
– cornering ABS available

Instruments

TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock

Other

LED lights, adaptive headlight, riding modes, traction control, Integral Panniers, smartphone connectivity, USB-C, floor lighting, cruise control, hill-start control, heated grips, heated seat, reversing aid

Dashboard / Support us

BMW K 1600 B 2022 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsBMW K 1600 GT (2022+) removeBMW R NineT (2021+) removeBMW R 1250 GS (2021+) removeBMW F 850 GS (2021+) removeBMW S 1000 XR (2020+) removeBMW R 1250 R (2023+) remove
NameBMW K 1600 GT (2022+) removeBMW R NineT (2021+) removeBMW R 1250 GS (2021+) removeBMW F 850 GS (2021+) removeBMW S 1000 XR (2020+) removeBMW R 1250 R (2023+) remove

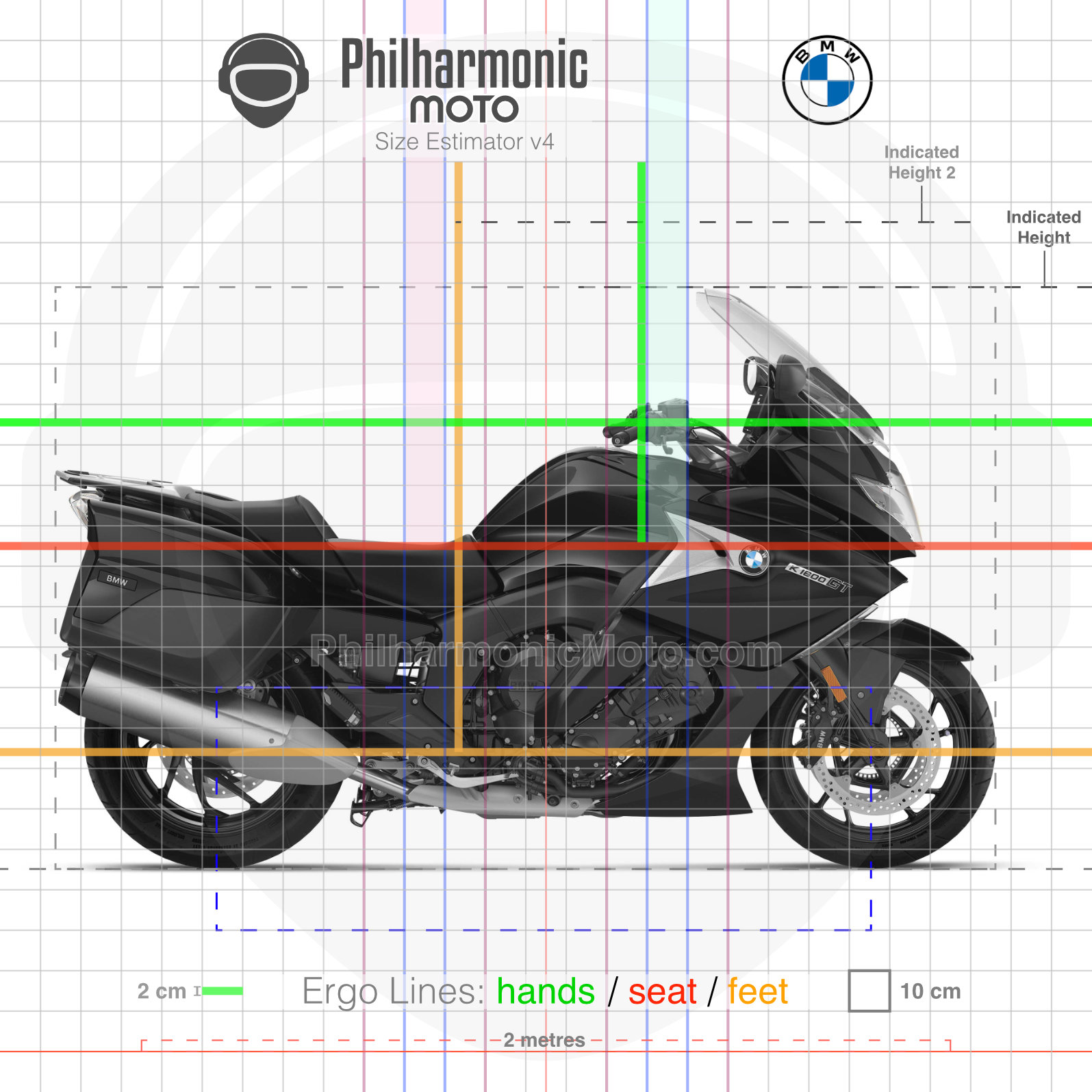

Size Estimator (see "About" page to learn more)BMW K 1600 GT 2023 Black Storm MetallicBMW RNineT 2021 Blackstorm metallic brushed aluminiumBMW R 1250 GS Light White 2023BMW F 850 GS 2023. Racing RedBMW S 1000 XR 2020 Racing RedBMW R 1250 R 2023 ice Grey
Length2324 mm (over luggage carrier)2105 mm2207 mm (over mud guard)2305 mm2162 mm (estimated)2165 mm (over license plate holder)
Width1000 mm (including side cases)865 mm952,5 mm922 mm917 mm880 mm (above mirror)
Height1440/1600 mm (adjustable windshield)1240 mm1430 mm (over adjustable windshield, but they don't say at what position)1356 mm1411 mm (excl. mirrors)1,300 mm (above mirror, at DIN unladen weight)
Seat Height810/830 mm805 mm850-870 mm (800-820 mm with low suspension option)860 mm840 mm (seat lowered optional suspension: 790 mm)820 mm (seat low: 760 mm; seat sport: 840 mm)
Weight343 kg wet221 kg wet249 kg wet233 kg wet226 kg wet239 kg wet
Engine1649 cc, Inline-6, oil/liquid cooled1170 cc, 2-cylinder boxer, air/oil cooled1254 cc Boxer twin, air-liquid-cooled853 cc Parallel-twin, liquid-cooled999 cc, Inline-4, oil/liquid cooled1254 cc Boxer twin, air-liquid-cooled
Power160 hp @ 6750 rpm109 hp @ 7250 rpm136 hp @ 7750 rpm90 hp @ 8000 rpm165 hp @ 11000 rpm136 hp @ 7750 rpm
Torque180 Nm @ 5250 rpm116 Nm @ 6000 rpm143 Nm @ 6250 rpm86 Nm @ 6250 rpm114 Nm @ 9250 rpm143 Nm @ 6250 rpm
Transmission6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive6-speed, single dry plate hydraulic clutch, shaft final drive6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive
Fuel Capacity26,5 liters18 liters20 liters15 liters20 liters18 liters
Suspension- Front: BMW Motorrad Duolever, central spring strut, 115 mm travel - Rear: BMW Motorrad Paralever, central spring strut, 135 mm travel - Dynamic ESA “Next Generation” electronic suspension with fully automatic load compensation- Front: 46 mm inverted fork, 120 mm travel - Rear: BMW Motorrad paralever, central spring strut, adjustable preload (remote), adjustable rebound damping, 120 mm travel- Front: 37 mm telelever central spring strut, 190 mm travel - Rear: BMW Motorrad Paralever, adjustable hydraulic preload and rebound damping, 200 mm travel- Front: 43 mm telescopic fork, 230 mm travel - Rear: single shock, adjustable preload and rebound damping, 215 mm travel- Front: 45 mm inverted fork, electronic self-adjusting rebound/compression damping, 150 mm travel - Rear: mono-shock, electronic preload adjuster, electronic self-adjusting rebound/compression damping, 150 mm travel- Front: inverted fork, 140 mm travel - Rear: mono-shock, adjustable hydraulic preload and rebound damping, 140 mm travel
Tyres- Front: 120/70-17 - Rear: 190/55-17- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-19 - Rear: 170/60-17- Front: 90/90-21 - Rear: 150/70-17- Front: 120/70-17 - Rear: 190/55-17- Front: 120/70-17 - Rear: 180/55-17
Brakes- Front: 320 mm discs, 4-piston caliper - Rear: 320 mm disc, 2-piston caliper - cornering ABS available- Front: 320 mm discs, 4-piston calipers - Rear: 265 mm disc, 2-piston floating caliper - cornering ABS- Front: 305 mm floating discs, 4-piston radial caliper - Rear: 276 mm disc, 2-piston floating caliper - cornering ABS available- Front: 305 mm floating discs, 2-piston floating calipers - Rear: 265 mm disc, 1-piston floating caliper - cornering ABS available- Front: 320 mm discs, 4-piston radial caliper - Rear: 265 mm disc, 2-piston floating caliper - cornering ABS available- Front: 320 mm floating discs, 4-piston radial caliper - Rear: 276 mm disc, 2-piston floating caliper - cornering ABS available
InstrumentsTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockAnalogue speedometer and tachometer, digital odometer, gear position indicator, fuel gauge, range to empty indication, service indicator, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock
OtherLED lights, adaptive headlight, riding modes, traction control, Integral Panniers, smartphone connectivity, USB-C, floor lighting, cruise control, hill-start control, heated grips, heated seat, reversing aidLED lights, Riding modes, engine braking control, dynamic traction control, USB, self-cancelling indicators, adaptive headlightLED lights, riding modes, traction control, USB port, 12v socket, mobile phone connectivity, centre stand, hill start control, self-canceling indicatorsLED lights, riding modes, traction control, USB port, mobile phone connectivity, self-canceling indicatorsLED lights, riding modes, traction control, engine brake control, USB port, smartphone connectivity, hill start control, self-canceling indicatorsLED headlight and taillight, riding modes, traction control, USB port, smartphone connectivity, hill start control, self-canceling indicators
