BMW M 1000 XR (2024+)

M1000XR

Updated: 18 June 2024


Brand: Style:
Share:

Specifications and Features

Engine

999 cc, Inline-4, oil/liquid cooled

Power

201 hp @ 12750 rpm

Power to weight ratio

90 HP/100kg

Torque

113 Nm @ 11100 rpm

Torque to weight ratio

51 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive
– Quick-shifter

Fuel Capacity

20 litres

Length

2170 mm

Width

850 mm

Height

1382 mm (above mirrors)

Weight

– 223 kg wet
– Max load: 227 kg

Seat Height

850 mm

Suspension

– Front: 45 mm inverted fork, electronic self-adjusting rebound/compression, 138 mm travel
– Rear: mono-shock, electronic preload adjuster, electronic self-adjusting rebound/compression, 138 mm travel
– Dynamic damping control

Tyres

– Front: 120/70-17
– Rear: 200/55-17

Brakes

– Front: 320 mm discs, 4-piston radial calipers
– Rear: 265 mm disc, 2-piston floating caliper
– Cornering ABS available (switchable)

Instruments

– 6.5" TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, trip meter, ambient temperature, clock
– Smartphone connectivity

Other

– LED lights, cornering lights, self-canceling indicators
– Riding modes, cornering traction control, engine brake control, wheelie control, slide control, launch control, pit limiter, dynamic brake control
– Cruise control, USB port, fully keyless, hill-hold, emergency call, heated grips, TPMS, adjustable steering damper

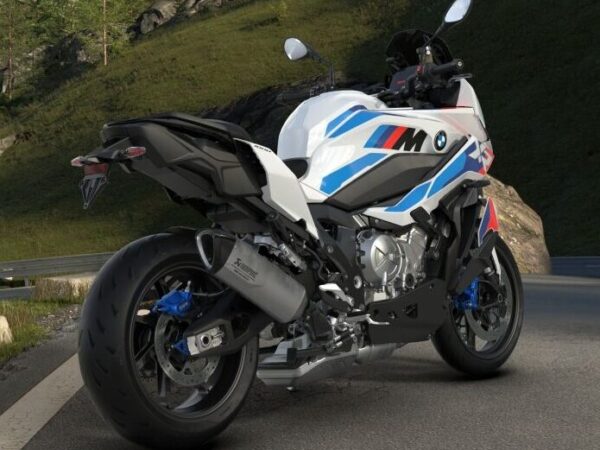

BMW M 1000 XR 2024 dashboard BMW M 1000 XR 2024 front BMW M 1000 XR 2024 back
