BMW S 1000 XR (2024+)

S1000XR

Length is estimated since the official spec doesn’t make sense, based on the other S1000 models, height  and wheelbases.

Updated: 18 June 2024


Brand: Style:
Share:

Specifications and Features

Engine

999 cc, Inline-4, oil/liquid cooled

Power

170 hp @ 11000 rpm

Power to weight ratio

75 HP/100kg

Torque

114 Nm @ 9250 rpm

Torque to weight ratio

50 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive
– Optional: quick-shifter

Fuel Capacity

20 litres

Length

2162 mm (estimated)

Width

850 / 917 / 967 mm (base model / with hand guard / with case)

Height

1411 mm (excl. mirrors)

Weight

– 227 kg wet
– Max load: 223 kg

Seat Height

840 mm (seat lowered optional suspension: 790 mm)

Suspension

– Front: 45 mm inverted fork, electronic self-adjusting rebound/compression, 150 mm travel
– Rear: mono-shock, electronic preload adjuster, electronic self-adjusting rebound/compression, 150 mm travel
– Optional: electronic suspension Pro

Tyres

– Front: 120/70-17
– Rear: 190/55-17

Brakes

– Front: 320 mm discs, 4-piston radial calipers
– Rear: 265 mm disc, 2-piston floating caliper
– Cornering ABS available

Instruments

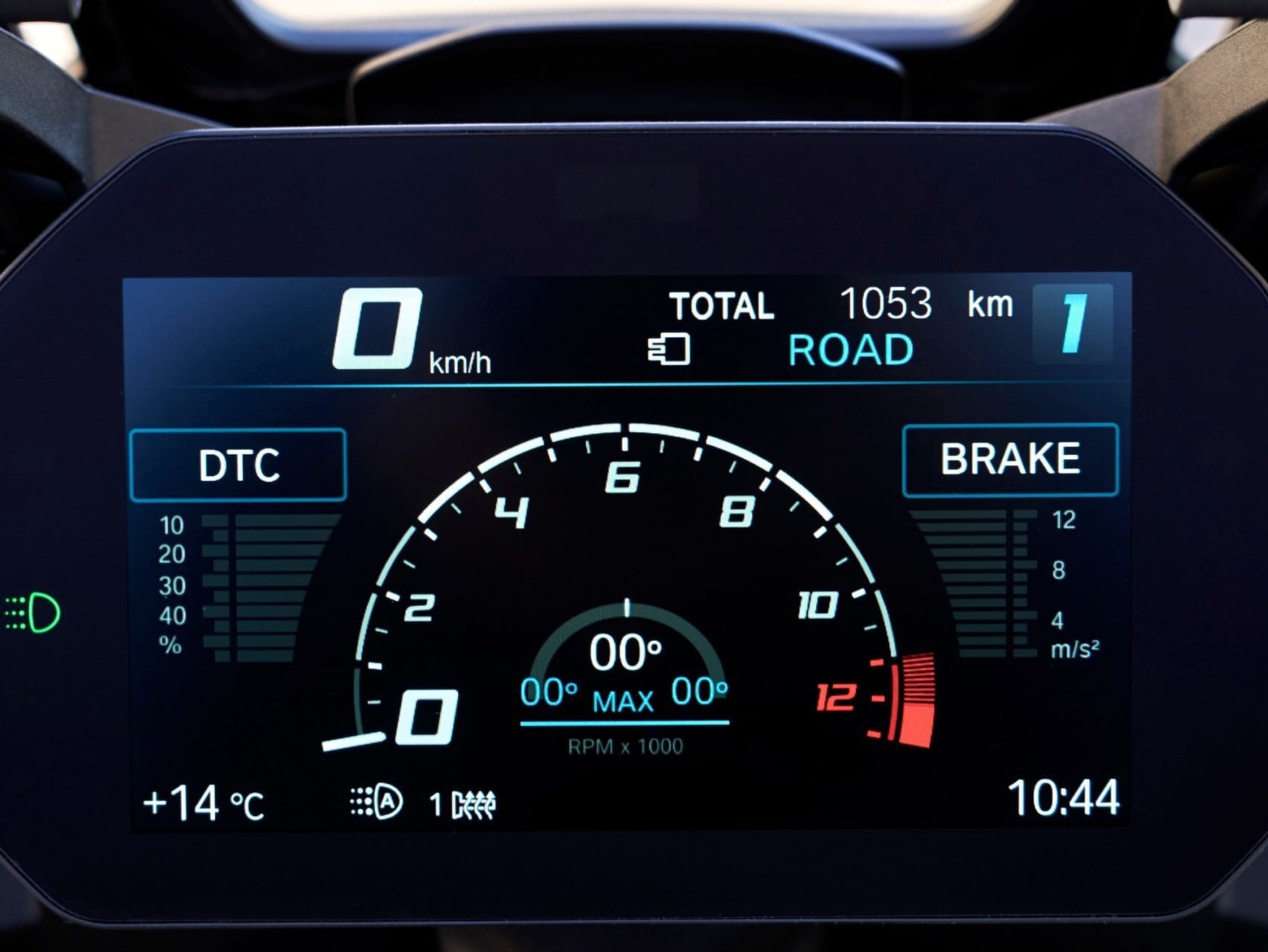

– 6.5" TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, trip meter, ambient temperature, clock
– Smartphone connectivity

Other

– LED lights, cornering lights, self-canceling indicators. Optional: fog lights
– Riding modes, cornering traction control, engine brake control.
– USB port, fully keyless, hill-hold, emergency call. Optional: cruise control, centre stand, heated grips, TPMS

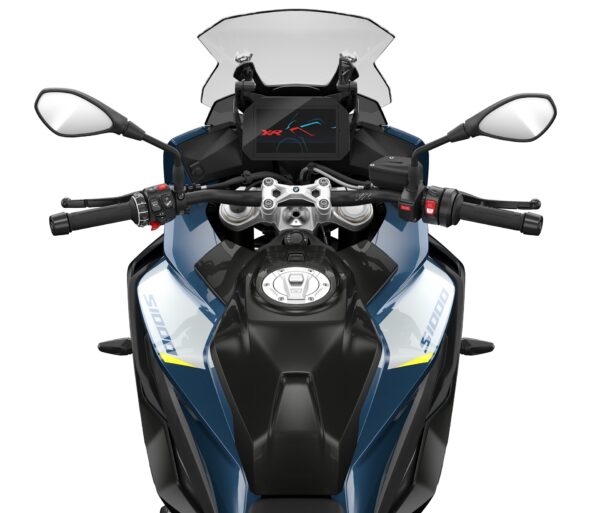

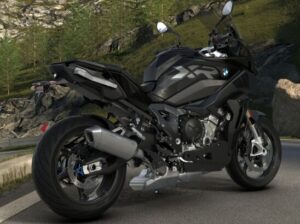

BMW S 1000 XR 2020 dashboard BMW S 1000 XR 2024 Blackstorm Metallic 2 front BMW S 1000 XR 2024 Blackstorm Metallic 2 back

T-shirts, mugs, stickers and more:

supermoto superhero hoodie

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

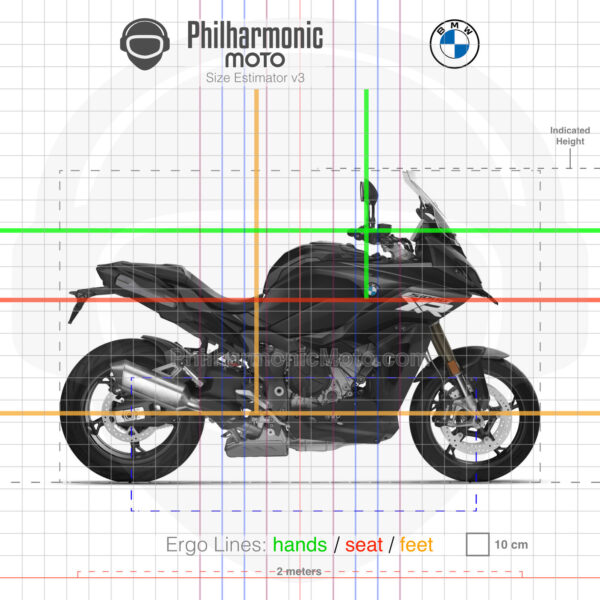

  • Size Estimator (see "About" page to learn more)
