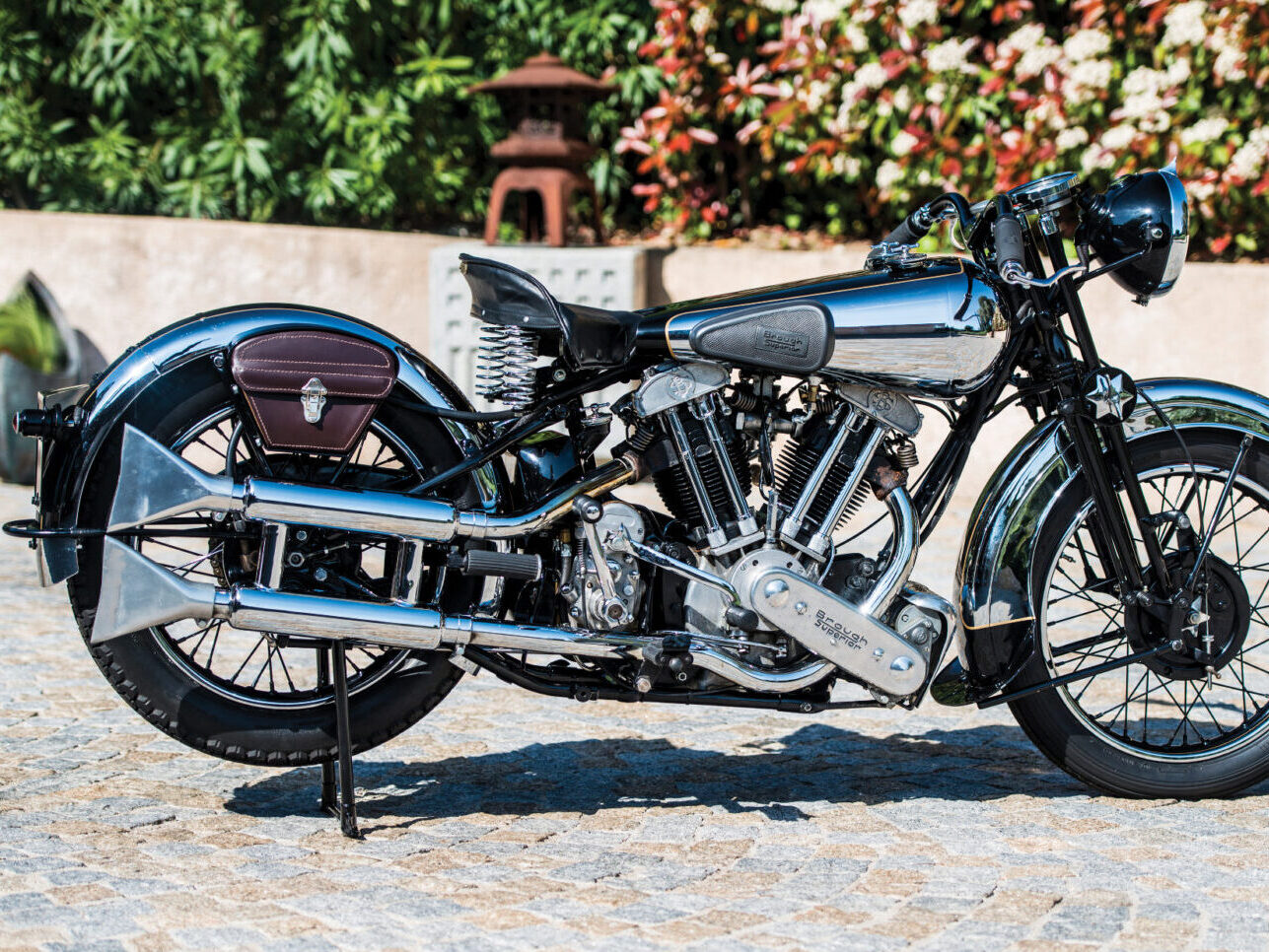

Brough Superior SS100 1935

Brough Superior SS100 1935 back

Brough Superior SS100 1935

Brough Superior SS100 1935 back

Brough Superior SS100 (1924-1940)

Brough Superior SS100 (1924-1940)

—

Category: Other Tag: Classic

Specifications

Engine	980-1150 cc V-Twin, air-cooled, carbureted
Power	– 988 cc: 45 hp @ 4500 rpm – 996 cc Pendine: 73 hp @ 6200 rpm
Torque	–
Transmission	3-speed, 4-speed, chain final drive
Fuel Capacity	–
Length	2249 mm (estimated)
Width	–
Height	1128 mm (estimated)
Weight	154 kg wet
Seat Height	–
Suspension	– Front: Friction-damper fork, Harley-Davidson style Castle fork – Rear: rigid or sprung (Alpine Grand Sports model)
Tyres	–
Brakes	– Front: drum – Rear: drum
Instruments	Analogue speedometer, odometer, another meter
Other	Headlight

Dashboard / Support us

T-shirts, mugs, stickers and more:

clutch band motorcycle white hat

Quick Comparison

Settings	Brough Superior SS100 (1924-1940) remove	BMW R NineT Urban G/S (2021+) remove	Vincent Black Shadow (1948-1955) remove	Triumph Street Twin (2016-2018) remove	Triumph Speed Twin 1200 (2023+) remove	Triumph Speed Twin (2019-2020) remove
Name	Brough Superior SS100 (1924-1940) remove	BMW R NineT Urban G/S (2021+) remove	Vincent Black Shadow (1948-1955) remove	Triumph Street Twin (2016-2018) remove	Triumph Speed Twin 1200 (2023+) remove	Triumph Speed Twin (2019-2020) remove
Size Estimator (see "About" page to learn more)
Length	2249 mm (estimated)	2175 mm	2136 mm (estimated)	2090 mm	2099 mm	2078 mm (estimated)
Width	-	865 mm (incl. hand levers)	-	785 mm	778 mm (handlebars)	760 mm (handlebars)
Height	1128 mm (estimated)	1330 mm (incl. mirrors)	1079 mm (estimated)	1114 mm without mirrors	1097 mm	1110 mm
Seat Height	-	850 mm	826 mm	750 mm	809 mm	807 mm
Weight	154 kg wet	223 kg wet	227 kg wet	215 kg wet	216 kg wet	196 kg wet
Engine	980-1150 cc V-Twin, air-cooled, carbureted	1170 cc, 2-cylinder boxer, air/oil cooled	998 cc V-Twin, air-cooled, carbureted	900cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank	1200 cc Parallel Twin, liquid-cooled, 270º crank	1200 cc Parallel Twin, liquid-cooled, 270º crank
Power	- 988 cc: 45 hp @ 4500 rpm - 996 cc Pendine: 73 hp @ 6200 rpm	109 hp @ 7250 rpm	55 hp @ 5500 rpm	54 hp @ 5900 rpm	98,6 hp @ 7250 rpm	96 hp @ 6750 rpm
Torque	-	116 Nm @ 6000 rpm	75 Nm @ 4000 rpm	80 Nm @ 3230 rpm	112 Nm @ 4250 rpm	112 Nm @ 4950 rpm
Transmission	3-speed, 4-speed, chain final drive	6-speed, single dry plate hydraulic clutch, shaft final drive	4-speed, chain final drive	5-speed, Wet multi-plate assist clutch, chain final drive	6-speed, Wet multi-plate slip/assist clutch, chain final drive	6-speed, Wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity	-	17 liters	16 liters	12 liters	14,5 liters	14,5 liters
Suspension	- Front: Friction-damper fork, Harley-Davidson style Castle fork - Rear: rigid or sprung (Alpine Grand Sports model)	- Front: 43 mm telescopic fork, 125 mm travel - Rear: BMW Motorrad paralever, central spring strut, adjustable preload (remote), adjustable rebound damping, 140 mm travel	- Front: Vincent Girdaulic fork - Rear: twin-shocks	- Front: KYB 41mm cartridge forks, 120 mm travel - Rear: KYB twin shocks with adjustable preload, 120 mm travel	– Front: 43 mm USD Marzocchi fork, 120 mm travel – Rear: twin shocks, adjustable preload, 120 mm travel	– Front: 41 mm cartridge forks, 120 mm travel – Rear: twin shocks, adjustable preload, 120 mm travel
Tyres	-	- Front: 120/70-19 - Rear: 170/60-17	- Front: 3.00 – 20/21 - Rear: 3.5 – 19/20	- Front: 100/90-18 - Rear: 150/70-17 - Tubeless	- Front: 120/70-17 - Rear: 160/60-17	- Front: 120/70-17 - Rear: 160/60-17
Brakes	- Front: drum - Rear: drum	- Front: 320 mm discs, 4-piston calipers - Rear: 265 mm disc, 2-piston floating caliper - cornering ABS	- Front: drums - Rear: drums	- Front: 310mm disc, Nissin 2-piston floating caliper - Rear: 255mm disc, Nissin 2-piston floating caliper - ABS available	- Front: 320 mm discs, Brembo M50 radial monobloc 4-piston calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available	- Front: 305 mm discs, Brembo 4-piston calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available
Instruments	Analogue speedometer, odometer, another meter	Analogue speedometer, digital odometer	Analogue speedometer, odometer, another meter and something on top of the headlight	Analogue speedometer, LCD display with odometer, gear indicator, fuel gauge, range to empty indication, clock, trip computer	Analogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumption	Analogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumption
Other	Headlight	LED lights, Riding modes, USB, self-cancelling indicators	Headlight	LED brake light, switchable Traction Control, riding modes, Immobiliser, USB socket	LED lights, switchable traction control, riding modes, USB under seat	Led tail light and indicators, switchable traction control, riding modes, USB under seat
