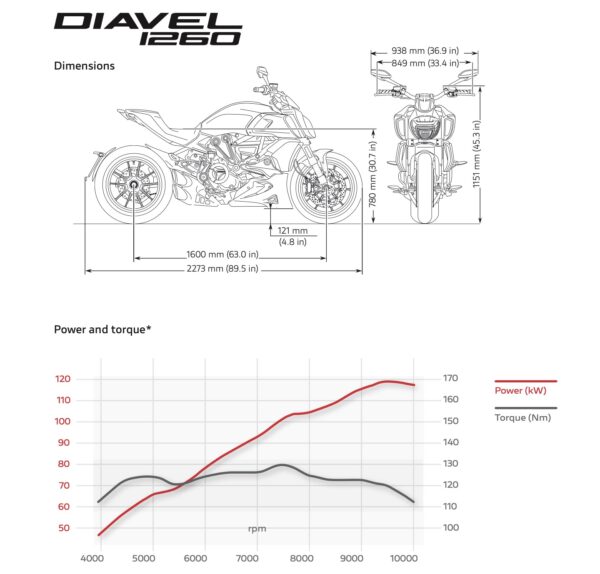

Ducati Diavel 1260 dimensions, torque and power curve
Ducati Diavel 1260 (2019-2022) front
Ducati Diavel 1260 (2019-2022) back

Ducati Diavel 1260 (2019-2022)

Ducati Diavel 1260 (2019-2022)

Category: Tag:
Share:

Specifications

Engine

1262 cc L-twin, liquid-cooled

Power

157 hp @ 9250 rpm

Power to weight

63 HP/Kg x 100

Torque

129 Nm @ 7500 rpm

Torque to weight

52 Nm/Kg x 100

Transmission

6-speed, wet multi-plate slip/assist hydraulic clutch, chain final drive

Fuel Capacity

16 liters

Length

2273 mm

Width

849 mm (excl. mirrors)

Height

1151 mm

Weight

249 kg wet

Seat Height

780 mm

Suspension

– Front: 50 mm inverted fork, fully adjustable, 120 mm travel
– Rear: mono-shock, adjustable preload and rebound, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 240/45-17

Brakes

– Front: 320 mm semi-floating discs, Brembo monobloc 4-piston radial calipers
– Rear: 265 mm disc, 2-piston caliper
– cornering ABS available

Instruments

– TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock

Other

– LED lights, self-cancelling indicators
– Riding modes, traction control, power modes, wheelie control, launch control, engine brake control
– Cruise control
