Ducati Monster 1200 R (2016-2019)

Monster 1200R


Brand: Style:
Share:

Specifications

Engine

1198 cc L-twin, liquid-cooled

Power

160 hp @ 9250 rpm

Power to weight ratio

77 HP/100kg

Torque

131 Nm @ 7750 rpm

Torque to weight ratio

63 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist hydraulic clutch
– Chain final drive

Fuel Capacity

17.5 liters

Length

2119 mm (estimated)

Width

?

Height

1234 mm (estimated)

Weight

207 kg wet

Seat Height

830 mm

Suspension

– Front: Öhlins 48 mm USD inverted fork, fully adjustable, 130 mm travel
– Rear: Öhlins mono-shock with piggy-back reservoir, fully adjustable, 159 mm travel

Tyres

– Front: 120/70-17
– Rear: 200/55-17

Brakes

– Front: 330 mm semi-floating discs, Brembo evo M50 monobloc 4-piston radial calipers
– Rear: 245 mm floating disc, Brembo 1-piston floating caliper
– ABS available (3 levels, switchable)

Instruments

TFT display with speedometer, tachometer, odometer, gear indicator, trip meters, trip fuel reserve, engine and ambient temperature, average and instant consumption, average speed, lap times, clock

Other

– LED taillight and indicators
– Riding modes, traction control, wheelie control
– Öhlins steering damper

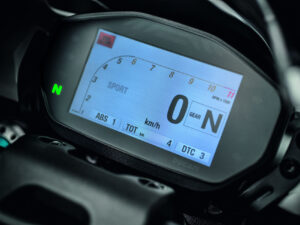

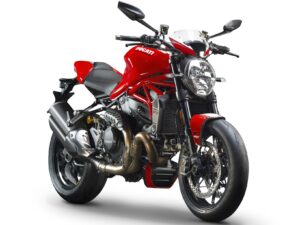

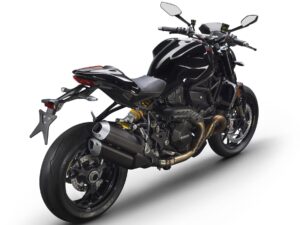

Ducati Monster 1200 R 2016 dashboard Ducati Monster 1200 R 2016 front Ducati Monster 1200 R 2016 rear
