Ducati Panigale V2 2023 White Rosso Livery

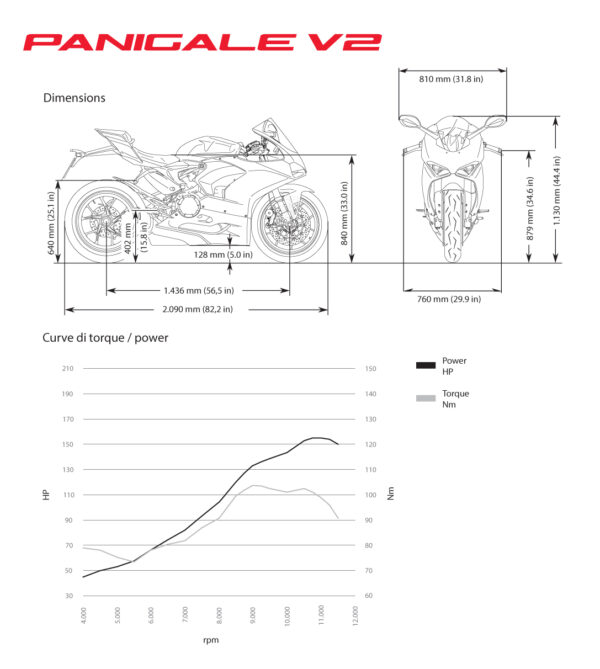

ducati panigale v2 measurements and curves

Ducati Panigale V2 (2020+)

Name: Ducati Panigale V2 (2020+)
SKU: 808
Price: 155 MOP
Availability: InStock

—

Category: Ducati Tag: Sport

Specifications

Engine	955 cc L-Twin, liquid-cooled
Power	155 hp @ 10750 rpm
Torque	104 Nm @ 9000 rpm
Transmission	6-speed, quick-shifter, Wet multi-plate slip/assist hydraulic clutch, chain final drive
Fuel Capacity	17 liters
Length	2090 mm
Width	810 mm
Height	1130 mm
Weight	200 kg wet
Seat Height	840 mm
Suspension	– Front: Showa 43 mm inverted forks, fully adjustable, 120 mm travel – Rear: Sachs shock, fully adjustable, 120 mm travel
Tyres	– Front: 120/70-17 – Rear: 180/60-17
Brakes	– Front: 2x 320 mm semi-floating discs, Brembo 4-piston caliper – Rear: 245 mm disc, 2-piston caliper – cornering ABS available
Instruments	TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock
Other	LED lights, Sachs steering damper, self-cancelling indicators, riding modes, power modes, traction control, wheelie control, engine brake control, auto tyre calibration

Dashboard / Support us

Panigale V2 T-shirts, mugs, stickers and more:

Quick Comparison

Settings	Ducati Panigale V2 (2020+) remove	Kawasaki Ninja 650 (2023+) remove	Kawasaki Ninja 250R (2008-2012) remove	Ducati Supersport 950 (2021+) remove	Triumph Thruxton RS (2020+) remove	Kawasaki Ninja H2 (2019+) remove
Name	Ducati Panigale V2 (2020+) remove	Kawasaki Ninja 650 (2023+) remove	Kawasaki Ninja 250R (2008-2012) remove	Ducati Supersport 950 (2021+) remove	Triumph Thruxton RS (2020+) remove	Kawasaki Ninja H2 (2019+) remove
Size Estimator (see "About" page to learn more)
Length	2090 mm	2056 mm	2080 mm	2140 mm	2105 mm	2085 mm
Width	810 mm	750 mm	711 mm	750 mm (handlebars)	745 mm	770 mm
Height	1130 mm	1145 mm	1115 mm	1150/1186 mm (low/high screen position)	1030 mm	1125 mm
Seat Height	840 mm	790 mm	780 mm	810 mm	810 mm	825 mm
Weight	200 kg wet	192 kg wet	170 kg wet	210 kg wet	197 kg wet	238 kg wet
Engine	955 cc L-Twin, liquid-cooled	650 cc Parallel Twin, liquid-cooled	249 cc Parallel Twin, liquid-cooled, carburated	937 cc L-Twin, liquid-cooled, 90º crank	1200 cc Parallel Twin, liquid-cooled, 270º crank	998 cc Supercharged Inline-4, liquid-cooled
Power	155 hp @ 10750 rpm	67 hp @ 8000 rpm	30 hp @ 10500 rpm	111 hp @ 9000 rpm	103 hp @ 7500 rpm	231 hp @ 11500 rpm
Torque	104 Nm @ 9000 rpm	64 Nm @ 6500 rpm	21,7 Nm @ 10000 rpm	93 Nm @ 6500 rpm	112 Nm @ 4250 rpm	141,7 Nm @ 11000 rpm
Transmission	6-speed, quick-shifter, Wet multi-plate slip/assist hydraulic clutch, chain final drive	6-speed, Wet multi-plate slip/assist clutch, chain final drive	6-speed, Wet multi-plate clutch, chain final drive	6-speed, Wet multi-plate slip/assist hydraulic clutch, quick-shifter, chain final drive	6-speed, Wet multi-plate slip/assist clutch, chain final drive	6-speed, slip/assist clutch, quick-shifter, chain final drive
Fuel Capacity	17 liters	15 liters	18,2 liters	16 liters	14,5 liters	17 liters
Suspension	- Front: Showa 43 mm inverted forks, fully adjustable, 120 mm travel - Rear: Sachs shock, fully adjustable, 120 mm travel	- Front: telescopic fork, 125 mm travel - Rear: Horizontal Back-link single-shock, adjustable preload, 130 mm travel	- Front: 37 mm telescopic fork, 119 mm travel - Rear: mono-shock, adjustable preload, 130 mm travel	- Front: 43 mm inverted fork, fully adjustable, 130 mm travel - Rear: mono-shock, adjustable preload, 144 mm travel	– Front: Showa 43 mm inverted forks, fully adjustable, 120 mm travel – Rear: Öhlins twin shocks with Piggyback reservoir, fully adjustable, 120 mm travel	- Front: 43 mm inverted fork, rebound and compression damping and spring preload adjustability, 120 mm travel - Rear: gas-charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability, 135 mm travel
Tyres	- Front: 120/70-17 - Rear: 180/60-17	- Front: 120/70-17 - Rear: 160/60-17	- Front: 110/70-17 - Rear: 130/70-17	- Front: 120/70-17 - Rear: 180/55-17	- Front: 120/70-17 - Rear: 160/60-17	- Front: 120/70-17 - Rear: 200/55-17
Brakes	- Front: 2x 320 mm semi-floating discs, Brembo 4-piston caliper - Rear: 245 mm disc, 2-piston caliper - cornering ABS available	- Front: 2x300 mm semi-floating petal discs, 2-piston calipers - Rear: 220 mm petal disc, 1-piston caliper - ABS available	- Front: 290 mm petal disc, 2-piston caliper - Rear: 220 mm petal disc, 2-piston caliper - ABS available	- Front: 320 mm radial semi-floating discs, Brembo 4-piston calipers - Rear: 245 mm disc, 2-piston caliper - cornering ABS available	- Front: Brembo 310 mm floating discs, Brembo 2-piston radial monobloc calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available	- Front: Dual semi-floating 330 mm Brembo discs, Brembo Stylema Radial-mount, monobloc, opposed 4-piston calipers - Rear: 250 mm disc, Brembo opposed 2-piston caliper - cornering ABS available
Instruments	TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock	TFT screen with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, remaining range, current and average fuel consumption, clock	Analogue speedometer and tachometer, odometer, trip meter, fuel gauge	TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock	Analogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumption	Analogue tachometer, LCD display with speedometer, odometer, gear indicator, dual trip meters
Other	LED lights, Sachs steering damper, self-cancelling indicators, riding modes, power modes, traction control, wheelie control, engine brake control, auto tyre calibration	LED headlights, smartphone connectivity, traction control	-	LED lights, riding modes, power modes, cornering traction control, wheelie control	Led tail light, switchable traction control, riding modes, USB under seat	LED headlights, cornering traction control, riding modes, engine brake control, smartphone connectivity, silver-mirror paint
Dashboard / Support us	Panigale V2 T-shirts, mugs, stickers and more:	T-shirts, mugs, stickers and more:	Ninja 250R t-shirts, mugs, stickers and more:	T-shirts, mugs, stickers and more:	T-shirts, mugs, stickers and more:	T-shirts, mugs, stickers and more:
