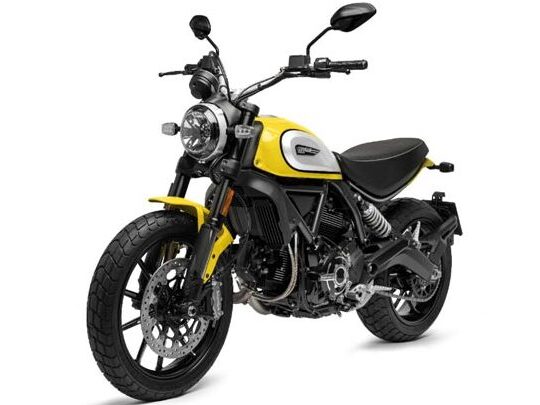

Ducati Scrambler Icon (2019-2022)

Scrambler 800 Icon

Updated: 18 September 2024


Brand: Style:
Share:

Specifications and Features

Engine

803 cc L-twin, air-cooled

Power

73 hp @ 8250 rpm

Power to weight ratio

39 HP/100kg

Torque

66 Nm @ 5750 rpm

Torque to weight ratio

35 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist hydraulic clutch
– Chain final drive

Fuel Capacity

13,5 litres

Length

2100-2165 mm

Width

855 mm

Height

1150 mm

Weight

– 189 kg wet
– Max load: 176 kg

Seat Height

798 mm (optional: 778)

Suspension

– Front: Kayaba 41 mm inverted fork, 150 mm travel
– Rear: Kayaba mono-shock, adjustable preload, 150 mm travel

Tyres

– Front: 110/80-18
– Rear: 180/55-17

Brakes

– Front: 330 mm disc, Brembo monobloc 4-piston radial caliper
– Rear: 245 mm disc, Brembo 1-piston floating caliper
– Cornering ABS available

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, dual trip meters, range, ambient temperature, clock
– Optional: smartphone connectivity

Other

– LED lights
– USB port under seat, adjustable brake and clutch levers. Optional: heated grips

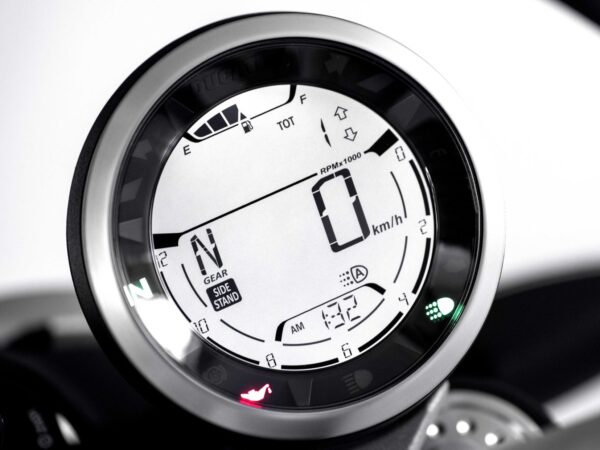

Ducati Scrambler Icon 2020 dashboard Ducati Scrambler Icon 2019 back Ducati Scrambler Icon 2019 orange back
