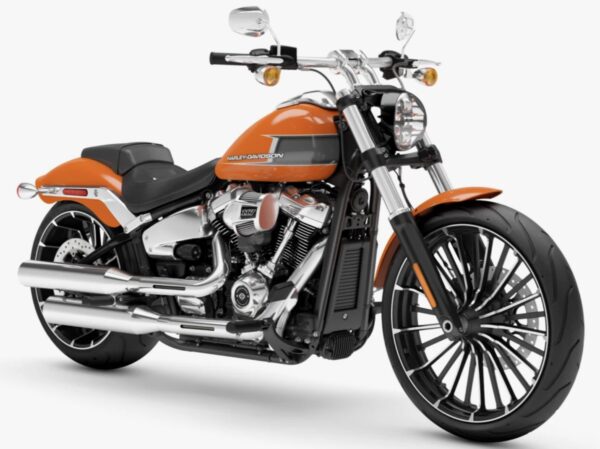

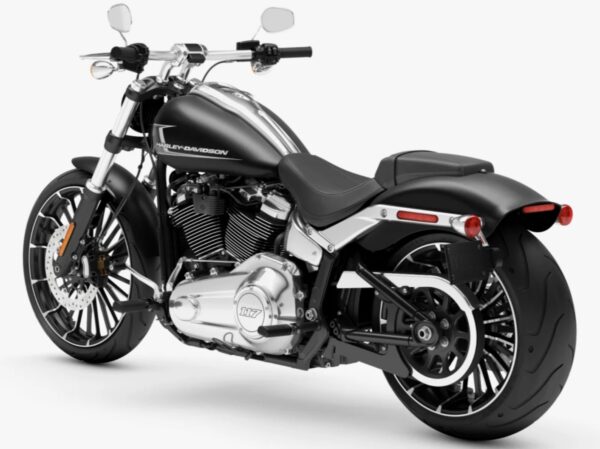

Harley-Davidson Breakout (2023+)

Harley-Davidson Breakout (2023+)

FXBR Breakout 117


Category: Tag:

Specifications

Engine

1923 cc V-Twin, air/oil cooled

Power

101 hp @ 4750 rpm

Torque

167 Nm @ 3500 rpm

Transmission

6-speed, multi-plate wet slip/assist clutch, belt final drive

Fuel Capacity

18,9 liters

Length

2370 mm

Width

950 mm

Height

1085 mm

Weight

310 kg wet

Seat Height

665 mm

Suspension

– Front: 49 mm telescopic fork, 130 mm travel
– Rear: mono-shock, preload adjustable (remote), 86 mm travel

Tyres

– Front: 130/60-21
– Rear: 240/40-18

Brakes

– Front: 300 mm floating discs, 4-piston caliper
– Rear: 292 mm floating disc, 2-piston floating caliper
– ABS available

Instruments

LCD display with speedometer, odometer, tachometer, gear indicator, fuel gauge, trip meter, range to empty, clock

Other

LED headlight, cruise control

Dashboard / Support us

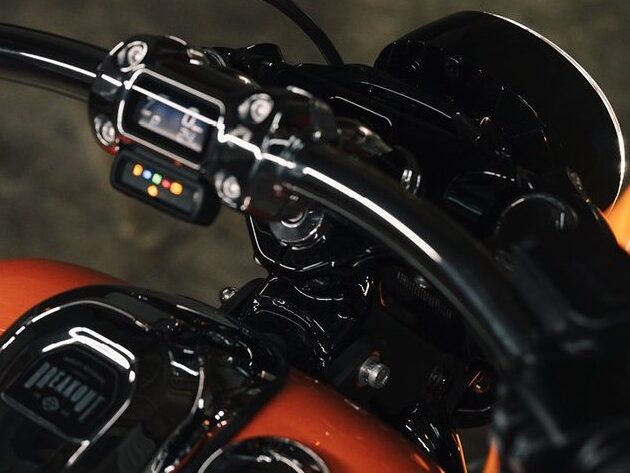

Harley-Davidson Breakout 117 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsHarley-Davidson Breakout (2023+) removeHonda Shadow Phantom (2009+) removeHarley-Davidson Iron 883 (2015-2021) removeHarley-Davidson Heritage Classic 114 (2018+) removeHonda Rebel 500/CMX500 (2020+) removeHonda Rebel 1100/CMX1100 (2021+) remove
NameHarley-Davidson Breakout (2023+) removeHonda Shadow Phantom (2009+) removeHarley-Davidson Iron 883 (2015-2021) removeHarley-Davidson Heritage Classic 114 (2018+) removeHonda Rebel 500/CMX500 (2020+) removeHonda Rebel 1100/CMX1100 (2021+) remove

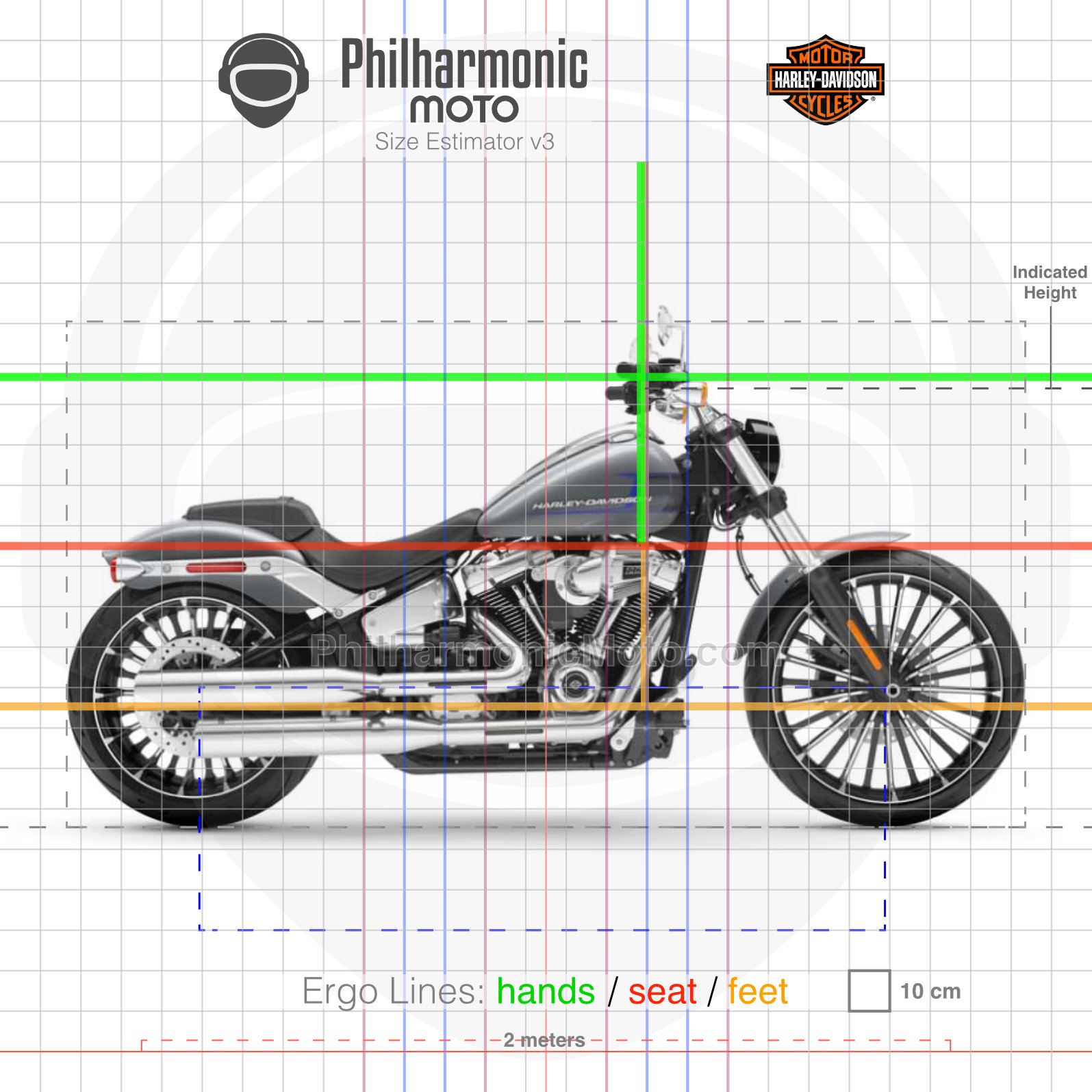

Size Estimator (see "About" page to learn more)Harley-Davidson Breakout 117 2023 Atlas Silver MetallicHonda Shadow Phantom 2022 adventure greenHarley-Davidson-Sportster-Iron-883-2019-rugged-gold-denimHarley-Davidson Softail Heritage Classic 114 2021 deadwood green vivid black-01Honda Rebel 500 cmx500 2020 Matte Axis Grey MetallicHonda Rebel 1100 CMX1100 2022 Bordeaux Red Metallic
Length2370 mm2405 mm2185 mm2415 mm2205 mm2240 mm
Width950 mm825 mm850 mm930 mm820 mm850 mm (830 mm DCT)
Height1085 mm1090 mm1140 mm1370 mm1090 mm1115 mm
Seat Height665 mm650 mm760 mm680 mm690 mm700 mm
Weight310 kg wet250 kg wet256 kg wet330 kg wet191 kg wet223 kg wet (233 kg DCT)
Engine1923 cc V-Twin, air/oil cooled745 cc V-Twin, liquid cooled883cc V-Twin, air cooled1868cc V-Twin, air/oil cooled, Pushrod-operated, overhead valves471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank1084 cc Parallel-Twin, liquid-cooled, 270º crank
Power101 hp @ 4750 rpm44 hp @ 5500 rpm51 hp @ 6000 rpm94 hp @ 4750 rpm47 hp @ 8500 rpm87 hp @ 7000 rpm
Torque167 Nm @ 3500 rpm62 Nm @ 3500 rpm73 Nm @ 3750 rpm161 Nm @ 3000 rpm45 Nm @ 6000 rpm98 Nm @ 4750 rpm
Transmission6-speed, multi-plate wet slip/assist clutch, belt final drive5-speed, Wet multi-plate, shaft final drive5-speed, wet multi-plate clutch, belt final drive6-speed, 10 plate wet, belt final drive6-speed, slip/assist clutch, chain final drive6-speed (manual or automatic/DCT), slip/assit clutch, chain final drive
Fuel Capacity18,9 liters14 liters12,5 liters18,9 liters11,2 liters13,6 liters
Suspension- Front: 49 mm telescopic fork, 130 mm travel - Rear: mono-shock, preload adjustable (remote), 86 mm travel- Front: 41 mm telescopic fork, 117 mm travel - Rear: Dual shocks with adjustable preload, 90 mm travel- Front: 39 mm forks, 92 mm travel - Rear: dual shocks, adjustable preload, 41 mm travel- Front: Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers, 130 mm travel - Rear: Hidden, free piston, coil-over mono-shock; 56mm stroke; hydraulic preload adjustment, 112 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 96 mm travel- Front: 43 mm telescopic fork, adjustable preload, 122 mm travel - Rear: twin-shocks, adjustable preload, 94 mm travel
Tyres- Front: 130/60-21 - Rear: 240/40-18- Front: 120/90-17 - Rear: 160/80-15- Front: 100/90-19 - Rear: 150/80-16- Front: 130/90-16 - Rear: 150/80-16- Front: 130/90-16 - Rear: 150/80-16- Front: 130/70-18 - Rear: 180/65-16
Brakes- Front: 300 mm floating discs, 4-piston caliper - Rear: 292 mm floating disc, 2-piston floating caliper - ABS available- Front: 296 mm disc, 2-piston caliper - Rear: 180 mm drum- Front: 300 mm floating disc, 2 piston caliper - Rear: 260 mm disc, 2 piston caliber - ABS available- Front: 300 mm disc, 4-piston fixed caliper - Rear: 292 mm disc, 2-piston floating caliper - ABS available- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available- Front: 300 mm floating disc, 4-piston caliper - Rear: 256 mm disc, 2-piston caliper - ABS available
InstrumentsLCD display with speedometer, odometer, tachometer, gear indicator, fuel gauge, trip meter, range to empty, clockAnalogue speedometer, digital odometerAnalogue speedometer with digital odometer, clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indicationLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gaugeInverted LCD display with speedometer, tachometer, odometer, gear-position, a fuel-indicator, engine output mode, torque control level, engine braking mode
OtherLED headlight, cruise control--LED headlight and auxiliary lights, self-canceling indicators, cruise control, keyless ignitionFull LED lightingFull LED lighting, traction control, cruise control, wheelie control (!), USB-C under seat, three-liter underseat storage
