Harley-Davidson CVO Pan America (2024+)

RA1250SE, Revolution Max 1250 engine


Brand: Style:
Share:

Specifications

Engine

1252 cc V-twin, liquid-cooled

Power

150 hp @ 8750 rpm

Power to weight ratio

50 HP/100kg

Torque

129 Nm @ 6750 rpm

Torque to weight ratio

43 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive
– Quick-shifter

Fuel Capacity

21,2 liters

Length

2345 mm

Width

1095 mm

Height

1510 mm

Weight

299 kg wet

Seat Height

830/855 mm (adjustable)

Suspension

– Front: 47 mm inverted fork, electronically adjustable damping, 191 mm travel
– Rear: mono-shock, electronically adjustable damping and compression, automatic preload, 191 mm travel
– Semi-active suspension with adaptive rider height

Tyres

– Front: 120/70-19
– Rear: 170/60-17

Brakes

– Front: 320 mm floating discs, monobloc 4-piston radial calipers
– Rear: 280 mm disc, 1-piston floating caliper
– electronic linked braking
– cornering ABS available

Instruments

– 6.8" TFT touchscreen with speedometer, tachometer, odometer, gear indicator, fuel gauge, range, trip meter, engine and ambient temperature, low temperature alert, clock
– smartphone connectivity

Other

– LED lights, self-cancelling indicators, cornering lights, fog lights
– Riding modes, cornering traction control, wheelie control
– Cruise control, TPMS, hill-hold, USB-C port, keyless ignition, centre stand
– Aluminium luggage, crash bars

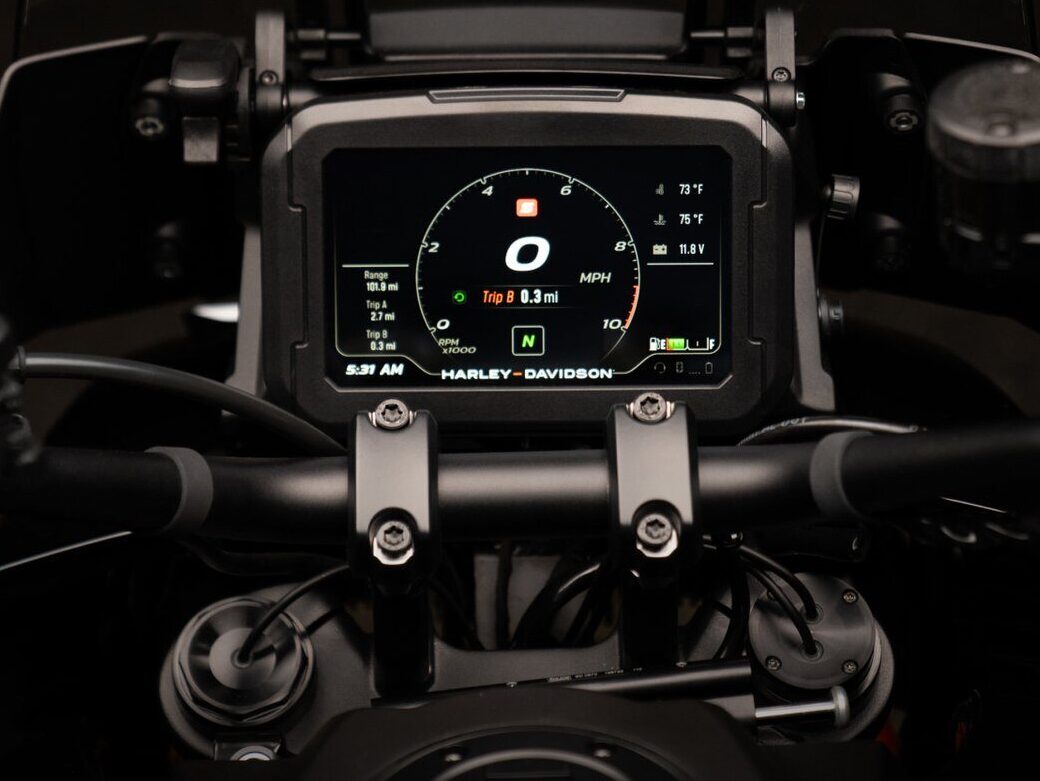

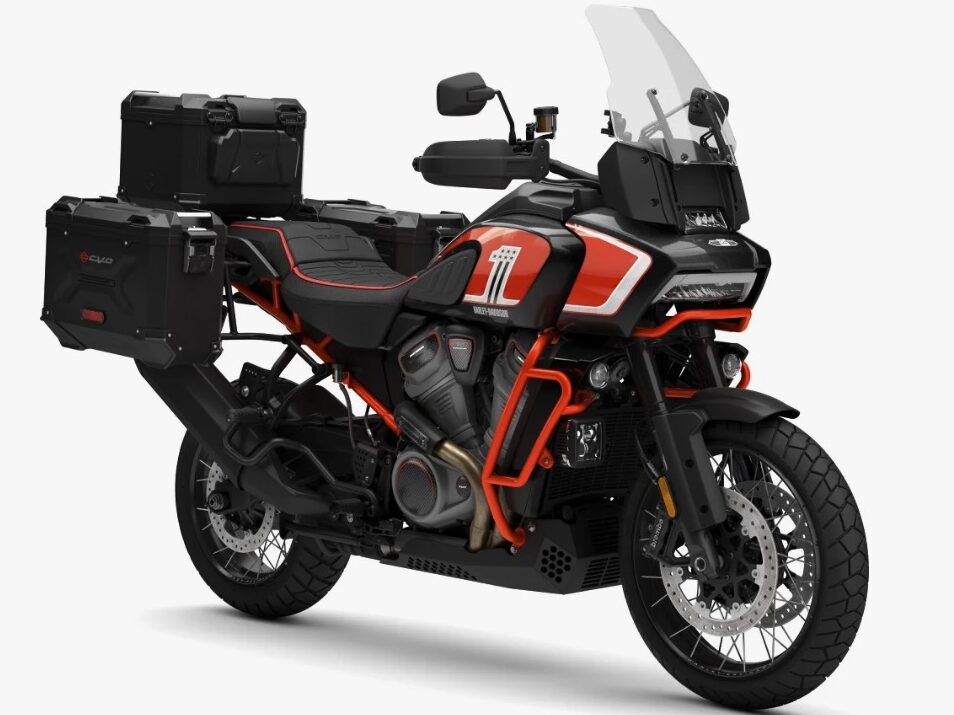

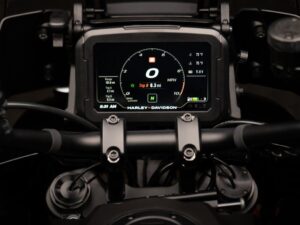

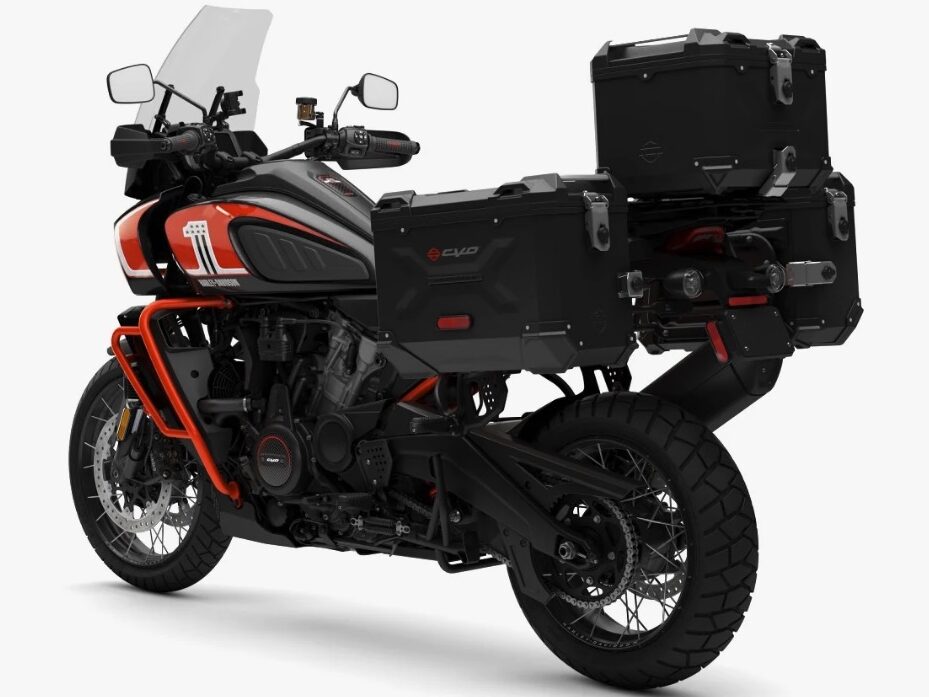

Harley-Davidson CVO Pan America 2024 dashboard Harley-Davidson CVO Pan America 2024 Legendary Orange Black front Harley-Davidson CVO Pan America 2024 Legendary Orange Black back
