Harley-Davidson Iron 1200 (2018-2021)

XL1200NS, Sportster Iron 1200

Brand: Style:
Share:

Specifications and Features

Engine

1202 cc V-twin, air-cooled

Power

60 hp @ 6000 rpm

Power to weight ratio

23 HP/100kg

Torque

99 Nm @ 3500 rpm

Torque to weight ratio

39 Nm/100kg

Transmission

– 5-speed, wet multi-plate clutch
– Belt final drive

Fuel Capacity

12,5 litres

Length

2200 mm

Width

915 mm

Height

1240 mm

Weight

– 256 kg wet
– Max load: 198 kg

Seat Height

735 mm

Suspension

– Front: 39 mm telescopic fork, 92 mm travel
– Rear: twin-shocks, adjustable preload, 41 mm travel

Tyres

– Front: 100/90-19
– Rear: 150/80-16

Brakes

– Front: 300 mm floating disc, 2-piston caliper
– Rear: 260 mm disc, 2-piston caliper
– ABS available

Instruments

Analogue speedometer, LCD display with tachometer, odometer, gear indicator, low fuel warning light, dual tripmeter, clock

Other

– Self-cancelling indicators
– Optional: keyless ignition

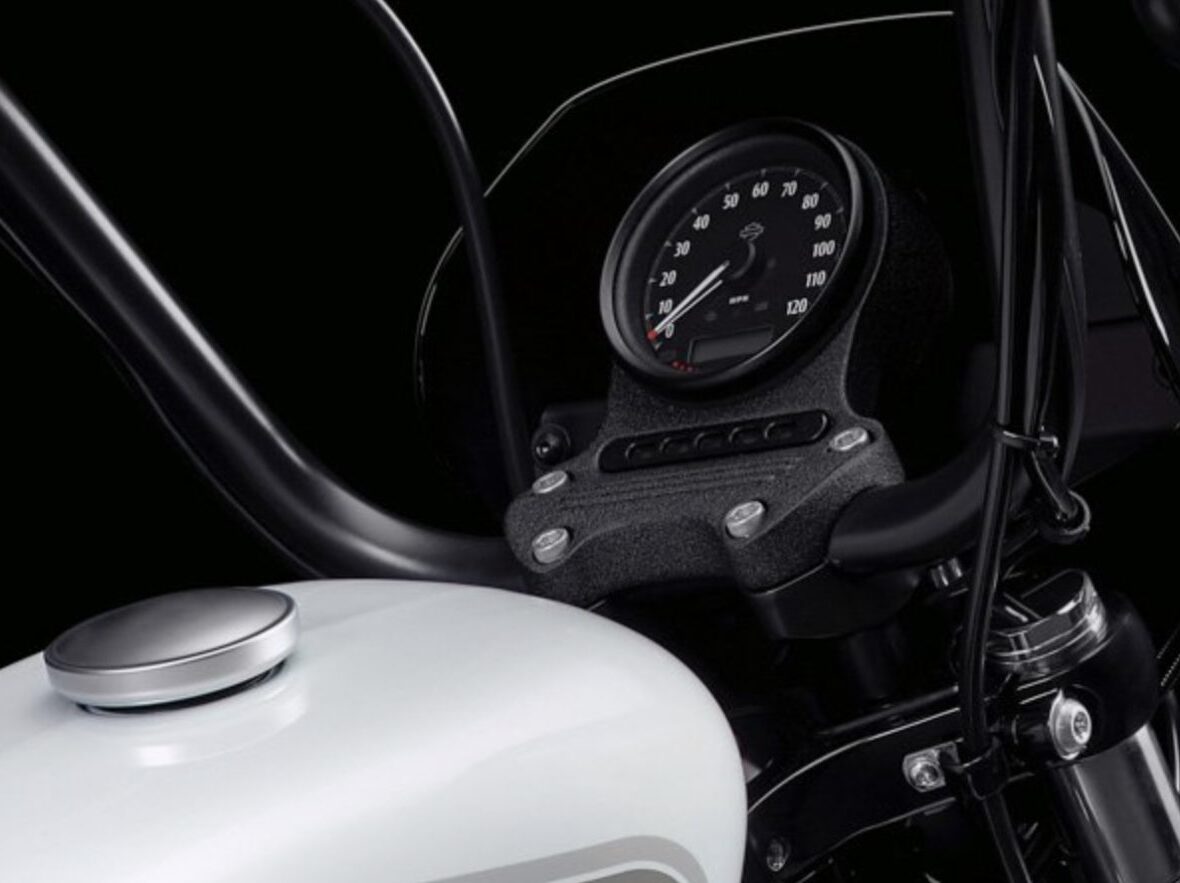

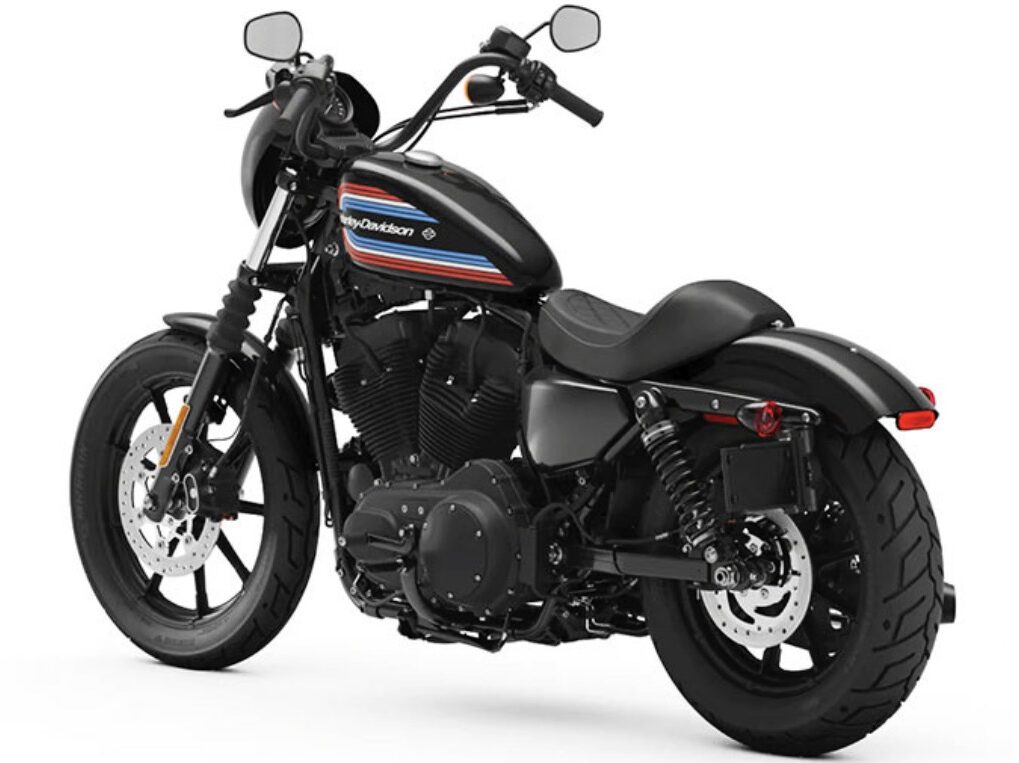

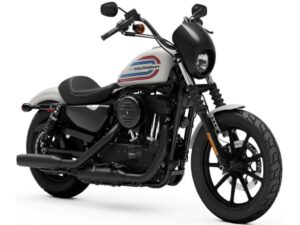

Harley-Davidson Iron 1200 dashboard Harley-Davidson Sportster Iron 1200 2021 front Harley-Davidson Sportster Iron 1200 2021 back
