Harley-Davidson Low Rider S 2023 White Sand Pearl

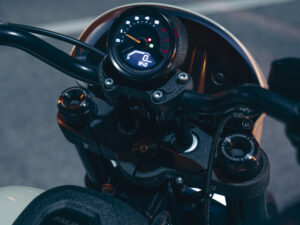

Harley-Davidson Low Rider S 2023 dashboard

Harley-Davidson Low Rider S (2023+)

Name: Harley-Davidson Low Rider S (2023+)
SKU: 1649
Price: 103 MOP
Availability: InStock

FXLRS Low Rider S 117

Category: Harley-Davidson Tag: Cruiser

Specifications

Engine	1923 cc V-Twin, air/oil cooled
Power	103 hp @ 4750 rpm
Torque	169 Nm @ 3500 rpm
Transmission	6-speed, multi-plate wet slip/assist clutch, belt final drive
Fuel Capacity	18,9 liters
Length	2365 mm
Width	870 mm
Height	1195 mm
Weight	308 kg wet
Seat Height	710 mm
Suspension	– Front: 43 mm inverted fork, 130 mm travel – Rear: mono-shock, preload adjustable, 112 mm travel
Tyres	– Front: 110/90-19 – Rear: 180/70-16
Brakes	– Front: 300 mm floating discs, 4-piston caliper – Rear: 292 mm floating disc, 2-piston floating caliper – ABS available
Instruments	Analogue tachometer, LCD display with speedometer, odometer, gear indicator, fuel gauge, trip meter, range to empty, clock
Other	LED headlight, cruise control, USB-A socket

Dashboard / Support us

T-shirts, mugs, stickers and more:

Quick Comparison

Settings	Harley-Davidson Low Rider S (2023+) remove	Triumph Bonneville Speedmaster (2021+) remove	Honda Rebel 500/CMX500 (2017-2019) remove	Kawasaki Vulcan S (2015-2016) remove	Honda Shadow Phantom (2009+) remove	Indian Scout Bobber (2020+) remove
Name	Harley-Davidson Low Rider S (2023+) remove	Triumph Bonneville Speedmaster (2021+) remove	Honda Rebel 500/CMX500 (2017-2019) remove	Kawasaki Vulcan S (2015-2016) remove	Honda Shadow Phantom (2009+) remove	Indian Scout Bobber (2020+) remove

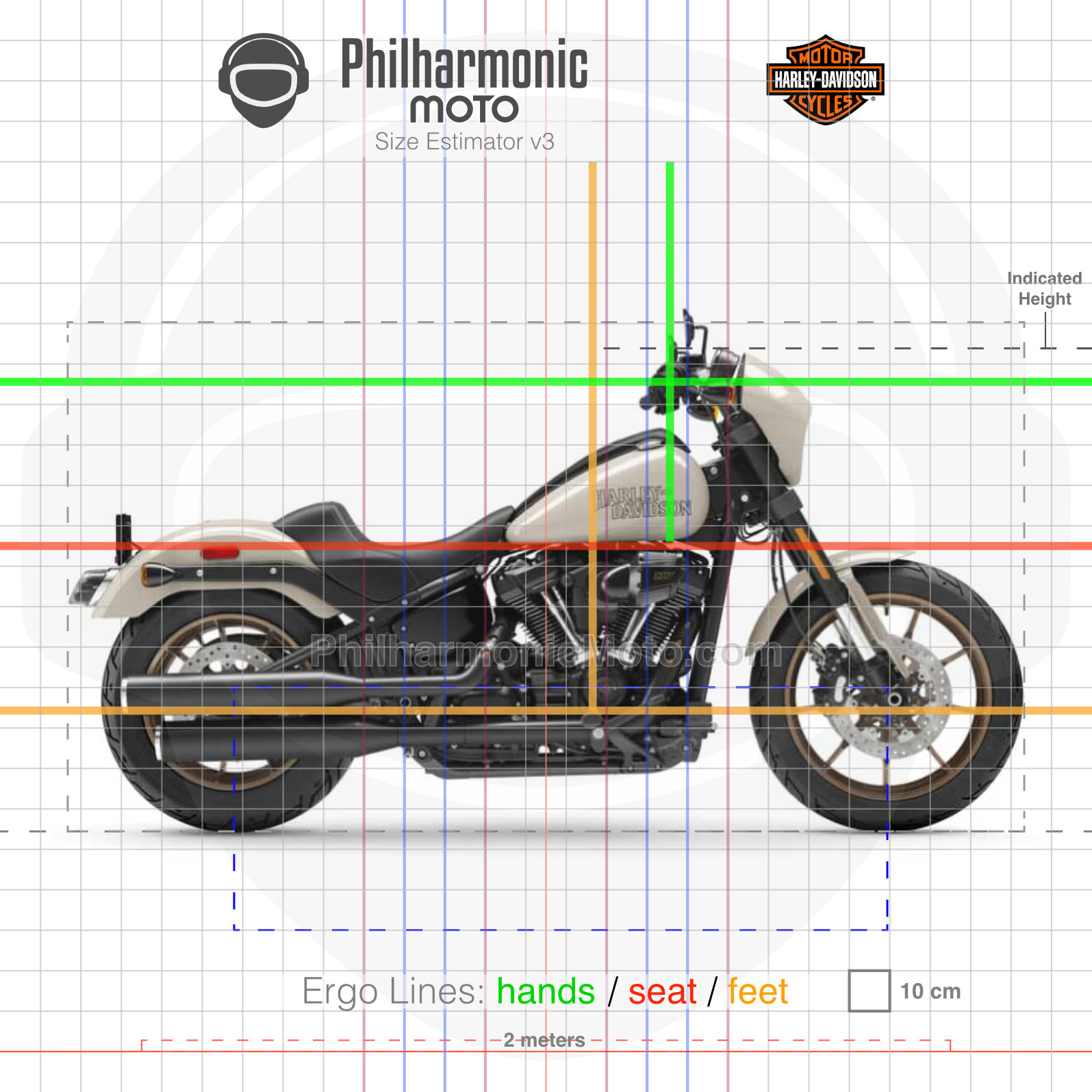

Size Estimator (see "About" page to learn more)
Length	2365 mm	2225 mm	2188 mm	2310 mm	2405 mm	2223 mm
Width	870 mm	910 mm	820 mm	880 mm	825 mm	926 mm
Height	1195 mm	1055 mm	1094 mm	1100 mm	1090 mm	1053 mm
Seat Height	710 mm	705 mm	690 mm	705 mm	650 mm	649 mm
Weight	308 kg wet	263 kg wet	190 kg wet	225 / 228 kg (ABS)	250 kg wet	251 kg wet
Engine	1923 cc V-Twin, air/oil cooled	1200 cc Parallel-Twin, liquid cooled, 270º crank	471 cc Parallel Twin, liquid cooled, 180º crank	649 cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank	745 cc V-Twin, liquid cooled	1133 cc V-Twin, liquid-cooled
Power	103 hp @ 4750 rpm	76 hp @ 6100 rpm	45 hp @ 8500 rpm	61 hp @ 7500 rpm	44 hp @ 5500 rpm	100 hp @ 8100 rpm
Torque	169 Nm @ 3500 rpm	106 Nm @ 4000 rpm	45 Nm @ 6000 rpm	62,4 Nm @ 6600 rpm	62 Nm @ 3500 rpm	97,7 Nm @ 5900 rpm
Transmission	6-speed, multi-plate wet slip/assist clutch, belt final drive	6-speed, Wet multi-plate slip/assist clutch, chain final drive	6-speed, Wet multi-plate assist/slip clutch, chain final drive	6-speed, Wet multi-plate, chain final drive	5-speed, Wet multi-plate, shaft final drive	6-speed, wet multi-plate clutch, belt final drive
Fuel Capacity	18,9 liters	12 liters	11,2 liters	14 liters	14 liters	12,5 liters
Suspension	- Front: 43 mm inverted fork, 130 mm travel - Rear: mono-shock, preload adjustable, 112 mm travel	- Front: Showa 47 mm cartridge forks - Rear: mono-shock RSU with linkage, adjustable preload	- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 96 mm travel	- Front: 41 mm telescopic fork - Rear: Offset laydown single-shock, linkage equipped, with 7-way adjustable preload	- Front: 41 mm telescopic fork, 117 mm travel - Rear: Dual shocks with adjustable preload, 90 mm travel	- Front: 41 mm telescopic fork, 120 mm travel - Rear: twin-shocks, adjustable preload, 51 mm travel
Tyres	- Front: 110/90-19 - Rear: 180/70-16	- Front: MT90B16 - Rear: 150/80-16	- Front: 130/90-16 - Rear: 150/80-16	- Front: 120/70-18 - Rear: 160/60-17	- Front: 120/90-17 - Rear: 160/80-15	- Front: 130/90-16 - Rear: 150/80-16
Brakes	- Front: 300 mm floating discs, 4-piston caliper - Rear: 292 mm floating disc, 2-piston floating caliper - ABS available	- Front: 310 mm discs, Brembo 2-piston calipers - Rear: 255 mm disc, Nissin 1-piston caliper - ABS available	- Front: 296 mm disc, 2-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available	- Front: 300 mm disc, Dual-piston caliper - Rear: 250 mm disc, Single-piston caliper - ABS available	- Front: 296 mm disc, 2-piston caliper - Rear: 180 mm drum	- Front: 298 mm floating disc, 2-piston caliper - Rear: 298 mm floating disc, 1-piston caliper - ABS available
Instruments	Analogue tachometer, LCD display with speedometer, odometer, gear indicator, fuel gauge, trip meter, range to empty, clock	Analogue speedometer, LCD display with odometer, gear indicator, fuel gauge, clock	Digital speedometer, odometer, fuel gauge, clock	Analogue tachometer, digital speedometer, dual trip meter, fuel gauge, clock	Analogue speedometer, digital odometer	Analogue speedometer, Digital tachometer, odometer, trip meter, gear indicator, voltmeter, clock
Other	LED headlight, cruise control, USB-A socket	Led lights, switchable traction control, riding modes, USB under seat, cruise control	-		-	LED turn signals, USB port on dashboard
