Harley-Davidson Pan America 1250 Special (2021+)

RA1250S


Brand: Style:
Share:

Specifications and Features

Engine

1252 cc V-twin, liquid-cooled

Power

150 hp @ 9000 rpm

Power to weight ratio

58 HP/100kg

Torque

127 Nm @ 6750 rpm

Torque to weight ratio

49 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive
– Optional: quick-shifter (from 2022)

Fuel Capacity

21,2 litres

Length

2270 mm

Width

975 mm

Height

1510 mm

Weight

– 258 kg wet
– Max load: 197 kg

Seat Height

850/875 mm (adjustable)

Suspension

– Front: 47 mm inverted fork, electronically adjustable damping, 191 mm travel
– Rear: mono-shock, electronically adjustable damping and compression, automatic preload, 191 mm travel
– Semi-active suspension

Tyres

– Front: 120/70-19
– Rear: 170/60-17

Brakes

– Front: 320 mm floating discs, monobloc 4-piston radial calipers
– Rear: 280 mm disc, 1-piston floating caliper
– cornering ABS available

Instruments

– 6.8" TFT touchscreen with speedometer, tachometer, odometer, gear indicator, fuel gauge, range, trip meter, engine and ambient temperature, low temperature alert, clock
– smartphone connectivity

Other

– LED lights, self-cancelling indicators, cornering lights
– Riding modes, cornering traction control, wheelie control
– Cruise control, TPMS, hill-hold, USB-C port, keyless ignition, centre stand

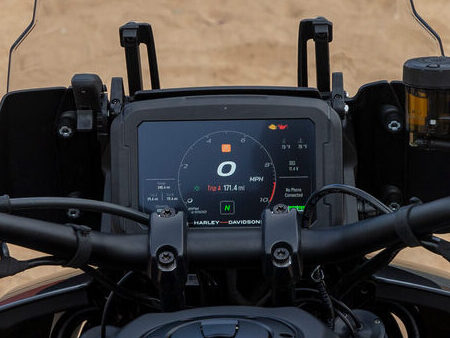

Harley-Davidson Pan America 1250 2022 dashboard Harley-Davidson Pan America 1250 Special 2023 front Harley-Davidson Pan America 1250 Special 2023 back
