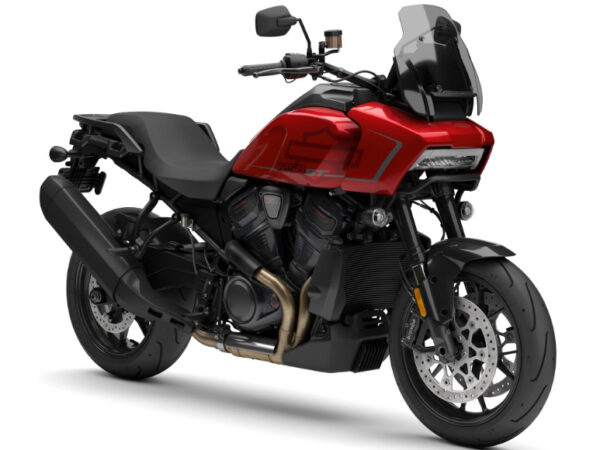

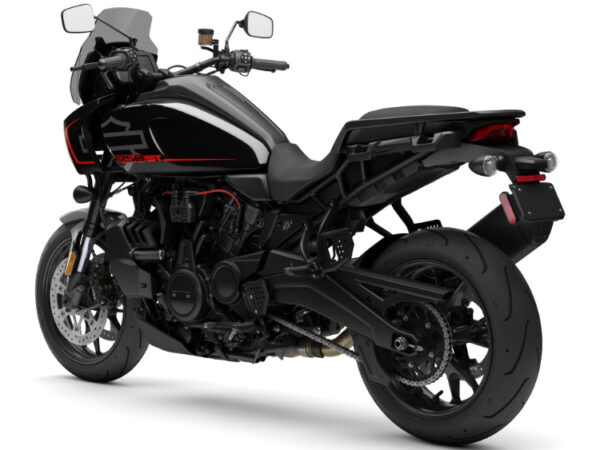

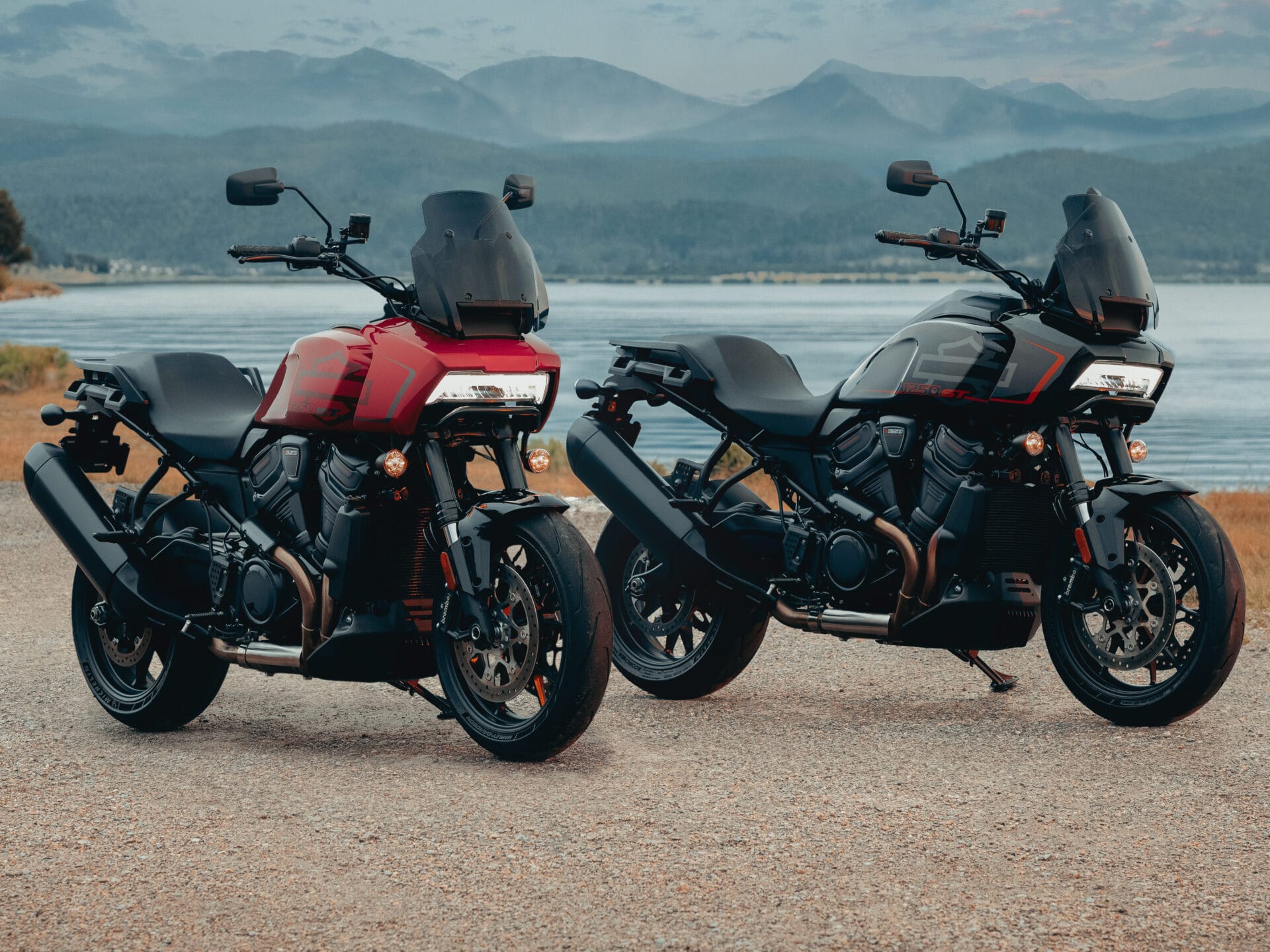

Harley-Davidson Pan America 1250 ST (2025+)
RA1250ST, Revolution Max 1250 engine.
Dashboard picture of the CVO Pan America shown, but the display should be the same.
Ridden in the MCU (Marvel Cinematic Universe) movie “Thunderbolts” (2025) by Bucky Barnes, AKA Winter Soldier.
Updated: 14 August 2025
Specifications and Features
| Length | 2240 mm |
|---|---|
| Width | 895 mm |
| Height | 1330 mm |

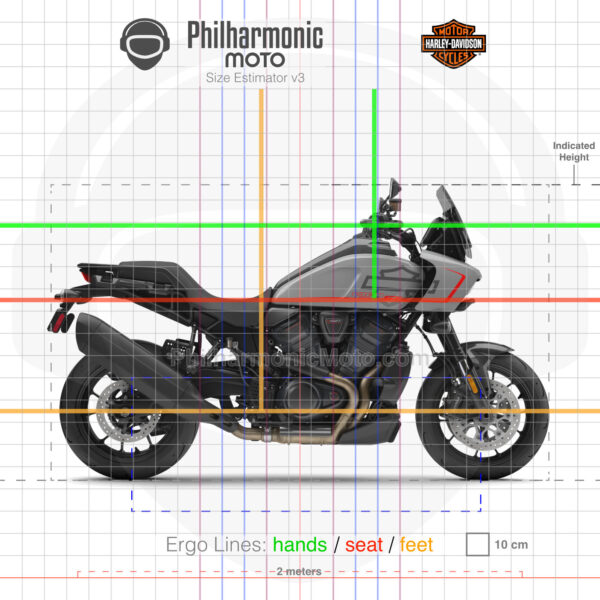

| Seat Height | 814 mm (estimated) |
| Weight | – 246 kg wet |
| Engine | 1252 cc V-twin, liquid-cooled |
| Power | 149 hp @ 8750 rpm |
| Power to weight ratio | 61 HP/100kg |
| Torque | 124 Nm |
| Torque to weight ratio | 50 Nm/100kg |
| Transmission | – 6-speed, wet multi-plate slip/assist clutch |
| Fuel Capacity | 21,2 litres |
| Suspension | – Front: 47 mm inverted fork, fully adjustable, 170 mm travel |
| Tyres | – Front: 120/70-17 (-43 cm) |
| Brakes | – Front: 320 mm floating discs, monobloc 4-piston radial calipers |
| Instruments | – 17 cm (6.8") TFT touchscreen with speedometer, tachometer, odometer, gear indicator, fuel gauge, range, trip meter, ambient and engine temperature, clock |
| Other | – LED lights, self-cancelling indicators, cornering lights |
