Harley-Davidson Road Glide (2017-2022)

FLTRX Road Glide, Milwaukee-Eight 107 engine


Brand: Style:
Share:

Specifications and Features

Engine

1746 cc V-twin, air/oil cooled

Power

93 hp @ 5020 rpm

Power to weight ratio

24 HP/100kg

Torque

151 Nm @ 3250 rpm

Torque to weight ratio

39 Nm/100kg

Transmission

– 6-speed, multi-plate wet slip/assist clutch
– Belt final drive

Fuel Capacity

22,7 litres

Length

2430 mm

Width

980 mm

Height

1310 mm

Weight

– 388 kg wet
– Max load: 229 kg

Seat Height

695 mm

Suspension

– Front: 49 mm telescopic fork, 117 mm travel
– Rear: twin-shocks, preload adjustable (remote), 54 mm travel

Tyres

– Front: 130/60-19
– Rear: 180/55-18

Brakes

– Front: 300 mm floating discs, 4-piston caliper
– Rear: 300 mm disc, 4-piston caliper
– ABS available

Instruments

Analogue tachometer, speedometer, fuel gauge, voltmeter, LCD display with odometer, trip meters, range to empty, gear indicator, 4.3" color display for infotainment system

Other

– LED headlight
– Cruise control, "Electric power accessory port in fairing", audio system, keyless ignition

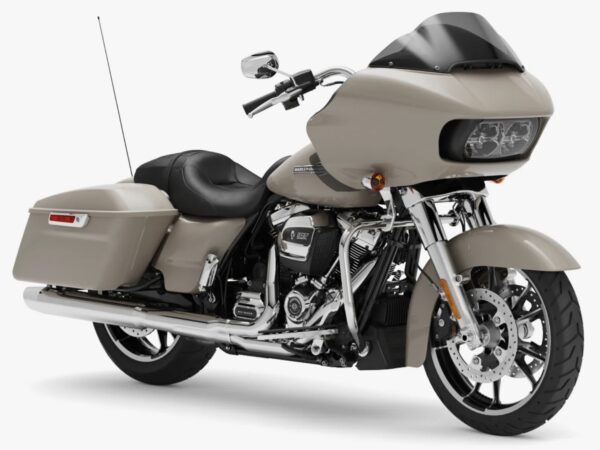

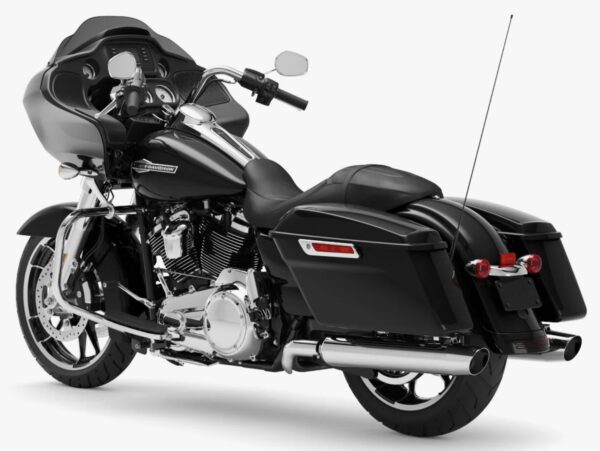

Harley-Davidson Road Glide 2017 dashboard Harley-Davidson Road Glide 2022 front Harley-Davidson Road Glide 2022 back

T-shirts, mugs, stickers and more:

Royal Enfield Meteor 350 fireball red ride tshirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

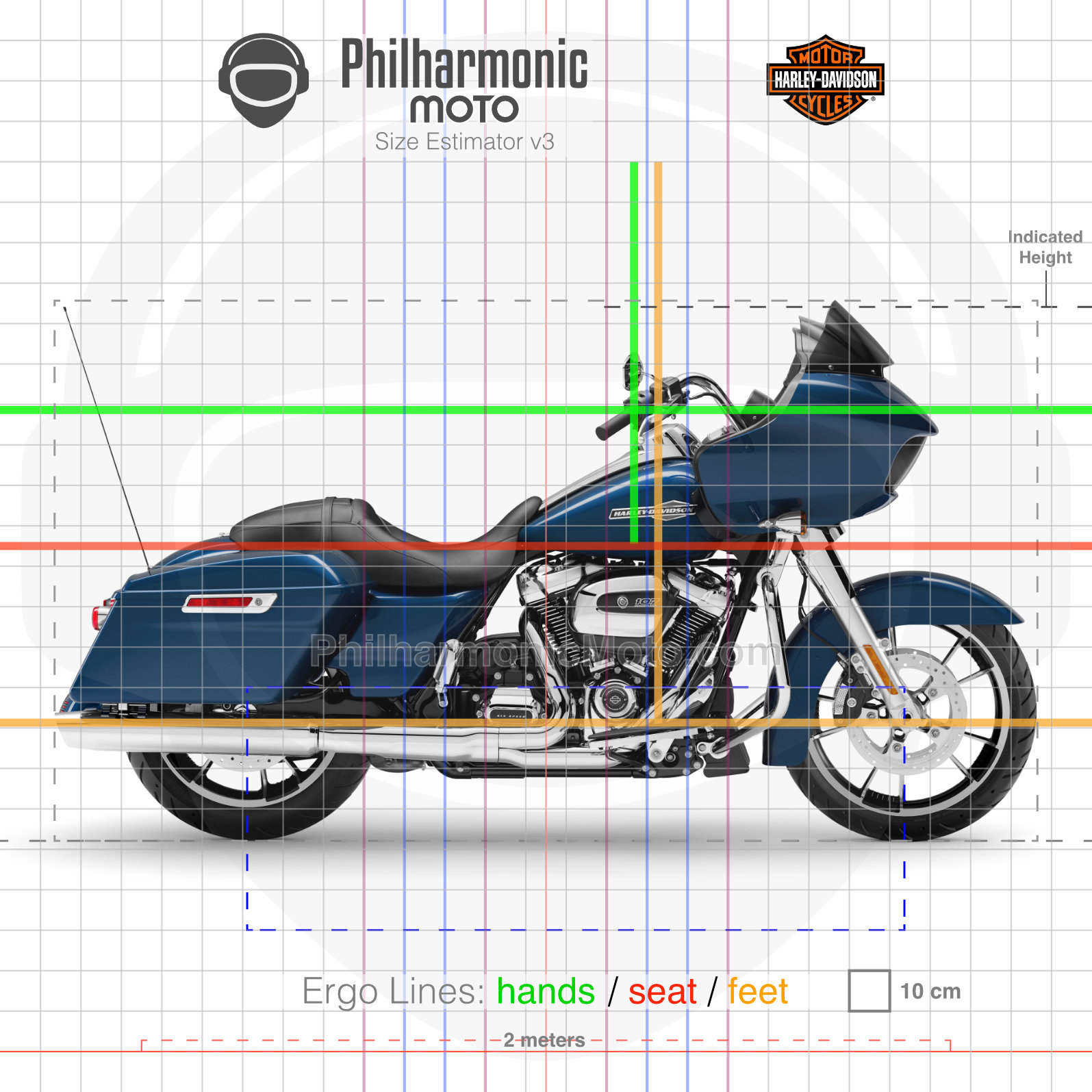

  • Size Estimator (see "About" page to learn more)
