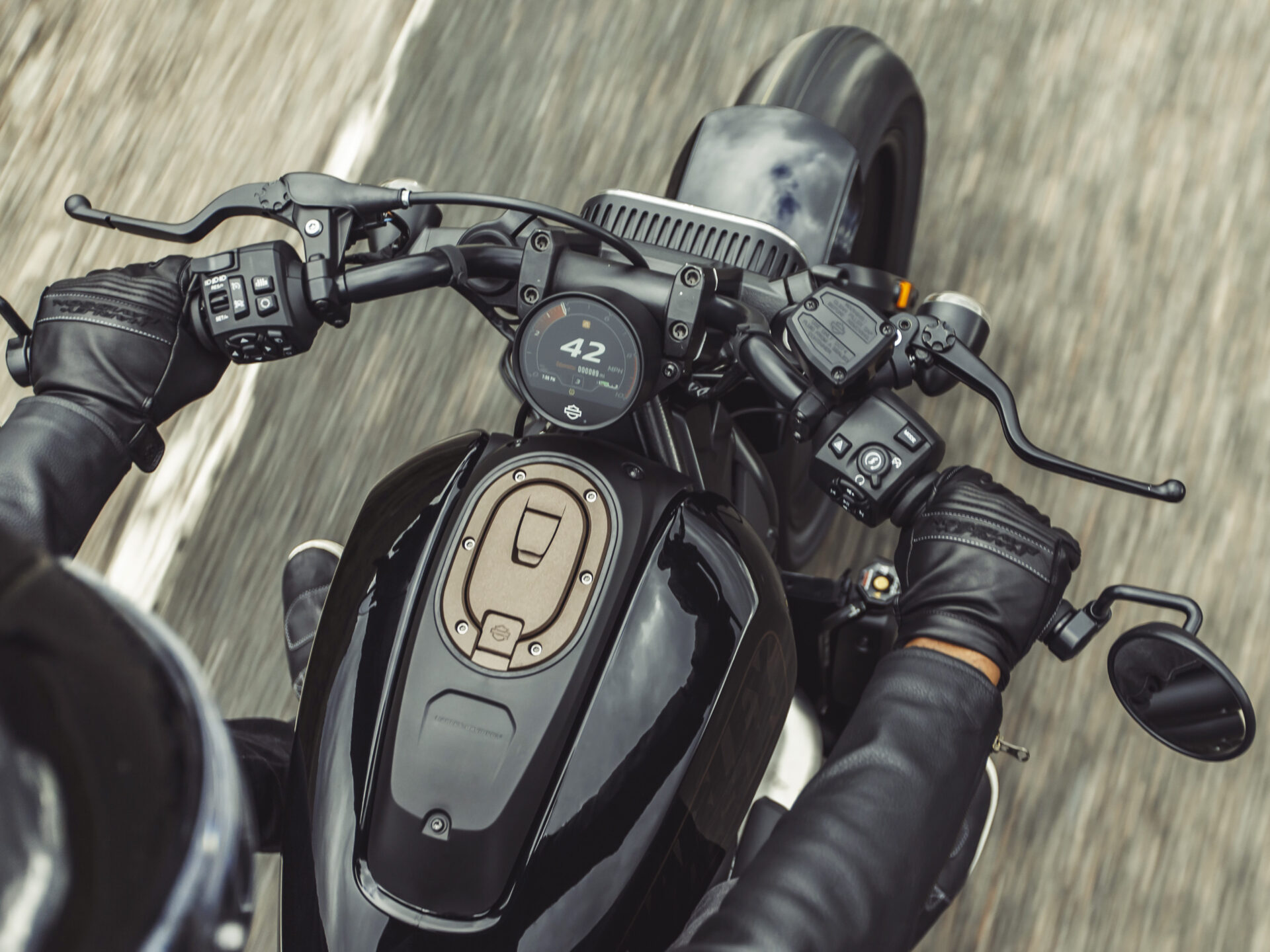

Harley-Davidson Sportster S 2022 dashboard

Harley-Davidson Sportster S 2022 cockpit

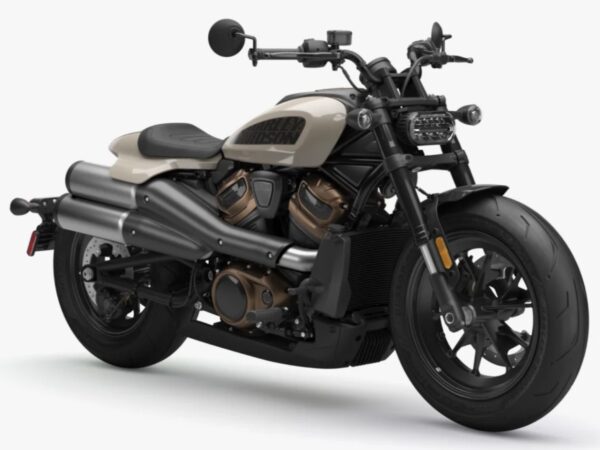

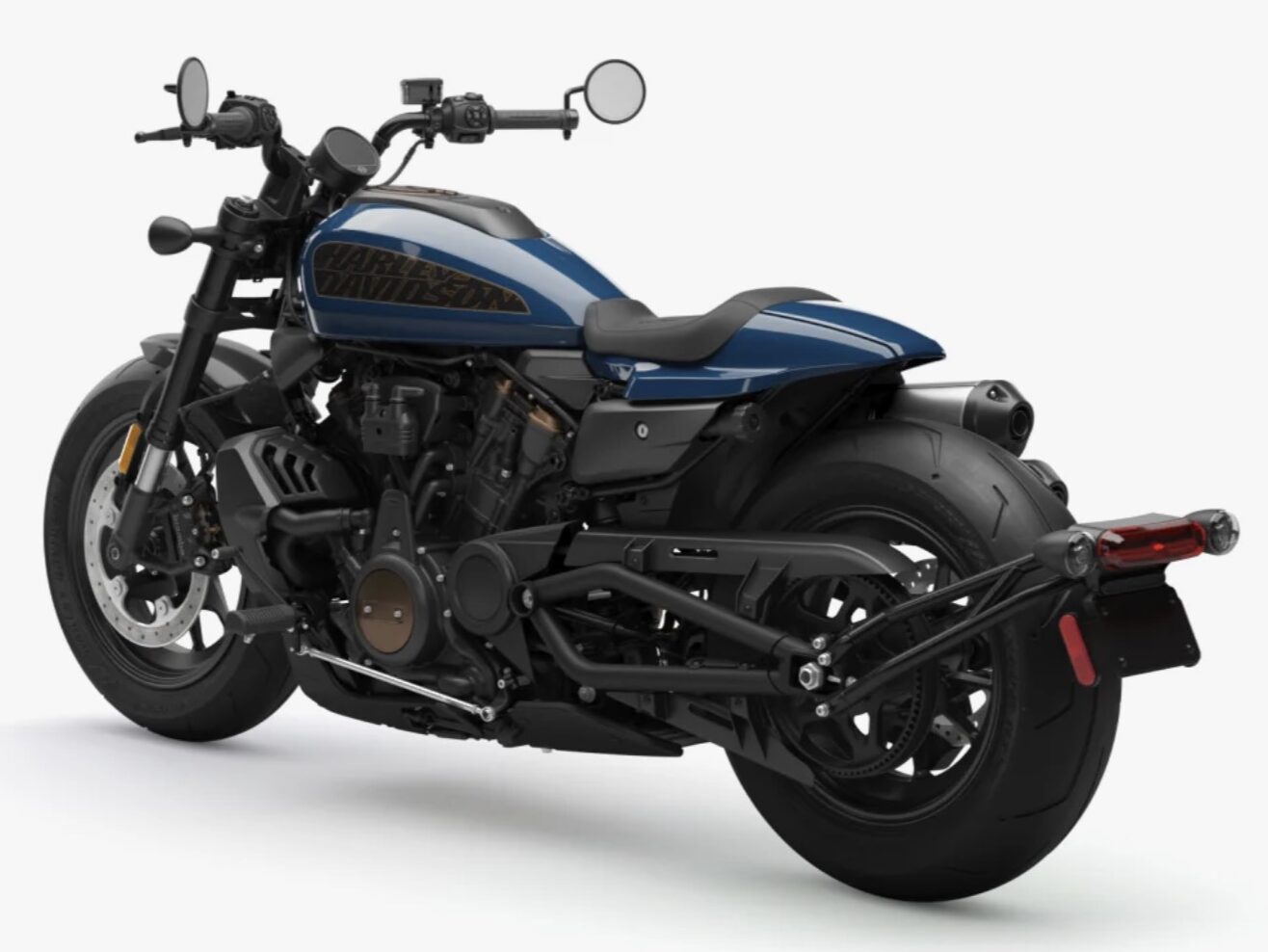

Harley-Davidson Sportster S (2021+)

Name: Harley-Davidson Sportster S (2021+)
SKU: 1080
Price: 121 MOP
Availability: InStock

—

Category: Harley-Davidson Tag: Cruiser

Specifications

Engine	1252 cc V-Twin, liquid cooled
Power	121 hp @ 7500 rpm
Torque	127 Nm @ 6000 rpm
Transmission	6-speed, Wet multi-plate slip/assist clutch, belt final drive
Fuel Capacity	11,8 liters
Length	2270 mm
Width	843 mm
Height	1089 mm
Weight	228 kg wet
Seat Height	753 mm
Suspension	– Front: 43 mm inverted fork, rebound and spring preload adjustability, 92 mm travel – Rear: piggyback mono-shock, fully adjustable with remote preload, 51 mm travel
Tyres	– Front: 160/70-17 – Rear: 180/70-16
Brakes	– Front: 320 mm floating discs, monoblock 4-piston radial calipers – Rear: 280 mm disc, 1-piston floating caliper – cornering ABS available
Instruments	TFT display with speedometer, tachometer, odometer, fuel gauge, gear indicator, trip meter, mobile phone connectivity, clock
Other	LED lights, cornering traction control, wheelie control, riding modes, Tire Pressure Monitoring System (TPMS), USB-C port

Dashboard / Support us

T-shirts, mugs, stickers and more:

Quick Comparison

Settings	Harley-Davidson Sportster S (2021+) remove	Harley-Davidson Iron 1200 (2018-2021) remove	Royal Enfield Super Meteor 650 (2023+) remove	Harley-Davidson Heritage Classic 107 (2018-2021) remove	Harley-Davidson Heritage Classic 114 (2018+) remove	Harley-Davidson Iron 883 (2015-2021) remove
Name	Harley-Davidson Sportster S (2021+) remove	Harley-Davidson Iron 1200 (2018-2021) remove	Royal Enfield Super Meteor 650 (2023+) remove	Harley-Davidson Heritage Classic 107 (2018-2021) remove	Harley-Davidson Heritage Classic 114 (2018+) remove	Harley-Davidson Iron 883 (2015-2021) remove

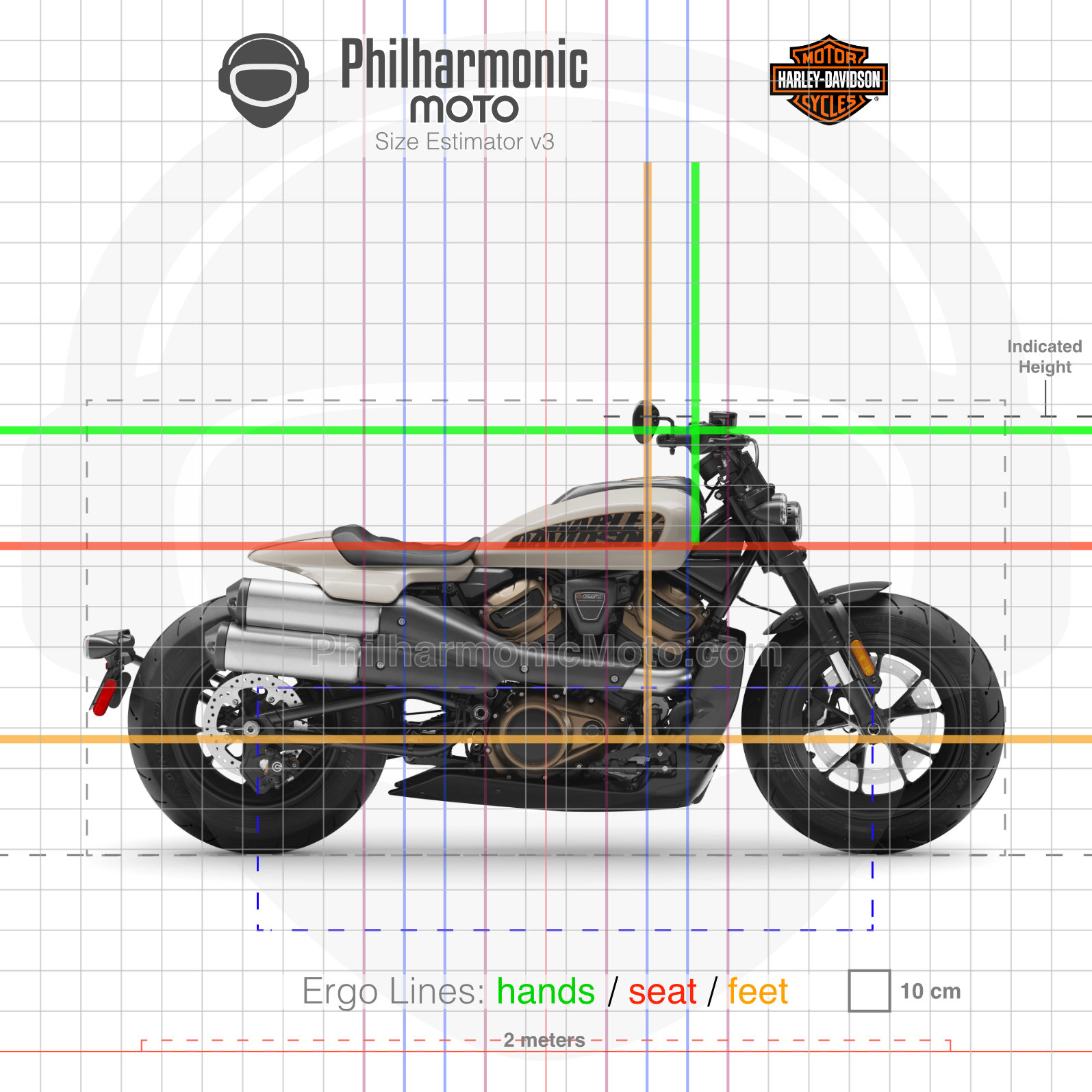

Size Estimator (see "About" page to learn more)
Length	2270 mm	2200 mm	2260 mm	2415 mm	2415 mm	2185 mm
Width	843 mm	915 mm	890 mm	930 mm	930 mm	850 mm
Height	1089 mm	1240 mm	1155 mm	1370 mm	1370 mm	1140 mm
Seat Height	753 mm	735 mm	740 mm	680 mm	680 mm	760 mm
Weight	228 kg wet	256 kg wet	241 kg wet	330 kg wet	330 kg wet	256 kg wet
Engine	1252 cc V-Twin, liquid cooled	1202 cc V-Twin, air cooled	648 cc Parallel Twin, air/oil cooled	1746cc V-Twin, air/oil cooled, Pushrod-operated, overhead valves	1868cc V-Twin, air/oil cooled, Pushrod-operated, overhead valves	883cc V-Twin, air cooled
Power	121 hp @ 7500 rpm	60 hp @ 6000 rpm	47 hp @ 7250 rpm	81 hp	94 hp @ 4750 rpm	51 hp @ 6000 rpm
Torque	127 Nm @ 6000 rpm	99 Nm @ 3500 rpm	52,3 Nm @ 5650 rpm	148Nm @ 3000 rpm	161 Nm @ 3000 rpm	73 Nm @ 3750 rpm
Transmission	6-speed, Wet multi-plate slip/assist clutch, belt final drive	5-speed, wet multi-plate clutch, belt final drive	6-speed, Wet multi-plate clutch, chain final drive	6-speed, 10 plate wet, belt final drive	6-speed, 10 plate wet, belt final drive	5-speed, wet multi-plate clutch, belt final drive
Fuel Capacity	11,8 liters	12,5 liters	15,7 liters	18,9 liters	18,9 liters	12,5 liters
Suspension	- Front: 43 mm inverted fork, rebound and spring preload adjustability, 92 mm travel - Rear: piggyback mono-shock, fully adjustable with remote preload, 51 mm travel	- Front: 39 mm fork, 92 mm travel - Rear: dual shocks, adjustable preload, 41 mm travel	- Front: 43 mm inverted forks, 120 mm travel - Rear: twin-shocks, adjustable preload, 101 mm travel	- Front: Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers, 130 mm travel - Rear: Hidden, free piston, coil-over mono-shock; 56mm stroke; hydraulic preload adjustment, 112 mm travel	- Front: Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers, 130 mm travel - Rear: Hidden, free piston, coil-over mono-shock; 56mm stroke; hydraulic preload adjustment, 112 mm travel	- Front: 39 mm forks, 92 mm travel - Rear: dual shocks, adjustable preload, 41 mm travel
Tyres	- Front: 160/70-17 - Rear: 180/70-16	- Front: 100/90-19 - Rear: 150/80-16	- Front: 100/90-19 - Rear: 150/80-16	- Front: 130/90-16 - Rear: 150/80-16	- Front: 130/90-16 - Rear: 150/80-16	- Front: 100/90-19 - Rear: 150/80-16
Brakes	- Front: 320 mm floating discs, monoblock 4-piston radial calipers - Rear: 280 mm disc, 1-piston floating caliper - cornering ABS available	- Front: 300 mm floating disc, 2-piston caliper - Rear: 260 mm disc, 2-piston caliber - ABS available	- Front: 320 mm disc, 2-piston floating caliper - Rear: 300 mm disc, 2-piston floating caliper - ABS available	- Front: 300 mm disc, 4-piston fixed caliper - Rear: 292 mm disc, 2-piston floating caliper - ABS available	- Front: 300 mm disc, 4-piston fixed caliper - Rear: 292 mm disc, 2-piston floating caliper - ABS available	- Front: 300 mm floating disc, 2 piston caliper - Rear: 260 mm disc, 2 piston caliber - ABS available
Instruments	TFT display with speedometer, tachometer, odometer, fuel gauge, gear indicator, trip meter, mobile phone connectivity, clock	Analogue speedometer with digital odometer, clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout	Analogue speedometer, LCD display with odometer, gear indicator, fuel gauge, dual trip meters, clock, separate tripper navigation	5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication	5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication	Analogue speedometer with digital odometer, clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout
Other	LED lights, cornering traction control, wheelie control, riding modes, Tire Pressure Monitoring System (TPMS), USB-C port	-	LED headlight and taillight	LED headlight and auxiliary lights, self-canceling indicators, cruise control, keyless ignition	LED headlight and auxiliary lights, self-canceling indicators, cruise control, keyless ignition	-
