Harley-Davidson X 500 (2024+)

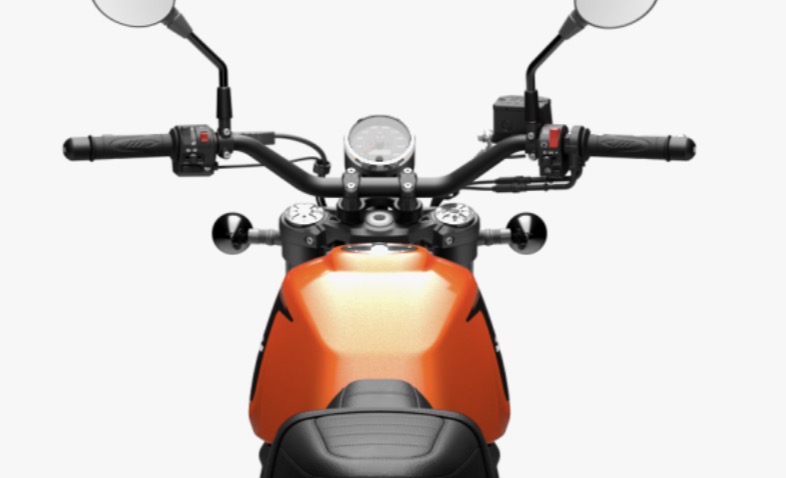

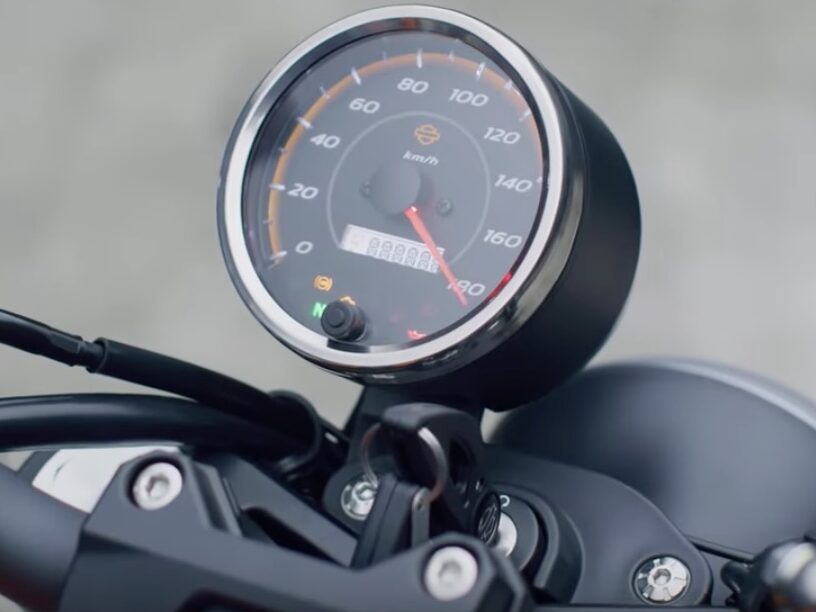

Dashboard from the X350 shown in the main image. The X500’s dash is the same but centered, as you can see in the smaller image.

Position: , Brand:
Share:

Specifications and Features

Engine

500 cc Parallel-twin, liquid-cooled

Power

47 hp @ 8500 rpm

Power to weight ratio

23 HP/100kg

Torque

46 Nm @ 6000 rpm

Torque to weight ratio

22 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

13,1 litres

Length

2135 mm

Width

?

Height

1368 mm (estimated)

Weight

208 kg wet

Seat Height

820 mm

Suspension

– Front: 50 mm inverted fork, adjustable rebound
– Rear: mono-shock, adjustable preload and rebound

Tyres

– Front: 120/70-17
– Rear: 160/60-17

Brakes

– Front: floating discs, 4-piston calipers
– Rear: disc, 1-piston floating caliper
– ABS available

Instruments

– Analogue speedometer, LCD display with odometer, tachometer, two trip meters, clock

Other

– LED lights

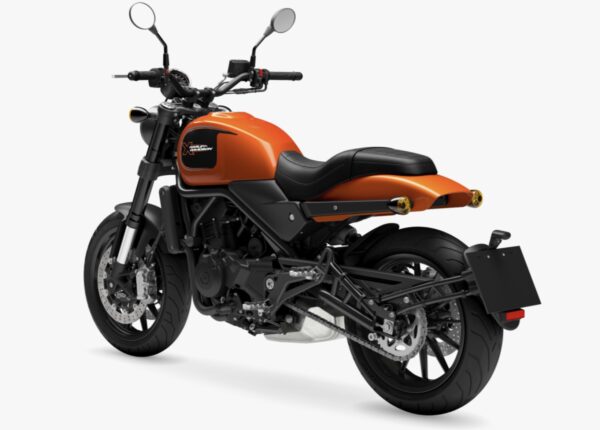

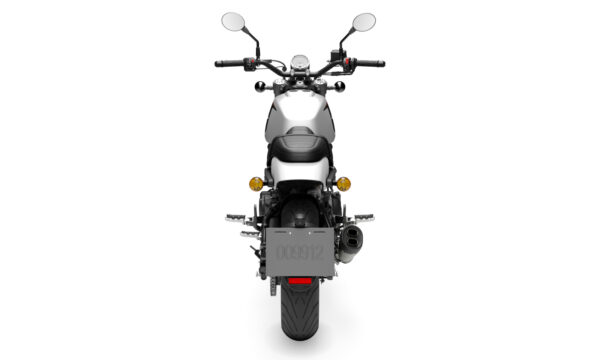

Harley-Davidson X350 2024 dashboard Harley-Davidson X500 2024 front Harley-Davidson X500 2024 back
