Honda ADV160 (2023+)




Brand: Style:
Share:

Specifications

Engine

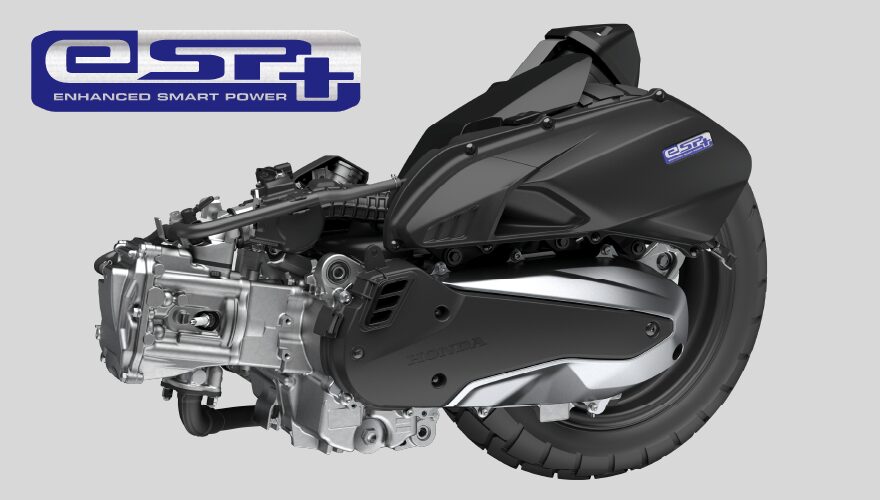

156 cc Single-cylinder, liquid-cooled

Power

16 hp @ 8500 rpm

Power to weight ratio

12 HP/100kg

Torque

15 Nm @ 6500 rpm

Torque to weight ratio

11 Nm/100kg

Transmission

– Automatic CVT, centrifugal dry clutch
– Belt final drive

Fuel Capacity

8,1 litres

Length

1950 mm

Width

760 mm

Height

1195 mm

Weight

136 kg wet

Seat Height

780 mm

Suspension

– Front: Showa 31 mm telescopic fork, 130 mm travel
– Rear: Showa twin-shocks, 102 mm travel

Tyres

– Front: 110/80-14
– Rear: 130/70-13

Brakes

– Front: 240 mm disc, 2-piston caliper
– Rear: 130 mm drum or 220 mm disc, 1-piston caliper
– single-channel ABS available

Instruments

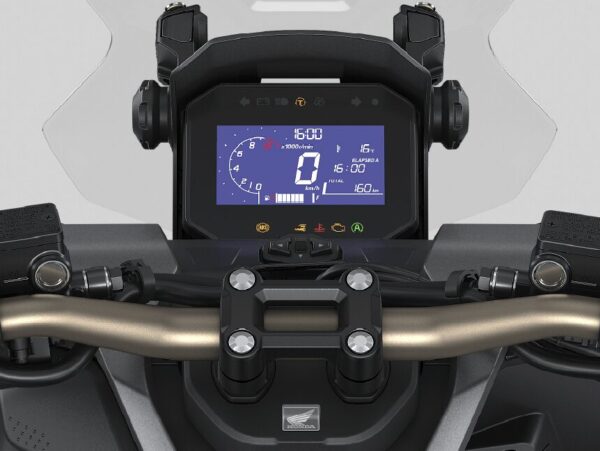

– LCD display with speedometer, tachometer, odometer, fuel gauge, average and instant consumption, trip meters, ambient temperature, voltmeter, clock

Other

– LED lights, emergency braking lights
– Traction control (switchable)

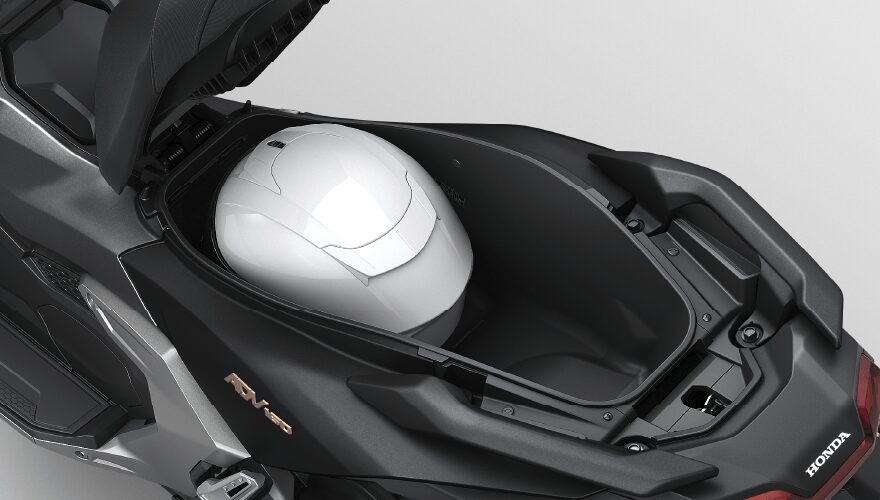

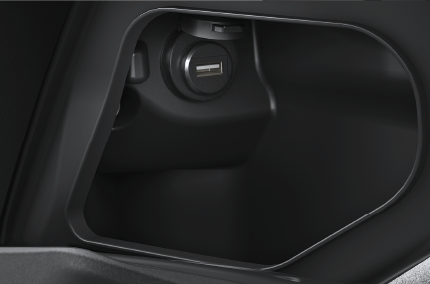

– Fully Keyless, 29 litres under seat storage, 2 litres front storage with USB port, centre stand, start-stop system

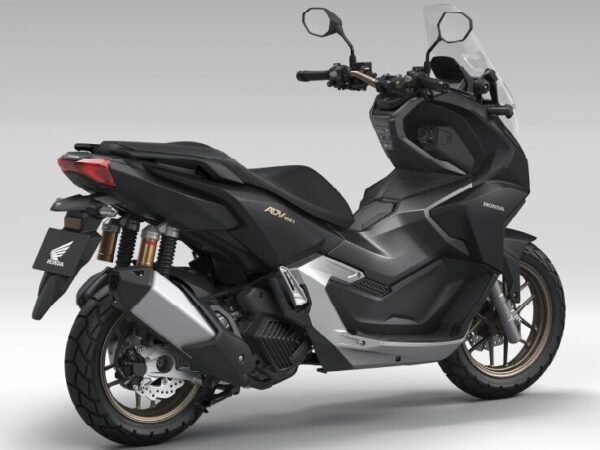

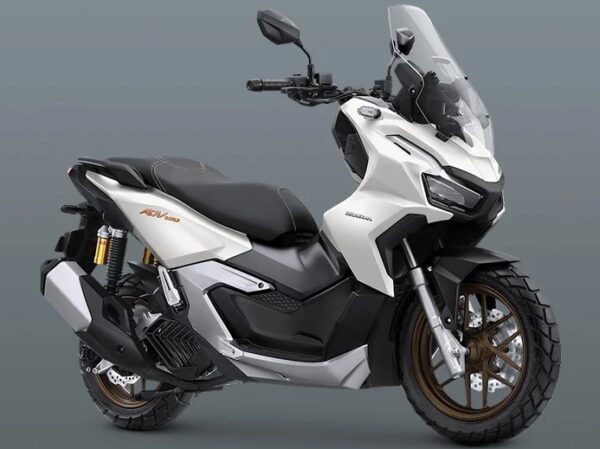

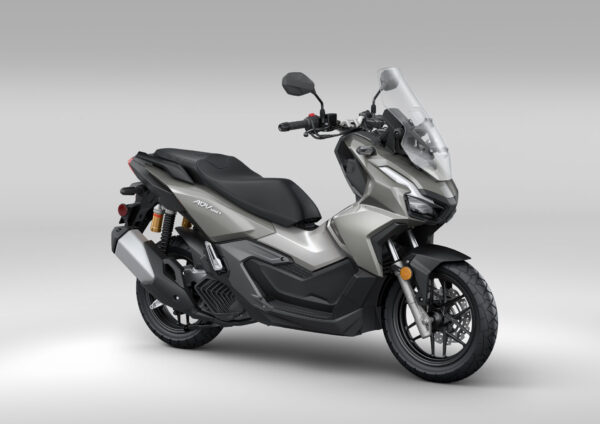

Honda ADV160 2023 dashboard Honda ADV160 2023 white front Honda ADV160 2023 black back

T-shirts, mugs, stickers and more:

shiny side up warning t-shirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

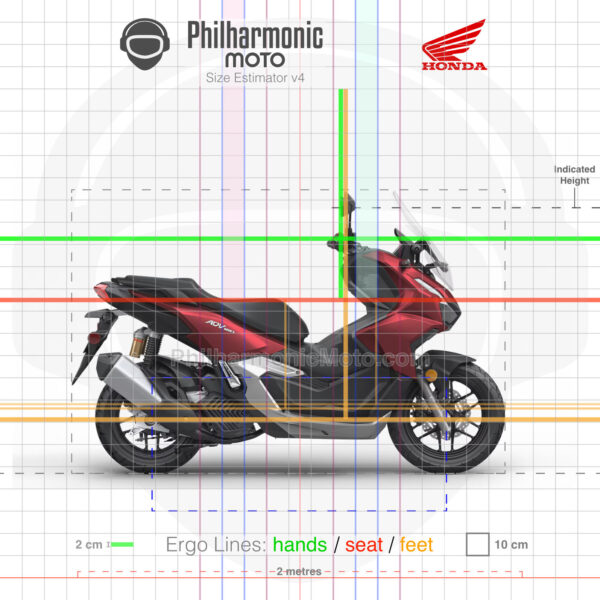

  • Size Estimator (see "About" page to learn more)
