Honda Africa Twin (2016-2017)

CRF1000L

Updated: 29 March 2025


Brand: Style:
Share:

Specifications and Features

Engine

998 cc Parallel-twin, liquid-cooled, 270º crank

Power

95 hp @ 7500 rpm

Power to weight ratio

42 HP/100kg

Torque

98 Nm @ 6000 rpm

Torque to weight ratio

43 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch or DCT automatic
– Chain final drive

Fuel Capacity

18,8 litres

Length

2335 mm

Width

875 mm (DCT: 930)

Height

1475 mm

Weight

– 228 kg (ABS: 232, DCT: 242) wet
– Max load: 195 kg

Seat Height

850/870 mm (adjustable)

Suspension

– Front: Showa 45 mm inverted fork, fully adjustable , 230 mm travel
– Rear: Showa mono-shock, fully adjustable (remote preload), 220 mm travel

Tyres

– Front: 90/90-21
– Rear: 150/70-18

Brakes

– Front: 310 mm floating discs, Nissin 4-piston radial calipers
– Rear: 256 mm disc, Nissin 1-piston caliper
– ABS available (switchable rear)

Instruments

– LCD displays with speedometer, tachometer, odometer, gear indicator, fuel gauge, dual trip meters, average consumption, average speed, ambient and engine temperature, clock

Other

– LED headlight and taillights (LED indicators on ABS/DCT models)
– Traction control (switchable, adjustable)
– Optional: 12v socket, heated grips

Honda Africa Twin 2016 CRF Rally SE dashboard Honda Africa Twin 2017 red front Honda Africa Twin 2016 Tricolor SE back

Motorcycle gifts to celebrate it and support the website:
shiny side up mug
Click here to learn more.


9
Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

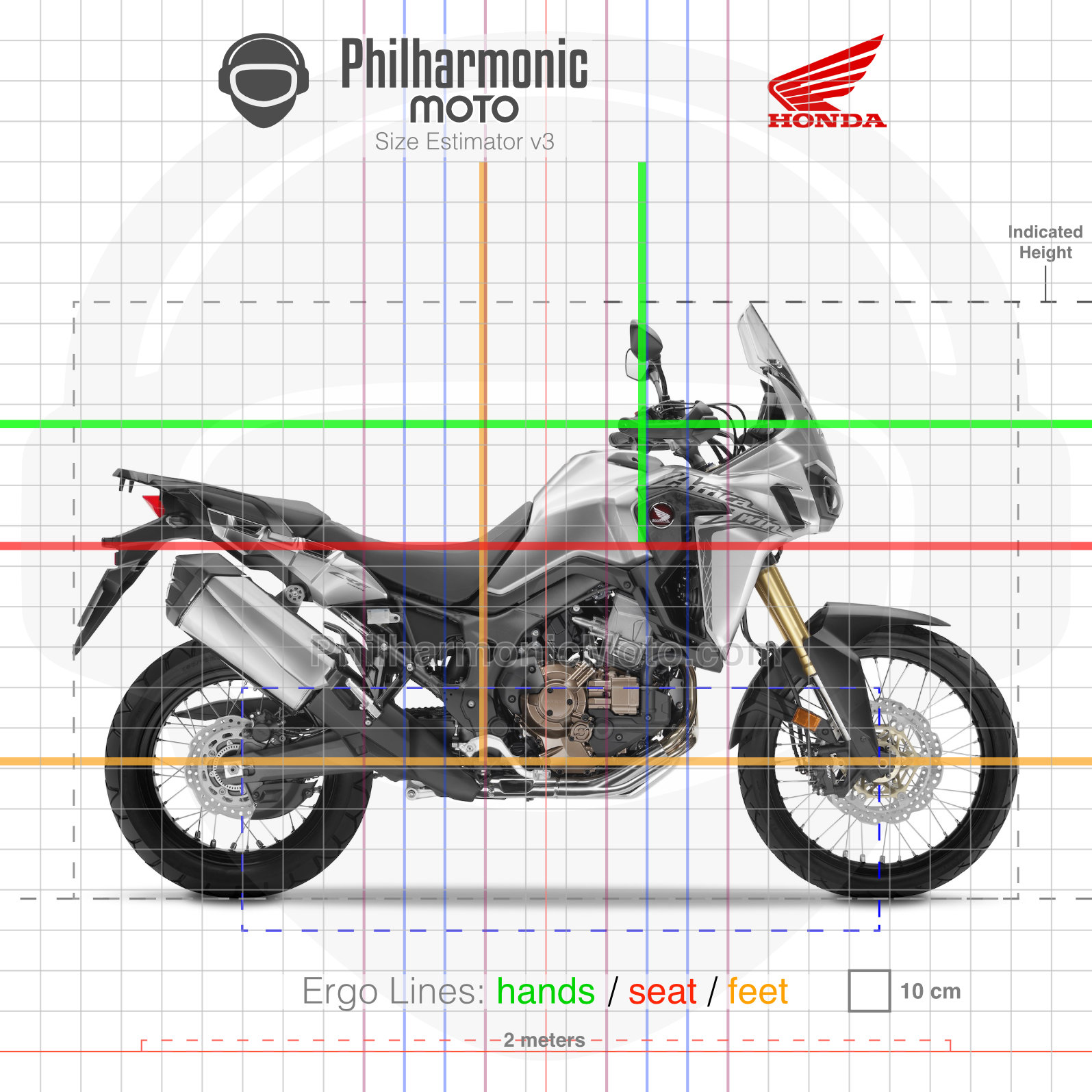

  • Size Estimator (see "About" page to learn more)
