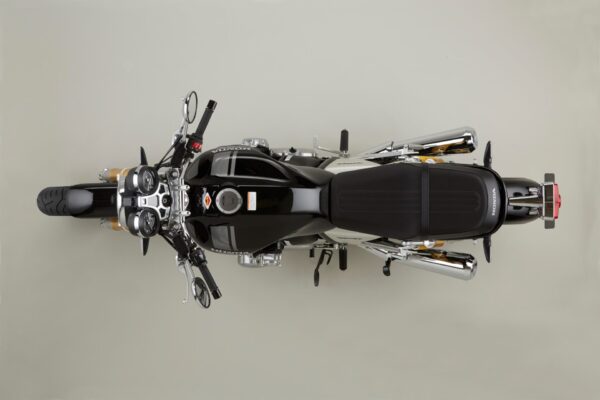

Honda CB1100 RS (2017-2021)

CB1100RS

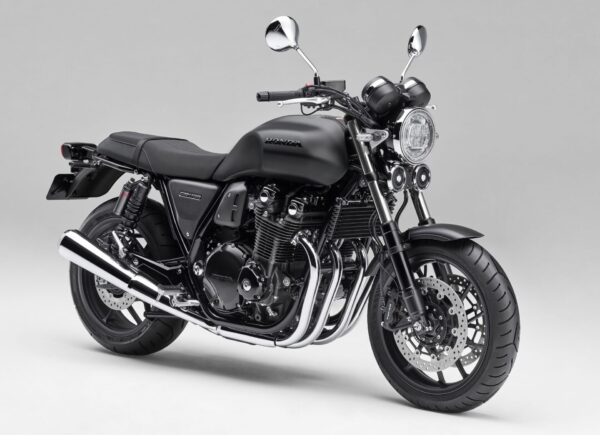

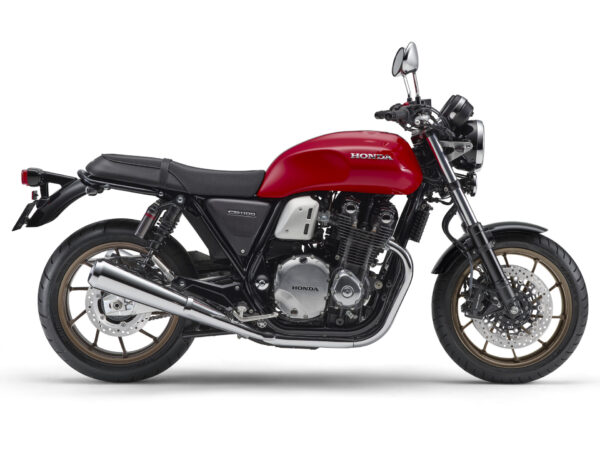

Japan: CB1100RS Special Edition for 2020 in Matte Ballistic Black Metallic, CB1100RS Final Edition for 2021 with gold wheels.

Updated: 14 October 2024


Brand: ,
Share:

Specifications and Features

Engine

1140 cc Inline-4, air/oil cooled

Power

89 hp @ 7500 rpm

Power to weight ratio

35 HP/100kg

Torque

91 Nm @ 5500 rpm

Torque to weight ratio

36 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

16,8 litres

Length

2180 mm

Width

800 mm

Height

1100 mm

Weight

– 252 kg wet
– Max load: 173 kg (US: 159)

Seat Height

795 mm

Suspension

– Front: Showa 43 mm telescopic fork, adjustable preload
– Rear: Showa piggyback twin-shocks, adjustable preload

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 310 mm floating discs, Tokico 4-piston radial calipers
– Rear: 256 mm disc, Nissin 1-piston caliper
– ABS available

Instruments

– Analogue speedometer and tachometer, LCD display with odometer, gear indicator, fuel gauge, range, average and instant consumption, engine temperature, trip meters, clock

Other

– LED lights
– Centre stand, adjustable hand levers, L-shaped air valves. Optional: heated grips

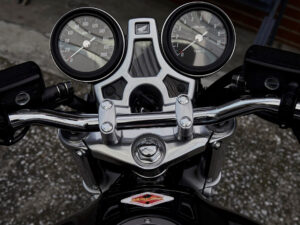

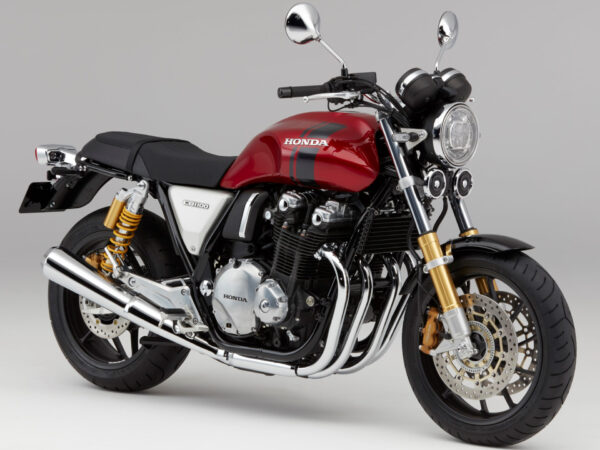

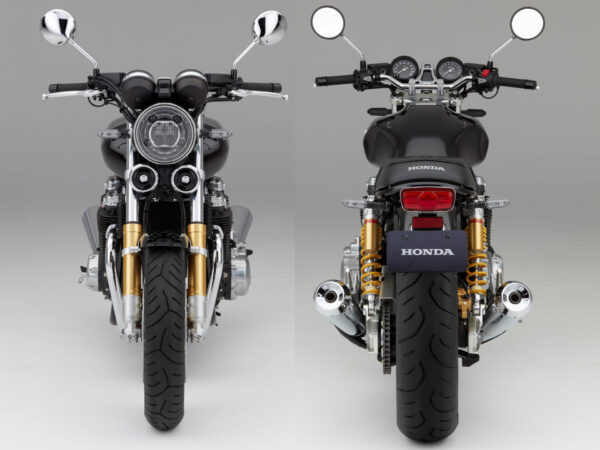

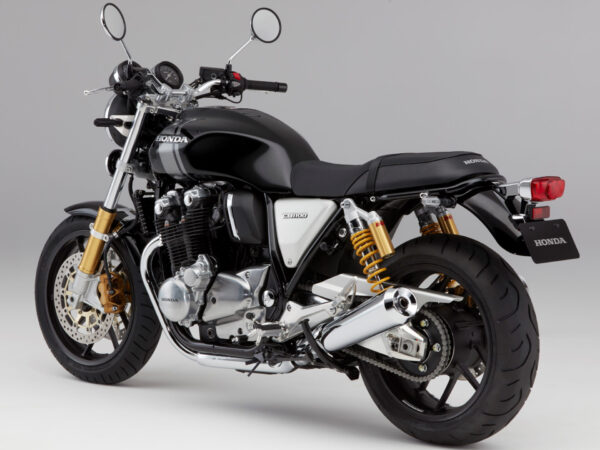

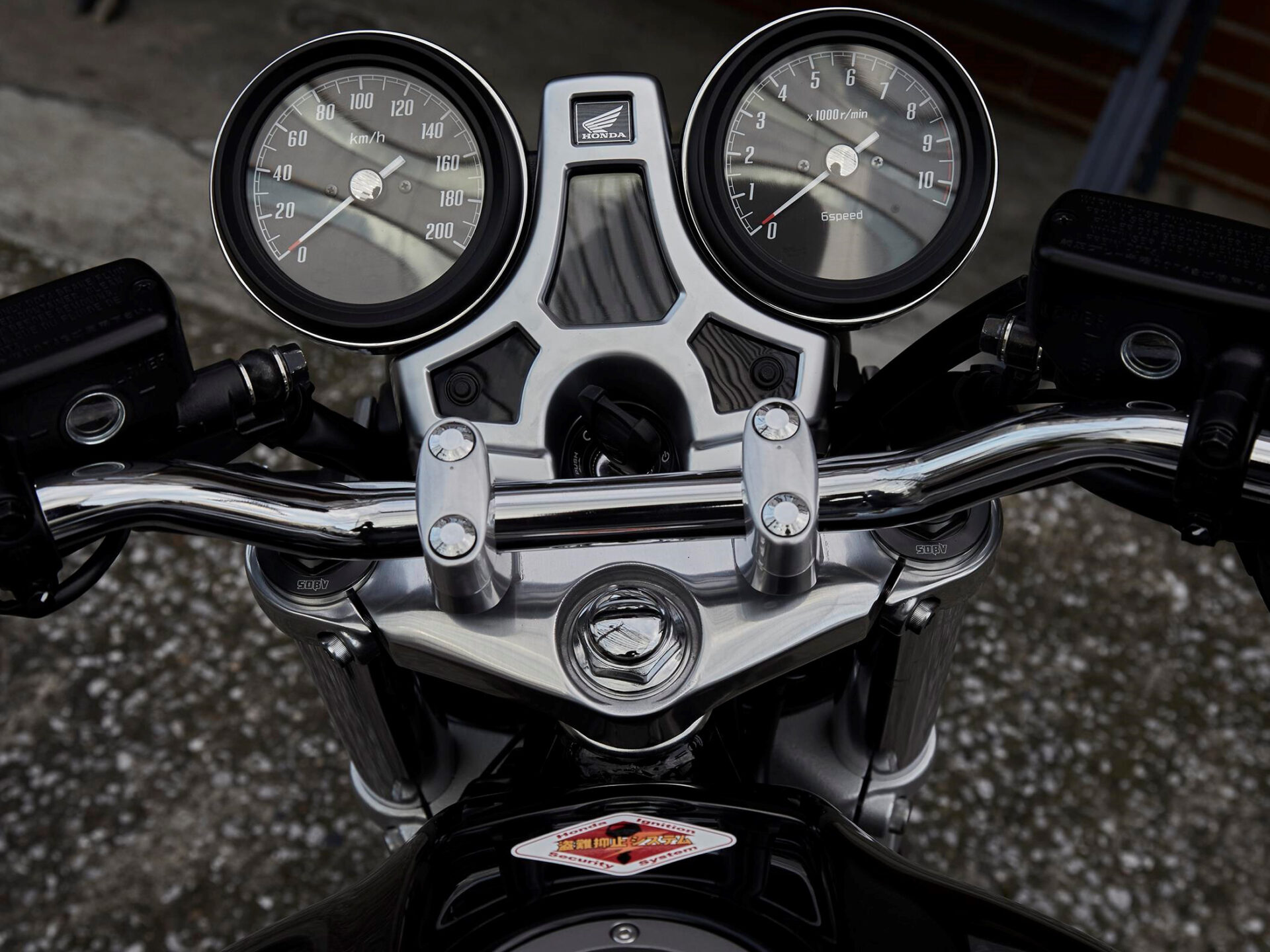

Honda CB1100RS 2017 Graphite Black dashboard Honda CB1100RS 2017 Candy Prominence Red front Honda CB1100RS 2017 Graphite Black back

Motorcycle gifts to celebrate it and support the website:
clutches hat
Click here to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

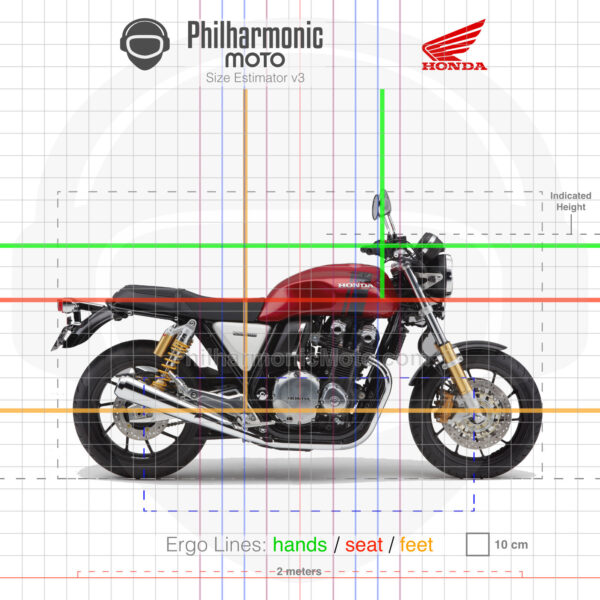

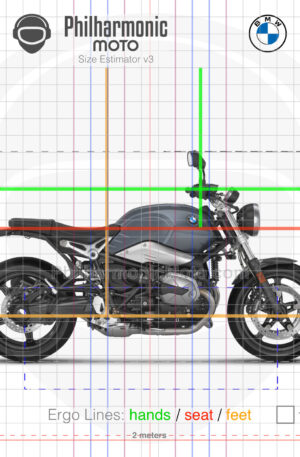

  • Size Estimator (see "About" page to learn more)
