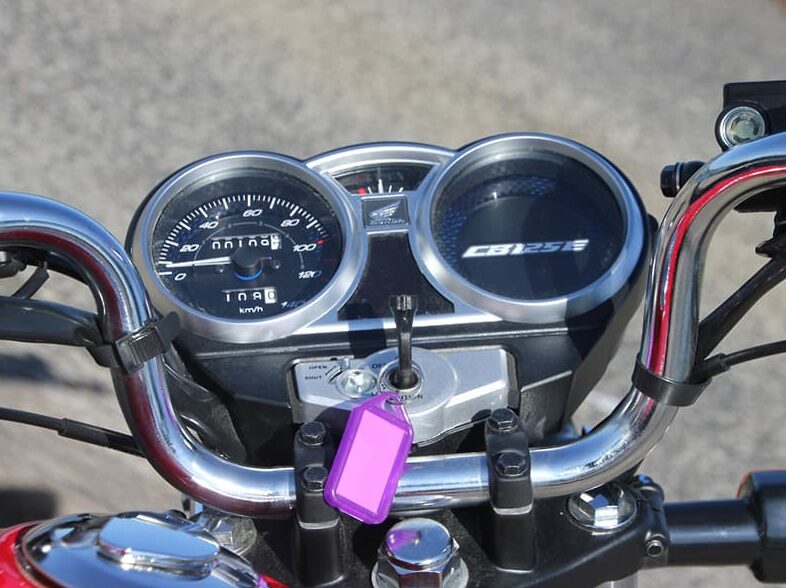

Honda CB125e 2022 dashboard

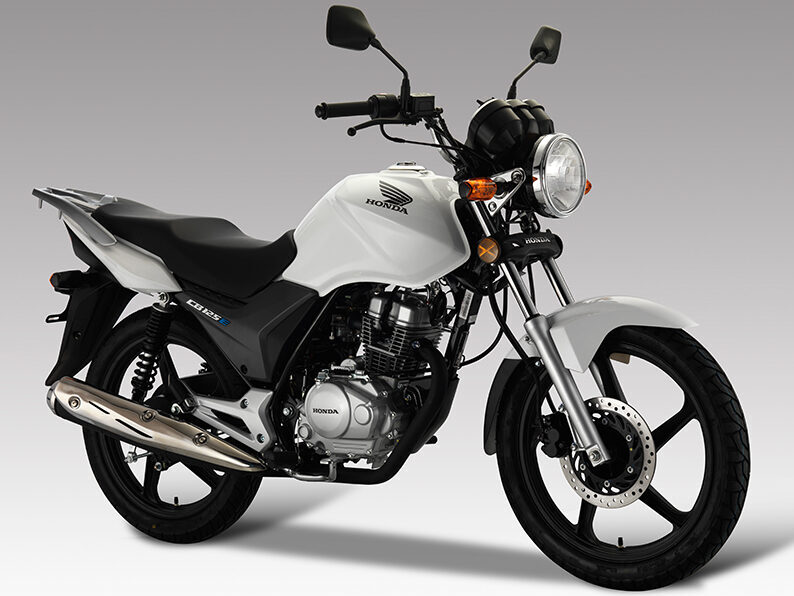

honda cb125e front

Honda CB125e (2012-2022)

Honda CB125e (2012-2022)

CB 125 e


Category: Tag:

Specifications

Engine

124 cc single-cylinder, air-cooled, carbureted

Power

10,2 hp

Torque

10 Nm

Transmission

5-speed, chain final drive

Fuel Capacity

14 liters

Length

2026 mm

Width

765 mm

Height

1094 mm

Weight

137 kg wet

Seat Height

767 mm

Suspension

– Front: telescopic fork, 118 mm travel
– Rear: twin-shocks, 70 mm travel

Tyres

– Front: 80/100-18
– Rear: 90/90-18

Brakes

– Front: 240 mm disc
– Rear: 130 mm drum

Instruments

Analogue speedometer, odometer, trip meter, fuel gauge

Other
