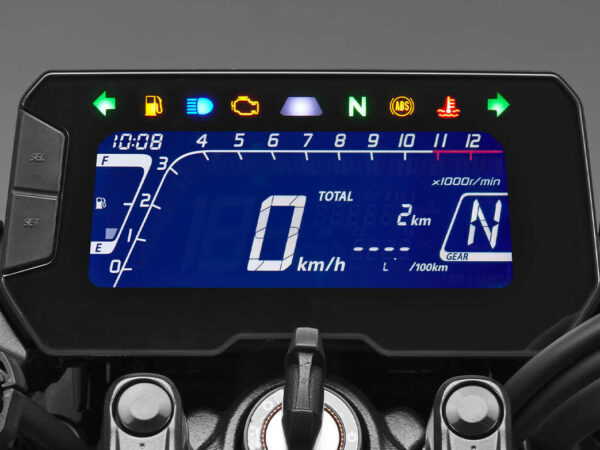

Honda CB125R 2021 dashboard

Honda CB125R (2018-2020)

Honda CB125R (2018-2020)

CB 125 R

This bike has ABS brakes with an IMU, which usually means it has cornering ABS, but I’m not sure if that’s the case here. Honda doesn’t call it that way and neither does the reviewers I saw. The only mention I read about these brakes being different from regular ABS was saying that it prevents the bike from doing a stoppie, keeping the rear wheel always on the ground.


Category: Tag:

Specifications

Engine

124,7 cc single-cylinder, liquid-cooled

Power

13,3 hp @ 10000 rpm

Torque

10 Nm @ 8000 rpm

Transmission

6-speed, wet multi-plate, chain final drive

Fuel Capacity

10,1 liters

Length

2015 mm

Width

820 mm

Height

1055 mm

Weight

126 kg wet

Seat Height

816 mm

Suspension

– Front: 41 mm inverted fork
– Rear: mono-shock

Tyres

– Front: 110/70-17
– Rear: 150/60-17

Brakes

– Front: 296 mm floating disc, Nissin 4-piston radial caliper
– Rear: 220 mm disc, 1-piston caliper
– ABS available with IMU

Instruments

LCD display with speedometer, tachometer, twin trip meters, gear indicator, fuel gauge average fuel consumption and clock

Other

LED lights

Dashboard / Support us

Honda CB125R 2021 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda CB125R (2018-2020) removeHonda Rebel 500/CMX500 (2017-2019) removeHonda Rebel 300/CMX300 (2020+) removeHonda CB500F (2022+) removeHonda CB300F (2015-2021) removeHonda Trail 125 / CT125 (2021+) remove
NameHonda CB125R (2018-2020) removeHonda Rebel 500/CMX500 (2017-2019) removeHonda Rebel 300/CMX300 (2020+) removeHonda CB500F (2022+) removeHonda CB300F (2015-2021) removeHonda Trail 125 / CT125 (2021+) remove

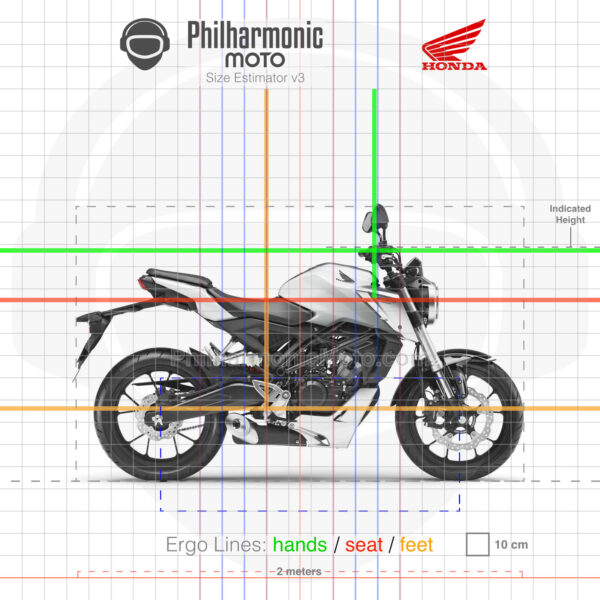

Size Estimator (see "About" page to learn more)Honda CB125R 2018 silverHonda Rebel 500 cmx500 2017 Matte Armored Silver Metallic-01Honda Rebel 300 CMX300 2022 Pearl BlueHonda CB500F 2022 Matte Grey MetallicHonda CB300f 2017 silverHonda Trail 125 CT125 2022 Glowing Red
Length2015 mm2188 mm2188 mm2080 mm2035 mm1960 mm
Width820 mm820 mm820 mm800 mm720 mm805 mm
Height1055 mm1094 mm1090 mm1060 mm1120 mm1085 mm
Seat Height816 mm690 mm690 mm789 mm790 mm800 mm
Weight126 kg wet190 kg wet165 kg wet189 kg wet158 kg wet120 kg wet
Engine124,7 cc single-cylinder, liquid-cooled471 cc Parallel Twin, liquid cooled, 180º crank286cc Single-cylinder, liquid cooled471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank286cc Single cylinder, Liquid cooled124,9 cc single-cylinder, air-cooled
Power13,3 hp @ 10000 rpm45 hp @ 8500 rpm27,4 hp47 hp @ 8600 rpm26 hp @ 8500 rpm9 hp @ 7000 rpm
Torque10 Nm @ 8000 rpm45 Nm @ 6000 rpm27 Nm43 Nm @ 6500 rpm27 Nm @7250 rpm10 Nm @ 4500 rpm
Transmission6-speed, wet multi-plate, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, assist/slip clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate clutch, chain final driveSemi-automatic 4-speed, automatic clutch, chain final drive
Fuel Capacity10,1 liters11,2 liters11,2 liters17,1 liters13 liters5,3 liters
Suspension- Front: 41 mm inverted fork - Rear: mono-shock- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 96 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 95 mm travel- Front: Showa 41mm SFF-BP USD forks, preload adjustable, 110 mm travel, - Rear: Prolink mono with 5 stage preload adjuster, 120 mm travel- Front: 37 mm telescopic fork, 120 mm travel - Rear: mono-shock, preload adjustable, 103 mm travel- Front: 27 mm inverted forks, 110 mm travel - Rear: twin shocks, 86 mm travel
Tyres- Front: 110/70-17 - Rear: 150/60-17- Front: 130/90-16 - Rear: 150/80-16- Front: 130/90-16 - Rear: 150/80-16- Front: 120/70-17 - Rear: 160/60-17- Front: 110/70-17 - Rear: 140/70-17- Front: 80/90-17 - Rear: 80/90-17
Brakes- Front: 296 mm floating disc, Nissin 4-piston radial caliper - Rear: 220 mm disc, 1-piston caliper - ABS available with IMU- Front: 296 mm disc, 2-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available- Front: Dual 296mm discs, Nissin radial-mount two piston calipers - Rear: 240mm disc, single piston caliper - ABS available- Front: 296 mm disc, 2-piston caliper - Rear: 220 mm disc, single-piston caliper - ABS available- Front: 220 mm disc, single-piston caliper - Rear: 190 mm disc, single-piston caliper - ABS available
InstrumentsLCD display with speedometer, tachometer, twin trip meters, gear indicator, fuel gauge average fuel consumption and clockDigital speedometer, odometer, fuel gauge, clockLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gaugeLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP IndicatorLCD display with tachometer, odometer, speedometer, fuel gauge, trip meter, clockLCD display with speedometer, odometer, fuel gauge
OtherLED lights-Full LED lightingLED lights-LED lights
