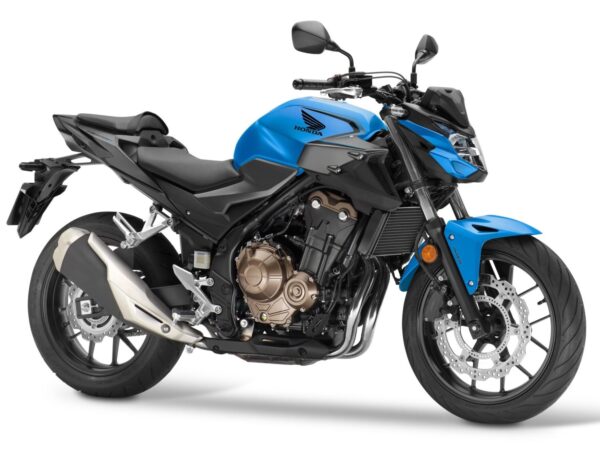

Honda CB500F (2019-2021)

Brand: Style:
Share:

Specifications

Engine

471 cc Parallel-twin, liquid-cooled

Power

47 hp @ 8600 rpm

Power to weight ratio

25 HP/100kg

Torque

43 Nm @ 6500 rpm

Torque to weight ratio

23 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

17,1 litres

Length

2080 mm

Width

790 mm

Height

1060 mm

Weight

189 kg wet

Seat Height

785 mm

Suspension

– Front: 41 mm telescopic fork, adjustable preload, 120 mm travel
– Rear: mono-shock, adjustable preload, 120 mm travel

Tyres

– Front: 120/70-17
– Rear: 160/60-17

Brakes

– Front: 320 mm disc, Nissin 2-piston radial caliper
– Rear: 240 mm disc, 1-piston caliper
– ABS available

Instruments

LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, dual trip meters, water temp, shift up indicator, clock

Other

– LED lights
– Adjustable brake lever

Honda CB500F 2019 dashboard Honda CB500F 2021 front Honda CB500F 2019 back
