Honda CB500F (2022-2023)

Brand: Style:
Share:

Specifications and Features

Engine

471 cc Parallel-twin, liquid-cooled

Power

47 hp @ 8600 rpm

Power to weight ratio

25 HP/100kg

Torque

43 Nm @ 6500 rpm

Torque to weight ratio

23 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

17,1 litres

Length

2080 mm

Width

800 mm

Height

1060 mm

Weight

– 189 kg wet
– Max load: 182 kg

Seat Height

789 mm

Suspension

– Front: Showa 41 mm separate function USD fork, 110 mm travel
– Rear: mono-shock, adjustable preload, 120 mm travel

Tyres

– Front: 120/70-17
– Rear: 160/60-17

Brakes

– Front: 296 mm discs, Nissin 2-piston radial calipers
– Rear: 240 mm disc, 1-piston caliper
– ABS available

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, dual trip meters, engine temperature, shift up indicator, clock

Other

– LED lights, emergency braking blinking lights
– Optional: 12v socket, USB-C port, centre stand, heated grips

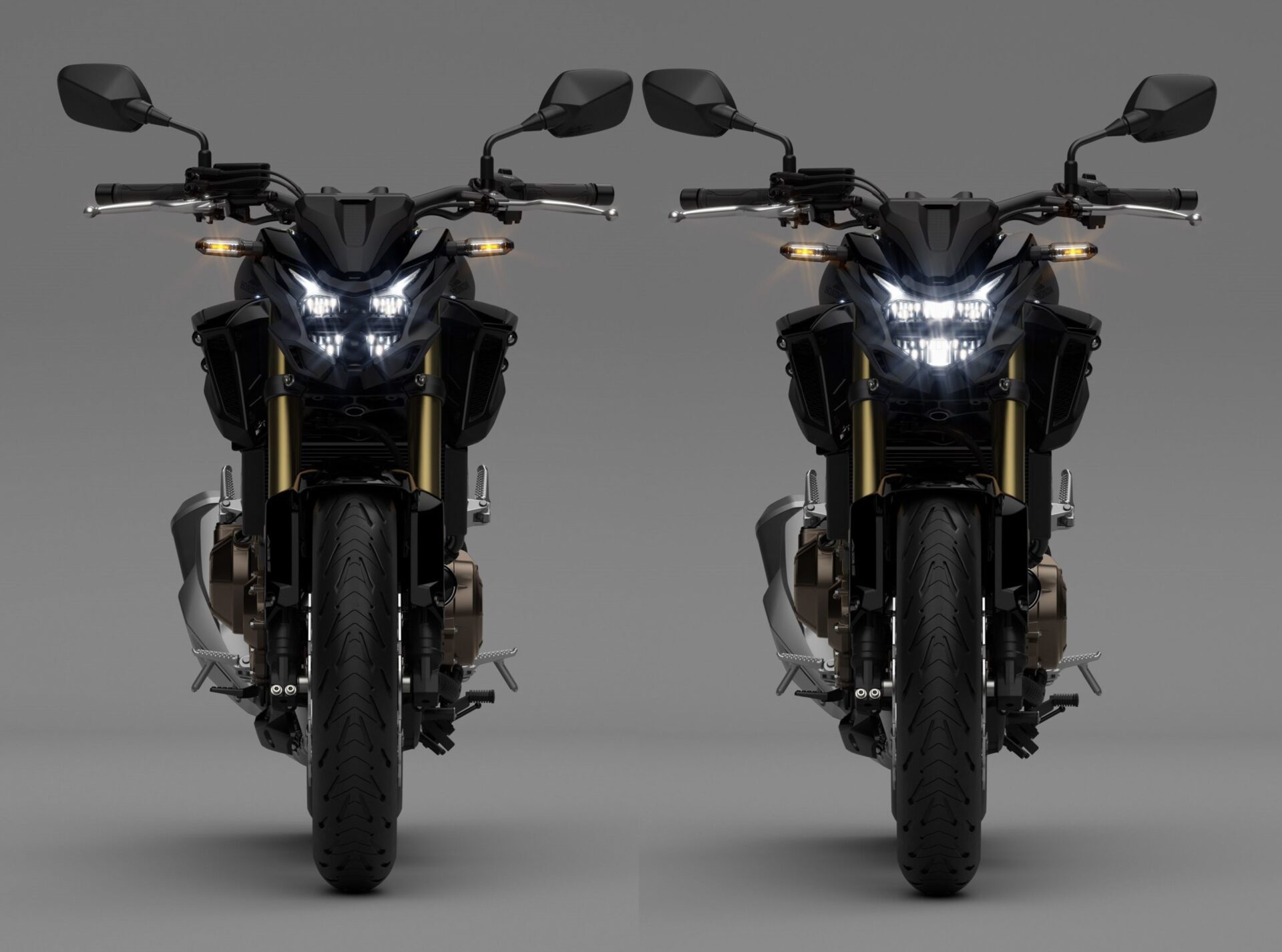

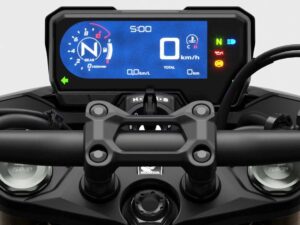

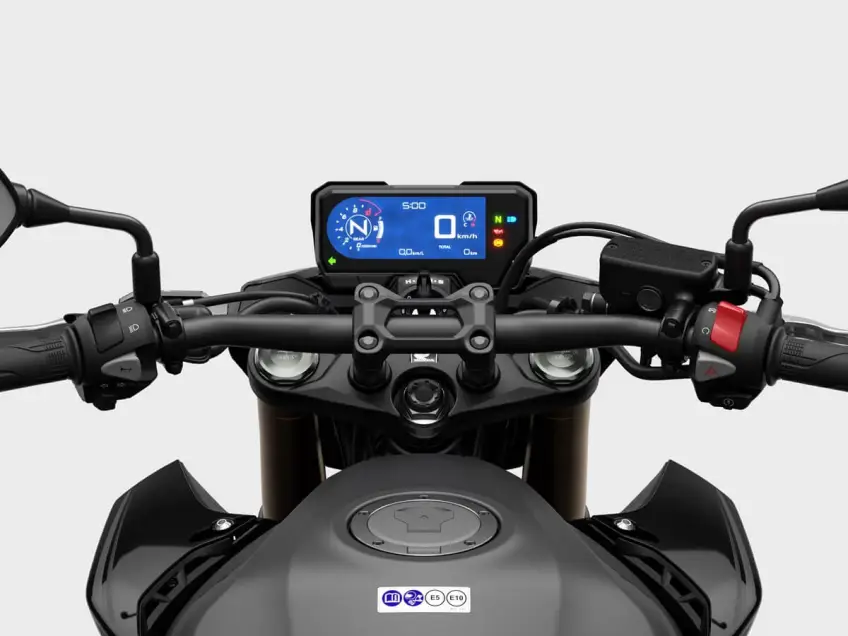

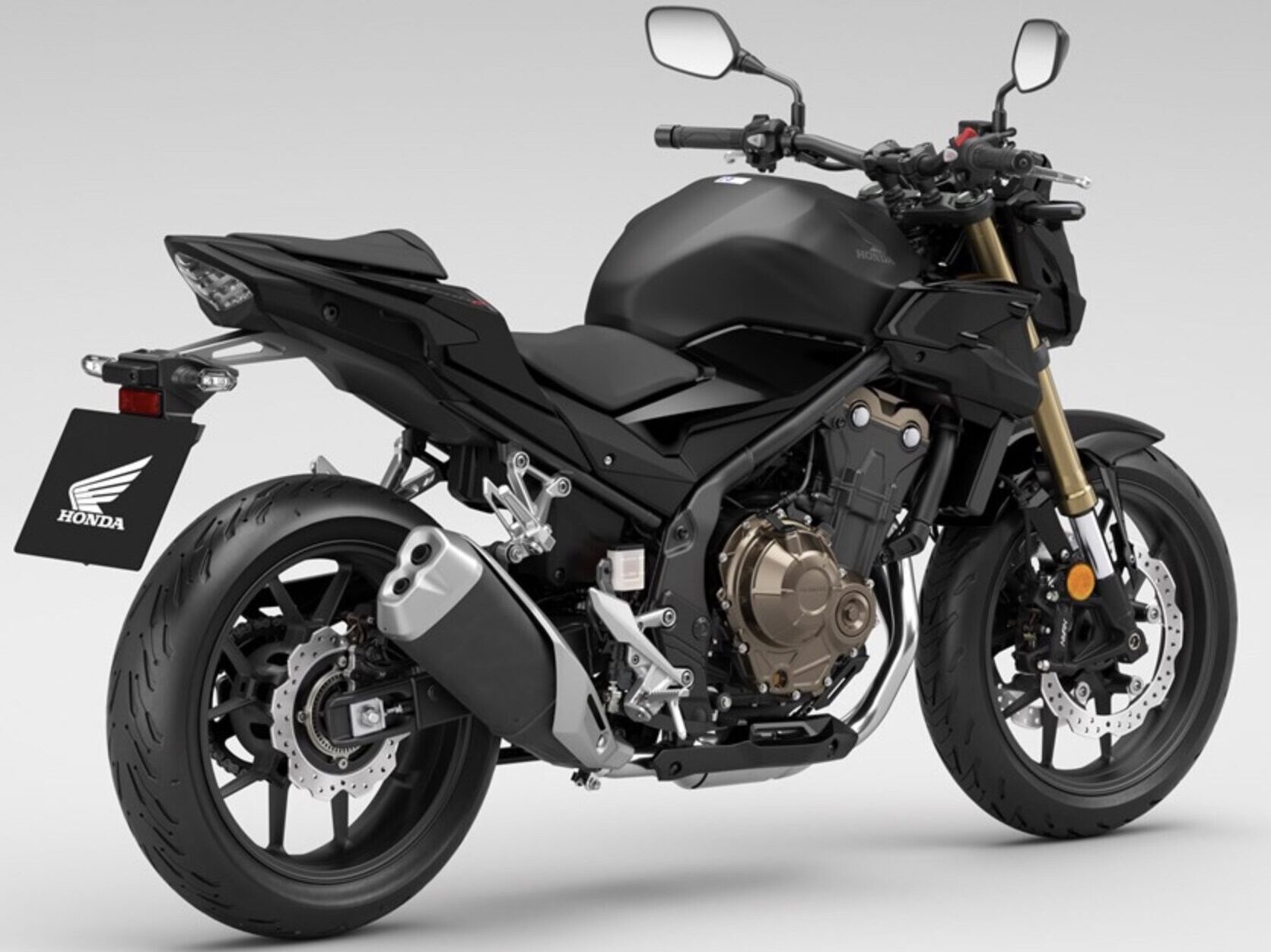

Honda CB500F 2022 dashboard Honda CB500F 2022 front Honda CB500F 2022 back

T-shirts, stickers, mugs and more:

honda cb500f sun ride tshirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

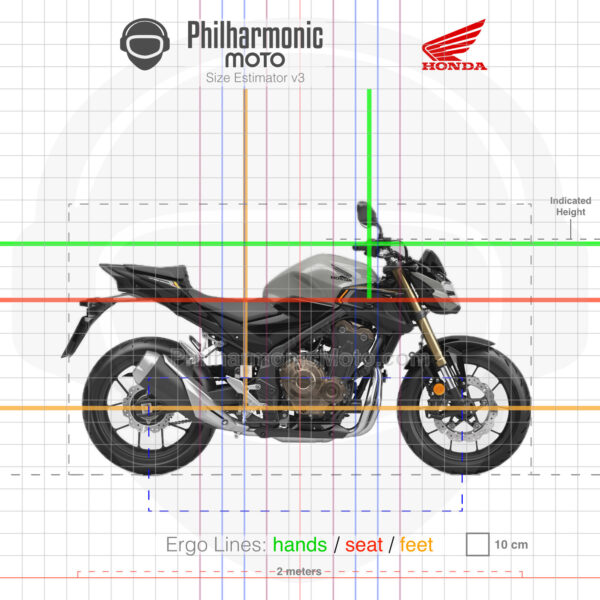

  • Size Estimator (see "About" page to learn more)
