Honda CB500X (2016-2018)

In 2017, it changes the exhaust muffler in some markets for Euro-4, and other minor aesthetics.


Brand: Style:
Share:

Specifications and Features

Engine

471 cc Parallel-twin, liquid-cooled

Power

47 hp @ 8500 rpm

Power to weight ratio

24 HP/100kg

Torque

43 Nm @ 7000 rpm

Torque to weight ratio

22 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

17,5 litres

Length

2095 mm

Width

830 mm

Height

1360/1390 mm (adjustable screen)

Weight

196 kg wet

Seat Height

810 mm

Suspension

– Front: 41 mm telescopic fork, adjustable preload, 140 mm travel
– Rear: mono-shock, adjustable preload, 120 mm travel

Tyres

– Front: 120/70-17
– Rear: 160/60-17

Brakes

– Front: 320 mm wavy disc, 2-piston caliper
– Rear: 240 mm wavy disc, 1-piston caliper
– ABS available

Instruments

– LCD display with speedometer, tachometer, odometer, fuel gauge, dual trip meters, clock

Other

– LED headlight and taillight
– Adjustable hand brake lever. Optional: heated grips, centre stand, top case, AC socket

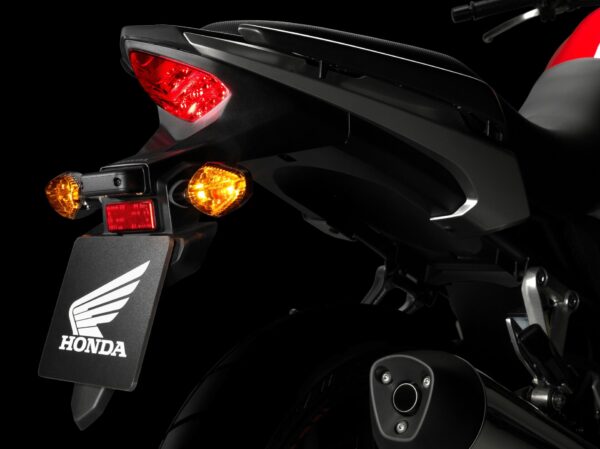

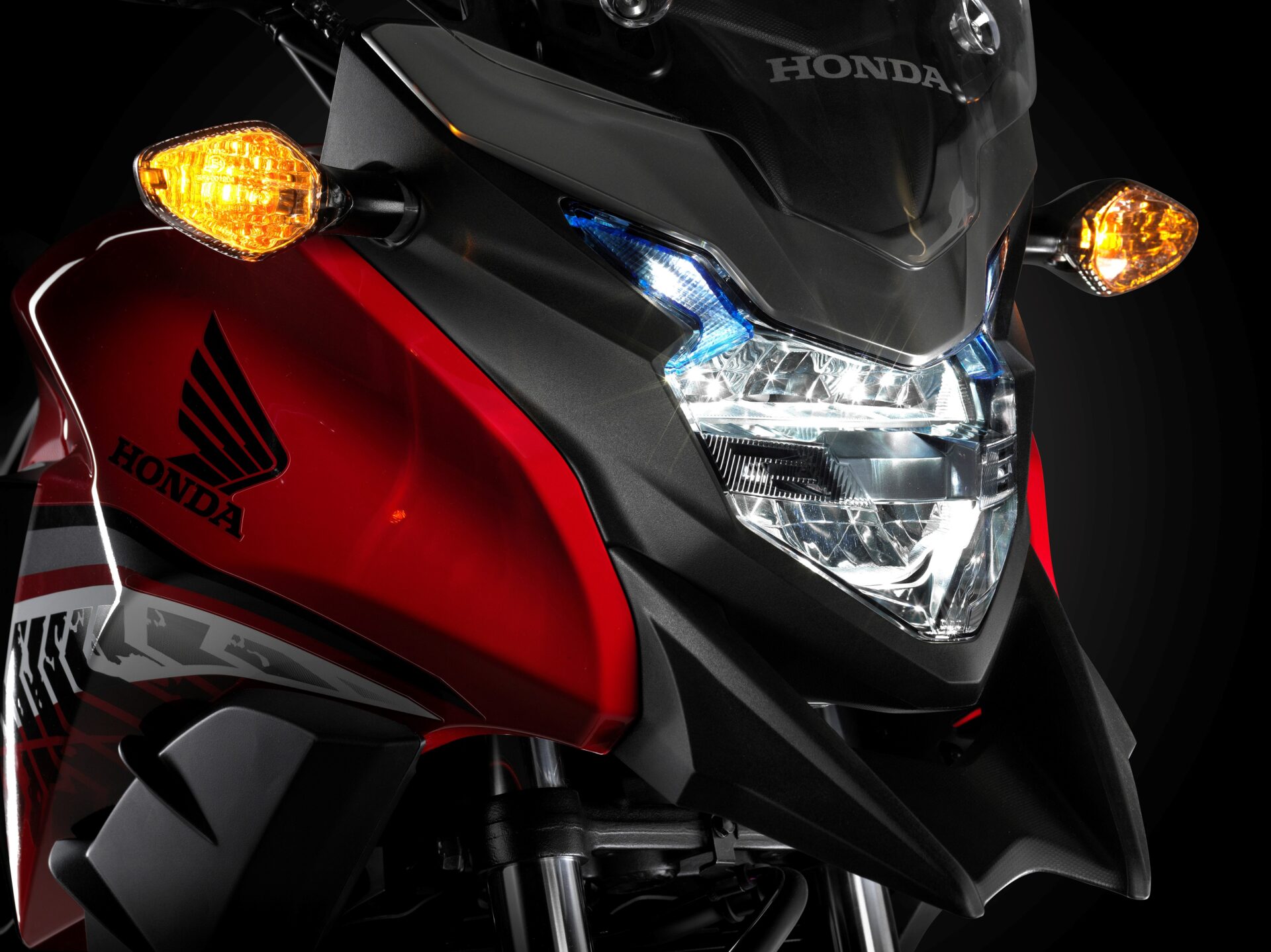

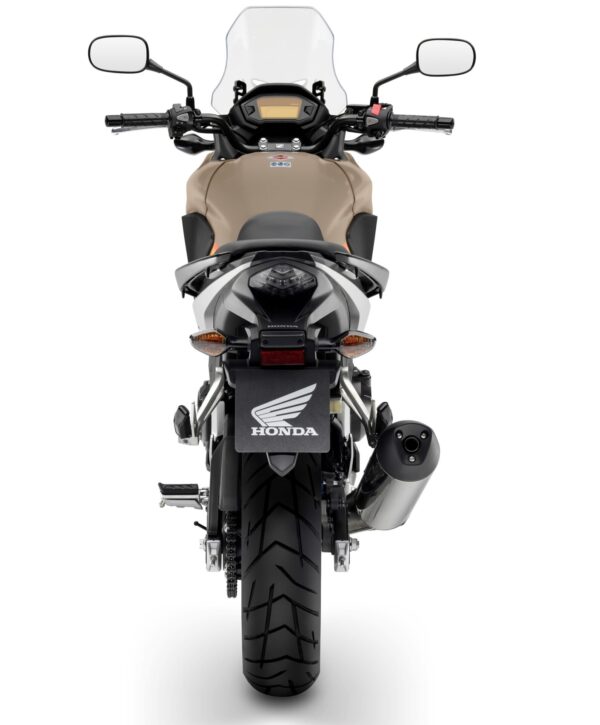

Honda CB500X 2013 dashboard Honda CB500X 2017 red front Honda CB500X 2016 red back

T-shirts, mugs, stickers and more:

supermoto superhero hoodie

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

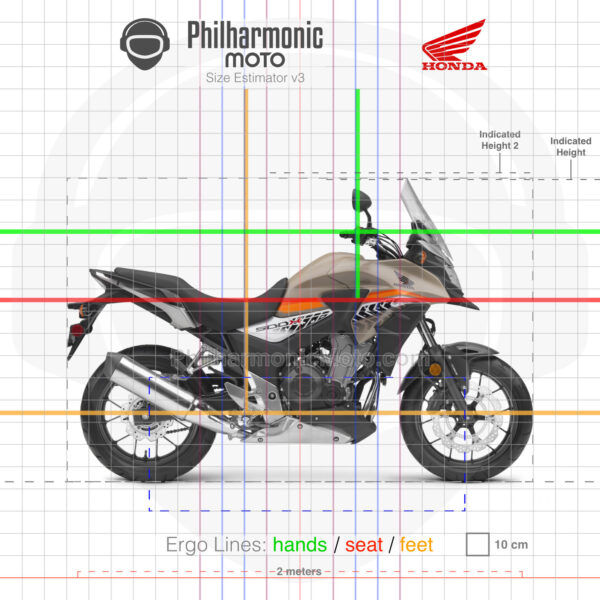

  • Size Estimator (see "About" page to learn more)
