Honda CB650F (2014-2017)

Successor

Updated: 2 June 2025


Launch decade: Style: Brand:

Specifications and Features

Length

2110 mm

Width

775 mm

Height

1120 mm

Seat Height

810 mm

Weight

– 206 kg wet
– Max load: 188 kg (US: 174)

Engine

649 cc Inline-4, liquid-cooled

Power

86 hp @ 11000 rpm

Power to weight ratio

42 HP/100kg

Torque

63 Nm @ 8000 rpm

Torque to weight ratio

31 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

17,3 liters

Suspension

– Front: 41 mm telescopic fork, 120 mm travel
– Rear: mono-shock, adjustable preload, 43,5 mm travel

Tyres

– Front: 120/70-17 (-43 cm)
– Rear: 180/55-17 (-43 cm)

Brakes

– Front: 320 mm discs, 2-piston calipers
– Rear: 240 mm disc, 1-piston caliper
– ABS available

Instruments

– LCD displays with speedometer, tachometer, odometer, fuel gauge, dual trip meters, clock

Other

– LED taillight

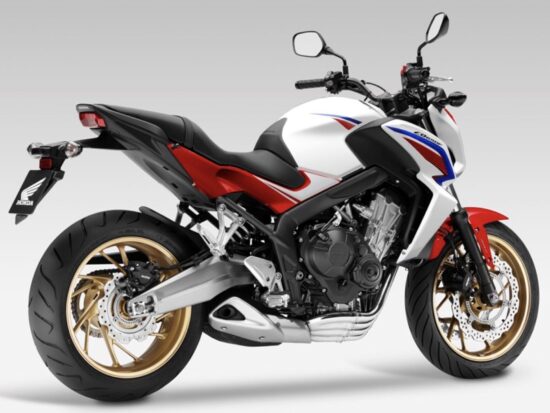

Honda CB650F 2014 dashboard Honda CB650F 2014 front Honda CB650F 2014 back
