Honda CBR125R (2004-2006)

CBR 125 R


Brand: Style:
Share:

Specifications and Features

Engine

125 cc Single-cylinder, liquid-cooled, carbureted

Power

13 hp @ 10000 rpm

Power to weight ratio

10 HP/100kg

Torque

10 Nm @ 8000 rpm

Torque to weight ratio

8 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

10 litres

Length

1920 mm

Width

675 mm

Height

1070 mm

Weight

127 kg wet

Seat Height

776 mm

Suspension

– Front: 31 mm telescopic fork, 109 mm travel
– Rear: mono-shock, 120 mm travel

Tyres

– Front: 80/90-17
– Rear: 100/80-17

Brakes

– Front: 276 mm disc, Nissin 2-piston caliper
– Rear: 220 mm disc, Nissin 1-piston caliper

Instruments

– Analogue speedometer, tachometer, odometer, fuel gauge, engine temperature

Other

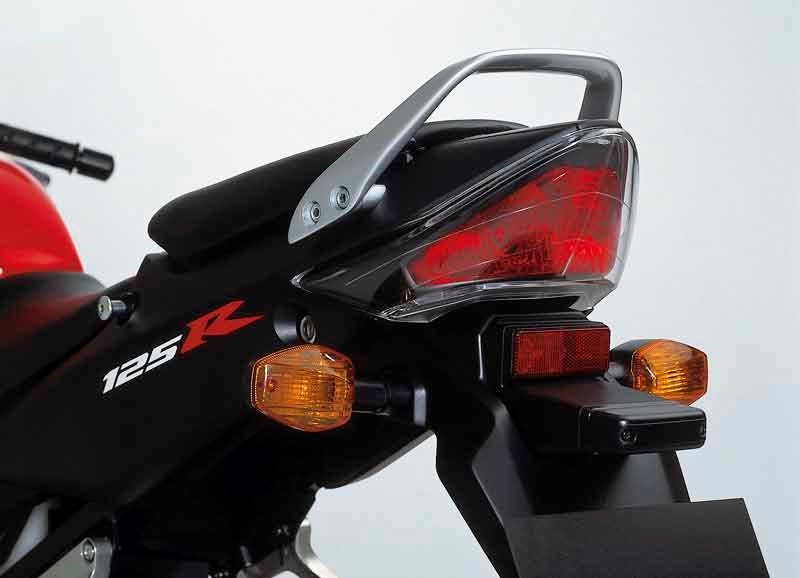

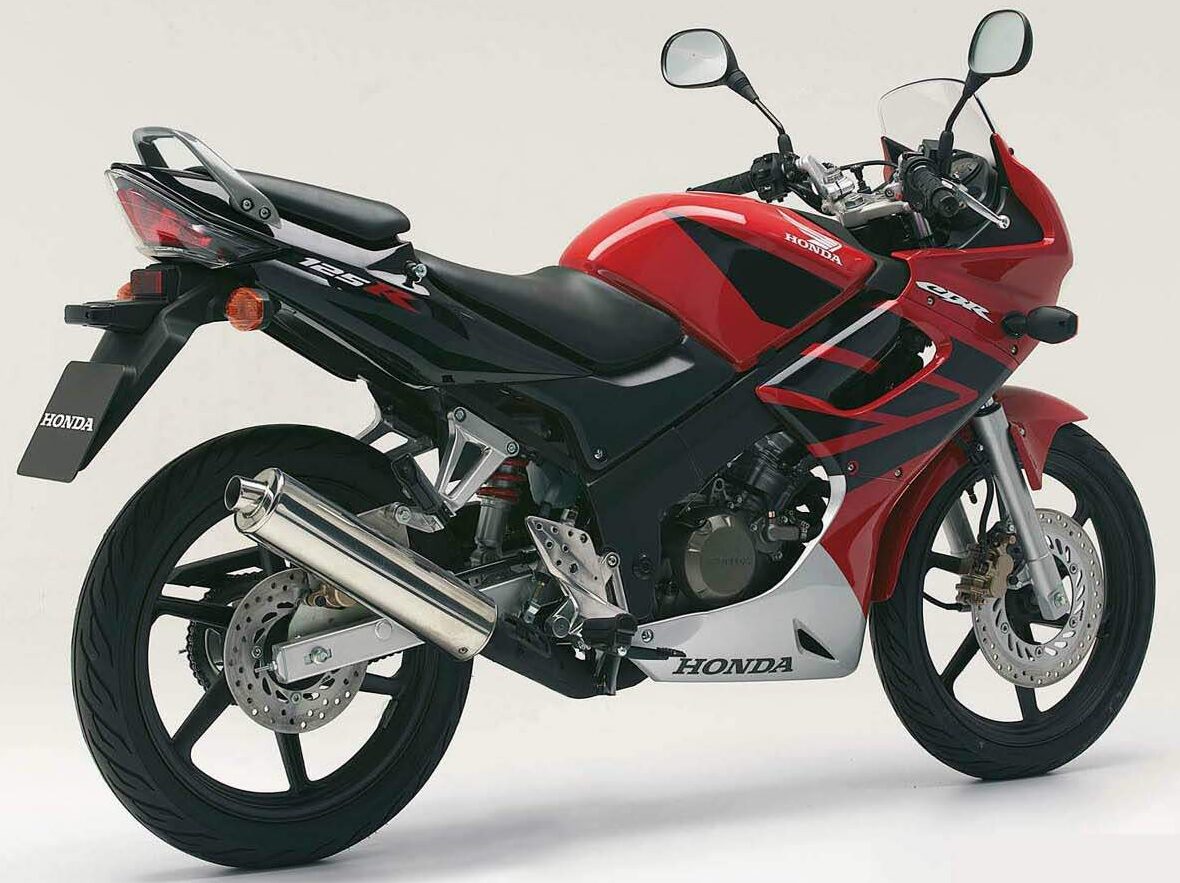

Honda CBR125R 2004 dashboard Honda CBR125R 2005 Repsol front Honda CBR125R 2007 back

T-shirts, mugs, stickers and more:

ride program blue t-shirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

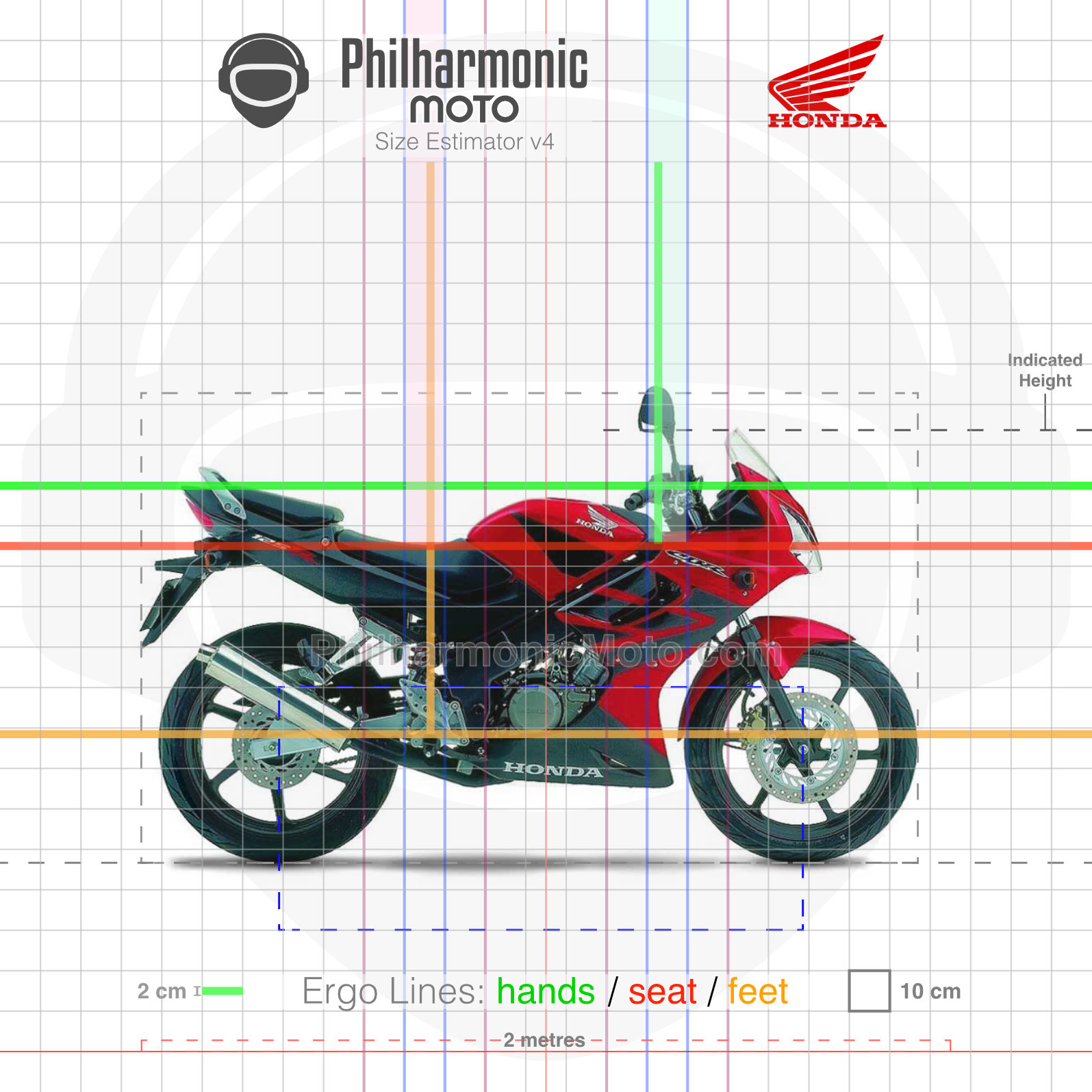

  • Size Estimator (see "About" page to learn more)
