Honda CRF250 Rally (2017-2020)

CRF250L Rally

Updated: 21 October 2024


Brand: Style:
Share:

Specifications and Features

Engine

249 cc Single-cylinder, liquid-cooled

Power

24 hp @ 8500 rpm

Power to weight ratio

15 HP/100kg

Torque

23 Nm @ 6750 rpm

Torque to weight ratio

15 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

10,1 litres

Length

2210 mm

Width

900 mm

Height

1425 mm

Weight

– 157 kg wet
– Max load: 157 kg (estimated, USA 145)

Seat Height

895 mm

Suspension

– Front: Showa 43 mm inverted fork, 250 mm travel
– Rear: Showa mono-shock, adjustable preload, 265 mm travel

Tyres

– Front: 3.00-21
– Rear: 120/80-18

Brakes

– Front: 296 mm disc, Nissin 2-piston caliper
– Rear: 220 mm disc, Nissin 1-piston caliper
– ABS available (switchable rear)

Instruments

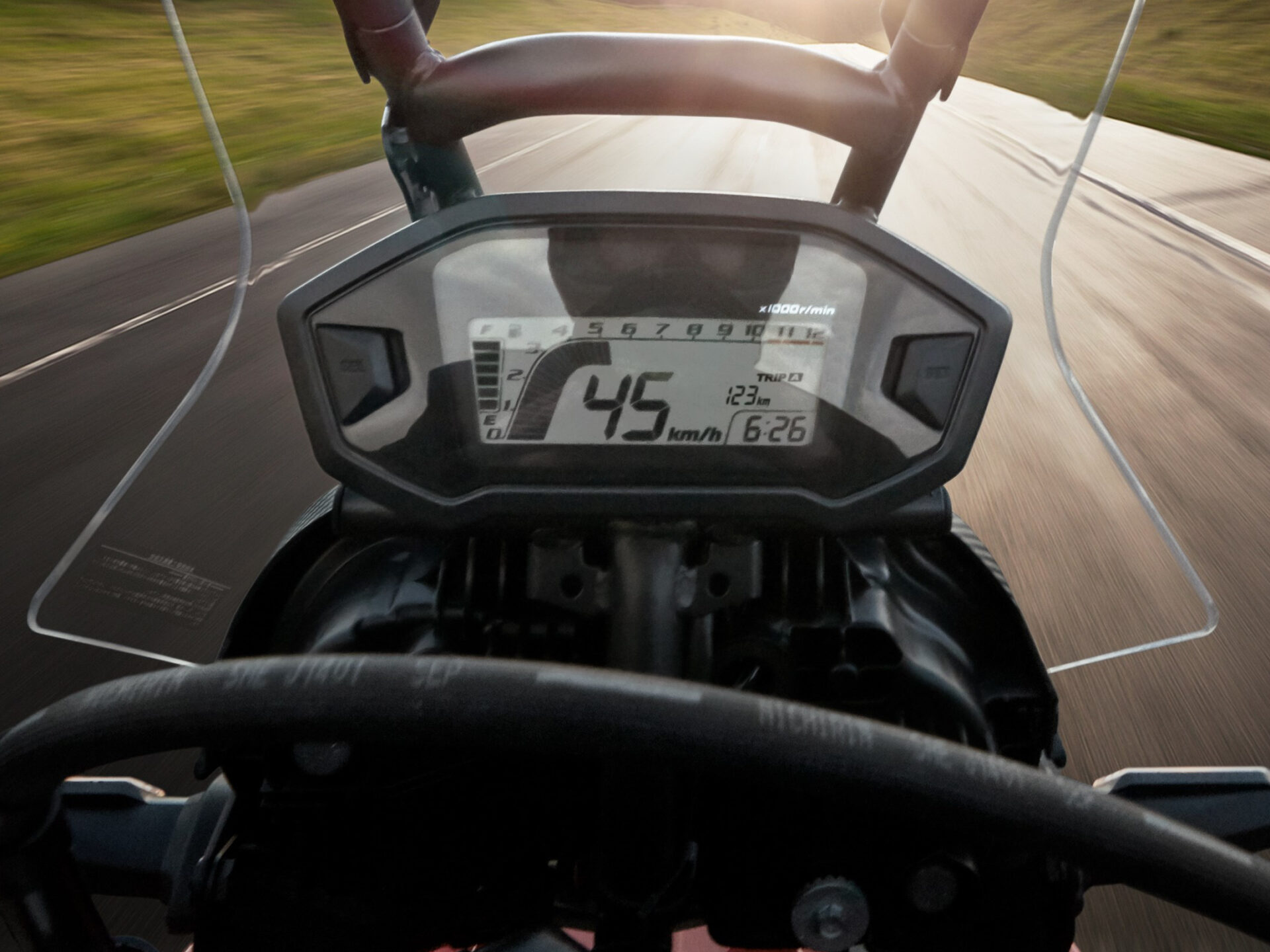

– LCD display with speedometer, tachometer, odometer, fuel gauge, dual trip meters, clock*

Other

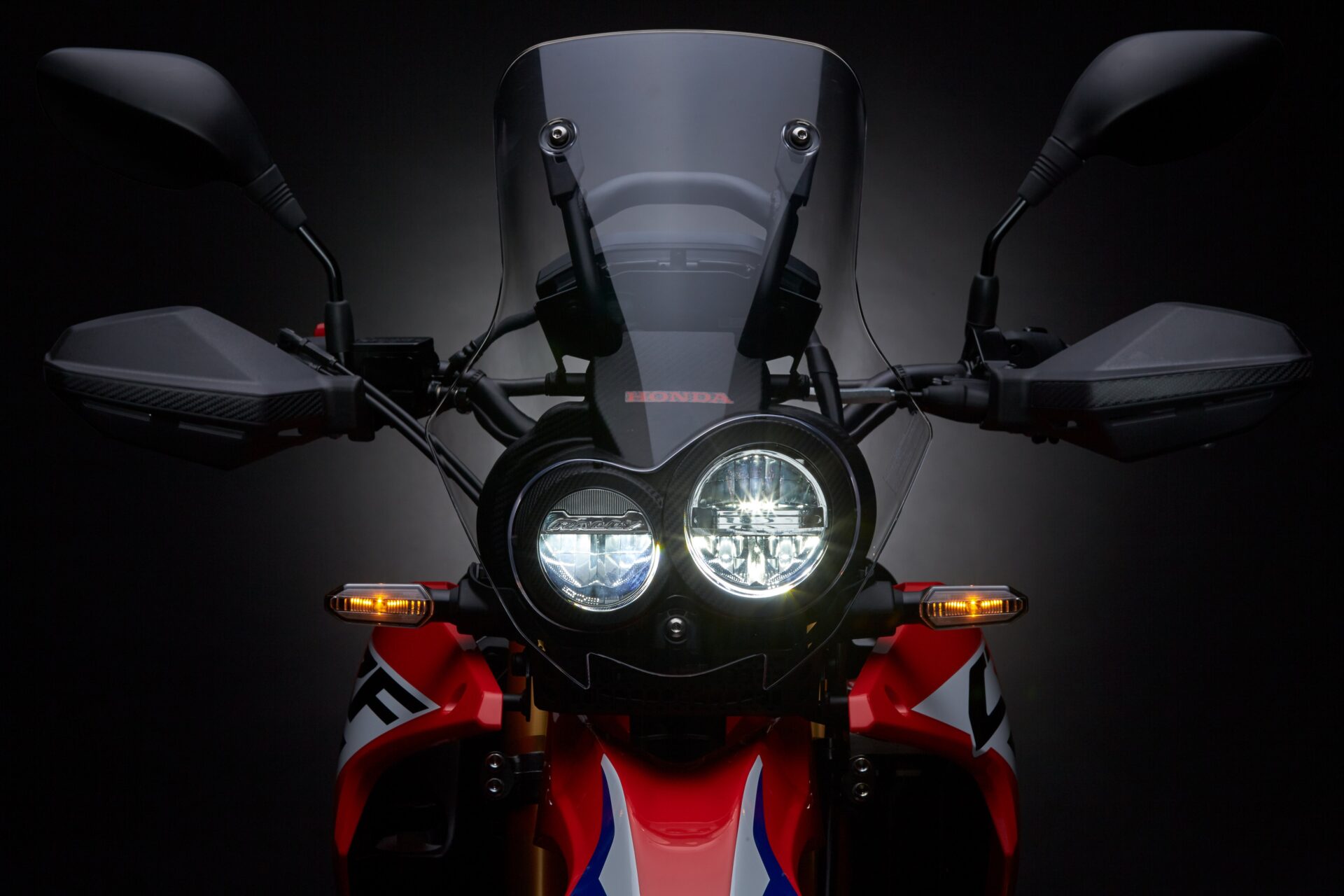

– LED headlight and indicators
– Gear lever with folding tip

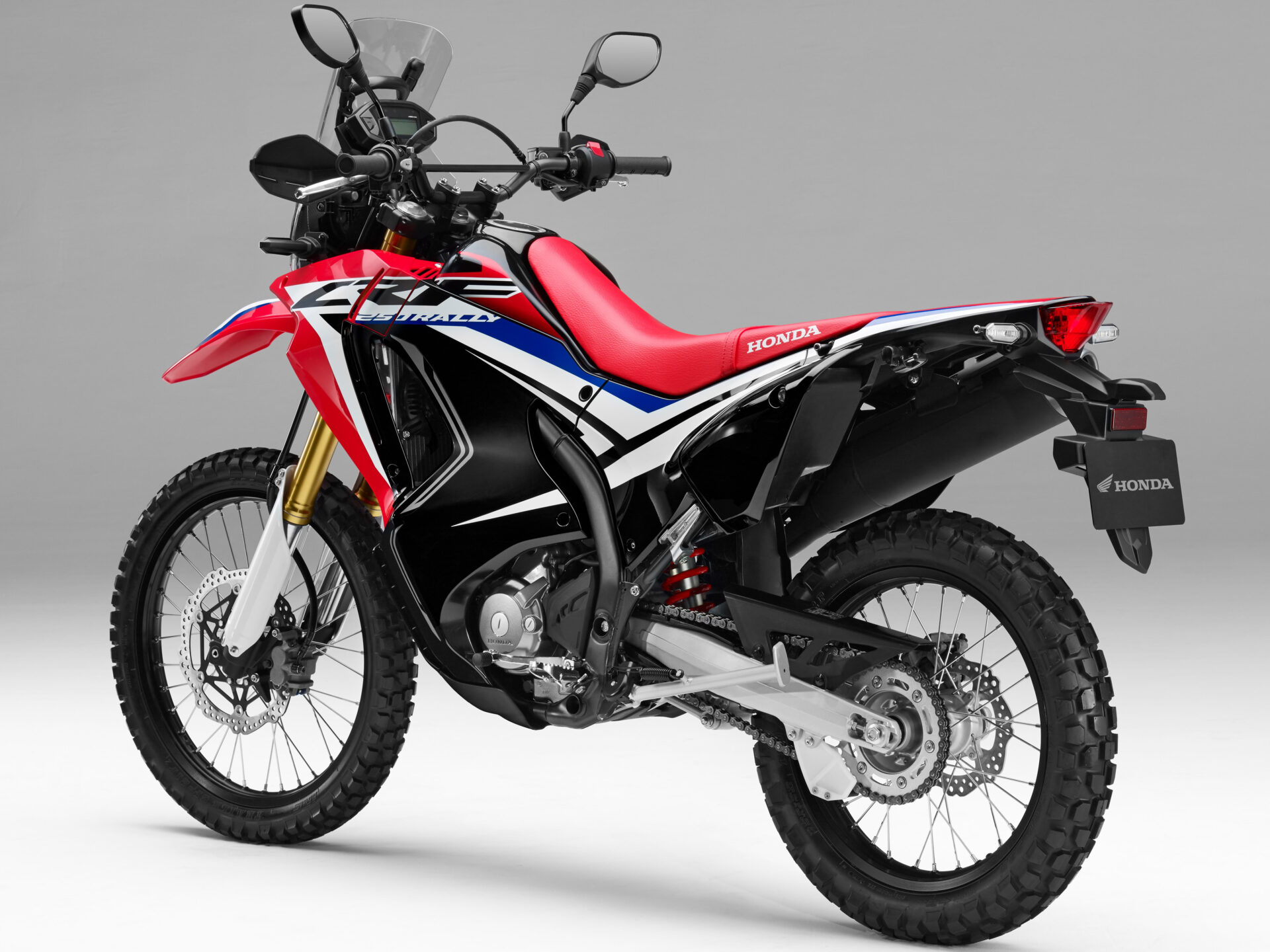

Honda CRF250 Rally 2017 dashboard2 Honda CRF250 Rally 2019 Stealth Black front Honda CRF250 Rally 2019 Extreme Red back
