Honda Dax 125 (2023+)

ST125 Dax


Brand: Style:
Share:

Specifications and Features

Engine

124 cc Single-cylinder, air-cooled

Power

9,3 hp @ 7000 rpm

Power to weight ratio

9 HP/100kg

Torque

10,8 Nm @ 5000 rpm

Torque to weight ratio

10 Nm/100kg

Transmission

– 4-speed, wet multi-plate automatic centrifugal clutch
– Chain final drive

Fuel Capacity

3,8 liters

Length

1760 mm

Width

760 mm

Height

1020 mm

Weight

107 kg wet

Seat Height

775 mm

Suspension

– Front: 31 mm USD fork, 100 mm travel
– Rear: twin-shocks, 120 mm travel

Tyres

– Front: 120/70-12
– Rear: 130/70-12

Brakes

– Front: 220 mm disc, 2-piston caliper
– Rear: 190 mm disc, 1-piston caliper
– ABS on the front wheel with rear wheel lift mitigation

Instruments

LCD display with speedometer, odometer, fuel gauge, twin trip meters

Other

– LED lights

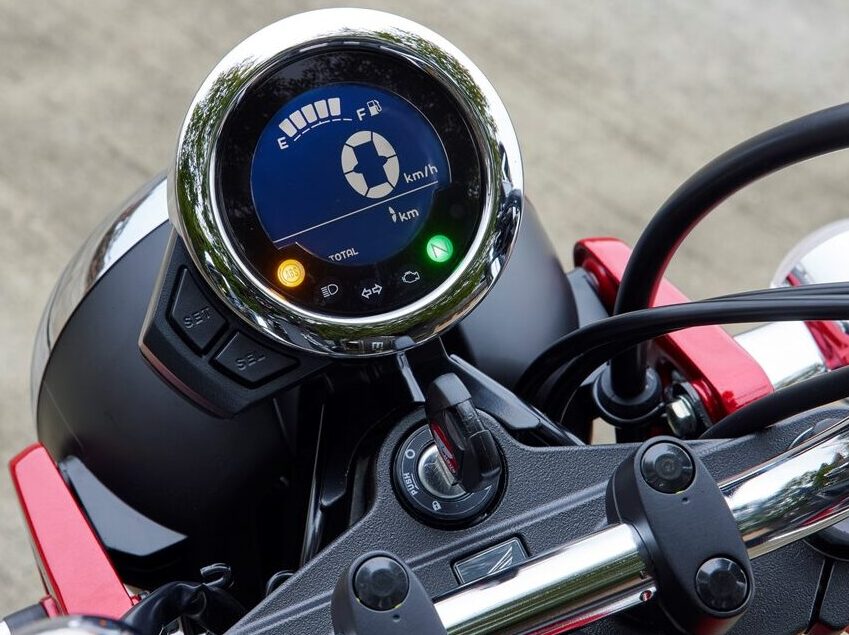

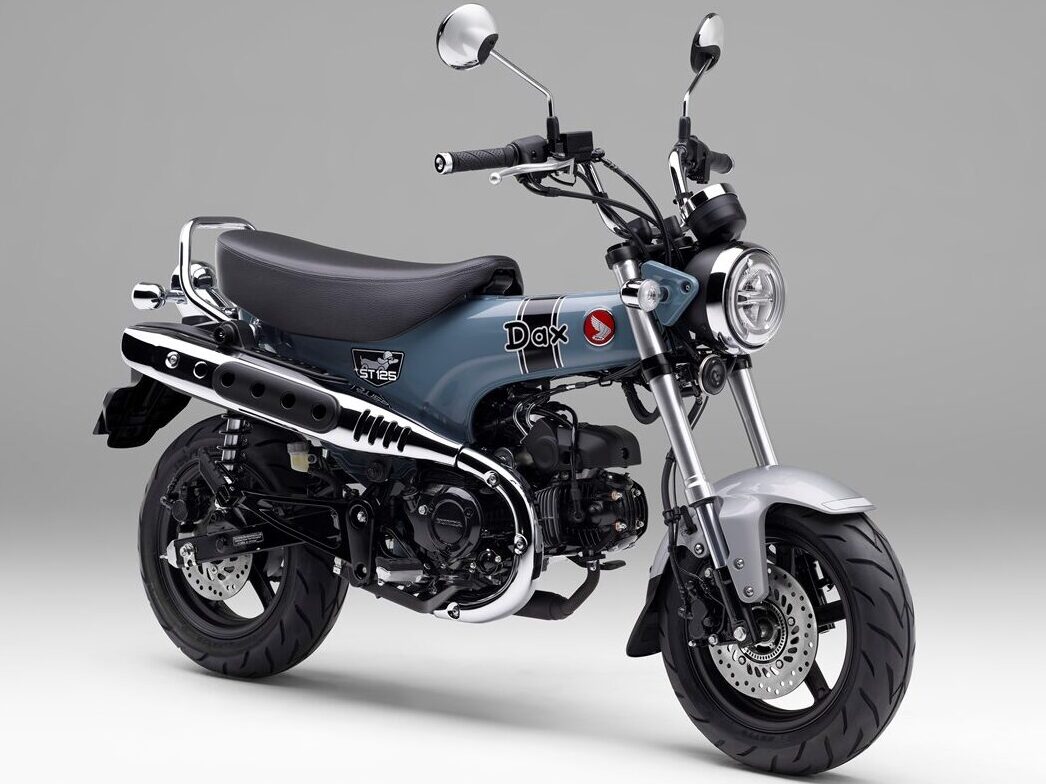

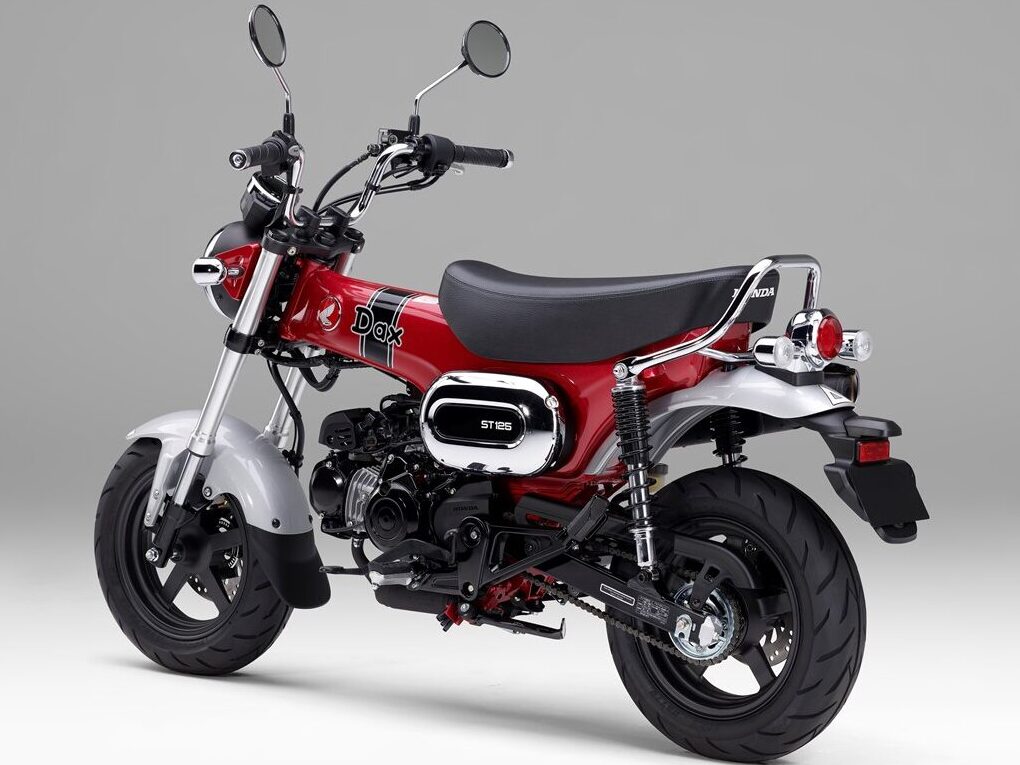

Honda Dax 125 2023 dashboard Honda Dax 125 2023 Pearl Cadet Grey front Honda Dax 125 2023 back
