Honda Grom MSX125 (2021+)

MSX125 apparently means “Mini Street X-treme 125”.

2024/2025 update: the Grom had its looks updated for 2024, with new plastics and colours. Released in some countries for the 2024 model year and others, like the USA, for the 2025 model year. No changes in specs or ergonomics. Grey and yellow bike is the 2021 model, other colours shown are the new version, including the black one, which is the “Grom SP” that includes a belly pan (chin fairing according to Honda).

Updated: 31 may 2024


Brand: Style:
Share:

Specifications and Features

Engine

125 cc Single-cylinder, air-cooled

Power

10 hp @ 7250 rpm

Power to weight ratio

10 HP/100kg

Torque

11 Nm @ 5500 rpm

Torque to weight ratio

11 Nm/100kg

Transmission

– 5-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

6 litres

Length

1760 mm

Width

720 mm

Height

1015 mm

Weight

103 kg wet

Seat Height

761 mm

Suspension

– Front: 31 mm USD inverted fork, 99 mm travel
– Rear: mono-shock, 104 mm travel

Tyres

– Front: 120/70-12
– Rear: 130/70-12

Brakes

– Front: 220 mm disc, 2-piston caliper
– Rear: 190 mm disc, 1-piston caliper
– single-channel ABS available

Instruments

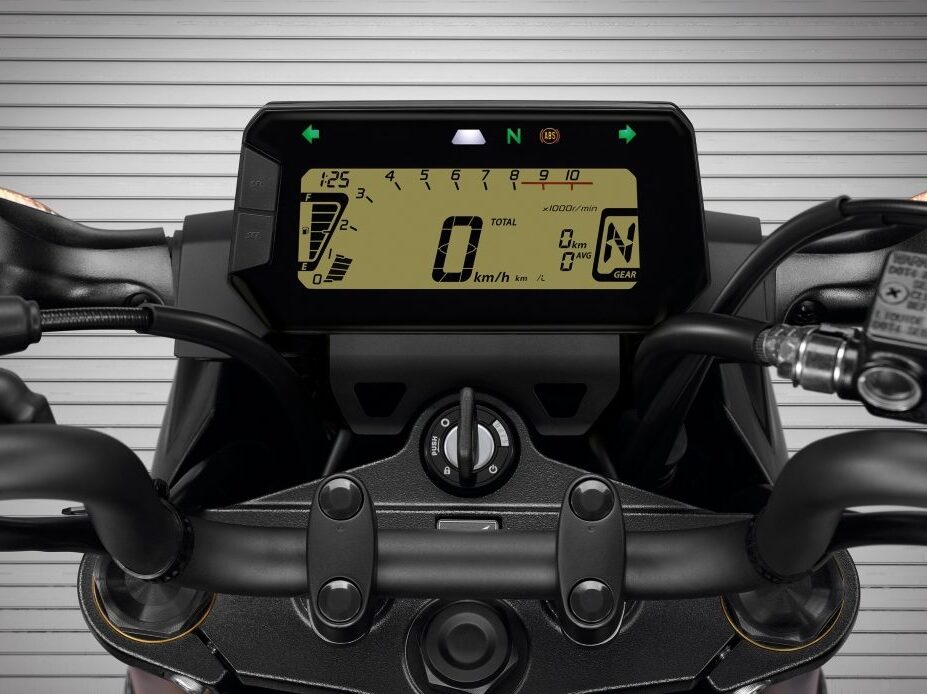

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, twin trip meters, average consumption, clock

Other

– LED headlight and taillight

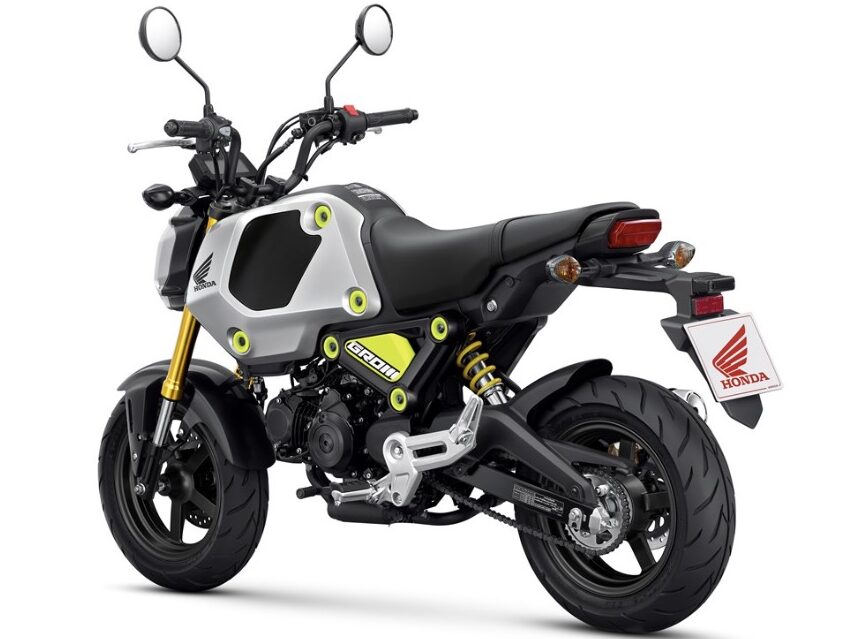

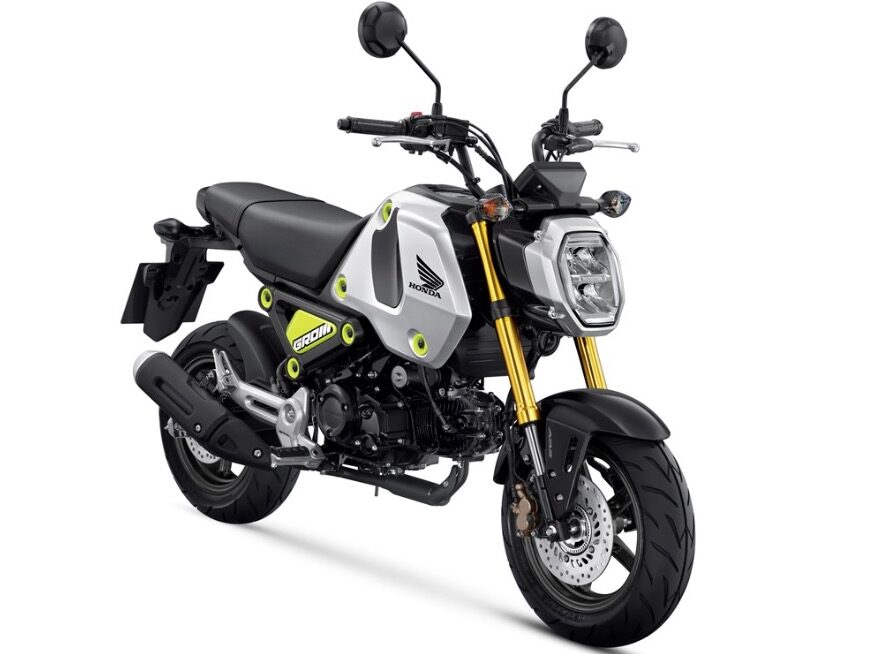

Honda Grom MSX125 2021 dashboard Honda MSX125 Grom 2023 front Honda MSX125 Grom 2023 back

T-shirts, mugs, stickers and more:

honda grom msx125 21 bw tshirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

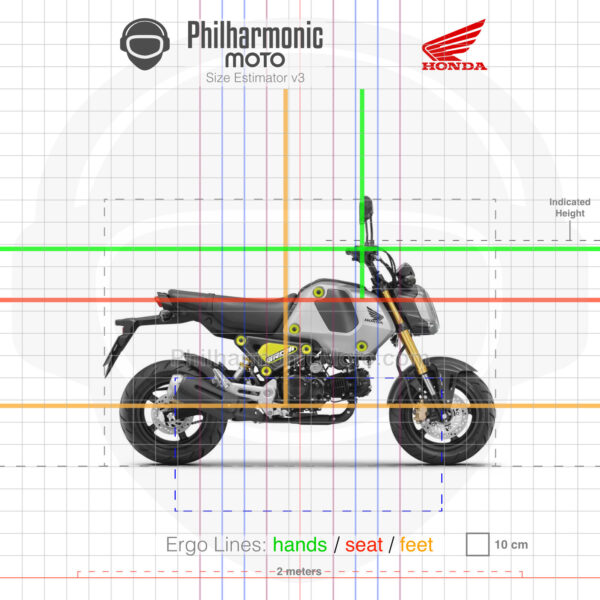

  • Size Estimator (see "About" page to learn more)
