Honda Navi (2022+)

Name: Honda Navi (2022+)
SKU: 1477
Price: 8 MOP
Availability: InStock

Navi 110

Category: Honda Tag: Naked

Specifications

Engine	109,2 cc single-cylinder, fan-cooled, carbureted
Power	7,83 hp @ 7000 rpm
Torque	8,9 Nm @ 5500 rpm
Transmission	Automatic CVT, centrifugal dry clutch, belt final drive
Fuel Capacity	3,4 liters
Length	1805 mm
Width	740 mm
Height	1043 mm
Weight	107 kg wet
Seat Height	764 mm
Suspension	– Front: 26,8 mm inverted fork, 99 mm travel – Rear: Single shock mounted on left side, 71 mm travel
Tyres	– Front: 90/90-12 – Rear: 90/100-10
Brakes	– Front: 130 mm drum with parking brake – Rear: 130 mm drum
Instruments	Analogue speedometer, odometer and fuel gauge
Other	Lockable storage below fuel tank

Dashboard / Support us

T-shirts, mugs, stickers and more:

Quick Comparison

Settings	Honda Navi (2022+) remove	Honda CB500X (2019-2021) remove	Honda NC750X (2021+) remove	Honda MSX125 Grom (2017-2020) remove	Honda CB500X (2022+) remove	Honda MSX125 Grom (2021+) remove
Name	Honda Navi (2022+) remove	Honda CB500X (2019-2021) remove	Honda NC750X (2021+) remove	Honda MSX125 Grom (2017-2020) remove	Honda CB500X (2022+) remove	Honda MSX125 Grom (2021+) remove

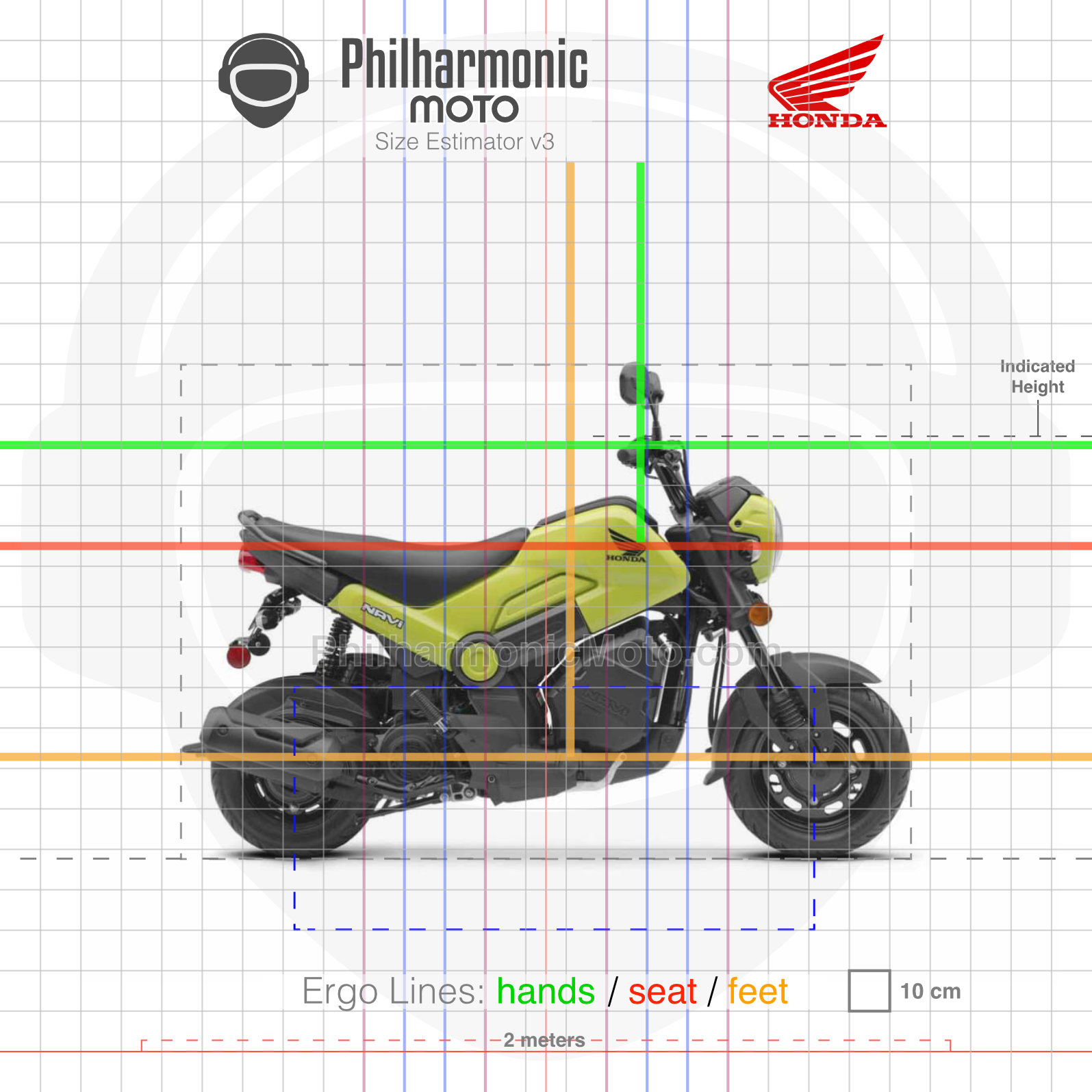

Size Estimator (see "About" page to learn more)
Length	1805 mm	2155 mm	2210 mm	1760 mm	2155 mm	1760 mm
Width	740 mm	825 mm	846 mm	720 mm	830 mm	720 mm
Height	1043 mm	1410 mm / 1445 mm (Low/High screen position)	1330 mm	998 mm	1410 mm / 1445 mm (Low/High screen position)	1015 mm
Seat Height	764 mm	830 mm	800 mm	761 mm	830 mm	761 mm
Weight	107 kg wet	197 kg wet	214 kg (manual), 224 kg (DCT) wet	103 kg wet	199 kg wet	103 kg wet
Engine	109,2 cc single-cylinder, fan-cooled, carbureted	471cc Parallel Twin, liquid cooled	745 cc Parallel Twin, liquid cooled	125 cc single-cylinder, air-cooled	471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank	125 cc single-cylinder, air-cooled
Power	7,83 hp @ 7000 rpm	47 hp @ 8500 rpm	58 hp @ 6750 rpm	9,7 hp @ 7250 rpm	47 hp @ 8600 rpm	9,7 hp @ 7250 rpm
Torque	8,9 Nm @ 5500 rpm	43 Nm @ 7000 rpm	69 Nm @ 4750 rpm	10,5 Nm @ 5500 rpm	43 Nm @ 6500 rpm	10,5 Nm @ 5500 rpm
Transmission	Automatic CVT, centrifugal dry clutch, belt final drive	6-speed, Wet multi-plate assist/slipper clutch, chain final drive	6-speed manual, Wet multi-plate assist/slip clutch or DCT automatic, chain final drive	5-speed, wet multi-plate clutch, chain final drive	6-speed, Wet multi-plate assist/slip clutch, chain final drive	5-speed, wet multi-plate clutch, chain final drive
Fuel Capacity	3,4 liters	17,5 liters	14,1 liters	6 liters	17,5 liters	6 liters
Suspension	- Front: 26,8 mm inverted fork, 99 mm travel - Rear: Single shock mounted on left side, 71 mm travel	- Front: 41mm telescopic forks, pre-load adjustable, 150 mm travel - Rear: mono-shock with 9 stage preload adjuster, 135 mm travel	- Front: 41 mm telescopic forks, 120 mm travel - Rear: Pro-link mono shock, pre-load adjustable, 120 mm travel	- Front: 31 inverted fork, 99 mm travel - Rear: mono-shock, 104 mm travel	- Front: Showa 41 mm SFF-BP USD forks, pre-load adjustable, 135 mm travel - Rear: Prolink mono with 5 stage preload adjuster, 135 mm travel	- Front: 31 mm USD fork - Rear: mono-shock
Tyres	- Front: 90/90-12 - Rear: 90/100-10	- Front: 110/80-19 - Rear: 160/60-17	- Front: 120/70-17 - Rear: 160/60-17	- Front: 120/70-12 - Rear: 130/70-12	- Front: 110/80-19 - Rear: 160/60-17	- Front: 120/70-12 - Rear: 130/70-12
Brakes	- Front: 130 mm drum with parking brake - Rear: 130 mm drum	- Front: 310 mm wavy disc, 2-piston caliper - Rear: 240 mm wavy disc, single-piston caliper	- Front: 320 mm disc, two-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available	- Front: 220 mm disc, 2-piston caliper - Rear: 190 mm disc, 1-piston caliper - ABS available	- Front: Dual 296 mm disc, Nissin radial-mount 2-piston calipers - Rear: 240 mm disc, single-piston caliper	- Front: 220 mm disc, 2-piston caliper - Rear: 190 mm disc, 1-piston caliper - ABS available
Instruments	Analogue speedometer, odometer and fuel gauge	LCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, adjustable shift-up indicator	LCD display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption	LCD display with speedometer, tachometer, twin trip meters, fuel gauge average fuel consumption and clock	LCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP Indicator	LCD display with speedometer, odometer, tachometer, twin trip meters, gear indicator, fuel gauge average fuel consumption and clock
Other	Lockable storage below fuel tank	LED lights, emergency braking blinking lights	LED lights, riding modes, traction control, engine brake control, engine power control, emergency stop blinking lights, 23-liter utility compartment	LED headlight and tail light	LED lights, emergency braking blinking lights, "cam chain has the surface of its pins treated with Vanadium"	LED headlight and tail light
