Honda PCX125 2021 Matt Galaxy Black Metallic

Honda PCX125 (2021+)

Category: Honda Tag: Scooter

Specifications

Engine	125 cc single-cylinder, liquid-cooled
Power	12,3 hp @ 8750 rpm
Torque	11,8 Nm @ 6500 rpm
Transmission	Automatic CVT, centrifugal dry clutch, belt final drive
Fuel Capacity	8,1 liters
Length	1935 mm
Width	740 mm
Height	1105 mm
Weight	130 kg wet
Seat Height	764 mm
Suspension	– Front: 31 mm telescopic fork, 89 mm travel – Rear: twin shocks, 95 mm travel
Tyres	– Front: 110/70-14 – Rear: 130/70-13
Brakes	– Front: 220 mm disc, 2-piston caliper, ABS – Rear: 130 mm drum

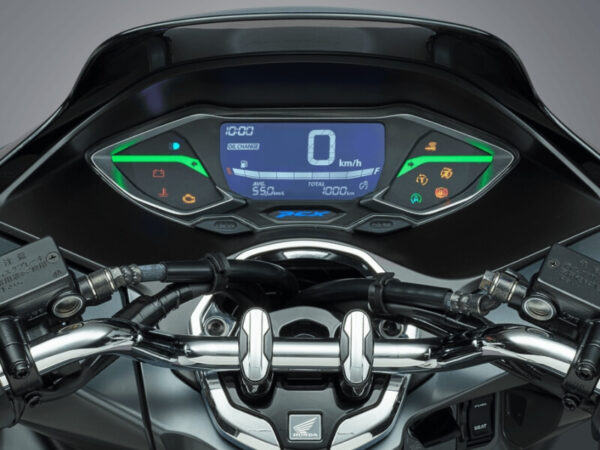

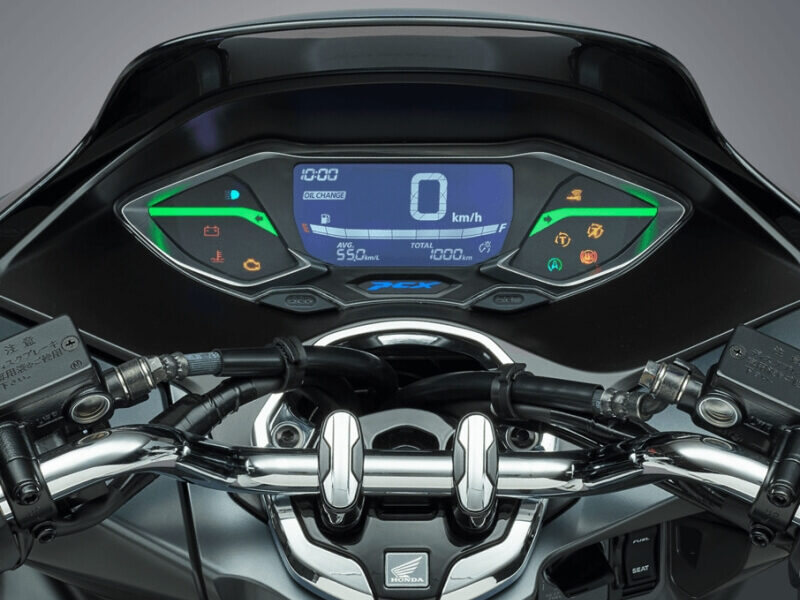

Instruments	LCD display with speedometer, odometer, fuel gauge, average fuel, trip meter, clock

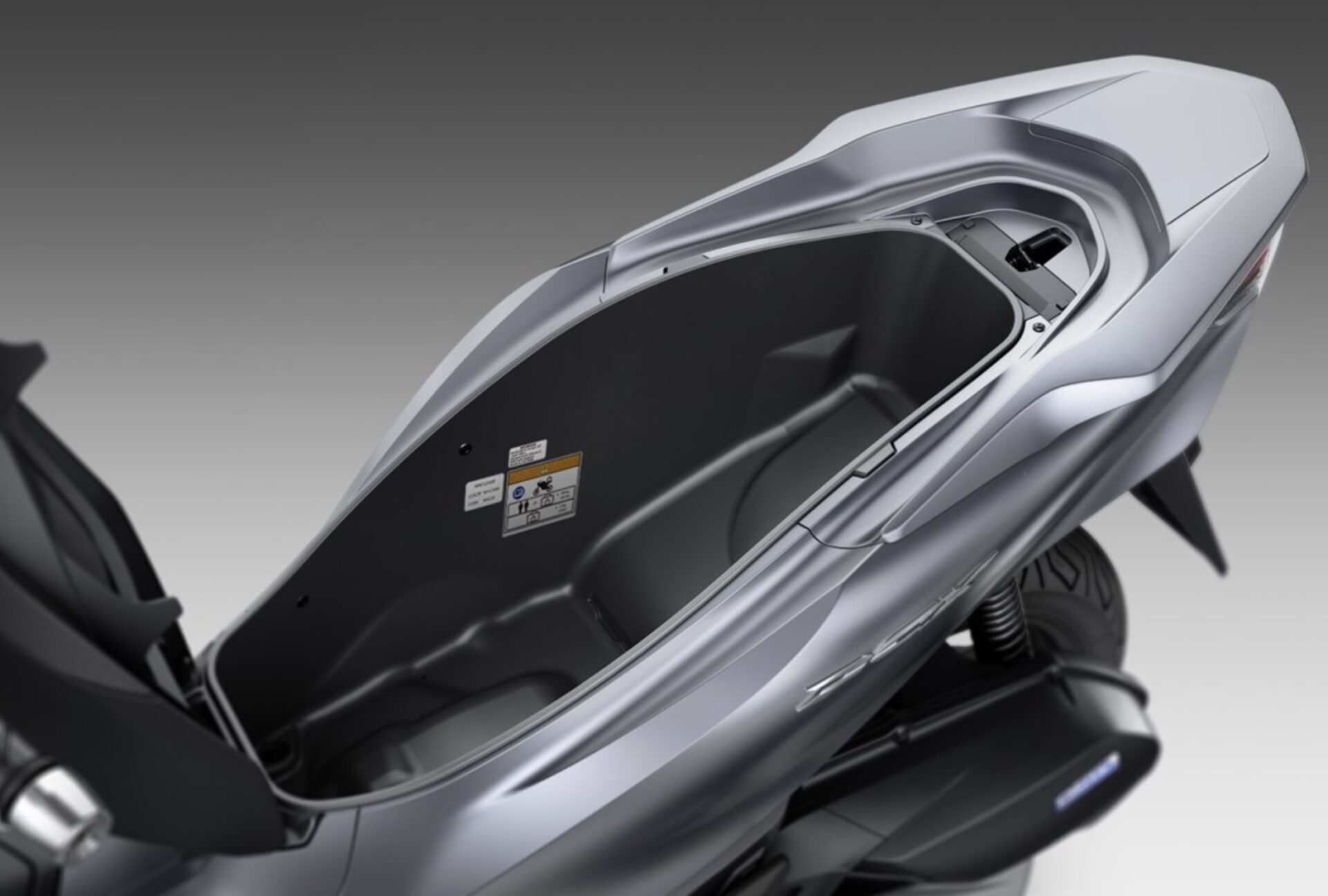

Other	LED lights, traction control, fully Keyless, 30 liter under seat compartment, glovebox with USB-C socket, start-stop system

Dashboard / Support us

T-shirts, mugs, stickers and more:

Quick Comparison

Settings	Honda PCX125 (2021+) remove	Honda Rebel 500/CMX500 (2020+) remove	Honda CB500F (2022+) remove	Honda CL500 (2023+) remove	Honda CB1000R (2021+) remove	Honda MSX125 Grom (2017-2020) remove
Name	Honda PCX125 (2021+) remove	Honda Rebel 500/CMX500 (2020+) remove	Honda CB500F (2022+) remove	Honda CL500 (2023+) remove	Honda CB1000R (2021+) remove	Honda MSX125 Grom (2017-2020) remove
Size Estimator (see "About" page to learn more)
Length	1935 mm	2205 mm	2080 mm	2175 mm	2120 mm	1760 mm
Width	740 mm	820 mm	800 mm	831 mm	789 mm	720 mm
Height	1105 mm	1090 mm	1060 mm	1135 mm	1090 mm	998 mm
Seat Height	764 mm	690 mm	789 mm	790 mm	830 mm	761 mm
Weight	130 kg wet	191 kg wet	189 kg wet	192 kg wet	212 kg wet	103 kg wet
Engine	125 cc single-cylinder, liquid-cooled	471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank	471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank	471 cc Parallel Twin, liquid-cooled, 180º crank	998cc Inline 4, liquid cooled	125 cc single-cylinder, air-cooled
Power	12,3 hp @ 8750 rpm	47 hp @ 8500 rpm	47 hp @ 8600 rpm	47 hp @ 8500 rpm	143 hp @ 10500 rpm	9,7 hp @ 7250 rpm
Torque	11,8 Nm @ 6500 rpm	45 Nm @ 6000 rpm	43 Nm @ 6500 rpm	43,4 Nm @ 6250 rpm	104 Nm @ 8250 rpm	10,5 Nm @ 5500 rpm
Transmission	Automatic CVT, centrifugal dry clutch, belt final drive	6-speed, slip/assist clutch, chain final drive	6-speed, Wet multi-plate assist/slip clutch, chain final drive	6-speed, assist/slip clutch, chain final drive	6-speed, Wet multi-plate assist/slip clutch, chain final drive	5-speed, wet multi-plate clutch, chain final drive
Fuel Capacity	8,1 liters	11,2 liters	17,1 liters	12 liters	16,2 liters	6 liters
Suspension	- Front: 31 mm telescopic fork, 89 mm travel - Rear: twin shocks, 95 mm travel	- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 96 mm travel	- Front: Showa 41mm SFF-BP USD forks, preload adjustable, 110 mm travel, - Rear: Prolink mono with 5 stage preload adjuster, 120 mm travel	- Front: 41 mm telescopic forks, 150 mm travel - Rear: Dual shocks with adjustable preload	- Front: 43 mm Showa inverted forks, 120 mm travel - Rear: single shock, gas-charged HMAS damper featuring 10-step pre-load and stepless rebound damping adjustment, 131 mm travel	- Front: 31 inverted fork, 99 mm travel - Rear: mono-shock, 104 mm travel
Tyres	- Front: 110/70-14 - Rear: 130/70-13	- Front: 130/90-16 - Rear: 150/80-16	- Front: 120/70-17 - Rear: 160/60-17	- Front: 110/80-19 - Rear: 150/70-17	- Front: 120/70-17 - Rear: 190/55-17	- Front: 120/70-12 - Rear: 130/70-12
Brakes	- Front: 220 mm disc, 2-piston caliper, ABS - Rear: 130 mm drum	- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available	- Front: Dual 296mm discs, Nissin radial-mount two piston calipers - Rear: 240mm disc, single piston caliper - ABS available	- Front: 310 mm floating disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available	- Front: 2x 310 mm discs - Rear: 256 mm disc - ABS available	- Front: 220 mm disc, 2-piston caliper - Rear: 190 mm disc, 1-piston caliper - ABS available
Instruments	LCD display with speedometer, odometer, fuel gauge, average fuel, trip meter, clock	LCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gauge	LCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP Indicator	LCD screen with speedometer, odometer, dual trip meters, fuel level and consumption gauge, clock, gear position, upshift indicator	TFT display with speedometer, odometer, gear indicator, fuel gauge, shift up indicator, clock	LCD display with speedometer, tachometer, twin trip meters, fuel gauge average fuel consumption and clock
Other	LED lights, traction control, fully Keyless, 30 liter under seat compartment, glovebox with USB-C socket, start-stop system	Full LED lighting	LED lights	Full LED lighting	LED lights, Traction control, riding modes, self-cancelling indicators, USB under seat	LED headlight and tail light
