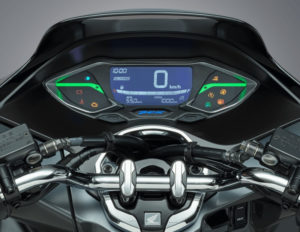

Honda PCX 160 2021 dashboard

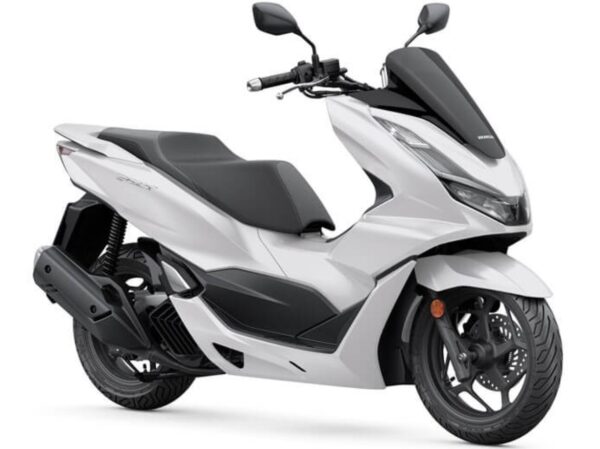

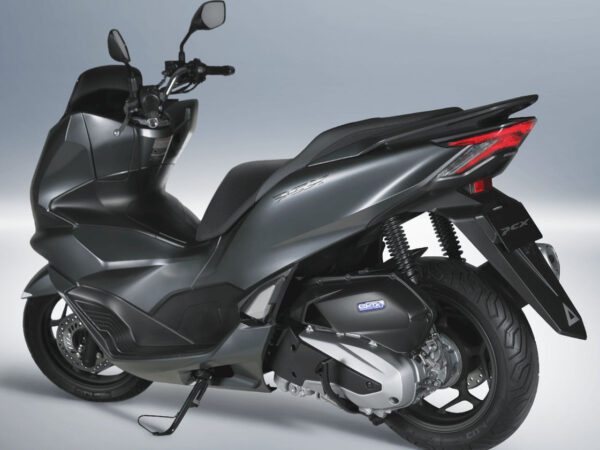

Honda PCX160 (2021+)

Honda PCX160 (2021+)




Category: Tag:

Specifications

Engine

157 cc single-cylinder, liquid-cooled

Power

15,8 hp @ 8500 rpm

Torque

15 Nm @ 6500 rpm

Transmission

Automatic CVT, centrifugal dry clutch, belt final drive

Fuel Capacity

8,1 liters

Length

1935 mm

Width

740 mm

Height

1105 mm

Weight

130 kg wet

Seat Height

764 mm

Suspension

– Front: 31 mm telescopic fork, 89 mm travel
– Rear: twin shocks, 95 mm travel

Tyres

– Front: 110/70-14
– Rear: 130/70-13

Brakes

– Front: 220 mm disc, 2-piston caliper, ABS
– Rear: 130 mm drum

Instruments

LCD display with speedometer, odometer, fuel gauge, average fuel, trip meter, clock

Other

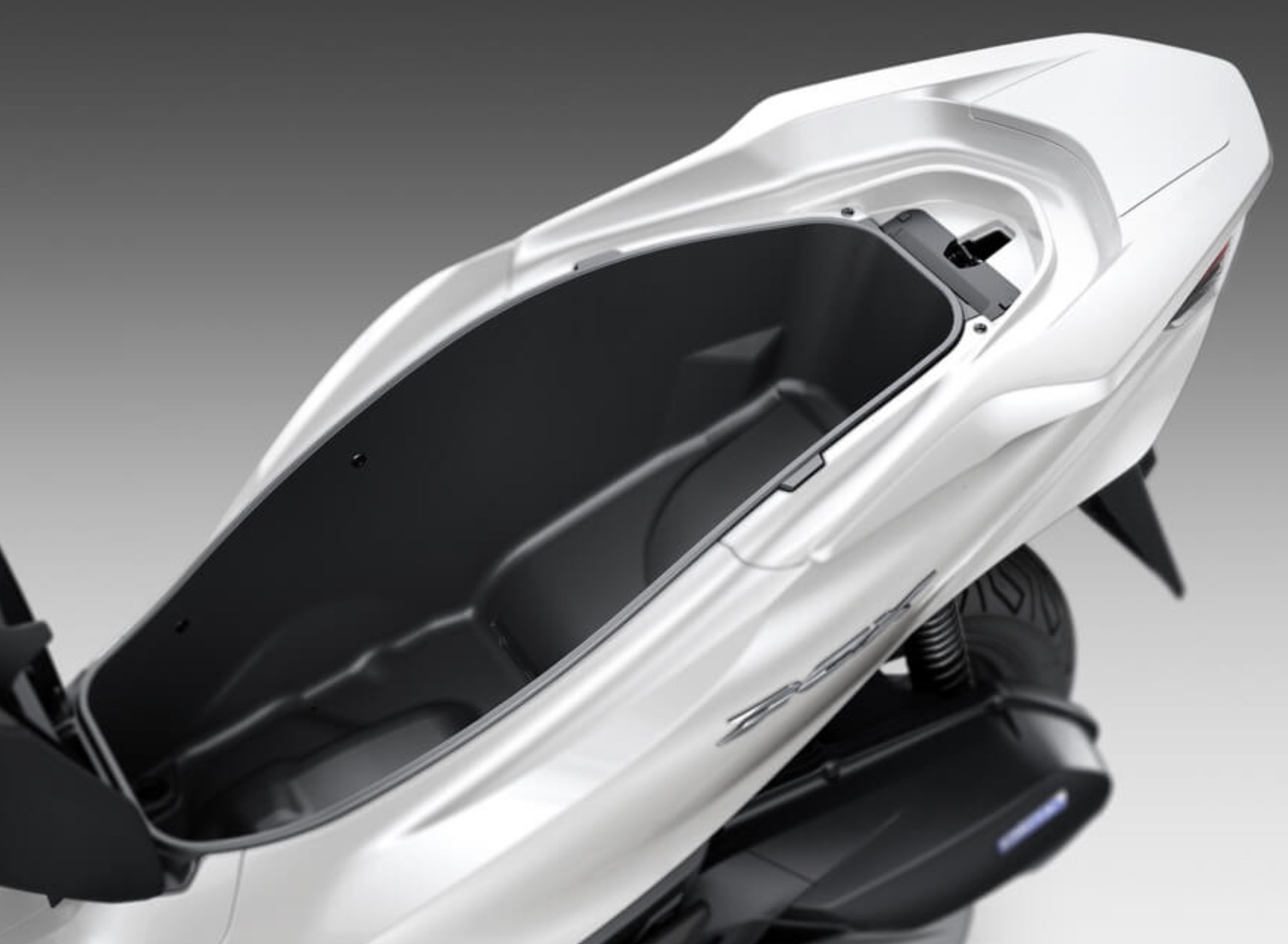

LED lights, traction control, fully Keyless, 30 liter under seat compartment, glovebox with USB-C socket, start-stop system

Dashboard / Support us

Honda PCX 160 2021 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda PCX160 (2021+) removeHonda CB250F Twister (2019-2022) removeHonda Rebel 300/CMX300 (2020+) removeHonda Rebel 500/CMX500 (2020+) removeHonda NC750X (2021+) removeHonda CB300F (2015-2021) remove
NameHonda PCX160 (2021+) removeHonda CB250F Twister (2019-2022) removeHonda Rebel 300/CMX300 (2020+) removeHonda Rebel 500/CMX500 (2020+) removeHonda NC750X (2021+) removeHonda CB300F (2015-2021) remove
Size Estimator (see "About" page to learn more)Honda PCX 160 2021 Pearl Jasmine WhiteHonda CB250F Twister ABS 2020 YellowHonda Rebel 300 CMX300 2022 Pearl BlueHonda Rebel 500 cmx500 2020 Matte Axis Grey MetallicHonda NC750X 2022 Grand Prix RedHonda CB300f 2017 silver
Length1935 mm2065 mm2188 mm2205 mm2210 mm2035 mm
Width740 mm753 mm820 mm820 mm846 mm720 mm
Height1105 mm1072 mm1090 mm1090 mm1330 mm1120 mm
Seat Height764 mm784 mm690 mm690 mm800 mm790 mm
Weight130 kg wet137 kg wet165 kg wet191 kg wet214 kg (manual), 224 kg (DCT) wet158 kg wet
Engine157 cc single-cylinder, liquid-cooled249,5 cc Single-cylinder, air cooled286cc Single-cylinder, liquid cooled471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank745 cc Parallel Twin, liquid cooled286cc Single cylinder, Liquid cooled
Power15,8 hp @ 8500 rpm22,4 hp @ 7500 rpm27,4 hp47 hp @ 8500 rpm58 hp @ 6750 rpm26 hp @ 8500 rpm
Torque15 Nm @ 6500 rpm21 Nm @ 6000 rpm27 Nm45 Nm @ 6000 rpm69 Nm @ 4750 rpm27 Nm @7250 rpm
TransmissionAutomatic CVT, centrifugal dry clutch, belt final drive6-speed, Wet multi-plate clutch, chain final drive6-speed, assist/slip clutch, chain final drive6-speed, slip/assist clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch or DCT automatic, chain final drive6-speed, Wet multi-plate clutch, chain final drive
Fuel Capacity8,1 liters16,5 liters11,2 liters11,2 liters14,1 liters13 liters
Suspension- Front: 31 mm telescopic fork, 89 mm travel - Rear: twin shocks, 95 mm travel- Front: telescopic fork, 130 mm travel - Rear: mono-shock, 108 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 95 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 96 mm travel- Front: 41 mm telescopic forks, 120 mm travel - Rear: Pro-link mono shock, pre-load adjustable, 120 mm travel- Front: 37 mm telescopic fork, 120 mm travel - Rear: mono-shock, preload adjustable, 103 mm travel
Tyres- Front: 110/70-14 - Rear: 130/70-13- Front: 110/70-17 - Rear: 140/70-17- Front: 130/90-16 - Rear: 150/80-16- Front: 130/90-16 - Rear: 150/80-16- Front: 120/70-17 - Rear: 160/60-17- Front: 110/70-17 - Rear: 140/70-17
Brakes- Front: 220 mm disc, 2-piston caliper, ABS - Rear: 130 mm drum- Front: 276 mm disc - Rear: 220 mm disc - ABS available- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available- Front: 320 mm disc, two-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available- Front: 296 mm disc, 2-piston caliper - Rear: 220 mm disc, single-piston caliper - ABS available
InstrumentsLCD display with speedometer, odometer, fuel gauge, average fuel, trip meter, clockLCD display with tachometer, odometer, speedometer, fuel gauge, trip meter, clockLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gaugeLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gaugeLCD display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumptionLCD display with tachometer, odometer, speedometer, fuel gauge, trip meter, clock
OtherLED lights, traction control, fully Keyless, 30 liter under seat compartment, glovebox with USB-C socket, start-stop systemLED indicatorsFull LED lightingFull LED lightingLED lights, riding modes, traction control, engine brake control, engine power control, emergency stop blinking lights, 23-liter utility compartment-
