Honda Rebel 1100/CMX1100 (2021+)

Honda Rebel 1100/CMX1100 (2021+)

Category: Tag:

Specifications

Engine

1084cc Parallel Twin, liquid cooled, 270º crank

Power

87 hp @ 7000 rpm

Torque

98 Nm @ 4750 rpm

Transmission

6-speed (manual or automatic/DCT), slip/assit clutch, chain final drive

Fuel Capacity

13,6 liters

Length

2240 mm

Width

850 mm (830 mm DCT)

Height

1115 mm

Weight

223 kg wet (233 kg DCT)

Seat Height

700 mm

Suspension

– Front: 43 mm telescopic forks, adjustable preload, 122 mm travel
– Rear: Dual shocks, adjustable preload, 94 mm travel

Tyres

– Front: 130/70B18 M/C
– Rear: 180/65B16 M/C

Brakes

– Front: 300 mm floating disc, 4-piston caliper
– Rear: 256 mm disc, 2-piston caliper,
– ABS available

Instruments

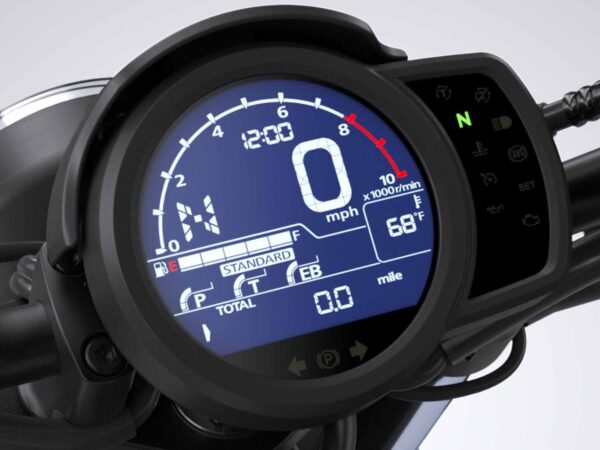

Inverted LCD display with speedometer, tachometer, gear-position indicator, a fuel-indicator, engine output mode, torque control level, engine braking mode

Other

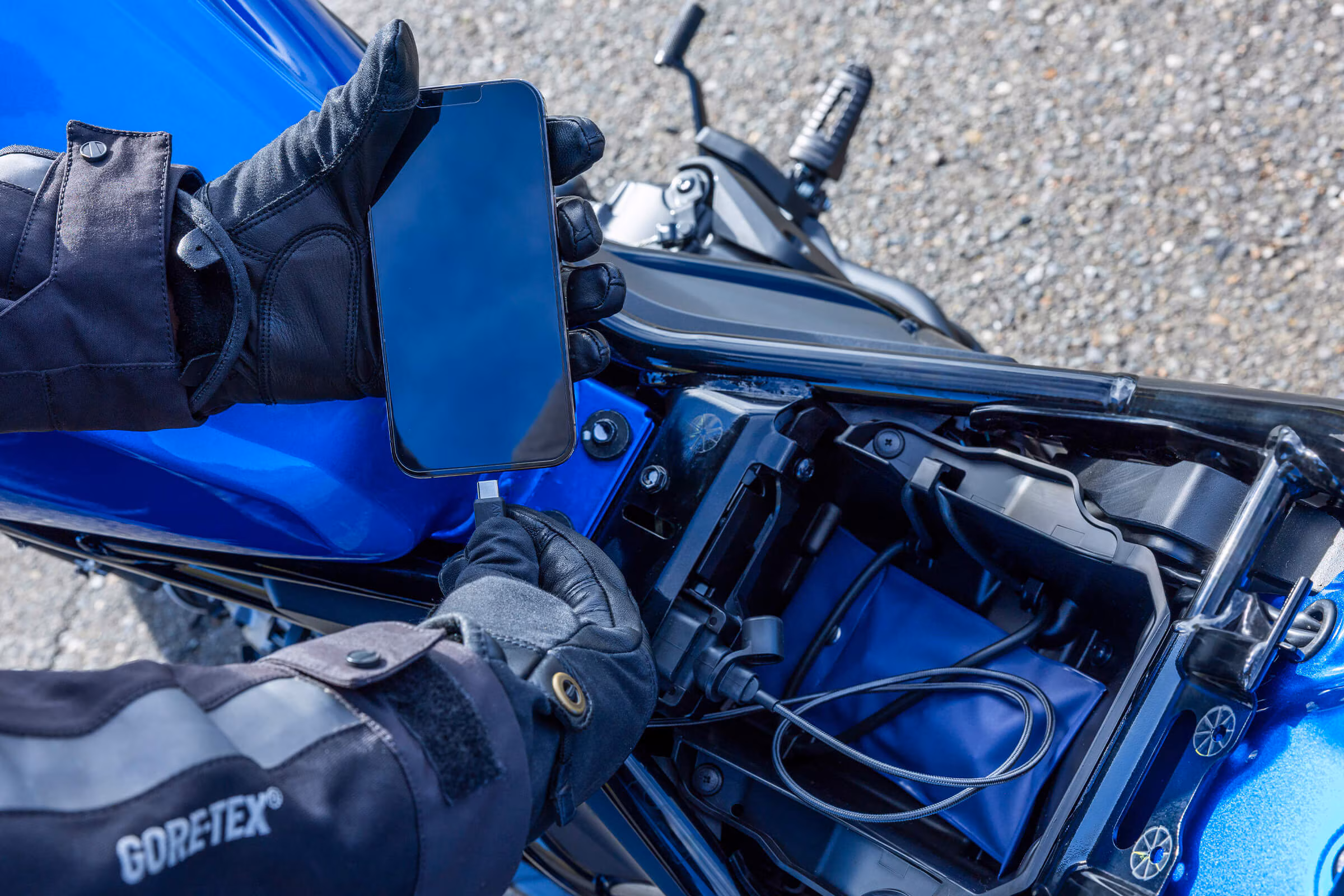

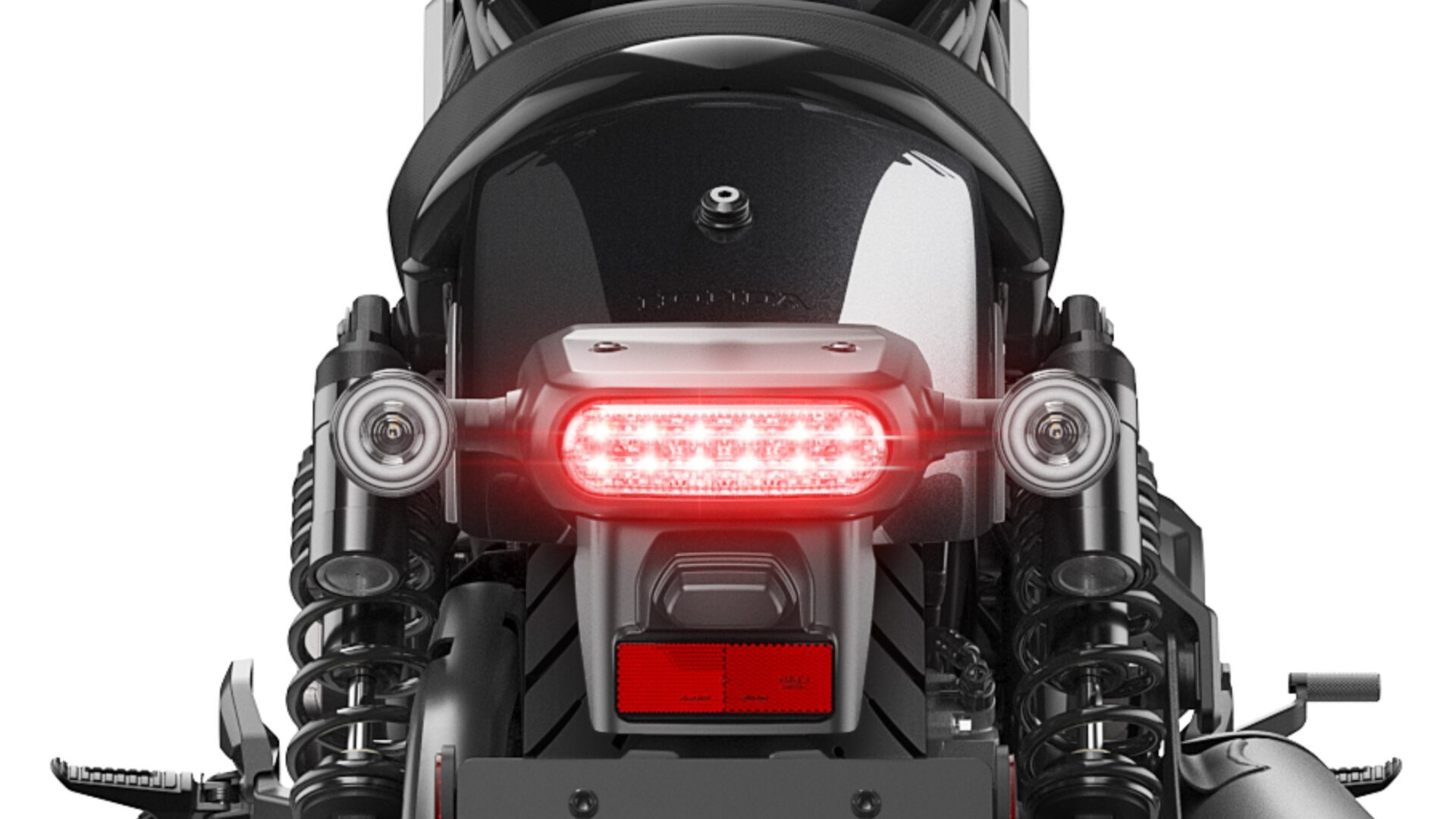

Full LED lighting, traction control, cruise control, wheelie control (!), USB-C under seat, three-liter underseat storage

Dashboard / Support us

2021 Honda Rebel 1100 dashboard



Rebel 1100 t-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda Rebel 1100/CMX1100 (2021+) removeHonda CL500 (2023+) removeHonda MSX125 Grom (2017-2020) removeHonda Rebel 500/CMX500 (2020+) removeHonda CRF300L Rally (2021+) removeHonda CB1000R (2021+) remove
NameHonda Rebel 1100/CMX1100 (2021+) removeHonda CL500 (2023+) removeHonda MSX125 Grom (2017-2020) removeHonda Rebel 500/CMX500 (2020+) removeHonda CRF300L Rally (2021+) removeHonda CB1000R (2021+) remove

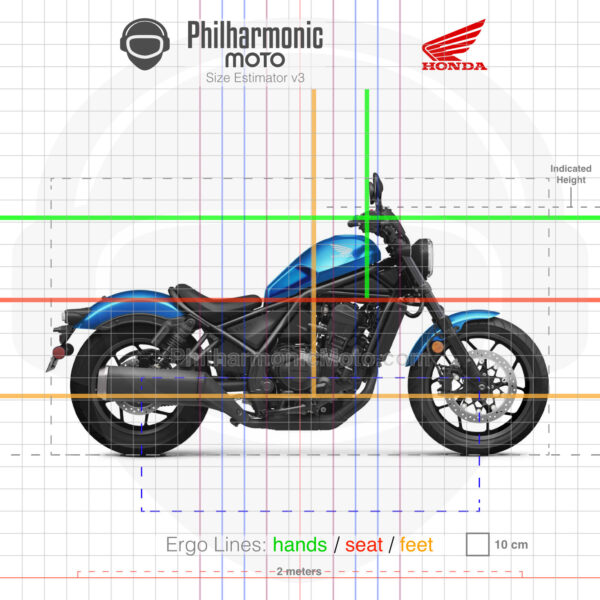

Size Estimator (see "About" page to learn more)Honda Rebel 1100 CMX1100 2022 Bordeaux Red MetallicHonda CL500 2023 Candy Energy OrangeHonda Grom MSX125 2017 Pearl RedHonda Rebel 500 cmx500 2020 Matte Axis Grey MetallicHonda CRF300L Rally 2021 redHonda CB1000R 2021 Matte Beta Silver Metallic
Length2240 mm2175 mm1760 mm2205 mm2330 mm2120 mm
Width850 mm (830 mm DCT)831 mm720 mm820 mm920 mm789 mm
Height1115 mm1135 mm998 mm1090 mm1415 mm1090 mm
Seat Height700 mm790 mm761 mm690 mm885 mm830 mm
Weight223 kg wet (233 kg DCT)192 kg wet103 kg wet191 kg wet150 kg wet212 kg wet
Engine1084cc Parallel Twin, liquid cooled, 270º crank471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank125 cc single-cylinder, air-cooled471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank286cc Single-cylinder, liquid cooled998cc Inline 4, liquid cooled
Power87 hp @ 7000 rpm47 hp @ 8500 rpm9,7 hp @ 7250 rpm47 hp @ 8500 rpm27 hp @ 8500 rpm143 hp @ 10500 rpm
Torque98 Nm @ 4750 rpm43,4 Nm @ 6250 rpm10,5 Nm @ 5500 rpm45 Nm @ 6000 rpm26,6 Nm @ 6500 rpm104 Nm @ 8250 rpm
Transmission6-speed (manual or automatic/DCT), slip/assit clutch, chain final drive6-speed, assist/slip clutch, chain final drive5-speed, wet multi-plate, chain final drive6-speed, slip/assist clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive
Fuel Capacity13,6 liters12 liters6 liters11,2 liters12,8 liters16,2 liters
Suspension- Front: 43 mm telescopic forks, adjustable preload, 122 mm travel - Rear: Dual shocks, adjustable preload, 94 mm travel- Front: 41 mm telescopic forks, 150 mm travel - Rear: Dual shocks with adjustable preload- Front: 31 inverted forks, 99 mm travel - Rear: mono-shock, 104 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 96 mm travel- Front: 43 mm telescopic forks, 259 mm travel - Rear: Pro-link mono shock, 259 mm travel- Front: 43 mm Showa inverted forks, 120 mm travel - Rear: single shock, gas-charged HMAS damper featuring 10-step pre-load and stepless rebound damping adjustment, 131 mm travel
Tyres- Front: 130/70B18 M/C - Rear: 180/65B16 M/C- Front: 110/80-19 - Rear: 150/70-17- Front: 120/70-12 - Rear: 130/70-12- Front: 130/90-16 - Rear: 150/80-16- Front: 80/100-21 - Rear: 120/80-18- Front: 120/70-17 - Rear: 190/55-17
Brakes- Front: 300 mm floating disc, 4-piston caliper - Rear: 256 mm disc, 2-piston caliper, - ABS available- Front: 310 mm floating disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available- Front: 220 mm disc, 2-piston caliper - Rear: 190 mm disc, 1-piston caliper - ABS available- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available- Front: 256 mm disc, two-piston caliper - Rear: 220 mm disc, single-piston caliper - Switchable ABS available- Front: 2x 310 mm discs - Rear: 256 mm disc - ABS available
InstrumentsInverted LCD display with speedometer, tachometer, gear-position indicator, a fuel-indicator, engine output mode, torque control level, engine braking modeLCD screen with speedometer, odometer, dual trip meters, fuel level and consumption gauge, clock, gear position, upshift indicatorLCD display with speedometer, tachometer, twin trip meters, fuel gauge average fuel consumption and clockLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gaugeLCD display with speedometer, tachometer, clock, fuel gauge, gear indicator, fuel mileage and consumption, average speed, stopwatchTFT display with speedometer, odometer, gear indicator, fuel gauge, shift up indicator, clock
OtherFull LED lighting, traction control, cruise control, wheelie control (!), USB-C under seat, three-liter underseat storageFull LED lightingLED headlight and tail lightFull LED lighting-LED lights, Traction control, riding modes, self-cancelling indicators, USB under seat
