Honda Rebel 300 CMX300 2022 dashboard

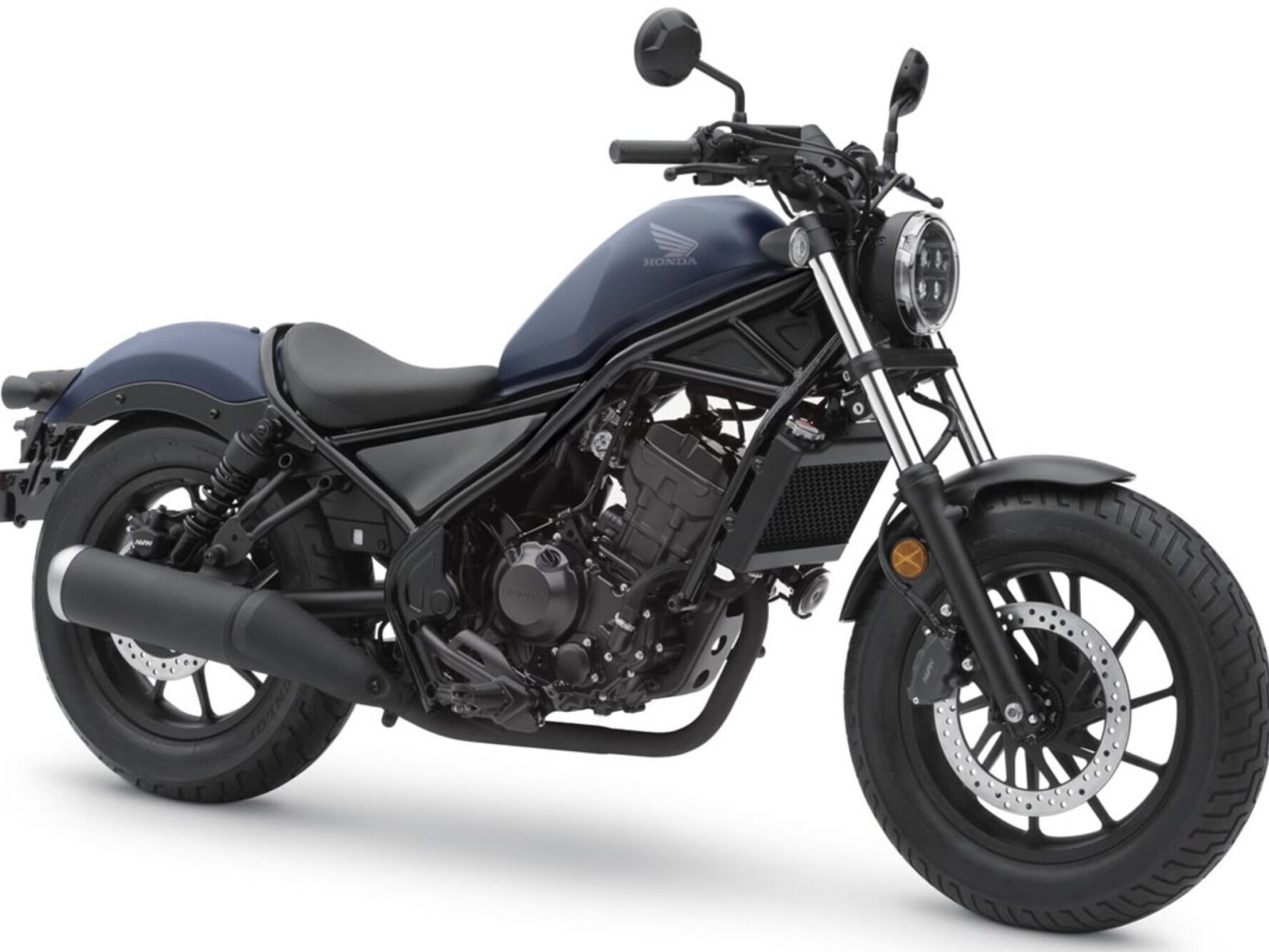

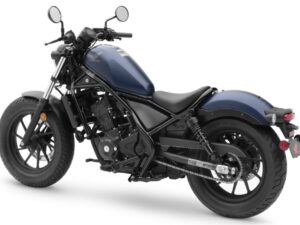

Honda Rebel 300/CMX300 (2020+)

Honda Rebel 300/CMX300 (2020+)

Category: Tag:

Specifications

Engine

286cc Single-cylinder, liquid cooled

Power

27,4 hp

Torque

27 Nm

Transmission

6-speed, assist/slip clutch, chain final drive

Fuel Capacity

11,2 liters

Length

2188 mm

Width

820 mm

Height

1090 mm

Weight

165 kg wet

Seat Height

690 mm

Suspension

– Front: 41 mm telescopic forks, 121 mm travel
– Rear: Dual shocks with adjustable preload, 95 mm travel

Tyres

– Front: 130/90-16
– Rear: 150/80-16

Brakes

– Front: 296mm disc, 2-piston caliper
– Rear: 240mm disc, single-piston caliper
– ABS available

Instruments

LCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gauge

Other

Full LED lighting

Dashboard / Support us

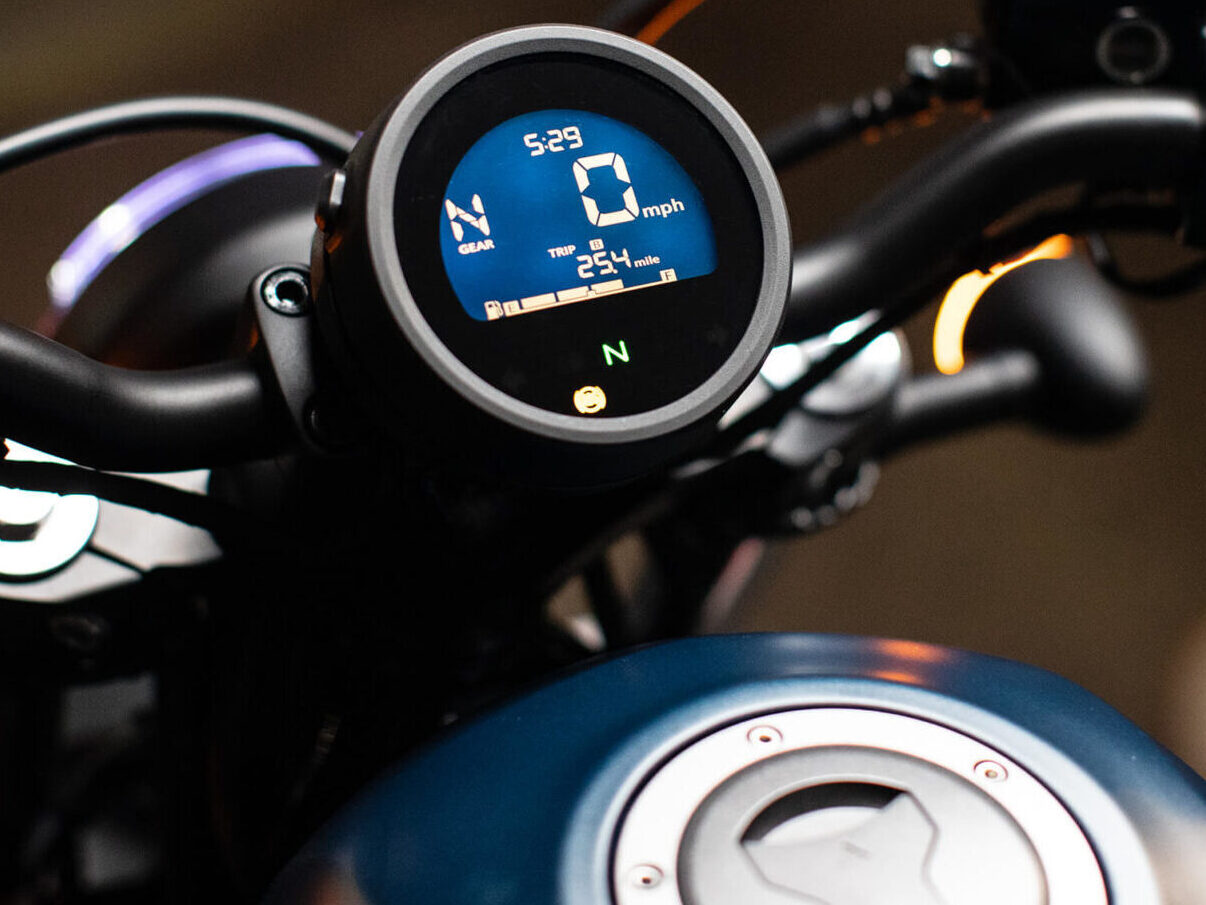

Honda Rebel 300 CMX300 2022 dashboard



Rebel 300 t-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda Rebel 300/CMX300 (2020+) removeHonda Rebel 500/CMX500 (2017-2019) removeHonda CBR500R (2022+) removeHonda CB250F Twister (2019+) removeHonda CL500 (2023+) removeHonda Goldwing (2019+) remove
NameHonda Rebel 300/CMX300 (2020+) removeHonda Rebel 500/CMX500 (2017-2019) removeHonda CBR500R (2022+) removeHonda CB250F Twister (2019+) removeHonda CL500 (2023+) removeHonda Goldwing (2019+) remove

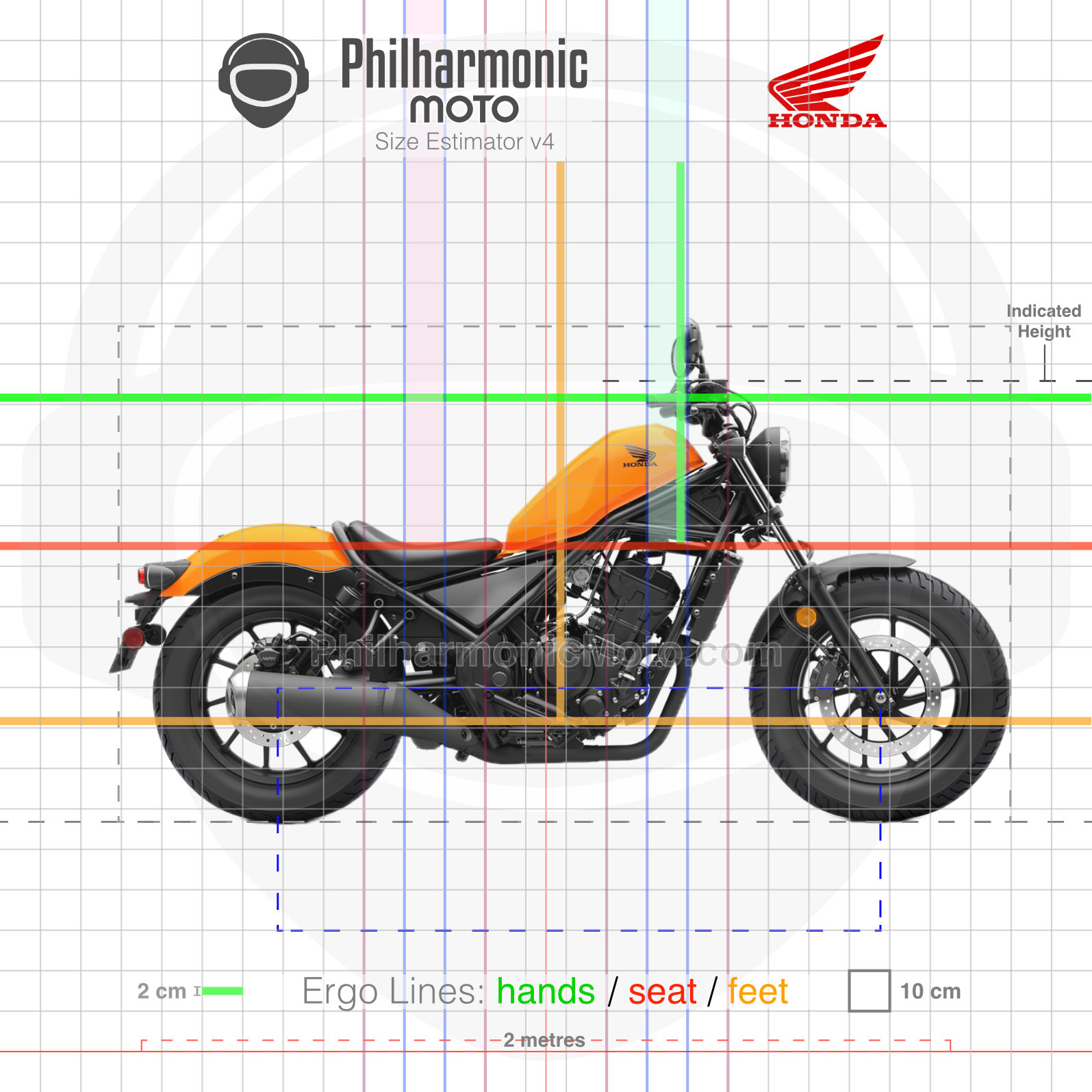

Size Estimator (see "About" page to learn more)Honda Rebel 300 CMX300 2022 Pearl BlueHonda Rebel 500 cmx500 2017 Matte Armored Silver Metallic-01Honda CBR500R 2022 Sword Silver MetallicHonda CB250F Twister ABS 2020 YellowHonda CL500 2023 Candy Energy OrangeHonda Goldwing 2020 Matte Black Metallic
Length2188 mm2188 mm2080 mm2065 mm2175 mm2475 mm
Width820 mm820 mm760 mm753 mm831 mm925 mm
Height1090 mm1094 mm1145 mm1072 mm1135 mm1340/1445 mm (low/high screen position)
Seat Height690 mm690 mm785 mm784 mm790 mm745 mm
Weight165 kg wet190 kg wet192 kg wet137 kg wet192 kg wet364 kg wet
Engine286cc Single-cylinder, liquid cooled471 cc Parallel Twin, liquid cooled, 180º crank471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank249,5 cc Single-cylinder, air cooled471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank1833 cc horizontally opposed 6-cylinder, liquid cooled
Power27,4 hp45 hp @ 8500 rpm47 hp @ 8600 rpm22,4 hp @ 7500 rpm47 hp @ 8500 rpm125 hp @ 5500 rpm
Torque27 Nm45 Nm @ 6000 rpm43 Nm @ 6500 rpm21 Nm @ 6000 rpm43,4 Nm @ 6250 rpm169 Nm @ 4500 rpm
Transmission6-speed, assist/slip clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate clutch, chain final drive6-speed, assist/slip clutch, chain final drive6-speed manual + reverse, wet multi-plate clutch, or 7-speed DCT + reverse, shaft final drive
Fuel Capacity11,2 liters11,2 liters17,1 liters16,5 liters12 liters21 liters
Suspension- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 95 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 96 mm travel- Front: Showa 41mm SFF-BP USD inverted forks, preload adjustable, 110 mm travel, - Rear: Prolink mono with 5 stage preload adjuster, 120 mm travel- Front: telescopic fork, 130 mm travel - Rear: mono-shock, 108 mm travel- Front: 41 mm telescopic forks, 150 mm travel - Rear: Dual shocks with adjustable preload- Front: double wishbone, 110 mm travel - Rear: single shock, electronically adjustable preload, 105 mm travel
Tyres- Front: 130/90-16 - Rear: 150/80-16- Front: 130/90-16 - Rear: 150/80-16- Front: 120/70-17 - Rear: 160/60-17- Front: 110/70-17 - Rear: 140/70-17- Front: 110/80-19 - Rear: 150/70-17- Front: 130/70-18 - Rear: 180/60-16
Brakes- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available- Front: 296 mm disc, 2-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available- Front: Dual 296mm discs, Nissin radial-mount 2-piston calipers - Rear: 240mm disc, single-piston caliper - ABS available- Front: 276 mm disc - Rear: 220 mm disc - ABS available- Front: 310 mm floating disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available- Front brake: 320 mm discs, six-piston Nissin calipers - Rear brake: 320 mm rear disc, six-piston Nissin caliper
InstrumentsLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gaugeDigital speedometer, odometer, fuel gauge, clockLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP IndicatorLCD display with tachometer, odometer, speedometer, fuel gauge, trip meter, clockLCD screen with speedometer, odometer, dual trip meters, fuel level and consumption gauge, clock, gear position, upshift indicatorAnalogue speedometer and tachometer, touchscreen with mobile connectivity, LCD displays with fuel gauge, temperature gauge, gear indicator, riding modes
OtherFull LED lighting-LED lightsLED indicatorsFull LED lightingAirbag, LED lights, Riding modes, Apple CarPlay, traction control, cruise control, hill start assist, TPMS, seat heater
