Honda Rebel 500 / CMX500 Rebel (2017-2019)

Brand: Style:
Share:

Specifications and Features

Engine

471 cc Parallel-twin, liquid-cooled

Power

45 hp @ 8500 rpm

Power to weight ratio

24 HP/100kg

Torque

45 Nm @ 6000 rpm

Torque to weight ratio

24 Nm/100kg

Transmission

– 6-speed, Wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

11,2 litres

Length

2188 mm

Width

820 mm

Height

1094 mm

Weight

– 190 kg wet
– Max load: 160 kg (US: 157)

Seat Height

690 mm

Suspension

– Front: 41 mm telescopic fork, 121 mm travel
– Rear: twin-shocks, adjustable preload, 96 mm travel

Tyres

– Front: 130/90-16
– Rear: 150/80-16

Brakes

– Front: 296 mm disc, 2-piston caliper
– Rear: 240 mm disc, 1-piston caliper
– ABS available

Instruments

– LCD display with speedometer, odometer, fuel gauge, clock

Other

– Optional: 12v socket on dash

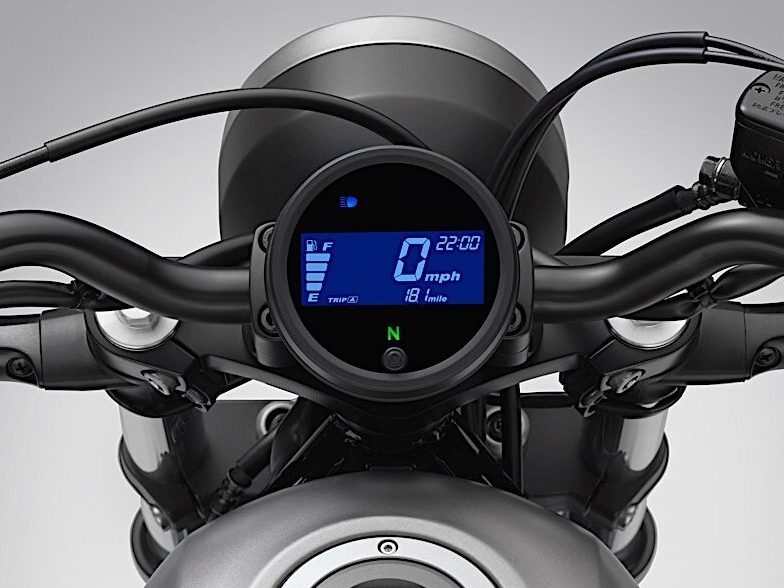

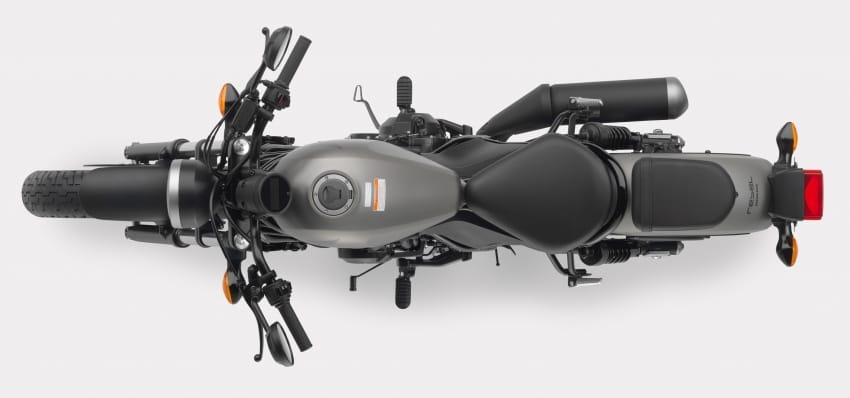

Honda Rebel 500 CMX500 2017 dashboard Honda CMX500 Rebel 500 2017 front Honda CMX500 Rebel 500 2017 grey back
