Honda Rebel 500 / CMX500 (2020+)

Brand: Style:
Share:

Specifications

Engine

471 cc Parallel-Twin, liquid-cooled

Power

47 hp @ 8500 rpm

Power to weight ratio

25 HP/100kg

Torque

45 Nm @ 6000 rpm

Torque to weight ratio

24 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

11,2 litres

Length

2205 mm

Width

820 mm

Height

1090 mm

Weight

191 kg wet

Seat Height

690 mm

Suspension

– Front: 41 mm telescopic fork, 121 mm travel
– Rear: twin-shocks, adjustable preload, 96 mm travel

Tyres

– Front: 130/90-16
– Rear: 150/80-16

Brakes

– Front: 296 mm disc, 2-piston caliper
– Rear: 240 mm disc, 1-piston caliper
– ABS available

Instruments

LCD display with speedometer, odometer, gear indicator, fuel gauge, trip meter, clock

Other

– LED lights

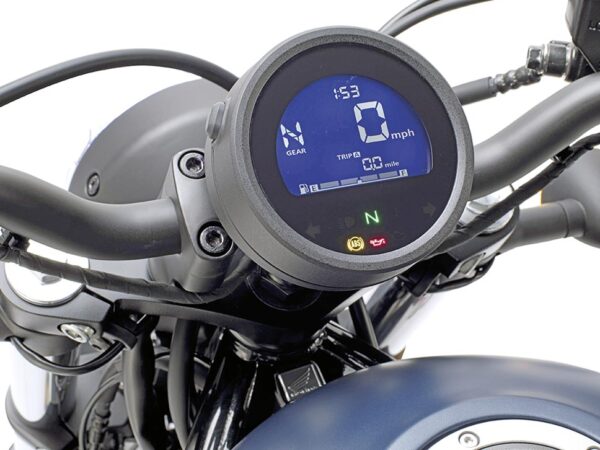

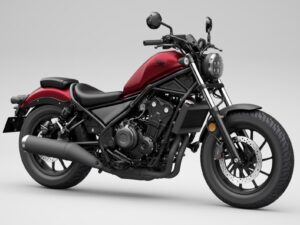

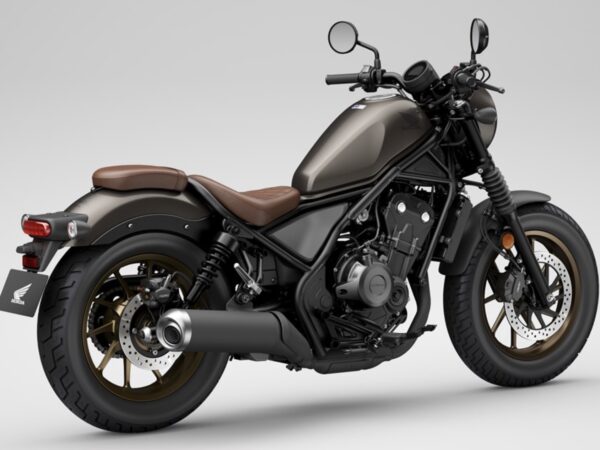

Honda Rebel 500 CMX500 2020 dashboard Honda CMX500 Rebel 500 2023 front Honda CMX500 Rebel 500 2023 back

T-shirts, mugs, stickers and more:

Honda Rebel 500 cmx500 17 swirl tshirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

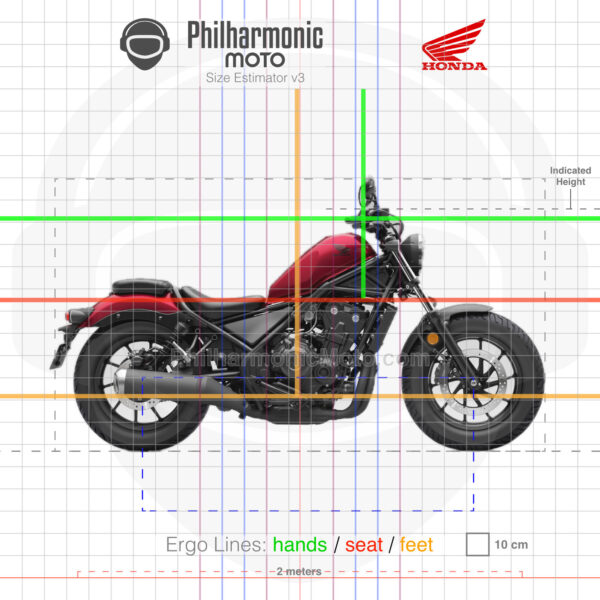

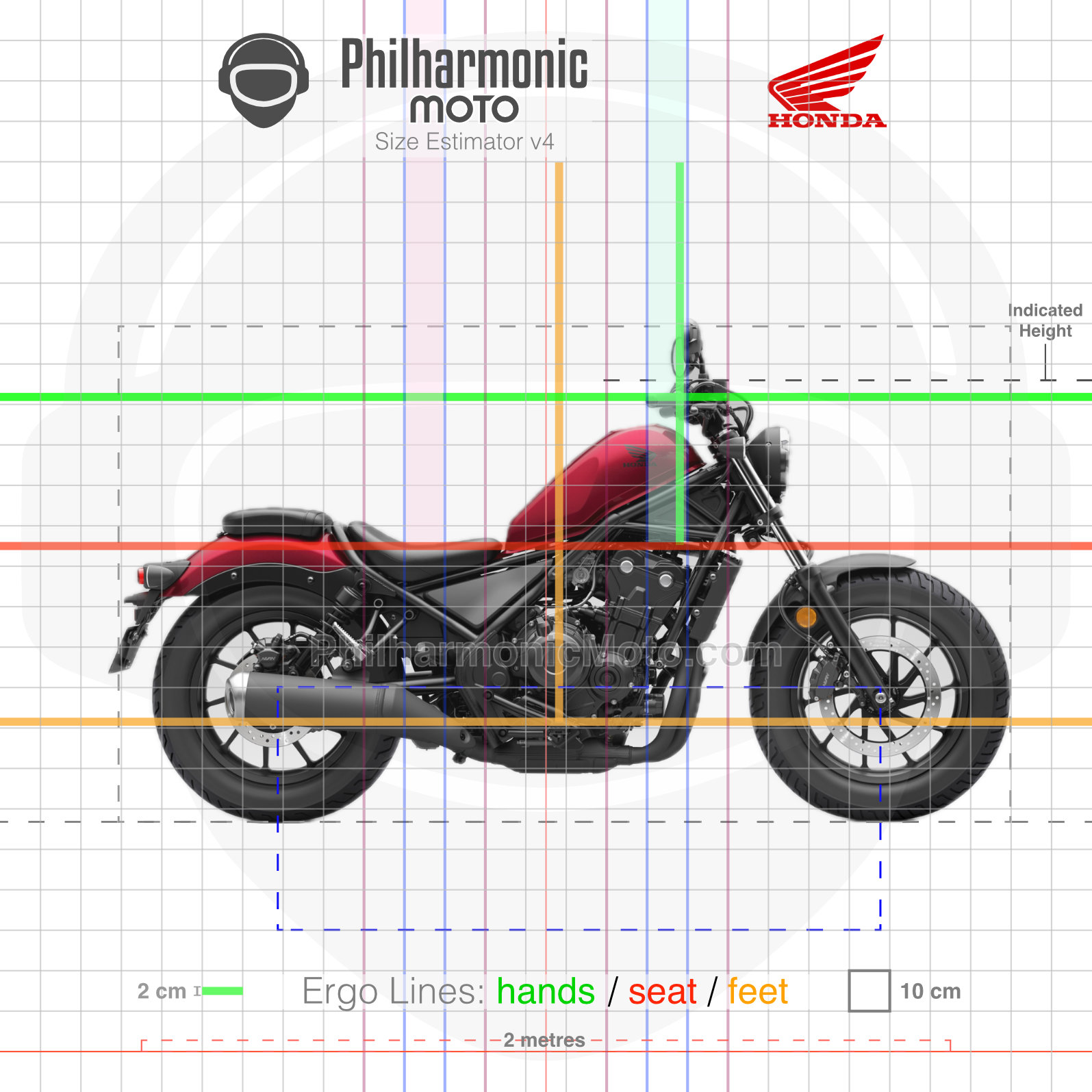

  • Size Estimator (see "About" page to learn more)
