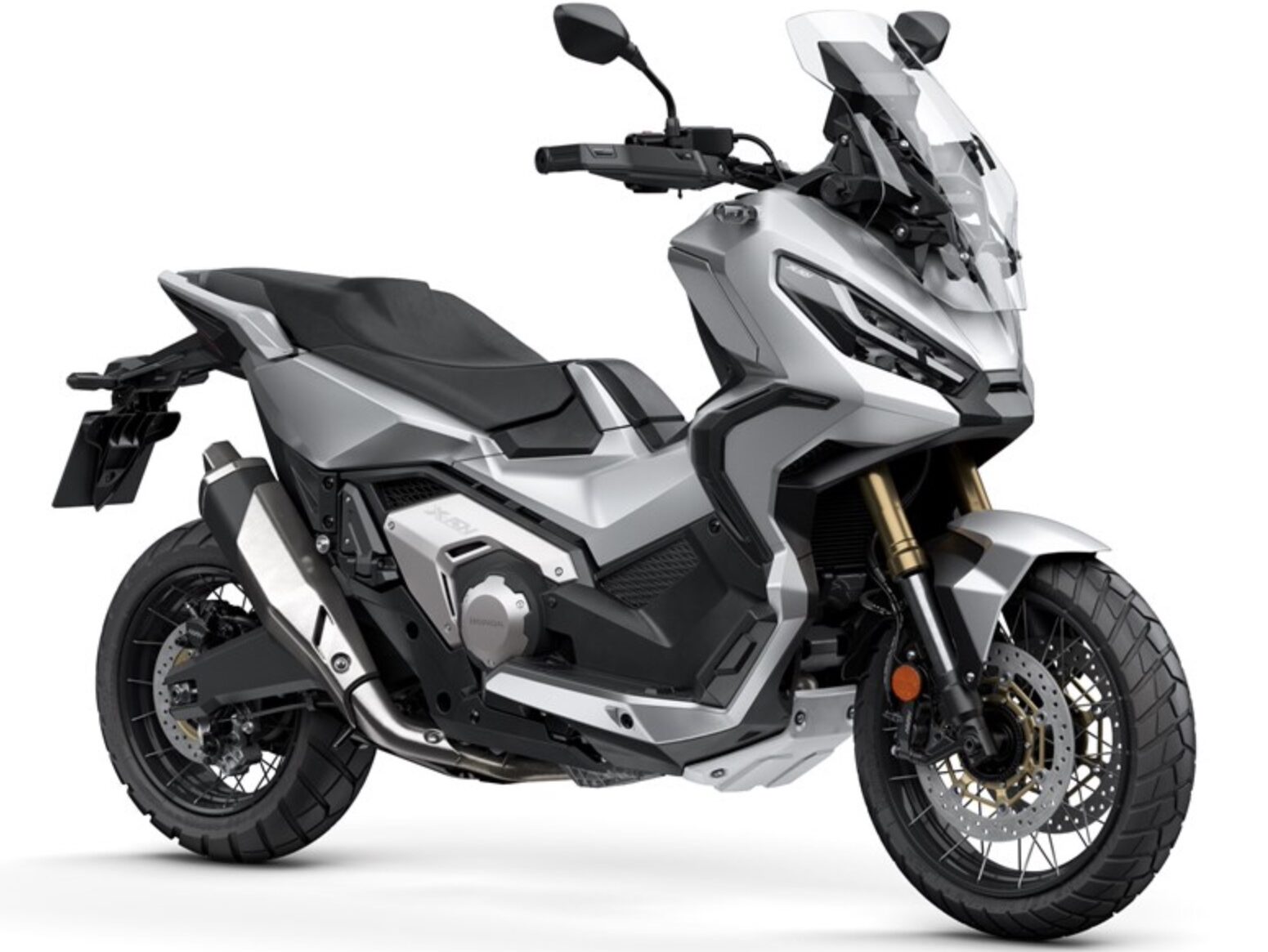

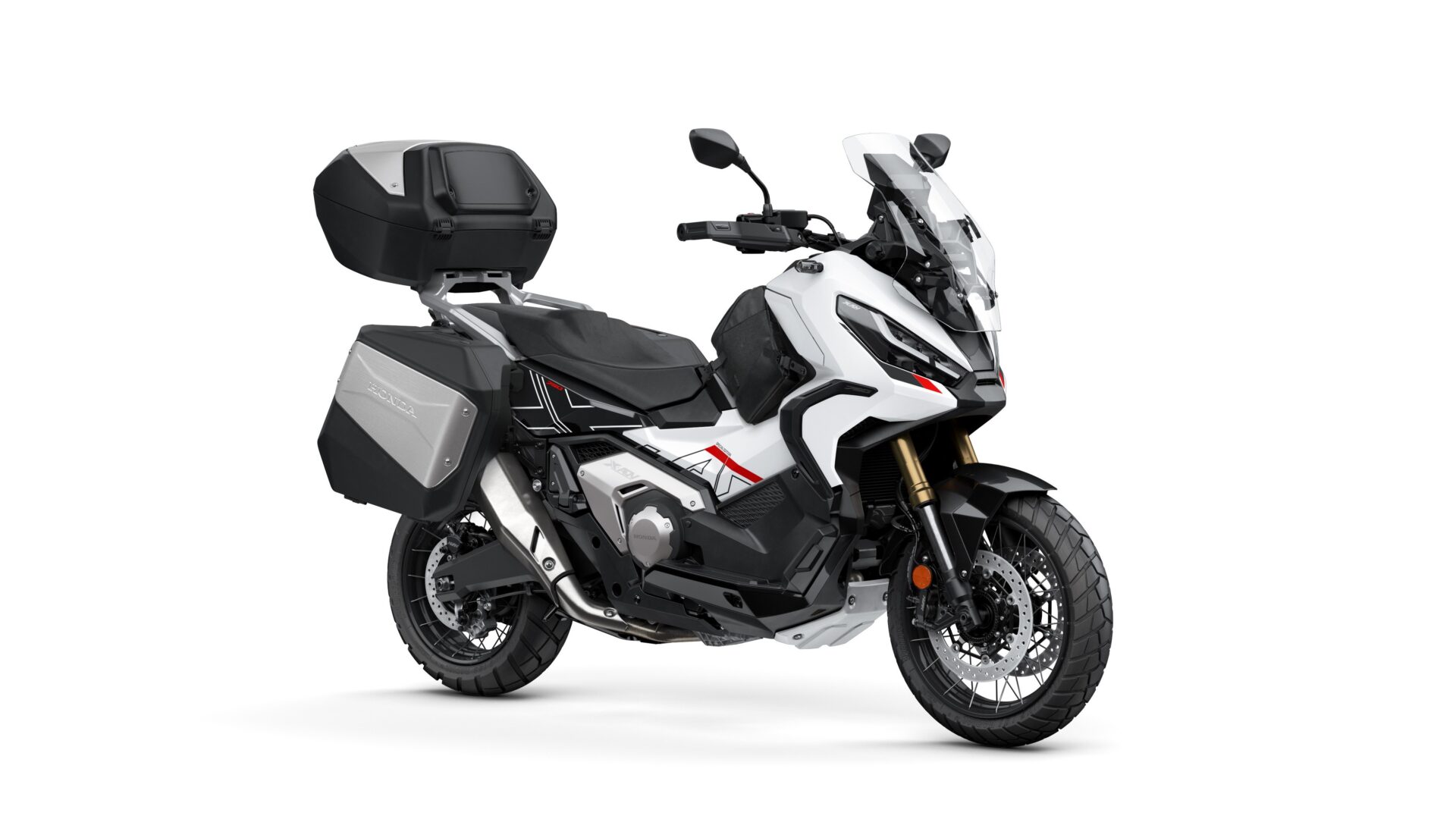

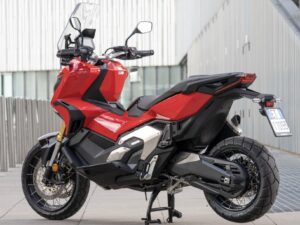

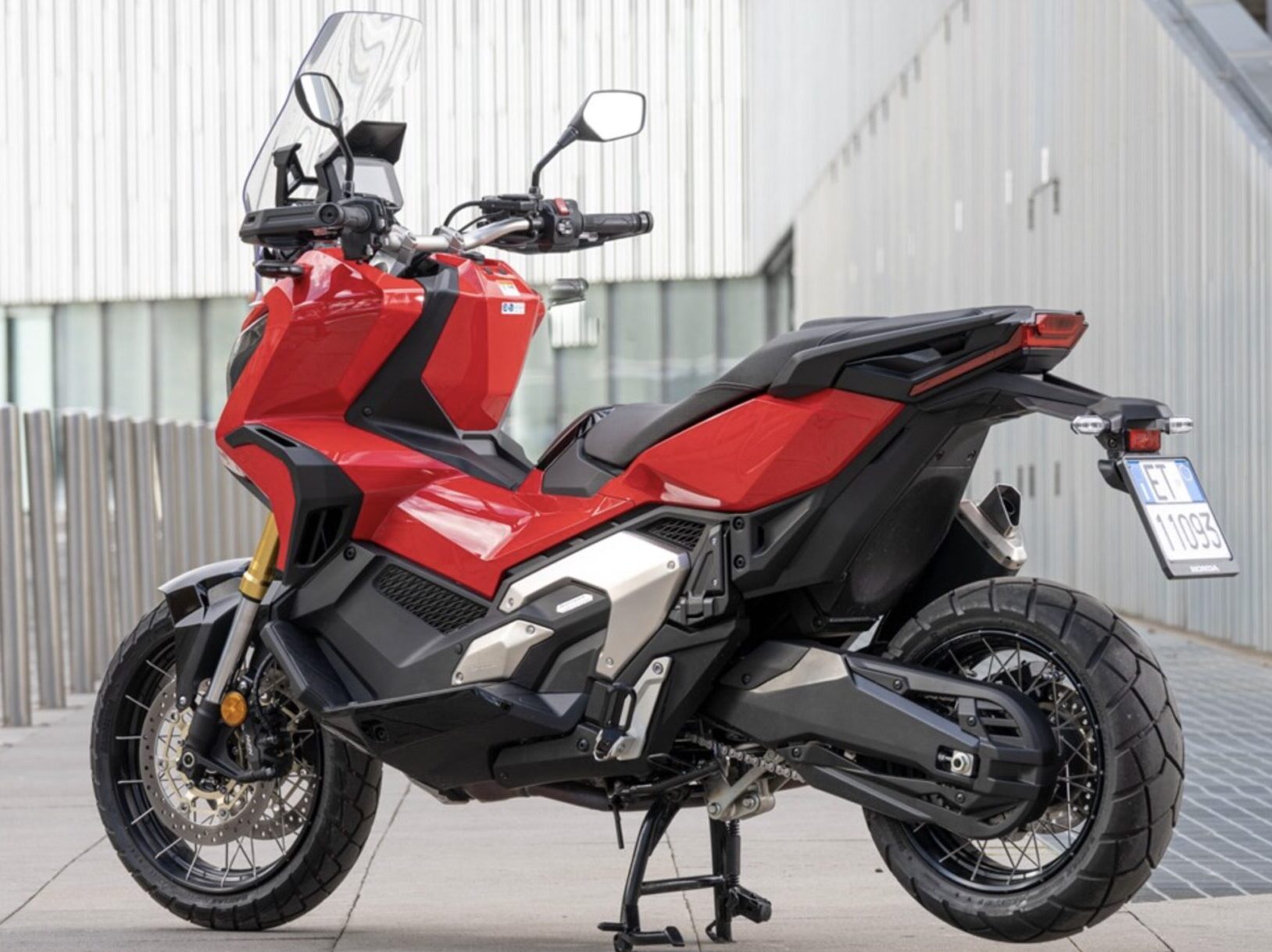

Honda X-ADV (2021+)

Honda X-ADV (2021+)

Category: Tags: ,

Specifications

Engine

745 cc Parallel Twin, liquid cooled

Power

58 hp @ 6750 rpm

Torque

69 Nm @ 4750 rpm

Transmission

6-speed DCT automatic, Wet hydraulic clutch, chain final drive

Fuel Capacity

13,2 liters

Length

2215 mm

Width

940 mm

Height

1370 mm

Weight

236 kg wet

Seat Height

820 mm

Suspension

– Front: 41 mm inverted fork, adjustable spring preload and rebound damping, 137 mm travel
– Rear: mono-shock, adjustable preload, 150 mm travel

Tyres

– Front: 120/70-17
– Rear: 160/60-15

Brakes

– Front: 2×296 mm discs, 4-piston caliper
– Rear: 240 mm disc, 1-piston caliper
– ABS available, with adjustable level

Instruments

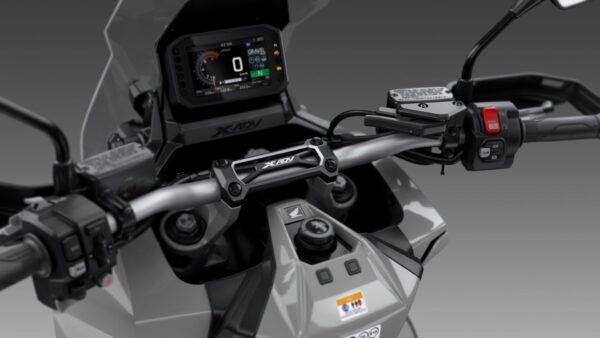

TFT display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption

Other

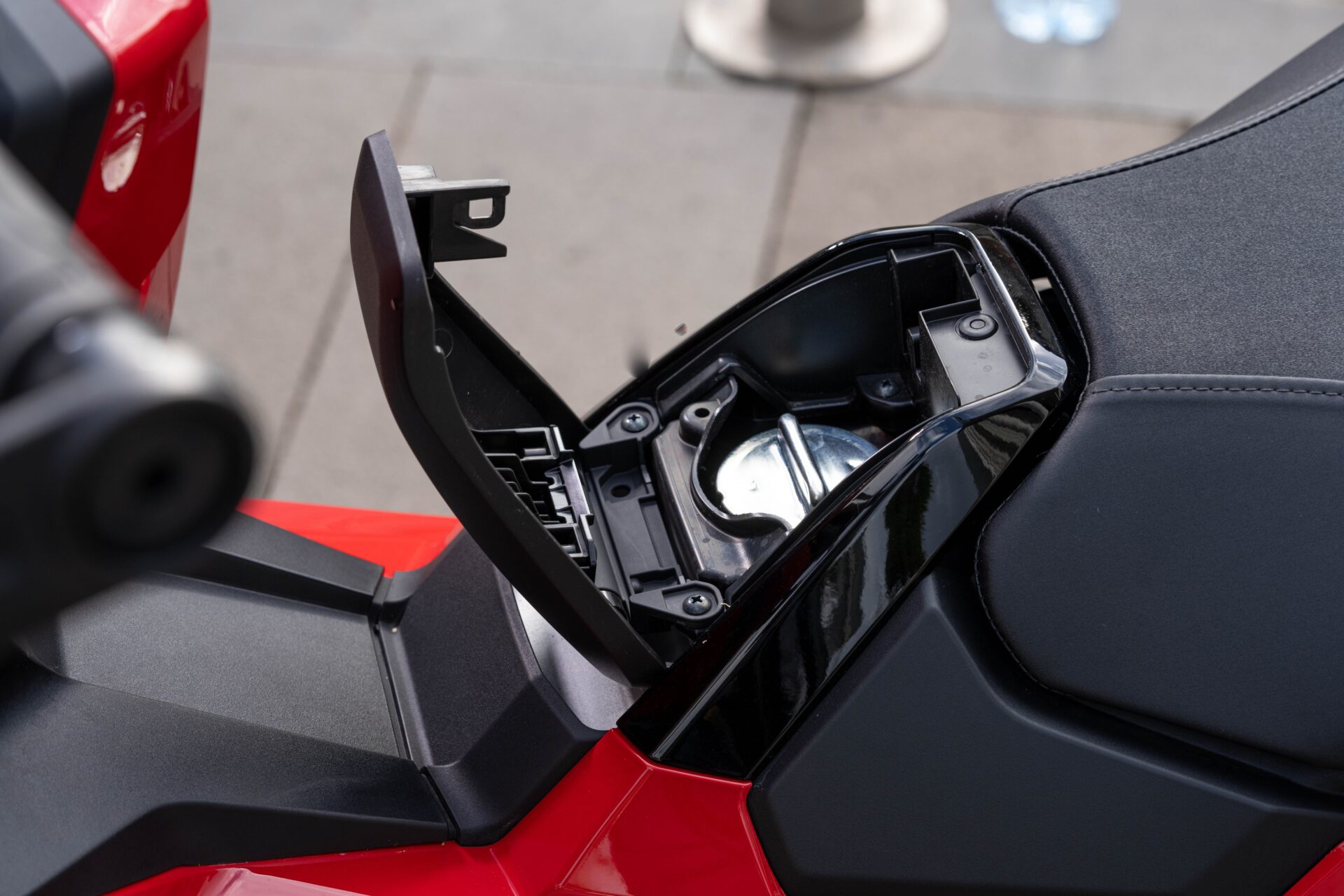

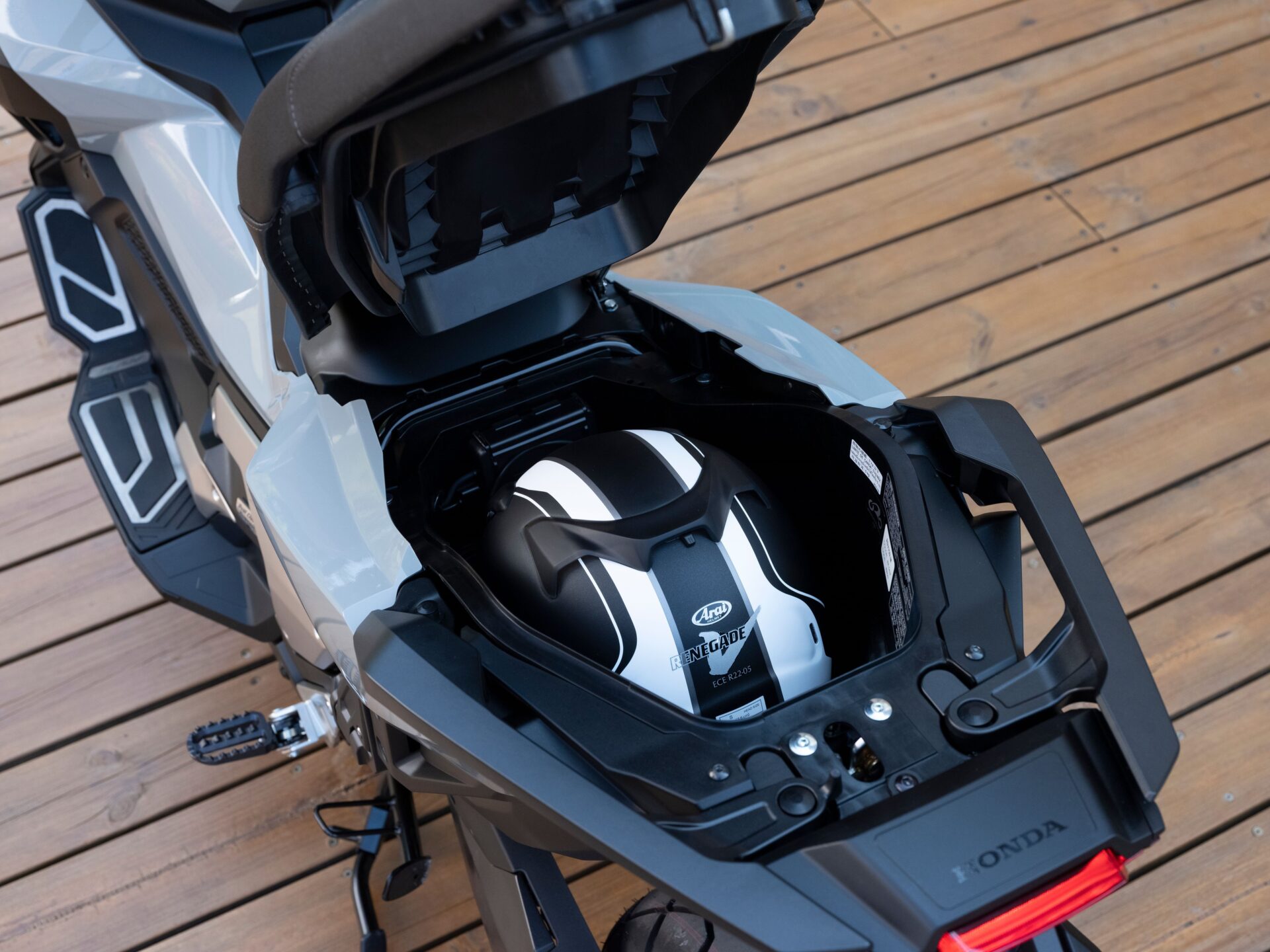

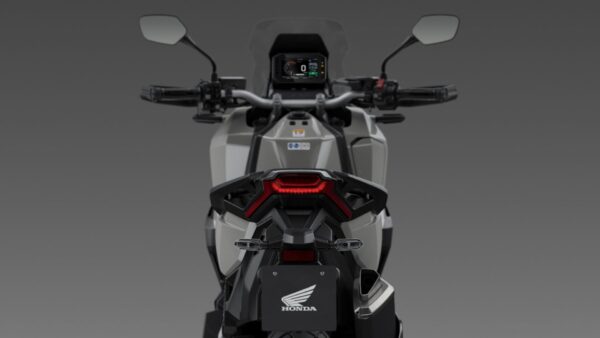

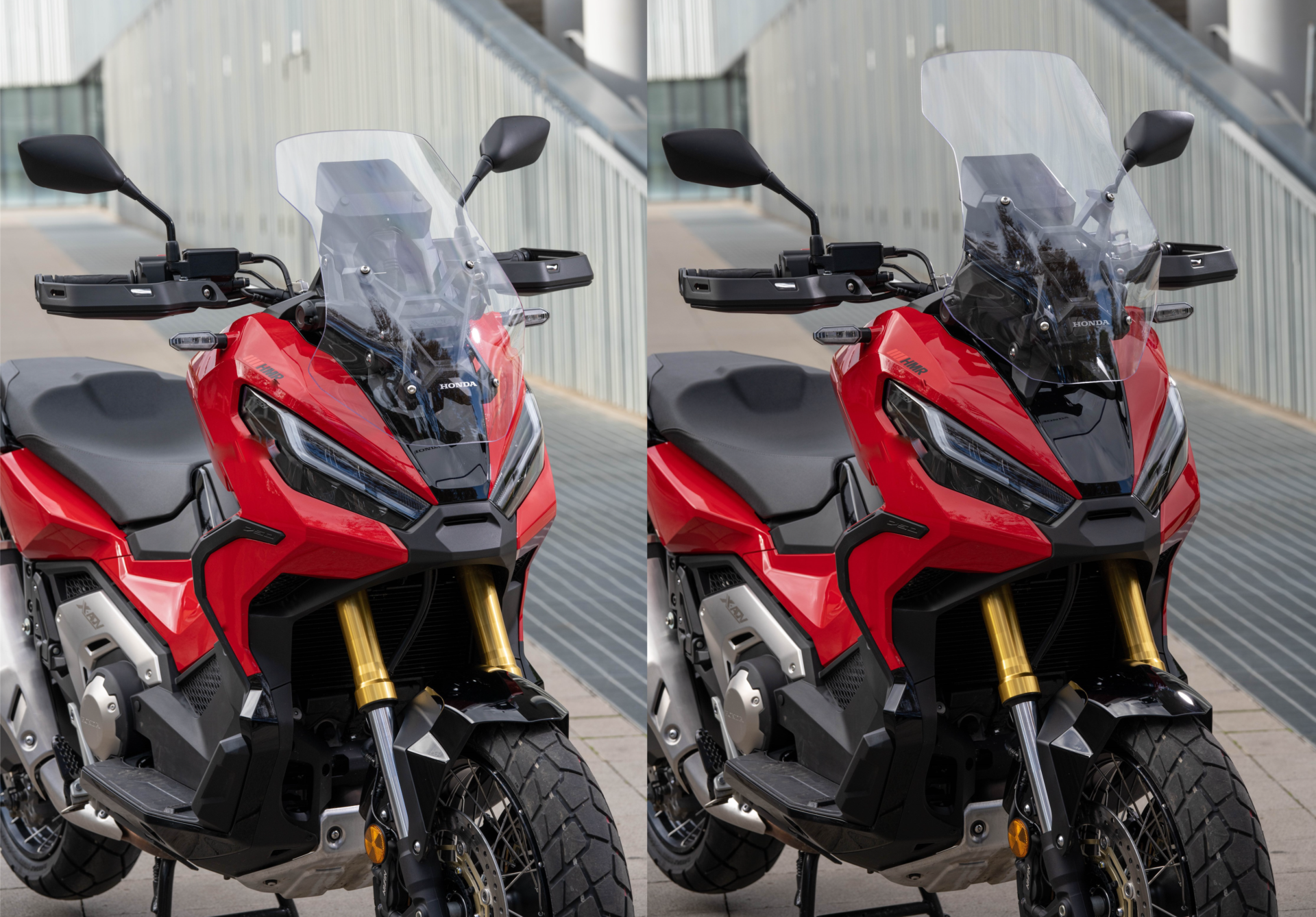

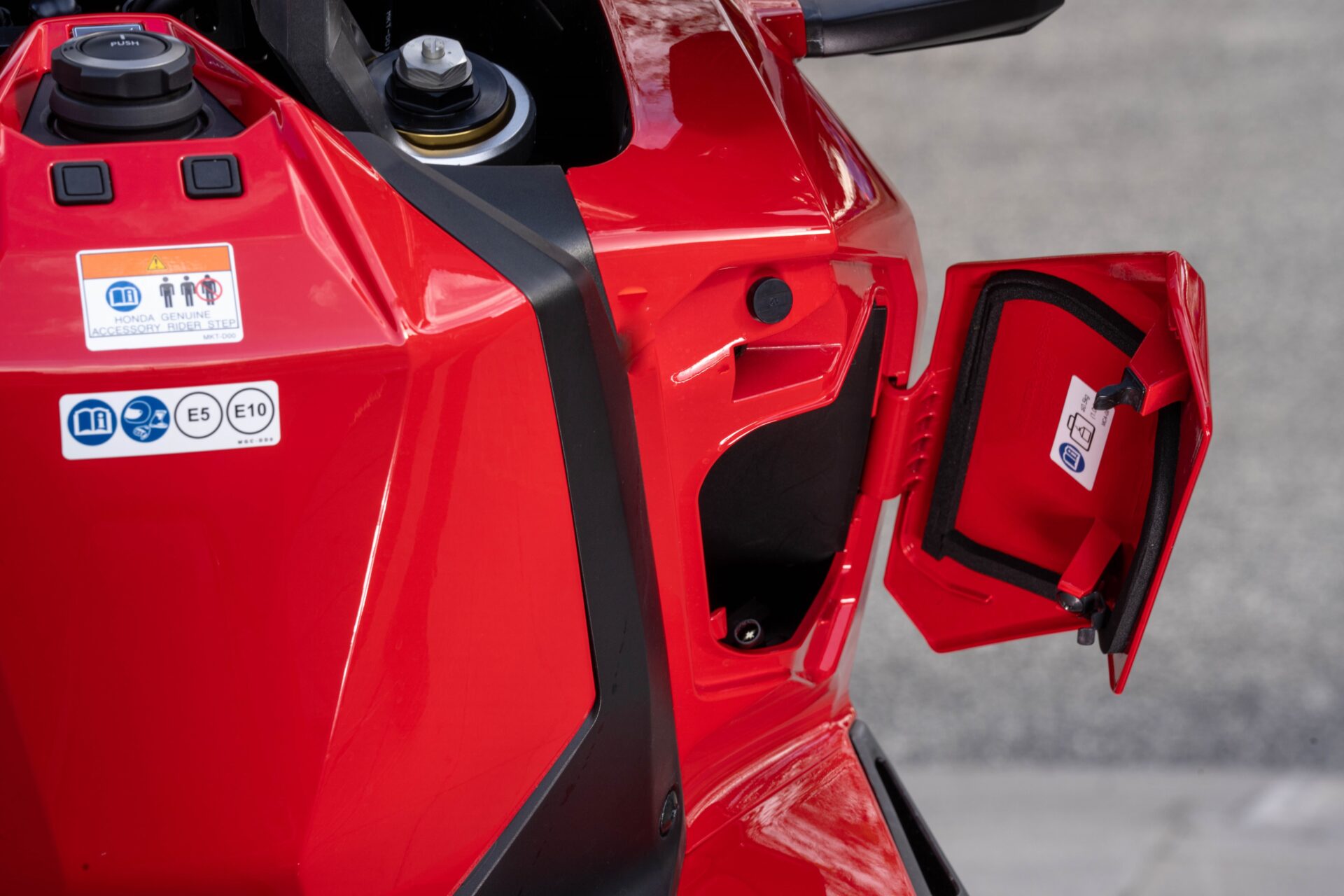

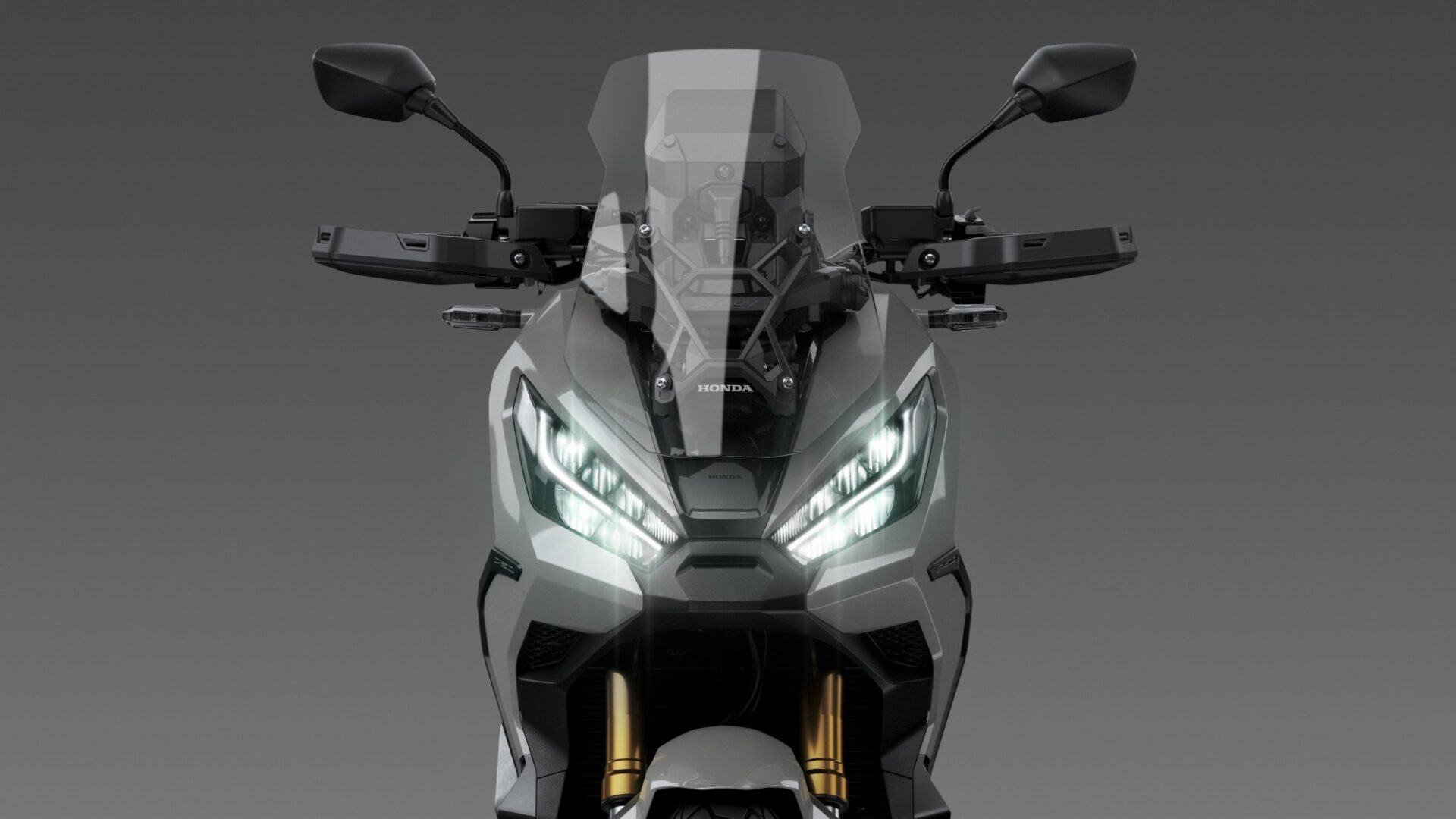

LED lights, riding modes, traction control, self-canceling indicators, emergency stop blinking lights, 21-liter under-seat compartment with USB-C socket, smartphone connectivity, adjustable screen, centre stand, keyless ignition, fuel cap, seat, steering lock "and also opens the (optional) Smart Top Box."

Dashboard / Support us

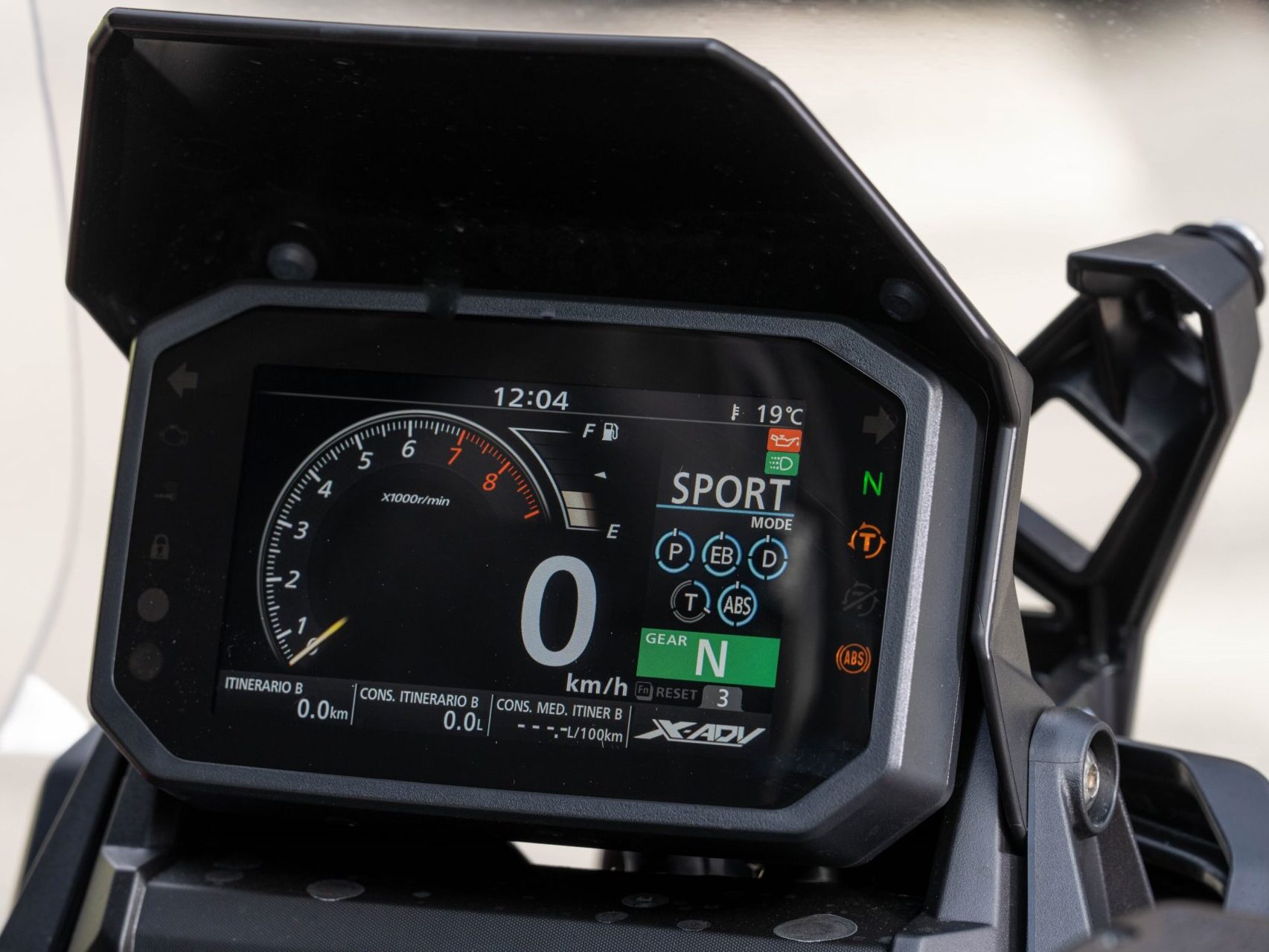

Honda X-ADV 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda X-ADV (2021+) removeHonda MSX125 Grom (2021+) removeHonda CBR500R (2022+) removeHonda Rebel 300/CMX300 (2020+) removeHonda Rebel 500/CMX500 (2020+) removeHonda CB750 Hornet (2023+) remove
NameHonda X-ADV (2021+) removeHonda MSX125 Grom (2021+) removeHonda CBR500R (2022+) removeHonda Rebel 300/CMX300 (2020+) removeHonda Rebel 500/CMX500 (2020+) removeHonda CB750 Hornet (2023+) remove

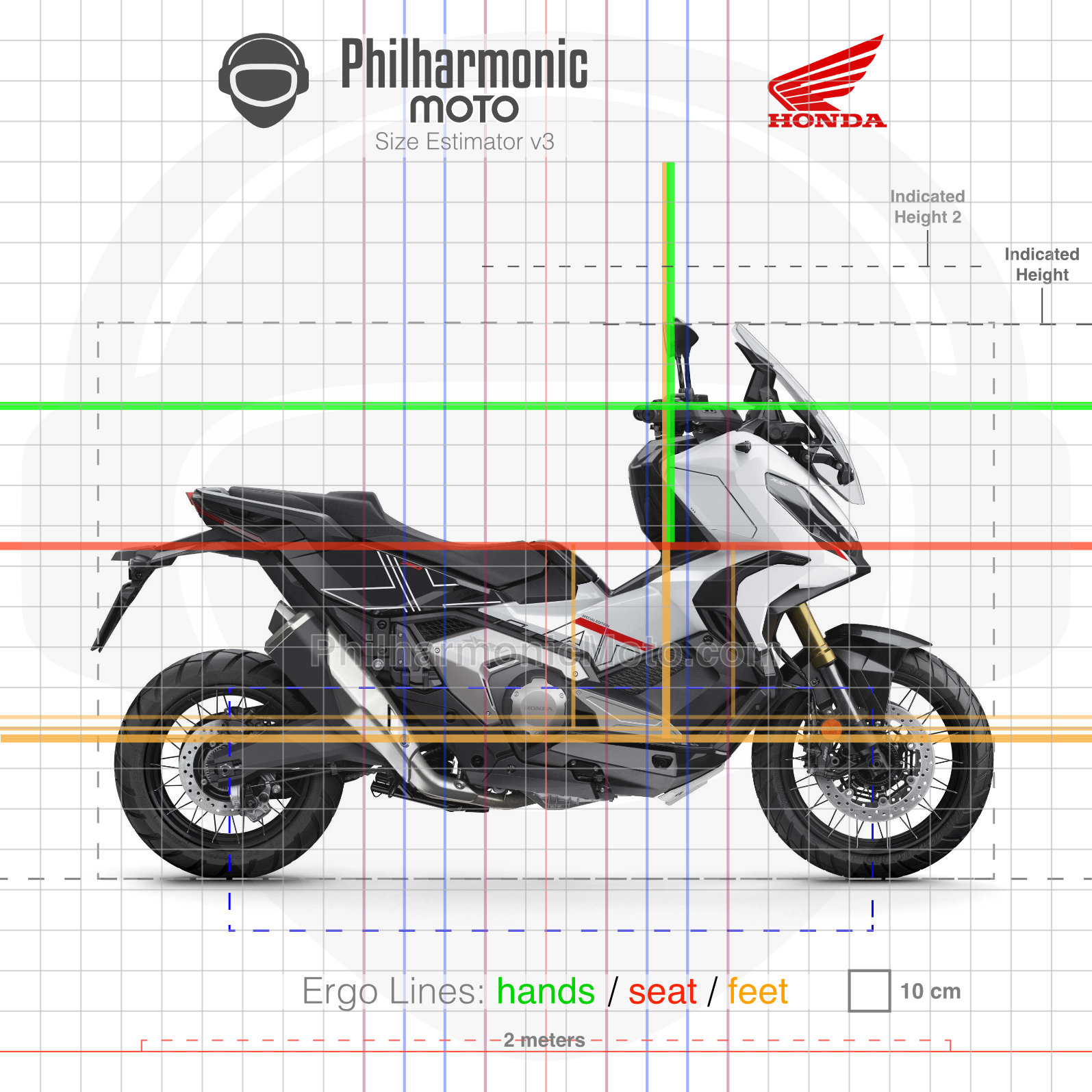

Size Estimator (see "About" page to learn more)Honda X-ADV 2023 Shasta WhiteHonda Grom MSX125 2021 Force Metallic SilverHonda CBR500R 2022 Sword Silver MetallicHonda Rebel 300 CMX300 2022 Pearl BlueHonda Rebel 500 cmx500 2020 Matte Axis Grey MetallicHonda CB750 Hornet 2023 Matte Iridium Gray Metallic
Length2215 mm1760 mm2080 mm2188 mm2205 mm2090 mm
Width940 mm720 mm760 mm820 mm820 mm780 mm
Height1370 mm1015 mm1145 mm1090 mm1090 mm1085 mm
Seat Height820 mm761 mm785 mm690 mm690 mm795 mm
Weight236 kg wet103 kg wet192 kg wet165 kg wet191 kg wet190 kg wet
Engine745 cc Parallel Twin, liquid cooled125 cc single-cylinder, air-cooled471 cc Parallel-Twin, liquid-cooled, 180º crank286cc Single-cylinder, liquid cooled471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank755cc Parallel Twin, liquid cooled, 270º crank
Power58 hp @ 6750 rpm9,7 hp @ 7250 rpm47 hp @ 8600 rpm27,4 hp47 hp @ 8500 rpm90,5 hp @ 9500 rpm
Torque69 Nm @ 4750 rpm10,5 Nm @ 5500 rpm43 Nm @ 6500 rpm27 Nm45 Nm @ 6000 rpm75 Nm @ 7250 rpm
Transmission6-speed DCT automatic, Wet hydraulic clutch, chain final drive5-speed, wet multi-plate clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, assist/slip clutch, chain final drive6-speed, slip/assist clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch, chain final drive
Fuel Capacity13,2 liters6 liters17,1 liters11,2 liters11,2 liters15,2 liters
Suspension- Front: 41 mm inverted fork, adjustable spring preload and rebound damping, 137 mm travel - Rear: mono-shock, adjustable preload, 150 mm travel- Front: 31 mm USD fork - Rear: mono-shock- Front: Showa 41mm SFF-BP USD inverted forks, adjustable preload, 110 mm travel, - Rear: mono-shock, adjustable preload, 120 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 95 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 96 mm travel- Front: 43 mm inverted forks, pre-load adjustable, 130 mm travel - Rear: Pro-link mono shock, pre-load adjustable, 150 mm travel
Tyres- Front: 120/70-17 - Rear: 160/60-15- Front: 120/70-12 - Rear: 130/70-12- Front: 120/70-17 - Rear: 160/60-17- Front: 130/90-16 - Rear: 150/80-16- Front: 130/90-16 - Rear: 150/80-16- Front: 120/70-17 - Rear: 160/60-17
Brakes- Front: 2x296 mm discs, 4-piston caliper - Rear: 240 mm disc, 1-piston caliper - ABS available, with adjustable level- Front: 220 mm disc, 2-piston caliper - Rear: 190 mm disc, 1-piston caliper - ABS available- Front: 296 mm discs, Nissin 2-piston radial calipers - Rear: 240 mm disc, 1-piston caliper - ABS available- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available- Front: 296 mm discs, 4-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available
InstrumentsTFT display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumptionLCD display with speedometer, odometer, tachometer, twin trip meters, gear indicator, fuel gauge average fuel consumption and clockLCD display with speedometer, tachometer, odometer, gear position fuel gauge, average consumption, dual trip meters, clock, Water Temp, Shift UP Indicator, emergency braking warning lightsLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gaugeLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gaugeTFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modes
OtherLED lights, riding modes, traction control, self-canceling indicators, emergency stop blinking lights, 21-liter under-seat compartment with USB-C socket, smartphone connectivity, adjustable screen, centre stand, keyless ignition, fuel cap, seat, steering lock "and also opens the (optional) Smart Top Box."LED headlight and tail lightLED lightsFull LED lightingFull LED lightingLED lights, traction control, cruise control, wheelie control, engine braking, riding modes, USB-C socket, self-canceling indicators, smartphone voice control
