Honda XL750 Transalp (2023-2024)

Updated: 22 March 2025


Brand: Style:
Share:

Specifications and Features

Engine

755 cc Parallel-twin, liquid-cooled, 270º crank

Power

91 hp @ 9500 rpm

Power to weight ratio

44 HP/100kg

Torque

75 Nm @ 7250 rpm

Torque to weight ratio

36 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive
– Optional: quick-shifter

Fuel Capacity

16,9 litres

Length

2325 mm

Width

838 mm

Height

1450 mm

Weight

– 208 kg wet
– Max load: 207 kg (USA: 193)

Seat Height

850 mm

Suspension

– Front: 43 mm inverted fork, adjustable preload, 200 mm travel
– Rear: mono-shock, adjustable preload, 190 mm travel

Tyres

– Front: 90/90-21
– Rear: 150/70-18

Brakes

– Front: 310 mm discs, 2-piston calipers
– Rear: 256 mm disc, 1-piston caliper
– ABS available (switchable rear)

Instruments

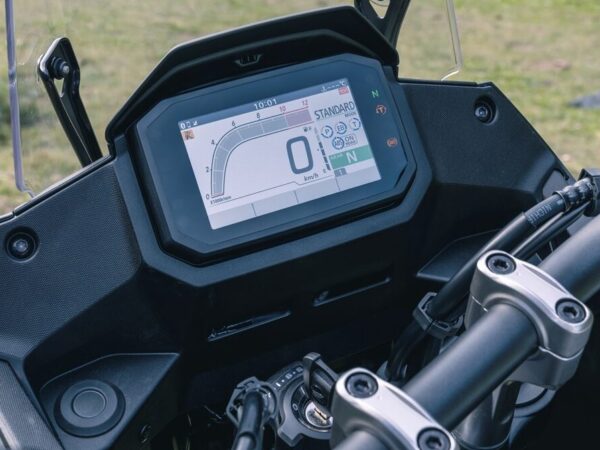

– 13 cm (5") TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, instant and average consumption, dual trip meters, engine temperature, clock, adjustable shift point on the rev-counter
– Smartphone connectivity

Other

– LED lights, self-canceling indicators. Optional: fog lights
– Riding modes, traction control, engine control, wheelie control, engine braking control
– USB port under seat

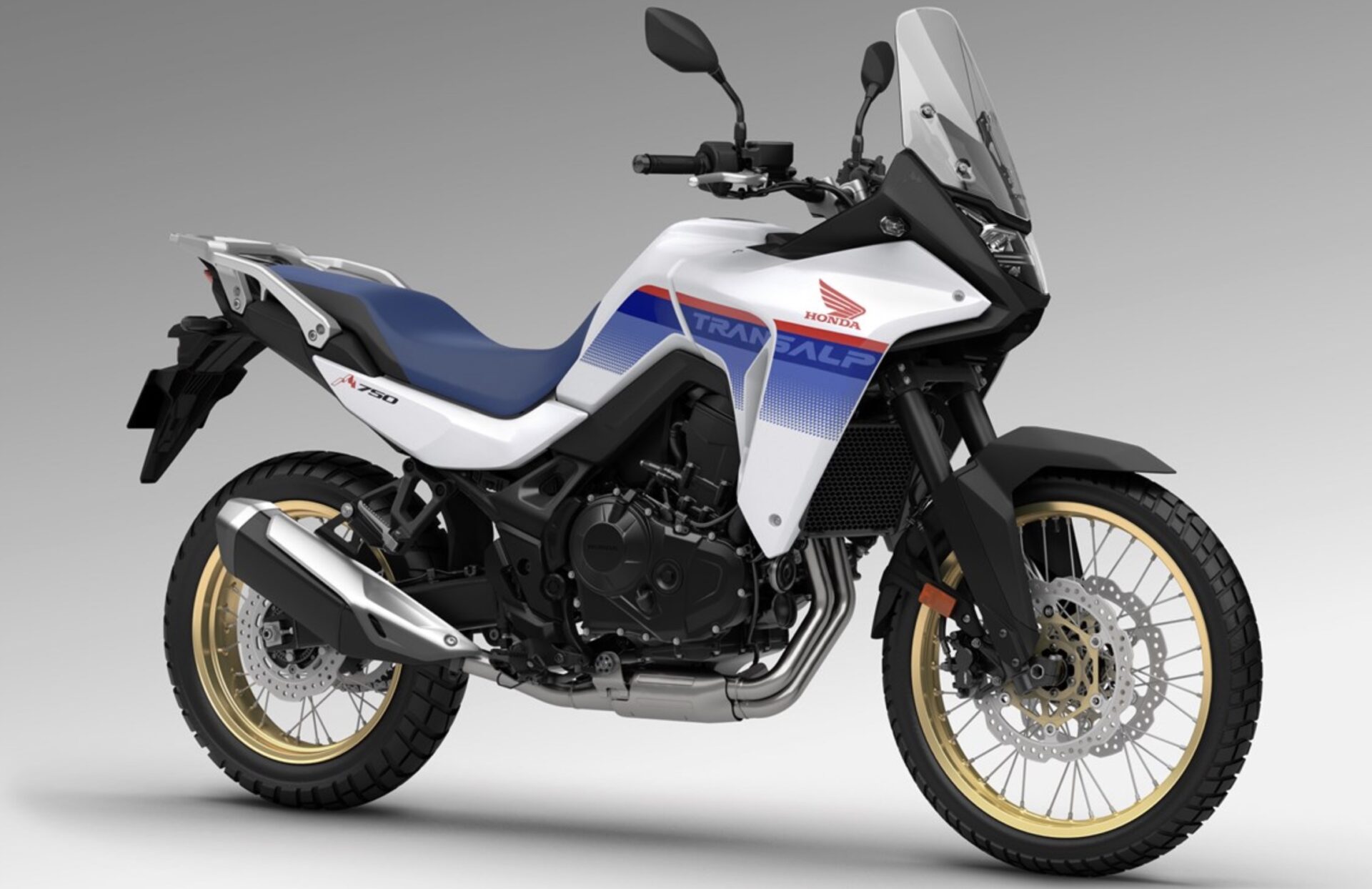

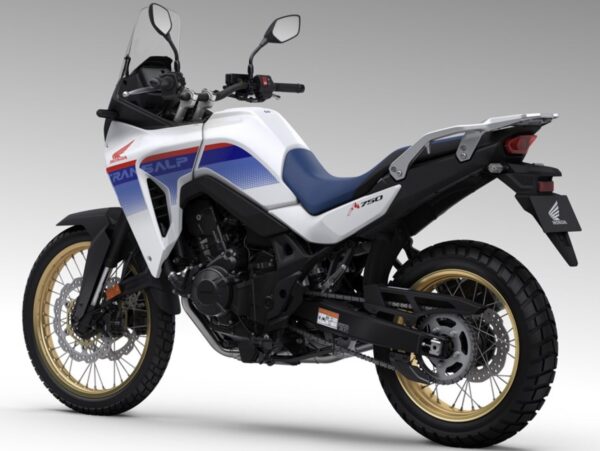

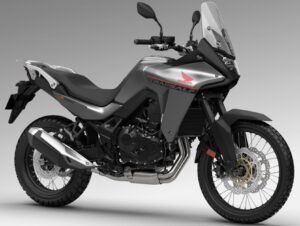

Honda XL750 Transalp 2023 dashboard Honda XL750 Transalp 2023 Matte Iridium Grey Metallic front Honda XL750 Transalp 2023 back

Motorcycle gifts to celebrate it and support the website:
superbike phone case
Click here to learn more.


726
Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

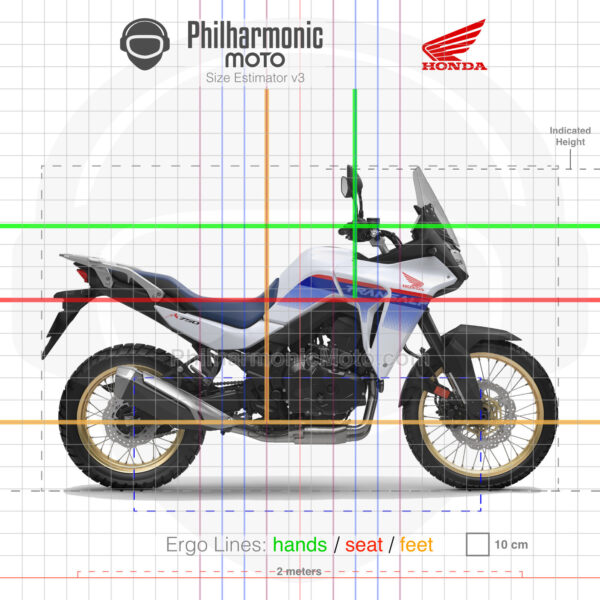

  • Size Estimator (see "About" page to learn more)
