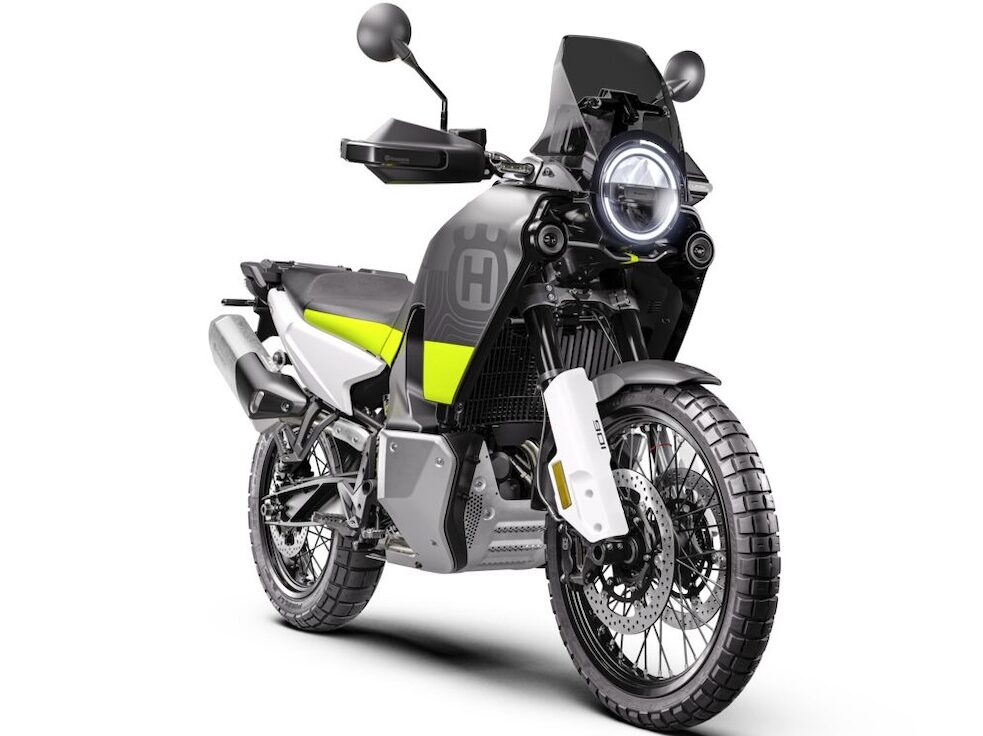

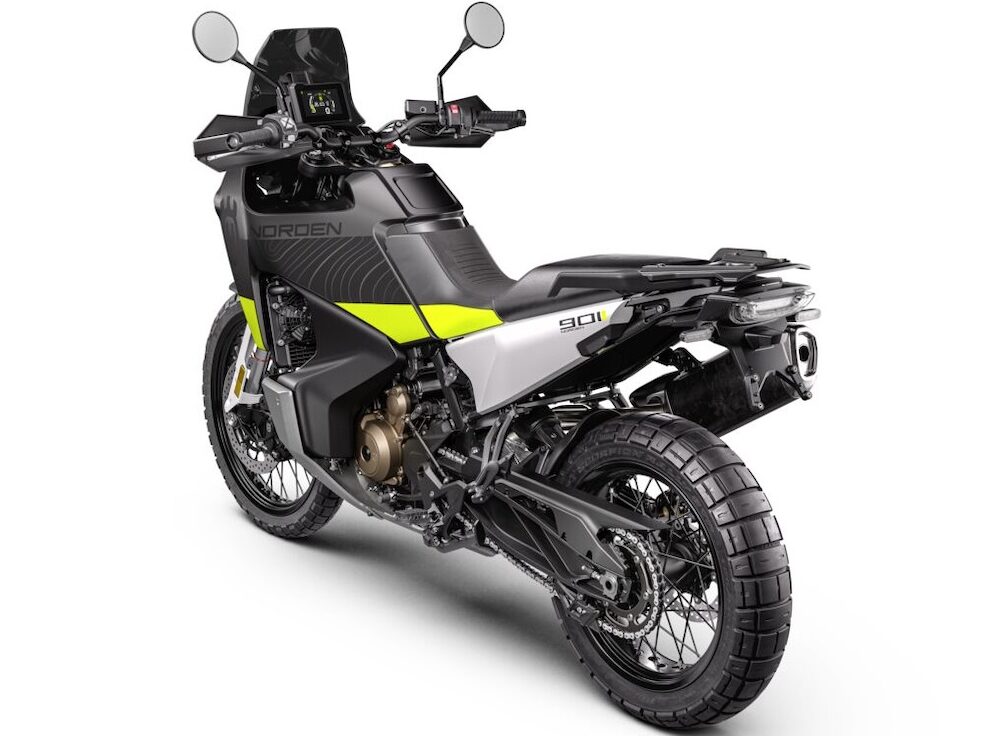

Husqvarna Norden 901 (2022+)

Husqvarna Norden 901 (2022+)

Estimated dimensions based on wheelbase, since Husqvarna does not divulge them.

Category: Tag:

Specifications

Engine

889 cc Parallel-twin, liquid-cooled

Power

105 hp @ 8000 rpm

Torque

100 Nm @ 6500 rpm

Transmission

6-speed, assist/slip clutch, quick-shifter, chain final drive

Fuel Capacity

19 liters

Length

2145 mm (estimated)

Width

Height

1406 mm (estimated)

Weight

217 kg wet

Seat Height

854/874 mm (adjustable)

Suspension

– Front: 43 mm inverted fork, fully adjustable, 220 mm travel
– Rear: single shock, adjustable rebound damping and (remote) preload, 215 mm travel

Tyres

– Front: 90/90-21
– Rear: 150/70-18

Brakes

– Front: 2×320 mm discs, 4-piston radial caliper
– Rear: 260 mm disc, 2-piston floating caliper
– switchable cornering ABS available

Instruments

TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clock

Other

LED lights, cornering traction control, riding modes, smartphone connectivity, cruise control

Dashboard / Support us

husqvarna norden 901 2022 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsHusqvarna Norden 901 (2022+) removeSuzuki V-Strom 650 (2017+) removeTriumph Tiger 900 Rally Pro (2020+) removeBMW R 1250 GS (2021+) removeHonda CB500X (2019-2021) removeHonda Africa Twin (2020+) remove
NameHusqvarna Norden 901 (2022+) removeSuzuki V-Strom 650 (2017+) removeTriumph Tiger 900 Rally Pro (2020+) removeBMW R 1250 GS (2021+) removeHonda CB500X (2019-2021) removeHonda Africa Twin (2020+) remove

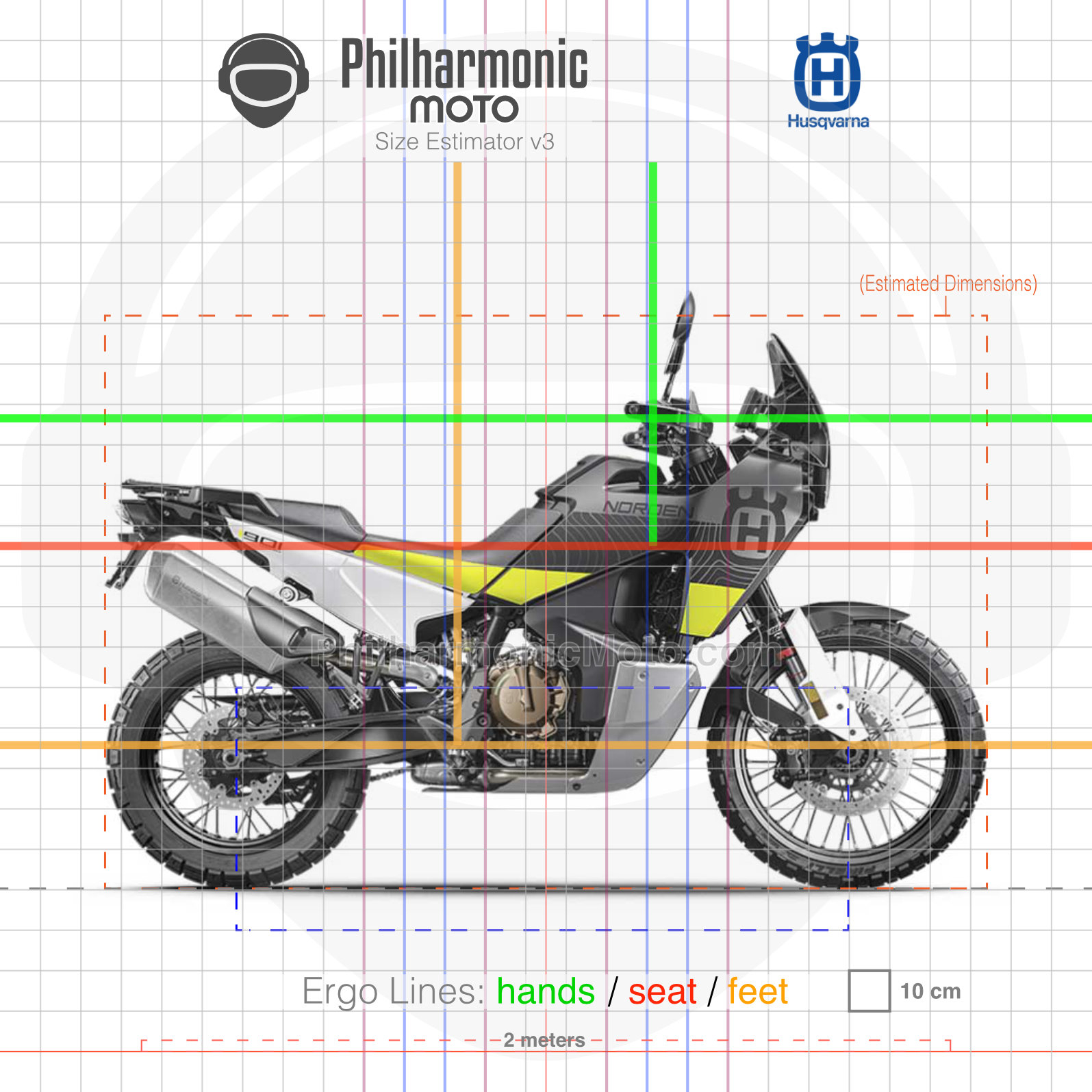

Size Estimator (see "About" page to learn more)Husqvarna Norden 901 2022 greySuzuki V-Strom 650 2022 Pearl Brilliant WhiteTriumph Tiger 900 Rally Pro 2020 Matt KhakiBMW R 1250 GS Light White 2023Honda CB500X 2019 Grand Prix RedHonda Africa Twin 2022 Grand Prix Red
Length2145 mm (estimated)2275 mm2254 mm (estimated)2207 mm (over mud guard)2155 mm2330 mm
Width-835 mm935 mm952,5 mm825 mm960 mm
Height1406 mm (estimated)1405 mm1452 mm / 1502 mm (low/high screen position)1430 mm (over adjustable windshield, but they don't say at what position)1410 mm / 1445 mm (Low/High screen position)1395 mm
Seat Height854/874 mm (adjustable)830 mm850-870 mm (adjustable)850-870 mm (800-820 mm with low suspension option)830 mm850/870 mm
Weight217 kg wet213 kg wet201 kg dry249 kg wet197 kg wet226 kg (manual), 236 kg (DCT) wet
Engine889 cc Parallel-twin, liquid-cooled645 cc V-Twin, liquid-cooled888 cc Inline Triple, liquid-cooled1254 cc Boxer twin, air-liquid-cooled471cc Parallel Twin, liquid cooled1084 cc Parallel Twin, liquid cooled
Power105 hp @ 8000 rpm71 hp @ 8800 rpm93,9 hp @ 8750 rpm136 hp @ 7750 rpm47 hp @ 8500 rpm100 hp @ 7500 rpm
Torque100 Nm @ 6500 rpm62 Nm @ 6500 rpm87 Nm @ 7250 rpm143 Nm @ 6250 rpm43 Nm @ 7000 rpm105 Nm @ 6250 rpm
Transmission6-speed, assist/slip clutch, quick-shifter, chain final drive6-speed, Wet multi-plate clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive6-speed, Wet multi-plate assist/slipper clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch or DCT automatic, chain final drive
Fuel Capacity19 liters20 liters20 liters20 liters17,5 liters18,8 liters
Suspension- Front: 43 mm inverted fork, fully adjustable, 220 mm travel - Rear: single shock, adjustable rebound damping and (remote) preload, 215 mm travel- Front: 43 mm telescopic fork, adjustable preload, 150 mm travel - Rear: mono-shock, adjustable preload and rebound, 159 mm travel– Front: Showa 45 mm inverted fork, manual preload, rebound damping and compression damping adjustment, 240 mm travel – Rear: Showa mono-shock, manual preload and rebound damping adjustment, 230 mm wheel travel- Front: 37 mm telelever central spring strut, 190 mm travel - Rear: BMW Motorrad Paralever, adjustable hydraulic preload and rebound damping, 200 mm travel- Front: 41mm telescopic forks, pre-load adjustable, 150 mm travel - Rear: mono-shock with 9 stage preload adjuster, 135 mm travel- Front: 45 mm inverted forks, pre-load and DF adjustable, 230 mm travel - Rear: Pro-link mono shock, pre-load and rebound adjustable, 220 mm travel
Tyres- Front: 90/90-21 - Rear: 150/70-18- Front: 110/80-19 - Rear: 150/70-17– Front: 90/90-21 – Rear: 150/70-17 – Tubeless- Front: 120/70-19 - Rear: 170/60-17- Front: 110/80-19 - Rear: 160/60-17- Front: 90/90-21 - Rear: 150/70-18
Brakes- Front: 2x320 mm discs, 4-piston radial caliper - Rear: 260 mm disc, 2-piston floating caliper - switchable cornering ABS available- Front: 310 mm discs, 2-piston calipers - Rear: 260 mm disc, single-piston caliper - ABS available- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - cornering ABS available- Front: 305 mm floating discs, 4-piston radial caliper - Rear: 276 mm disc, 2-piston floating caliper - cornering ABS available- Front: 310 mm wavy disc, 2-piston caliper - Rear: 240 mm wavy disc, single-piston caliper- Front: 310 mm floating discs, 4-piston calipers - Rear: 256 mm disc, single-piston caliper - ABS available
InstrumentsTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clockAnalogue tachometer, LCD display with odometer, dual trip meter, traction control modes, gear position, coolant and ambient temperature, fuel consumption, fuel gauge, and clock7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, adjustable shift-up indicator- LCD display with speedometer, odometer, gear indicator - TFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modes, Apple CarPlay, Android Auto
OtherLED lights, cornering traction control, riding modes, smartphone connectivity, cruise controlLED tail light, Traction control, easy-start, low rpm assistLED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, smartphone connectivity, illuminated switches, cruise control, heated grips, heated seat with separate pillion control, TPMS, LED fog lights, centre standLED lights, riding modes, traction control, USB port, 12v socket, mobile phone connectivity, centre stand, hill start control, self-canceling indicatorsLED lights, emergency braking blinking lightsLED lights, traction control, cruise control, wheelie control, USB socket, self-canceling indicators, riding modes, switchable cornering ABS
