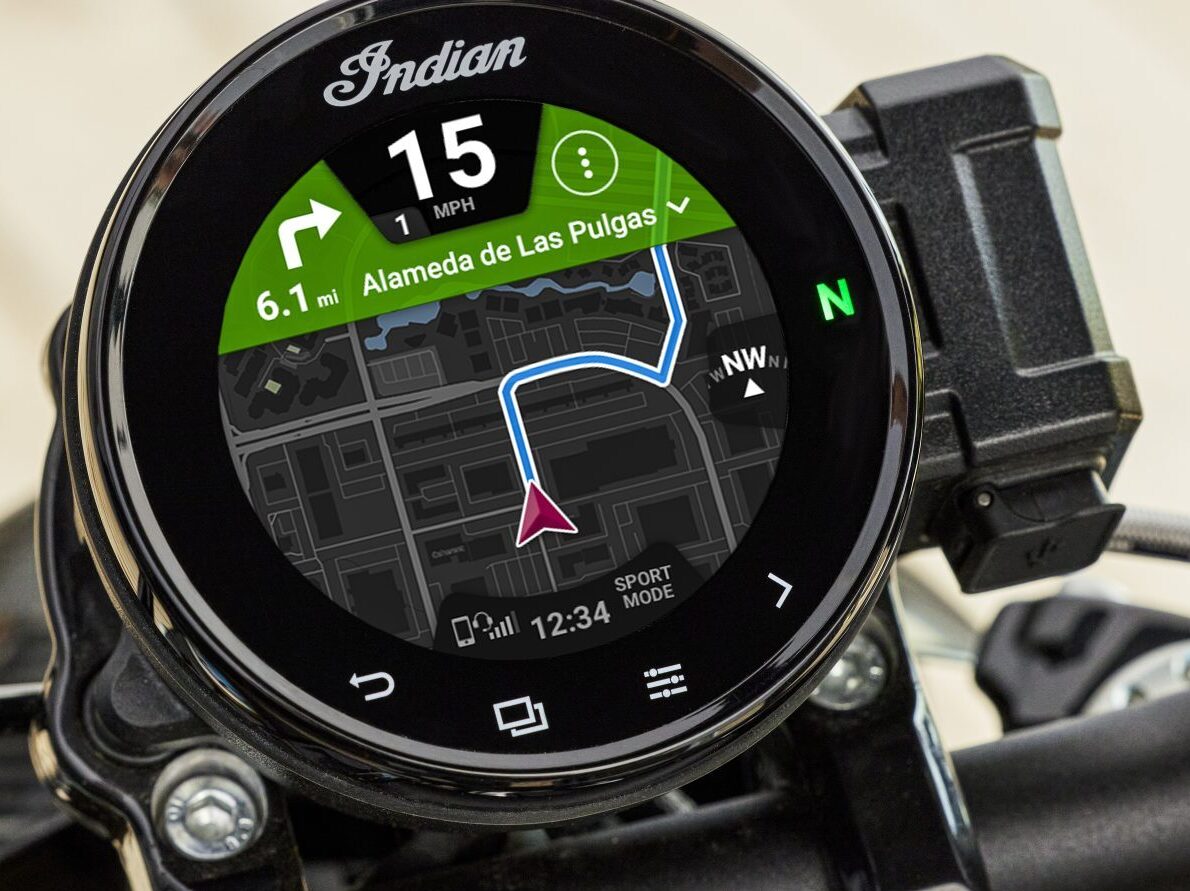

Indian FTR R Carbon 2023 dashboard

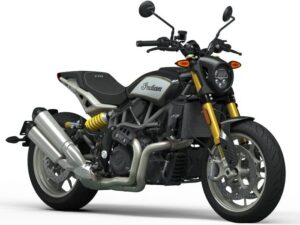

Indian FTR R Carbon 2023 front

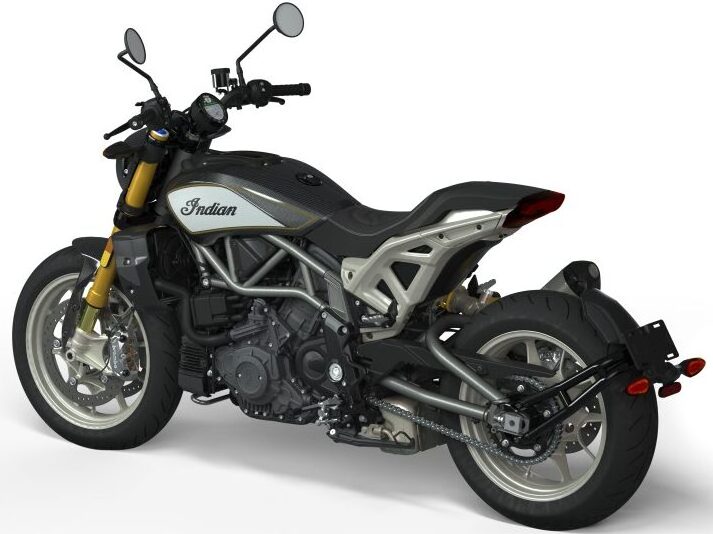

Indian FTR R Carbon 2023 back

Indian FTR R Carbon (2023+)

Indian FTR R Carbon (2023+)

The dashboard on the 2023 models was moved forward. Note that in the motorcycle “pictures” from Indian, the dash is still in the old position.


Category: Tags: ,

Specifications

Engine

1203 cc V-Twin, liquid cooled

Power

120 hp

Torque

118 Nm @ 6000 rpm

Transmission

6-speed, wet multi-plate slip/assist clutch, chain final drive

Fuel Capacity

12,9 liters

Length

2223 mm

Width

830 mm

Height

1295 mm

Weight

235 kg wet

Seat Height

780 mm

Suspension

– Front: 43 mm Ohlins inverted forks, fully adjustable, 120 mm travel
– Rear: Ohlins piggyback mono-shock, fully adjustable, 120 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 320 mm Brembo discs, 4-piston calipers
– Rear: 260 mm Brembo disc, 2-piston caliper
– cornering ABS available

Instruments

TFT touchscreen display with speedometer, odometer, fuel gauge, gear indicator, trip meters, clock, screen brightness, ambient temperature, mobile phone connectivity

Other

LED lights, switchable cornering traction control, riding modes, switchable wheelie control, rear lift mitigation, USB port, cruise control

Dashboard / Support us

Indian FTR R Carbon 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsIndian FTR R Carbon (2023+) removeSuzuki SV650 (2017+) removeKawasaki Z650 (2023+) removeKawasaki Z400 (2019+) removeTriumph Street Twin (2016-2018) removeSuzuki GSX-S750 (2017+) remove
NameIndian FTR R Carbon (2023+) removeSuzuki SV650 (2017+) removeKawasaki Z650 (2023+) removeKawasaki Z400 (2019+) removeTriumph Street Twin (2016-2018) removeSuzuki GSX-S750 (2017+) remove

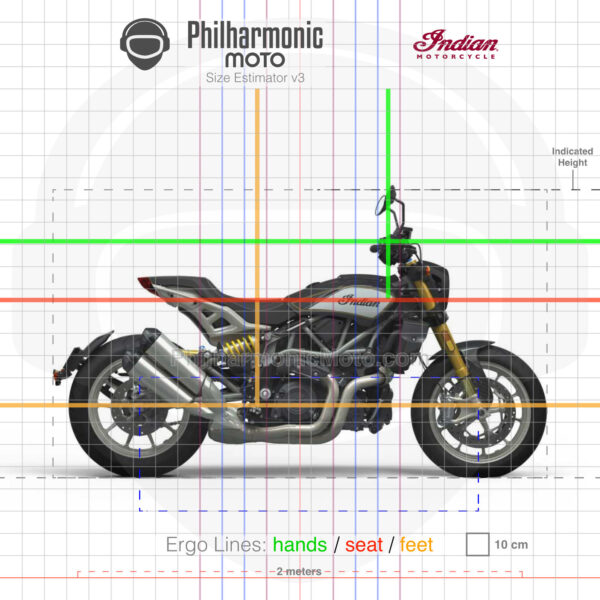

Size Estimator (see "About" page to learn more)Indian FTR R Carbon 2023 Carbon FiberSuzuki SV650 2022 PEARL BRILLIANT WHITE GLASS SPARKLE BLACKKawasaki Z650 2023 Metallic Phantom Silver Metallic Carbon GrayKawasaki Z400 2021 Pearl Nightshade Teal:Metallic Flat Spark BlackTriumph Street Twin 2016 Cranberry Red-01Suzuki GSX-S750 2022 METALLIC TRITON BLUE GLASS SPARKLE BLACK
Length2223 mm2140 mm2055 mm1990 mm2090 mm2125 mm
Width830 mm760 mm765 mm800 mm785 mm785 mm
Height1295 mm1090 mm1065 mm1055 mm1114 mm without mirrors1055 mm
Seat Height780 mm785 mm790 mm785 mm750 mm820 mm
Weight235 kg wet198 kg (ABS), 195 kg (non-ABS) wet188 kg wet167 kg wet215 kg wet213 kg wet
Engine1203 cc V-Twin, liquid cooled645cc 90º V-Twin, liquid-cooled650cc Parallel Twin, liquid-cooled, 8 valve DOHC399cc Parallel Twin, liquid-cooled, 8 valve DOHC900cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank749 cc Inline-4, liquid-cooled
Power120 hp74,9hp @ 8500 rpm67hp @ 8000 rpm44hp @ 10000 rpm54 hp @ 5900 rpm112,7 hp @ 10500 rpm
Torque118 Nm @ 6000 rpm64 Nm @ 8100 rpm64 Nm @ 6700 rpm37 Nm @ 8000 rpm80 Nm @ 3230 rpm80 Nm @ 9000 rpm
Transmission6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, constant mesh, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate slip/assit clutch, chain final drive5-speed, Wet multi-plate assist clutch, chain final drive6-speed, chain final drive
Fuel Capacity12,9 liters14,5 liters15 liters14 liters12 liters16 liters
Suspension- Front: 43 mm Ohlins inverted forks, fully adjustable, 120 mm travel - Rear: Ohlins piggyback mono-shock, fully adjustable, 120 mm travel- Front: telescopic forks, 125 mm travel - Rear: link-type shock, adjustable preload, 130 mm travel- Front: 41 mm telescopic fork, 125 mm travel - Rear: Horizontal Back-link single shock, adjustable preload, 130 mm travel- Front: 41 mm telescopic fork, 120 mm travel - Rear: Bottom-Link Uni Trak, gas-charged shock with adjustable preload, 130 mm travel- Front: KYB 41mm cartridge forks, 120 mm travel - Rear: KYB twin shocks with adjustable preload, 120 mm travel- Front: 41 mm KYB inverted fork, adjustable preload, 119 mm travel - Rear: KYB mono-shock, adjustable preload, 137 mm travel
Tyres- Front: 120/70-17 - Rear: 180/55-17- Front: 120/60-17 - Rear: 160/60-17- Front: 120/70ZR17M/C 58W - Rear: 160/60ZR17M/C 69W- Front: 110/70-17 - Rear: 150/60-17- Front: 100/90-18 - Rear: 150/70-17 - Tubeless- Front: 120/70-17 - Rear: 180/55-17
Brakes- Front: 320 mm Brembo discs, 4-piston calipers - Rear: 260 mm Brembo disc, 2-piston caliper - cornering ABS available- Front: Dual 290 mm discs, Tokico 4-piston calipers - Rear: 240 mm disc, Nissin single-piston caliper - ABS available- Front: Dual semi-floating 300 mm petal discs, dual-piston caliper - Rear: 220 mm petal disc, single-piston caliper - ABS available- Front: semi-floating 310 mm petal discs, balanced actuation dual piston caliper - Rear: 220 mm petal disc, Dual-piston caliper - ABS available- Front: 310mm disc, Nissin 2-piston floating caliper - Rear: 255mm disc, Nissin 2-piston floating caliper - ABS available- Front: 310 mm petal discs, Nissin 4-piston radial calipers - Rear: 220 mm disc, 1-piston sliding-pin caliper - ABS available
InstrumentsTFT touchscreen display with speedometer, odometer, fuel gauge, gear indicator, trip meters, clock, screen brightness, ambient temperature, mobile phone connectivityLCD display with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, trip meter, remaining range, current and average fuel consumption, clockTFT screen with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, remaining range, current and average fuel consumption, clockDigital inverted LCD speedometer, odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, remaining range, current and average fuel consumption, clockAnalogue speedometer, LCD display with odometer, gear indicator, fuel gauge, range to empty indication, clock, trip computerLCD display with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, trip meter, remaining range, current and average fuel consumption, clock
OtherLED lights, switchable cornering traction control, riding modes, switchable wheelie control, rear lift mitigation, USB port, cruise controlLED tail light, low rpm assist, easy startLED headlights, smartphone connectivity, traction controlLED headlightLED brake light, switchable Traction Control, riding modes, Immobiliser, USB socketLED tail light, low rpm assist, easy start
