Indian FTR 2022 dashboard
Indian FTR 2023 dashboard
Indian FTR Rally 2023 front
Indian FTR Rally 2023 back

Indian FTR Rally (2020+)

Indian FTR Rally (2020+)

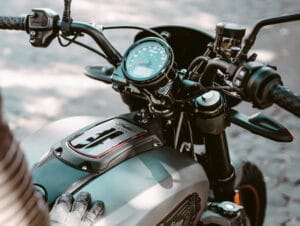

The dashboard on the 2023 models was moved forward. Note that in the motorcycle “pictures” from Indian, the dash is still in the old position. And in one of them, it shows the TFT dial from the pricier models.


Category: Tag:

Specifications

Engine

1203 cc V-Twin, liquid cooled

Power

120 hp

Torque

118 Nm @ 6000 rpm

Transmission

6-speed, wet multi-plate slip/assist clutch, chain final drive

Fuel Capacity

12,9 liters

Length

2286 mm

Width

867 mm

Height

1369 mm

Weight

236 kg wet

Seat Height

815 mm

Suspension

– Front: 43 mm inverted fork, fully adjustable, 150 mm travel
– Rear: piggyback mono-shock, fully adjustable, 150 mm travel

Tyres

– Front: 120/70-19
– Rear: 150/70-18

Brakes

– Front: 320 mm Brembo discs, 4-piston calipers
– Rear: 260 mm Brembo disc, 2-piston caliper
– ABS available

Instruments

Analogue speedometer, LCD display with odometer, fuel gauge, gear indicator, instant and average consumption, clock

Other

LED lights, cruise control

Dashboard / Support us

Indian FTR 2022 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsIndian FTR Rally (2020+) removeDucati Scrambler Desert Sled (2019+) removeIndian Chief Bobber Dark Horse (2022+) removeDucati Scrambler 1100 Tribute PRO (2022+) removeRoyal Enfield Scram 411 (2022+) removeIndian FTR R Carbon (2023+) remove
NameIndian FTR Rally (2020+) removeDucati Scrambler Desert Sled (2019+) removeIndian Chief Bobber Dark Horse (2022+) removeDucati Scrambler 1100 Tribute PRO (2022+) removeRoyal Enfield Scram 411 (2022+) removeIndian FTR R Carbon (2023+) remove
Size Estimator (see "About" page to learn more)Indian FTR Rally 2023 Black SmokeDucati Scrambler Desert Sled 2019 whiteIndian Chief Bobber Dark Horse 2023 Silver Quartz SmokeDucati Scrambler 1100 Tribute Pro 2022 Giallo OcraRoyal Enfield Scram 411 2022 Graphite BlueIndian FTR R Carbon 2023 Carbon Fiber
Length2286 mm2200 mm2286 mm2190 mm2160 mm2223 mm
Width867 mm940 mm915 mm-840 mm830 mm
Height1369 mm1213 mm1349 mm1330 mm1165 mm1295 mm
Seat Height815 mm860 mm662 mm810 mm795 mm780 mm
Weight236 kg wet209 kg wet315 kg wet211 kg wet185 kg wet235 kg wet
Engine1203 cc V-Twin, liquid cooled803 cc L-Twin, air-cooled1890 cc V-Twin, air-cooled1079 cc L-Twin, air-cooled411 cc Single Cylinder, air-cooled1203 cc V-Twin, liquid cooled
Power120 hp73 hp @ 8250 rpmNot disclosed86 hp @ 7500 rpm24,3 hp @ 6500 rpm120 hp
Torque118 Nm @ 6000 rpm66,2 Nm @ 5750 rpm162 Nm @ 2900 rpm88 Nm @ 4750 rpm32 Nm @ 4250 rpm118 Nm @ 6000 rpm
Transmission6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate slip/assist hydraulic clutch, chain final drive6-speed, wet multi-plate clutch, belt final drive6-speed, Wet multi-plate slip/assist hydraulic clutch, chain final drive5-speed, Wet multi-plate clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity12,9 liters13,5 liters15,1 liters15 liters15 liters12,9 liters
Suspension- Front: 43 mm inverted fork, fully adjustable, 150 mm travel - Rear: piggyback mono-shock, fully adjustable, 150 mm travel- Front: 46 mm USD inverted fork, fully adjustable, 200 mm travel - Rear: Kayaba shock, adjustable preload and rebound, 200 mm travel- Front: telescopic fork, 132 mm travel - Rear: dual shocks, adjustable preload, 75 mm travel- Front: Marzocchi 45 mm inverted USD fork, fully adjustable, 150 mm travel - Rear: Kayaba mono-shock, adjustable preload and rebound damping, 150 mm travel- Front: 41 mm telescopic forks, 190 mm travel - Rear: mono-shock, 180 mm travel- Front: 43 mm Ohlins inverted forks, fully adjustable, 120 mm travel - Rear: Ohlins piggyback mono-shock, fully adjustable, 120 mm travel
Tyres- Front: 120/70-19 - Rear: 150/70-18- Front: 120/70-19 - Rear: 170/60-17- Front: 130/90-16 - Rear: 180/65-16- Front: 120/70-18 - Rear: 180/55-17- Front: 100/90-19 - Rear: 120/90-17- Front: 120/70-17 - Rear: 180/55-17
Brakes- Front: 320 mm Brembo discs, 4-piston calipers - Rear: 260 mm Brembo disc, 2-piston caliper - ABS available- Front: 330 mm disc, 4-piston radial caliper - Rear: 245 mm disc, 1-piston floating caliper - cornering ABS available- Front: 300 mm semi-floating disc, 4-piston caliper - Rear: 300 mm floating disc, 2-piston caliper - ABS available- Front: 330 mm semi-floating discs, Brembo monobloc 4-piston radial calipers - Rear: 245 mm disc, 1-piston floating caliper - cornering ABS available- Front: 300 mm disc, 2-piston floating caliper - Rear: 240 mm disc, 1-piston floating caliper - ABS available- Front: 320 mm Brembo discs, 4-piston calipers - Rear: 260 mm Brembo disc, 2-piston caliper - cornering ABS available
InstrumentsAnalogue speedometer, LCD display with odometer, fuel gauge, gear indicator, instant and average consumption, clockLCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clockTFT touchscreen display with speedometer, tachometer, odometer, fuel gauge, gear indicator, compass, ambient temperature, smartphone connectivityDual LCD displays with speedometer, tachometer, odometer, gear indicator, fuel gauge, clockAnalogue speedometer, LCD display with odometer, gear indicator, fuel gauge, trip meter, clock, separate tripper navigationTFT touchscreen display with speedometer, odometer, fuel gauge, gear indicator, trip meters, clock, screen brightness, ambient temperature, mobile phone connectivity
OtherLED lights, cruise controlLED lights, USB socketLED lights, riding modes, keyless ignition, USB port, 12v socket, rear cylinder deactivationLED lights, riding modes, power modes, traction control, USB socket under seat-LED lights, switchable cornering traction control, riding modes, switchable wheelie control, rear lift mitigation, USB port, cruise control
