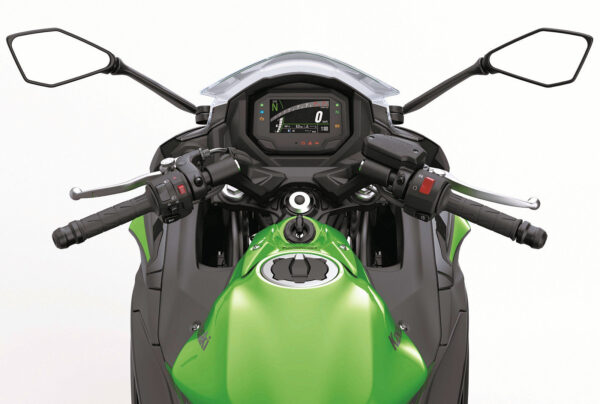

Kawasaki Ninja 650 2020+ dashboard

Kawasaki Ninja 650 (2023+)

Kawasaki Ninja 650 (2023+)

Category: Tag:

Specifications

Engine

650 cc Parallel Twin, liquid-cooled

Power

67 hp @ 8000 rpm

Torque

64 Nm @ 6500 rpm

Transmission

6-speed, Wet multi-plate slip/assist clutch, chain final drive

Fuel Capacity

15 liters

Length

2056 mm

Width

750 mm

Height

1145 mm

Weight

192 kg wet

Seat Height

790 mm

Suspension

– Front: telescopic fork, 125 mm travel
– Rear: Horizontal Back-link single-shock, adjustable preload, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 160/60-17

Brakes

– Front: 2×300 mm semi-floating petal discs, 2-piston calipers
– Rear: 220 mm petal disc, 1-piston caliper
– ABS available

Instruments

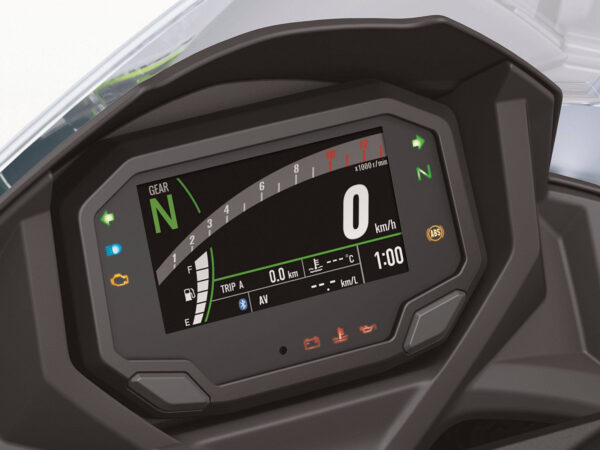

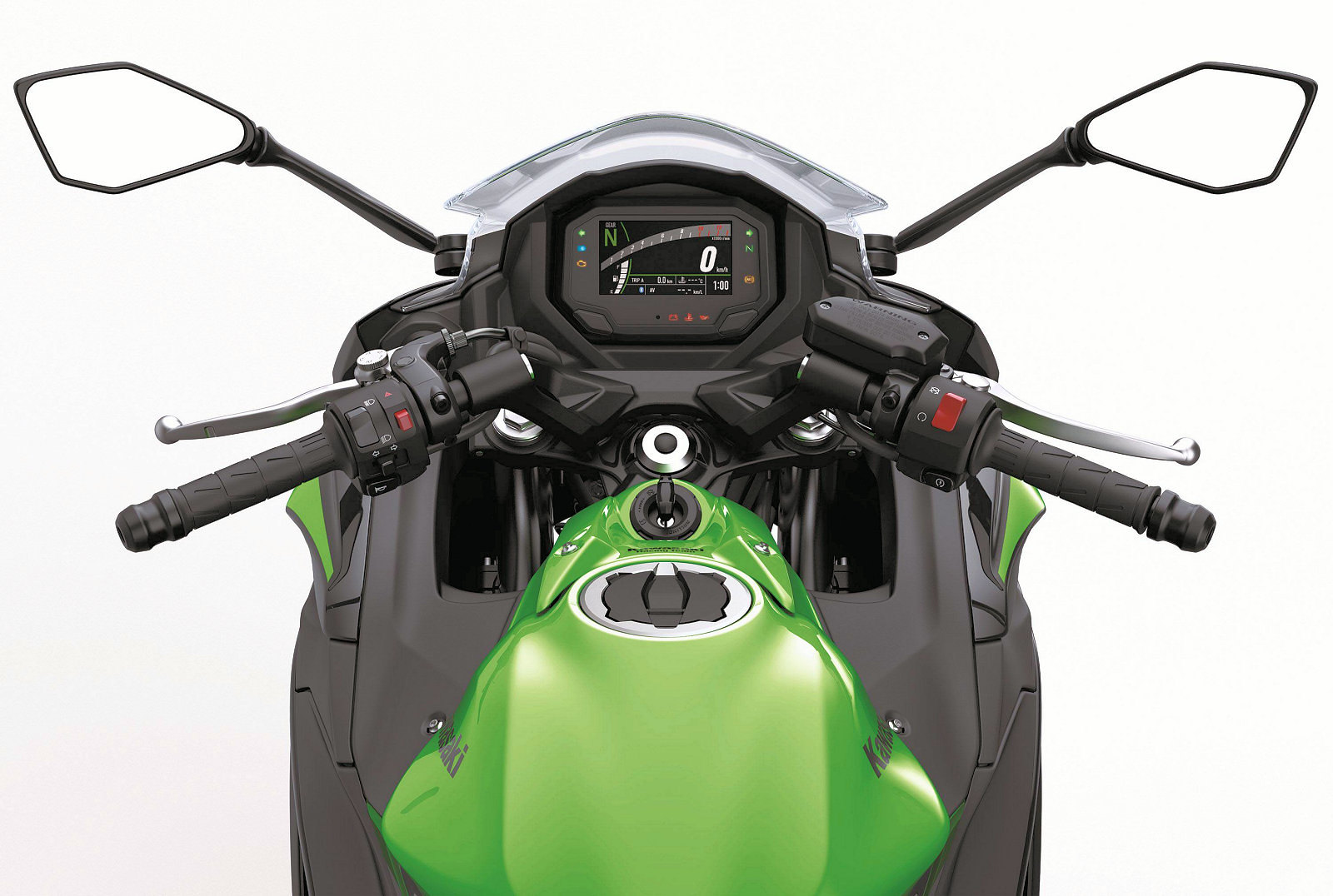

TFT screen with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, remaining range, current and average fuel consumption, clock

Other

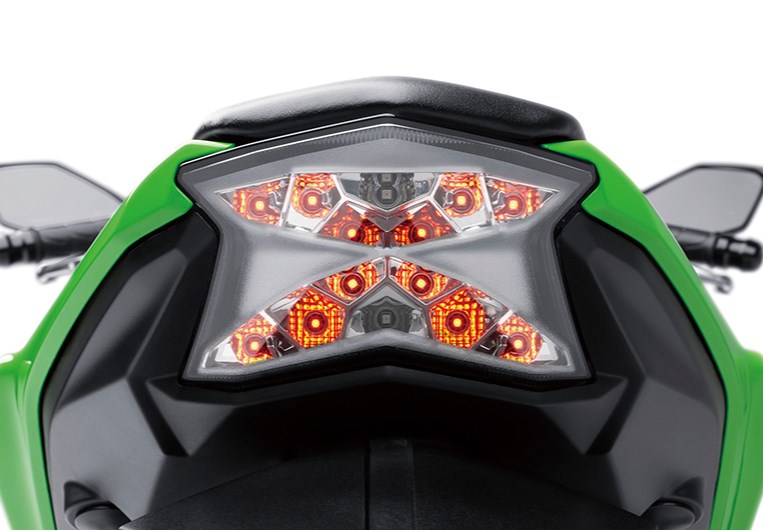

LED headlights, smartphone connectivity, traction control

Dashboard / Support us

Kawasaki Ninja 650 2020+ dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsKawasaki Ninja 650 (2023+) removeKawasaki Ninja 125 (2019+) removeKawasaki Z650RS (2022+) removeKawasaki Z900 (2020+) removeKawasaki Ninja 1000SX (2020+) removeKawasaki Vulcan S (2015-2016) remove
NameKawasaki Ninja 650 (2023+) removeKawasaki Ninja 125 (2019+) removeKawasaki Z650RS (2022+) removeKawasaki Z900 (2020+) removeKawasaki Ninja 1000SX (2020+) removeKawasaki Vulcan S (2015-2016) remove

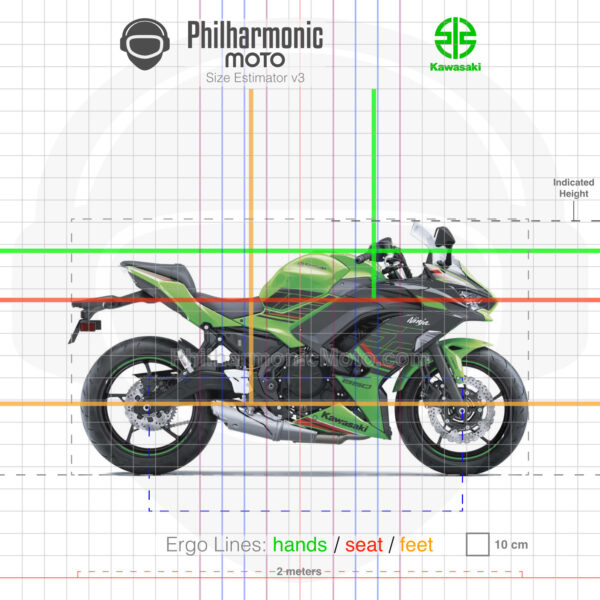

Size Estimator (see "About" page to learn more)Kawasaki Ninja 650 2023 Lime Green EbonyKawasaki Ninja 125 2019 Metallic Flat Spark Black Metallic Matte Fusion SilverKawasaki Z650RS 2022 Candy Emerald GreenKawasaki Z900 2023 EBONY METALLIC MATTE GRAPHENE STEEL GRAYKawasaki Ninja 1000SX 2023 Emerald Blazed Green Metallic Diablo Black Metallic Graphite GrayKawasaki Vulcan S 2015 Metallic Royal Purple
Length2056 mm1935 mm2065 mm2070 mm2100 mm2310 mm
Width750 mm685 mm800 mm825 mm825 mm880 mm
Height1145 mm1075 mm1115 mm1080 mm1190 mm / 1225 mm (low/high screen position)1100 mm
Seat Height790 mm785 mm820 mm820 mm835 mm705 mm
Weight192 kg wet148 kg wet187 kg wet212 kg wet235 kg wet225 / 228 kg (ABS)
Engine650 cc Parallel Twin, liquid-cooled125 cc single cylinder, liquid-cooled650cc Parallel Twin, liquid-cooled, 8 valve DOHC948cc Inline 4, liquid cooled, 16 valve DOHC1043 cc Inline-4, liquid-cooled649 cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank
Power67 hp @ 8000 rpm15 hp @ 10000 rpm67 hp @ 8000 rpm123 hp @ 9500 rpm142 hp @ 10000 rpm61 hp @ 7500 rpm
Torque64 Nm @ 6500 rpm11,7 Nm @ 7700 rpm64 Nm @ 6700 rpm98,6 Nm @ 7700 rpm111 Nm @ 8000 rpm62,4 Nm @ 6600 rpm
Transmission6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, slip/assist clutch, quick-shifter, chain final drive6-speed, Wet multi-plate, chain final drive
Fuel Capacity15 liters11 liters12 liters17 liters19 liters14 liters
Suspension- Front: telescopic fork, 125 mm travel - Rear: Horizontal Back-link single-shock, adjustable preload, 130 mm travel- Front: 37 mm telescopic fork, 110 mm travel - Rear: mono-shock, adjustable preload, 120 mm travel- Front: 41 mm telescopic fork, 125 mm travel - Rear: Horizontal Back-link single shock, adjustable preload, 130 mm travel- Front: 41 mm inverted forks, rebound damping and preload adjustability - Rear: Horizontal Back-link, rebound damping and preload adjustability- Front: 41 mm inverted forks, rebound and compression damping and spring preload adjustability, 120 mm travel - Rear: gas-charged shock with piggyback reservoir, rebound damping and remote spring preload adjustability, 144 mm travel- Front: 41 mm telescopic fork - Rear: Offset laydown single-shock, linkage equipped, with 7-way adjustable preload
Tyres- Front: 120/70-17 - Rear: 160/60-17- Front: 100/80-17 - Rear: 130/70-17- Front: 120/70-17 - Rear: 160/60-17- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-17 - Rear: 190/50-17- Front: 120/70-18 - Rear: 160/60-17
Brakes- Front: 2x300 mm semi-floating petal discs, 2-piston calipers - Rear: 220 mm petal disc, 1-piston caliper - ABS available- Front: 290 mm petal disc, 2-piston caliper - Rear: 220 mm petal disc, 2-piston caliper - ABS available- Front: Dual semi-floating 300 mm discs, 2-piston calipers - Rear: 220 mm disc, single-piston caliper - ABS available- Front: Dual semi-floating 300 mm petal discs, opposed 4-piston calipers - Rear: 250 mm petal disc, Single-piston caliper- Front: Dual semi-floating 300 mm discs, Radial-mount, monobloc, opposed 4-piston calipers - Rear: 250 mm disc, single-piston caliper - cornering ABS available- Front: 300 mm disc, Dual-piston caliper - Rear: 250 mm disc, Single-piston caliper - ABS available
InstrumentsTFT screen with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, remaining range, current and average fuel consumption, clockLCD display with speedometer, tachometer, odometer, trip meter, fuel gauge, clockAnalogue speedometer and tachometer, digital odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, clockTFT display with speedometer, tachometer, digital odometer, gear indicator, fuel gauge, average fuel, temperature gauge, dual trip meters, clock, mobile phone conectivityTFT screen with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, remaining range, current and average fuel consumption, clockAnalogue tachometer, digital speedometer, dual trip meter, fuel gauge, clock
OtherLED headlights, smartphone connectivity, traction control-LED lightsLed lighting, traction control, riding modesLED headlights, cornering traction control, riding modes, smartphone connectivity, cruise control
