Kawasaki Ninja ZX-10R (2016-2018)

ZX1000

Updated: July 2 2024


Brand: Style:
Share:

Specifications and Features

Engine

998 cc Inline-4, liquid-cooled

Power

197 hp @ 13000 rpm (207 with Ram Air)

Power to weight ratio

96 HP/100kg

Torque

114 Nm @ 11400 rpm

Torque to weight ratio

55 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive
– Quick-shifter (downshift optional)

Fuel Capacity

17 litres

Length

2090 mm

Width

740 mm

Height

1145 mm

Weight

– 206 kg wet
– Max load: 180 kg

Seat Height

835 mm

Suspension

– Front: Showa 43 mm inverted fork (BFF) with external compression chamber, fully adjustable, 120 mm travel
– Rear: Showa BFRC lite gas-charged shock with piggyback reservoir, fully adjustable, 114 mm travel

Tyres

– Front: 120/70-17
– Rear: 190/55-17

Brakes

– Front: 330 mm semi-floating discs, Brembo M50 monobloc 4-piston radial calipers
– Rear: 220 mm disc, 1-piston caliper
– Cornering ABS available (switchable optional), rear wheel lift mitigation

Instruments

– Tachometer, LCD display with speedometer, odometer, gear indicator, trip meters, engine temperature, lap timer, clock

Other

– Riding modes, cornering traction control, power modes, engine brake control, launch control, anti-wheelie
– Electronic steering damper, adjustable brake lever

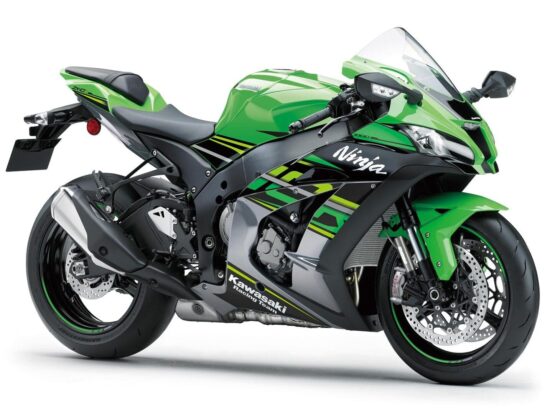

Kawasaki Ninja ZX-10R 2016 dashboard Kawasaki Ninja ZX-10R 2018 KRT front Kawasaki Ninja ZX-10R 2016 Metallic Matte Carbon Gray back
