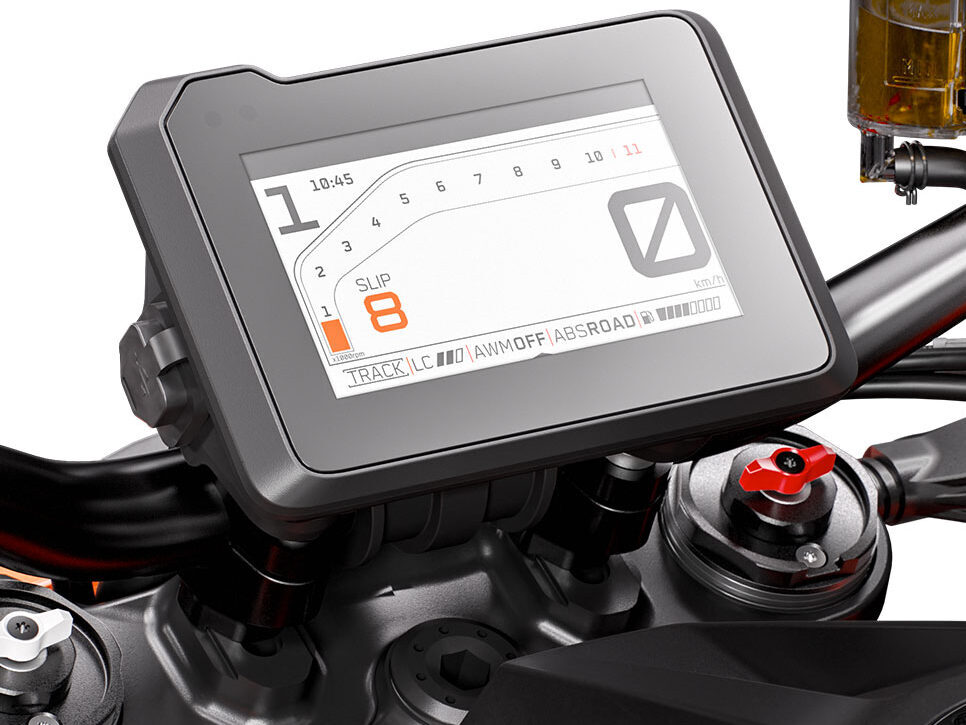

KTM 1290 Super Duke R 2023 dashboard

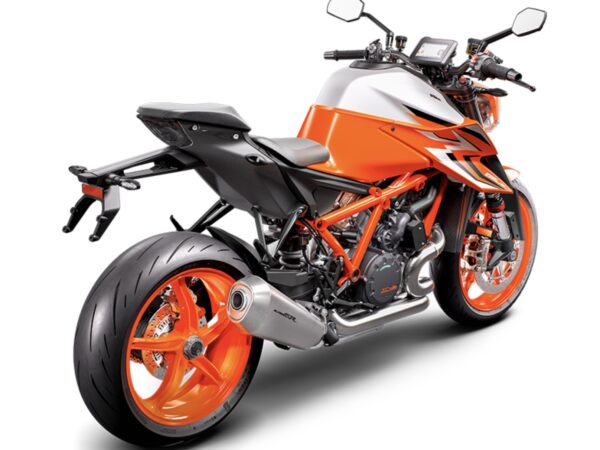

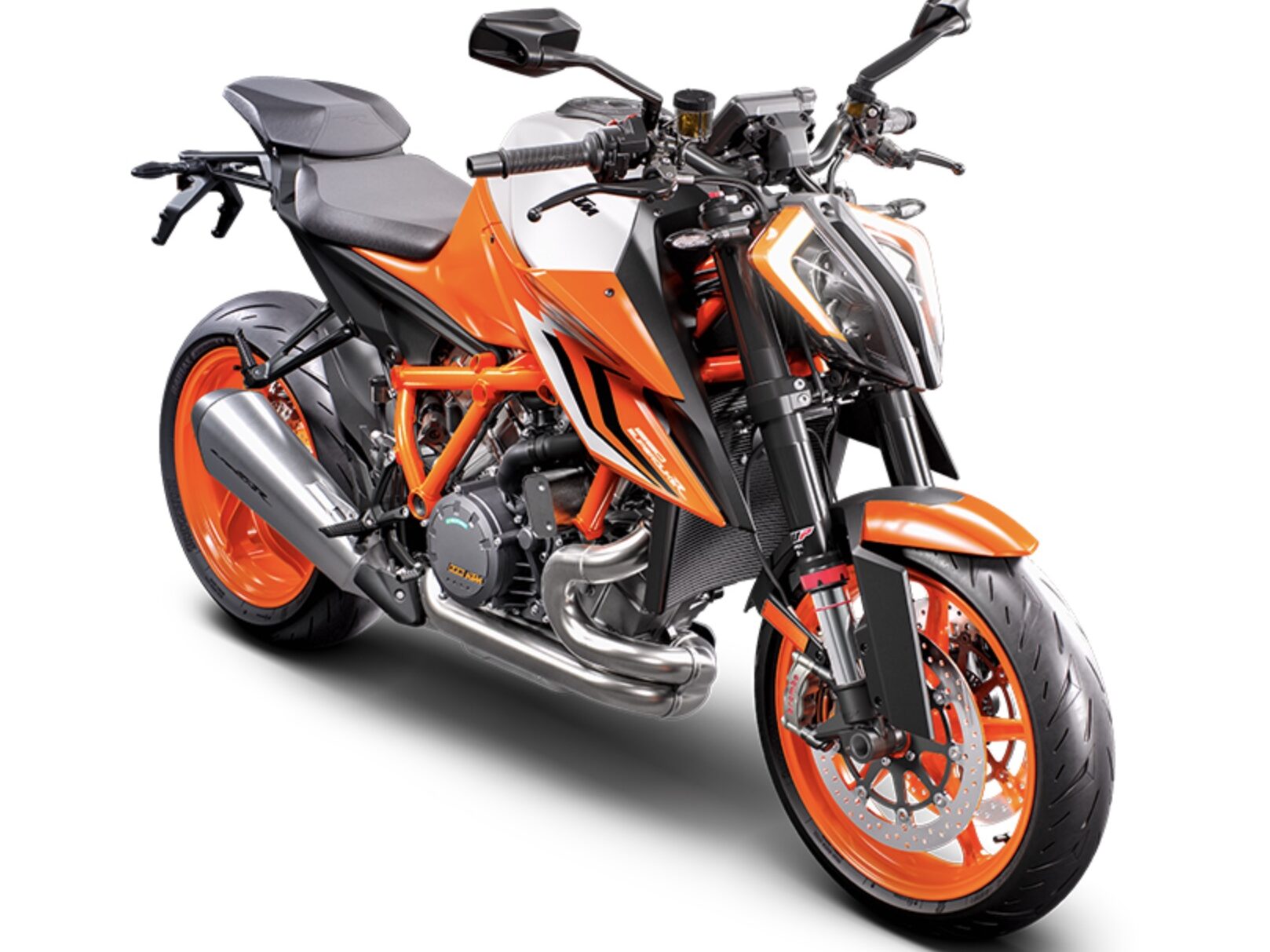

KTM 1290 Super Duke R (2020+)

KTM 1290 Super Duke R (2020+)

I love how KTM is like “The engine is more important and it should come before the model, and I don’t care if nobody will ever say its name right.”

Category: Tag:

Specifications

Engine

1301 cc V-twin, liquid-cooled

Power

180 hp @ 9500 rpm

Torque

140 Nm @ 8000 rpm

Transmission

6-speed, assist/slip hydraulic clutch, chain final drive

Fuel Capacity

16 liters

Length

2082 mm (estimated)

Width

Height

1227 mm (estimated)

Weight

189 kg dry

Seat Height

835 mm

Suspension

– Front: 48 mm split function inverted fork, adjustable preload, 125 mm travel
– Rear: single shock, fully adjustable, 150 mm travel

Tyres

– Front: 120/70-17
– Rear: 200/55-17

Brakes

– Front: 320 mm discs, Brembo Stylema 4-piston radial caliper
– Rear: 240 mm disc, Brembo 2-piston caliper
– cornering ABS available (switchable rear ABS)

Instruments

TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clock

Other

LED lights, cornering traction control, wheelie control, riding modes, supermoto mode, adjustable brake and clutch levers, cruise control, TPMS, auto-canceling turn signals, smartphone connectivity, keyless ignition

Dashboard / Support us

KTM 1290 Super Duke R 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsKTM 1290 Super Duke R (2020+) removeHonda CB650R (2021+) removeHusqvarna Svartpilen 401 (2018+) removeHonda CBR500R (2022+) removeKawasaki Z900 (2020+) removeKTM 390 Duke (2021+) remove
NameKTM 1290 Super Duke R (2020+) removeHonda CB650R (2021+) removeHusqvarna Svartpilen 401 (2018+) removeHonda CBR500R (2022+) removeKawasaki Z900 (2020+) removeKTM 390 Duke (2021+) remove

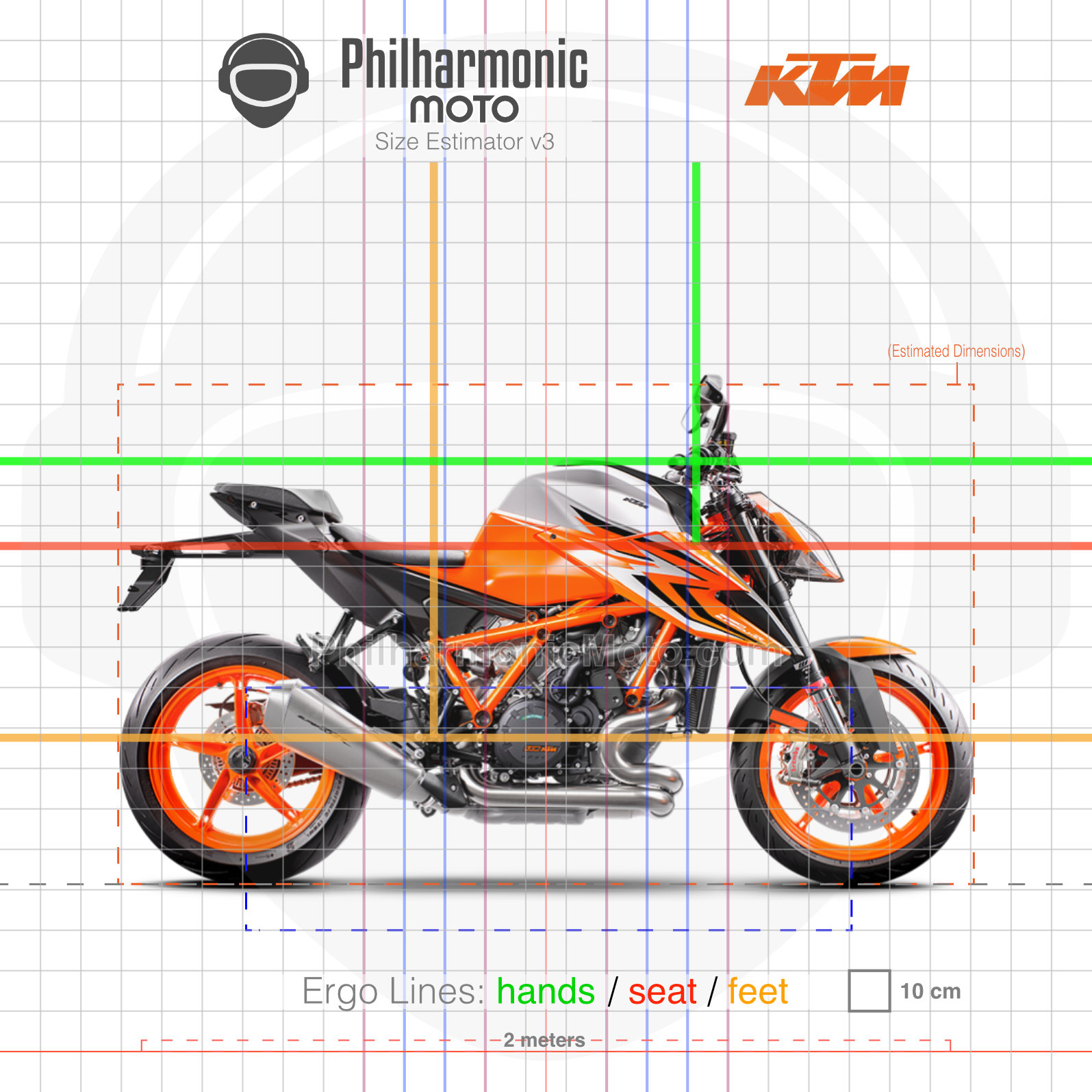

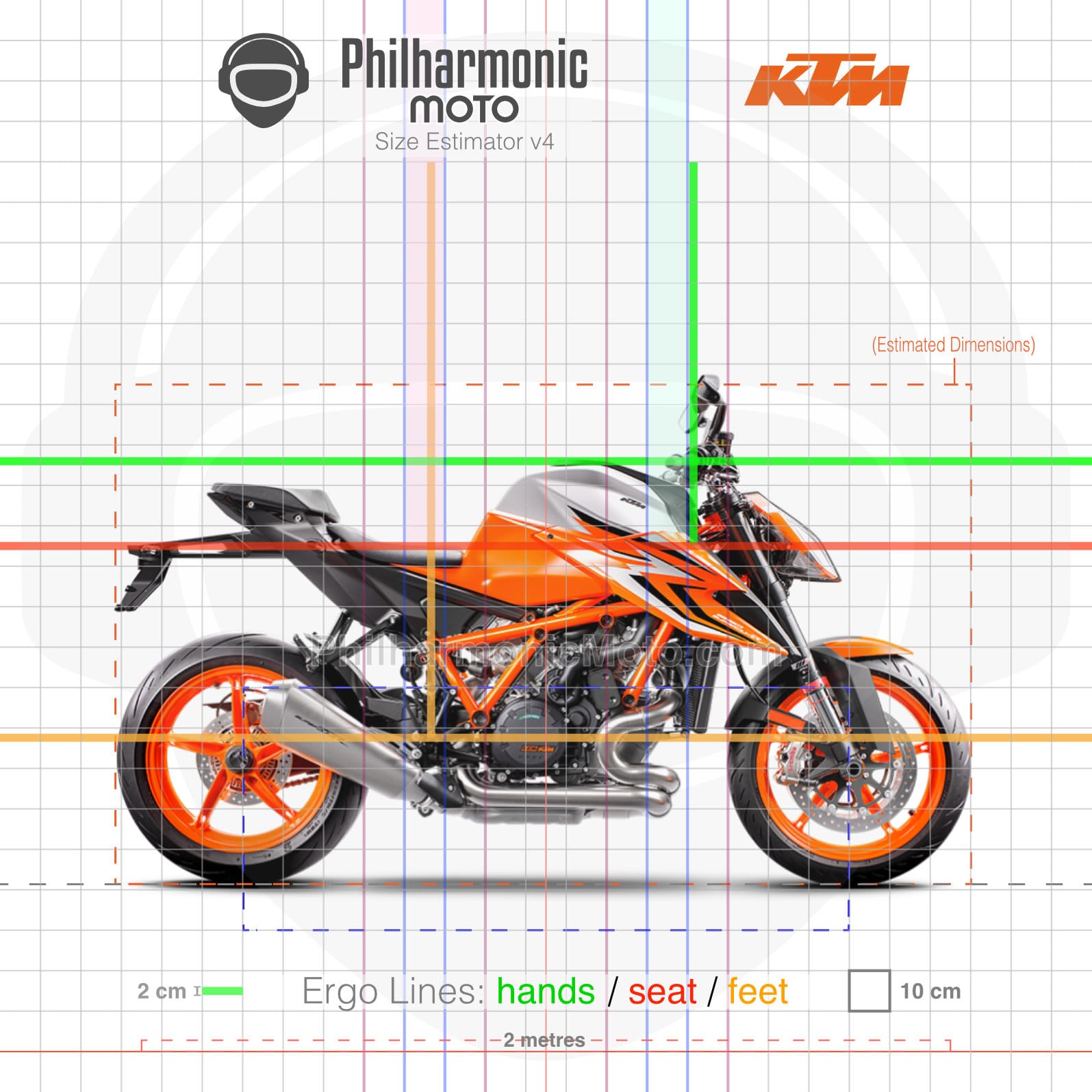

Size Estimator (see "About" page to learn more)KTM 1290 Super Duke R 2023 orangeHonda CB650R 2021 Matte Jeans Blue MetallicHusqvarna Svartpilen 401 2023 darkHonda CBR500R 2022 Sword Silver MetallicKawasaki Z900 2023 EBONY METALLIC MATTE GRAPHENE STEEL GRAYKTM 390 Duke 2022 orange grey
Length2082 mm (estimated)2130 mm?2080 mm2070 mm2002 mm
Width-780 mm?760 mm825 mm838 mm
Height1227 mm (estimated)1075 mm?1145 mm1080 mm1274 mm
Seat Height835 mm810 mm835 mm785 mm820 mm830 mm
Weight189 kg dry202 kg wet152 kg dry192 kg wet212 kg wet171 kg wet
Engine1301 cc V-twin, liquid-cooled649cc Inline 4, liquid cooled, 16 valve DOHC373cc Single cylinder, liquid-cooled471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank948cc Inline 4, liquid cooled, 16 valve DOHC373cc Single cylinder, liquid-cooled
Power180 hp @ 9500 rpm94 hp @ 12000 rpm44 hp @ 9000 rpm47 hp @ 8600 rpm123 hp @ 9500 rpm43 hp @ 9500 rpm
Torque140 Nm @ 8000 rpm64 Nm @ 9500 rpm37 Nm @ 7000 rpm43 Nm @ 6500 rpm98,6 Nm @ 7700 rpm37 Nm @ 7000 rpm
Transmission6-speed, assist/slip hydraulic clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, assist/slip clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, assist/slip clutch, chain final drive
Fuel Capacity16 liters15,4 liters9,5 liters17,1 liters17 liters13,4 liters
Suspension- Front: 48 mm split function inverted fork, adjustable preload, 125 mm travel - Rear: single shock, fully adjustable, 150 mm travel- Front: 41 mm inverted telescopic fork, 108 mm travel, - Rear: single shock, adjustable preload, 128 mm travel- Front: 43 mm inverted forks, 142 mm travel - Rear: single shock, adjustable preload, 142 mm travel- Front: Showa 41mm SFF-BP USD inverted forks, preload adjustable, 110 mm travel, - Rear: Prolink mono with 5 stage preload adjuster, 120 mm travel- Front: 41 mm inverted forks, rebound damping and preload adjustability - Rear: Horizontal Back-link, rebound damping and preload adjustability- Front: 43 mm inverted forks, 142 mm travel - Rear: single shock, adjustable preload, 150 mm travel
Tyres- Front: 120/70-17 - Rear: 200/55-17- Front: 120/70-17 - Rear: 180/55-17- Front: 110/70-17 - Rear: 150/60-17- Front: 120/70-17 - Rear: 160/60-17- Front: 120/70-17 - Rear: 180/55-17- Front: 110/70-17 - Rear: 150/60-17
Brakes- Front: 320 mm discs, Brembo Stylema 4-piston radial caliper - Rear: 240 mm disc, Brembo 2-piston caliper - cornering ABS available (switchable rear ABS)- Front: 2x 310 mm discs - Rear: 240 mm disc - ABS available- Front: 320 mm disc, ByBre 4-piston caliper - Rear: 230 mm disc, ByBre single-piston floating caliper - ABS available- Front: Dual 296mm discs, Nissin radial-mount 2-piston calipers - Rear: 240mm disc, single-piston caliper - ABS available- Front: Dual semi-floating 300 mm petal discs, opposed 4-piston calipers - Rear: 250 mm petal disc, Single-piston caliper- Front: 320 mm disc, 4-piston caliper - Rear: 230 mm disc, single piston floating caliper - ABS available
InstrumentsTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clockDigital speedometer, odometer, tachometer, gear indicator, fuel gauge, temperature gauge, trip meters, clockLCD display with tachometer, speedometer, gear indicator, trip meter, odometer, fuel gauge, clockLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP IndicatorTFT display with speedometer, tachometer, digital odometer, gear indicator, fuel gauge, average fuel, temperature gauge, dual trip meters, clock, mobile phone conectivityTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clock
OtherLED lights, cornering traction control, wheelie control, riding modes, supermoto mode, adjustable brake and clutch levers, cruise control, TPMS, auto-canceling turn signals, smartphone connectivity, keyless ignitionTraction control, LED lights, USB-C under seatLED lightsLED lightsLed lighting, traction control, riding modesLED lights, supermoto mode, adjustable brake and clutch levers
