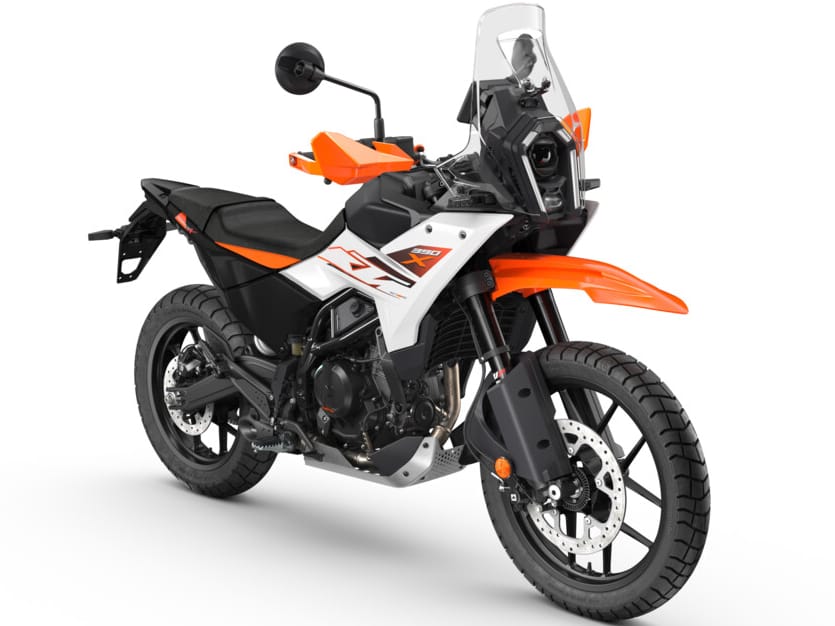

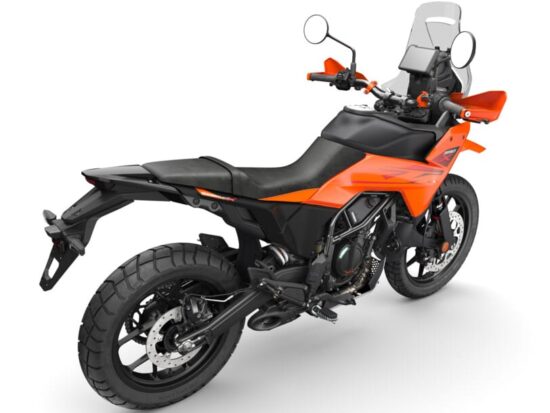

KTM 390 Adventure X (2025+)
Dimensions are based on wheelbase. *Dashboard picture of the 250 Duke 2024, but it appears to be the same.
Updated: 30 January 2025
Specifications and Features
| Length | 2212 mm (estimated) |
|---|---|
| Width | – |
| Height | 1429 mm (estimated) |
| Seat Height | 825 mm |
| Weight | – 176 kg wet (estimated) |
| Engine | 399 cc Single-cylinder, liquid-cooled |
| Power | 44 hp @ 8500 rpm |
| Power to weight ratio | 25 HP/100kg |
| Torque | 39 Nm @ 7000 rpm |
| Torque to weight ratio | 22 Nm/100kg |
| Transmission | – 6-speed, wet slip/assist clutch |
| Fuel Capacity | 14 litres |
| Suspension | – Front: 43 mm inverted fork, 200 mm travel |
| Tyres | – Front: 100/90-19 (-48 cm) |
| Brakes | – Front: 320 mm floating disc, 2-piston radial caliper |
| Instruments | – 13 cm (5") LCD display with tachometer, speedometer, odometer, gear indicator, fuel gauge, trip meter, lap timer, clock* |
| Other | – LED lights |
