KTM 390 Duke (2024+)

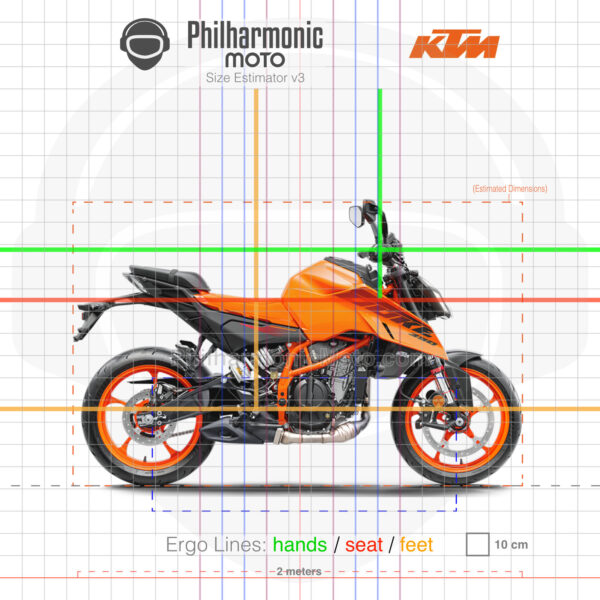

Dimensions are based on the front wheel size. This time KTM didn’t even publish the wheelbase, so here we are.
They didn’t publish fuel capacity either.
—
Specifications
| Engine | 398,7 cc Single-cylinder, liquid-cooled |
|---|---|
| Power | 44 hp @ 8500 rpm |
| Power to weight ratio | 25 HP/100kg |
| Torque | 39 Nm @ 7000 rpm |
| Torque to weight ratio | 22 Nm/100kg |
| Transmission | – 6-speed, slip/assist clutch |
| Fuel Capacity | 13,4 liters (from previous model) |
| Length | 2022 mm (estimated) |
| Width | – |
| Height | 1276 mm (estimated) |
| Weight | 179 kg (estimated wet) |

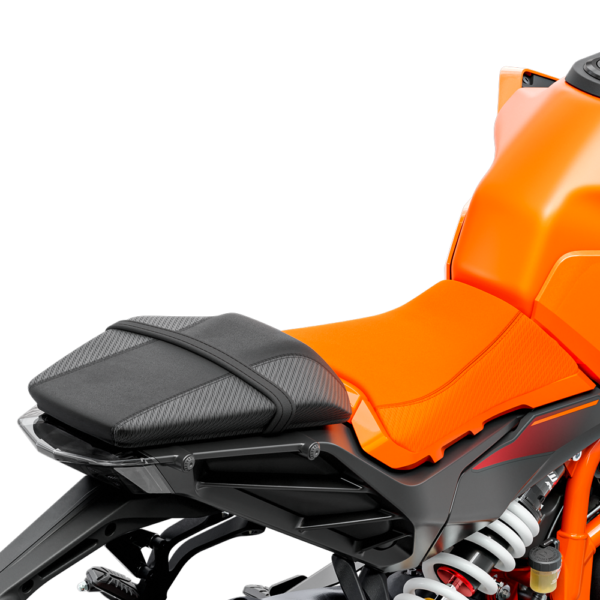

| Seat Height | 820 mm (800 if you remove the orange plate) |
| Suspension | – Front: WP Apex 43 mm inverted fork, adjustable compression and rebound, 150 mm travel |
| Tyres | – Front: 110/70-17 |
| Brakes | – Front: 320 mm disc, 4-piston radial caliper |

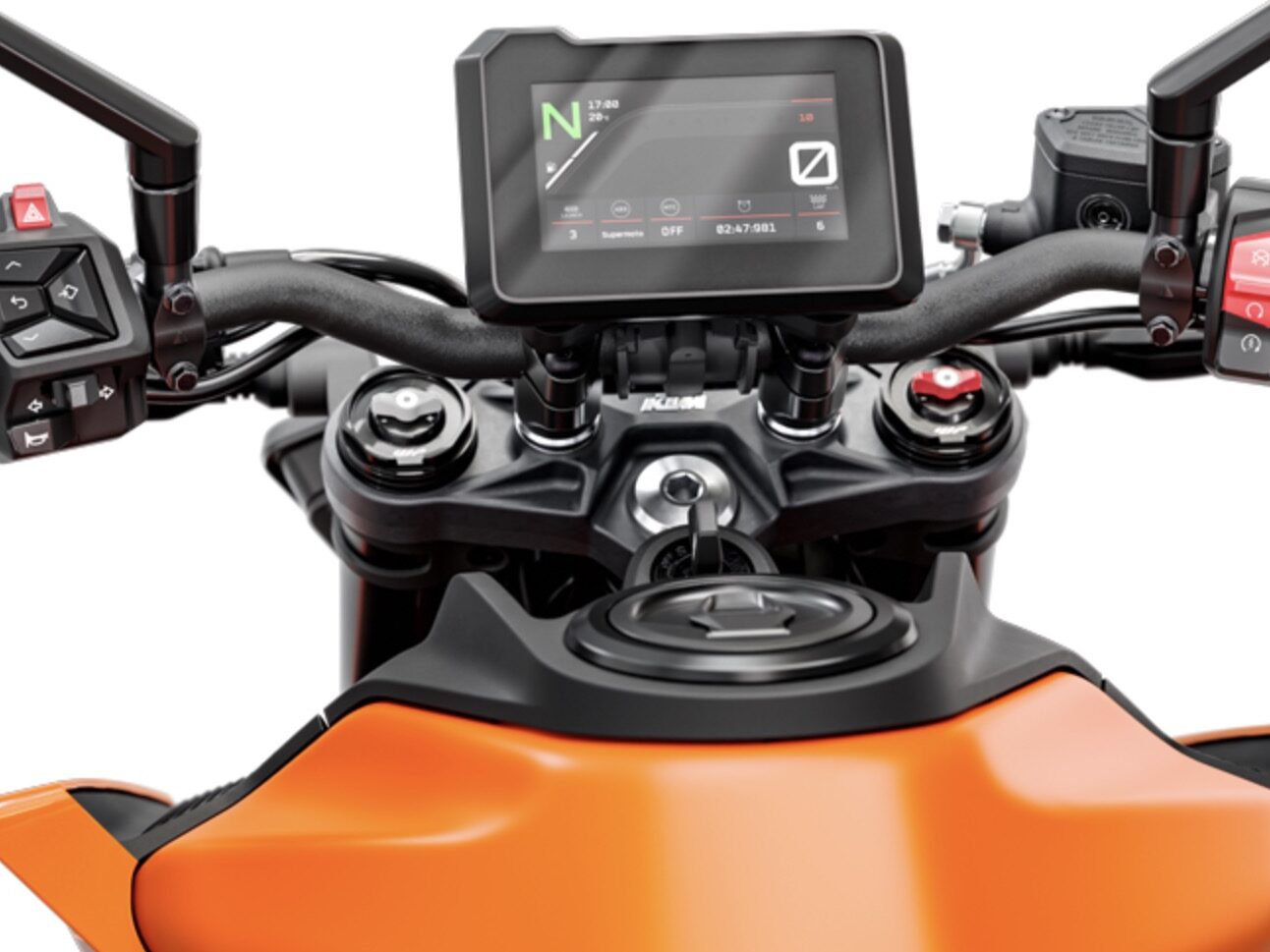

| Instruments | – 5" TFT display with tachometer, speedometer, odometer, gear indicator, fuel gauge, trip meter, lap timer, speed limiter, clock |

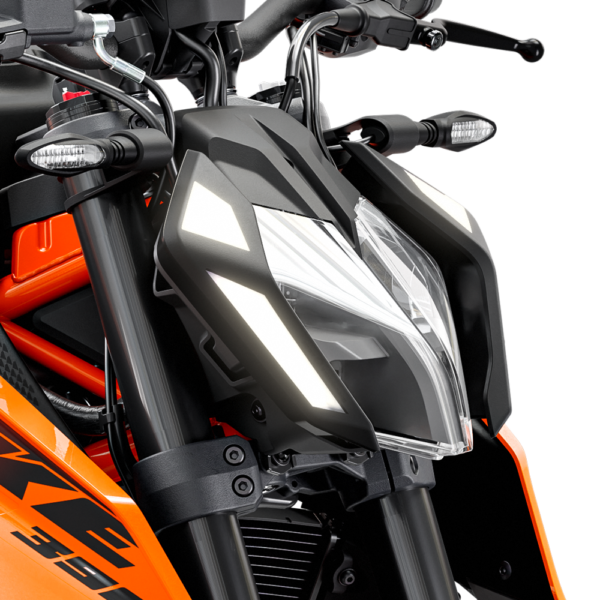

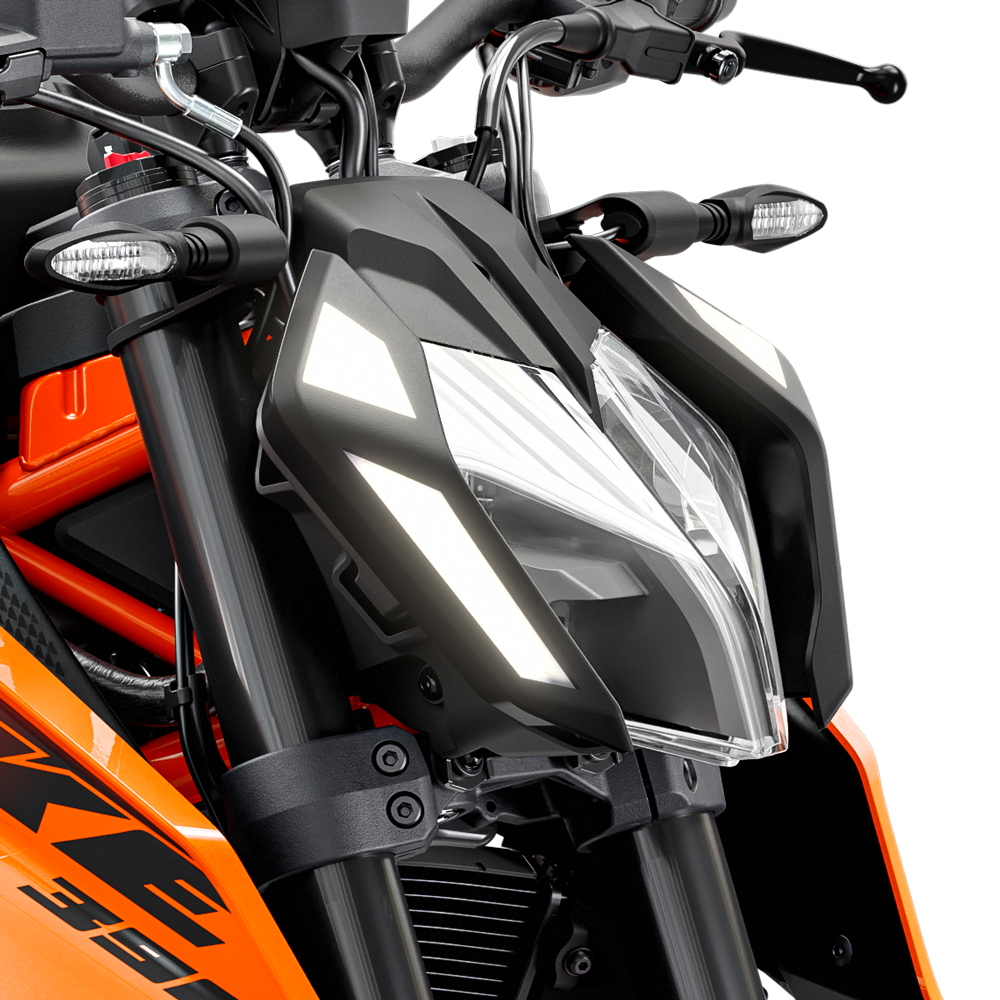

| Other | – LED lights, illuminated switches |
