KTM 690 Enduro R (2021+)

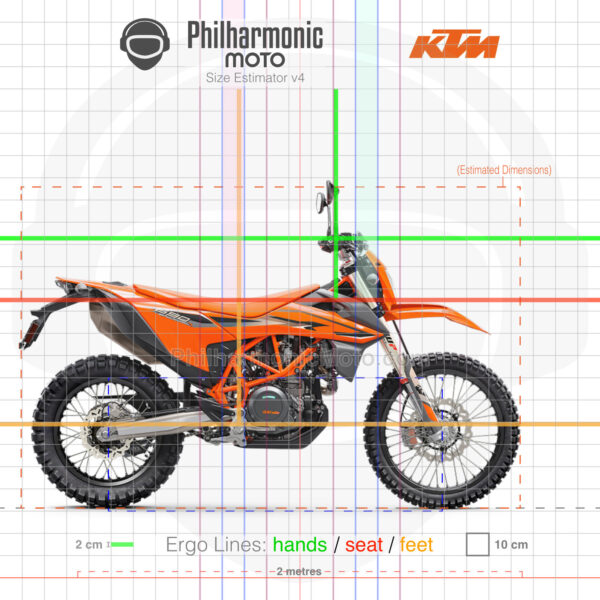

Dimensions based on wheelbase.

Brand: Style:
Share:

Specifications

Engine

692 cc Single-cylinder, liquid-cooled

Power

73 hp

Power to weight ratio

45 HP/100kg

Torque

73 Nm @ 6500 rpm

Torque to weight ratio

45 Nm/100kg

Transmission

– 6-speed, slip/assist hydraulic clutch
– Chain final drive
– Quick-shifter with autoblipper

Fuel Capacity

13,5 litres

Length

2245 mm (estimated)

Width

Height

1445 mm (estimated)

Weight

162 kg (estimated wet)

Seat Height

910 mm

Suspension

– Front: WP XPLOR 48 mm inverted fork, fully adjustable, 215 mm travel
– Rear: WP XPLOR mono-shock, fully adjustable, 240 mm travel

Tyres

– Front: 90/90-21
– Rear: 140/80-18

Brakes

– Front: 300 mm disc, Brembo 4-piston radial caliper
– Rear: 240 mm disc, Brembo 1-piston floating caliper
– cornering ABS available (switchable)

Instruments

– LCD display with speedometer, tachometer, odometer

Other

– Riding modes, cornering traction control
– USB port

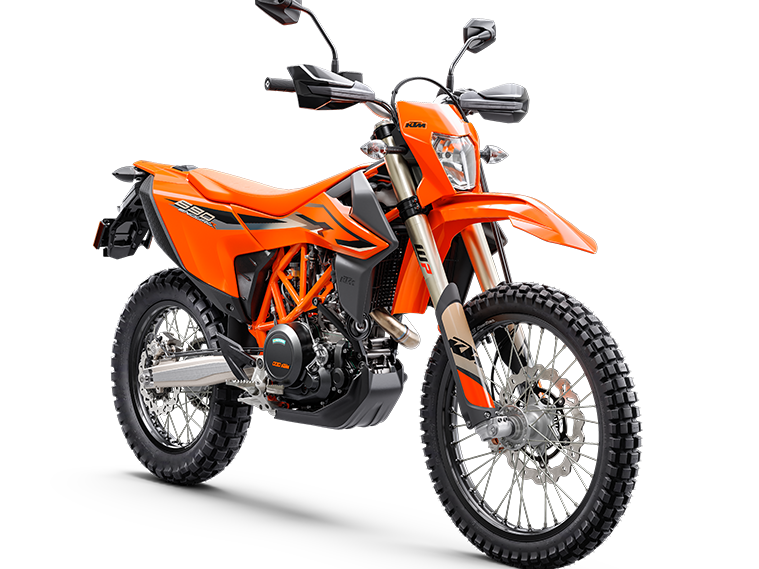

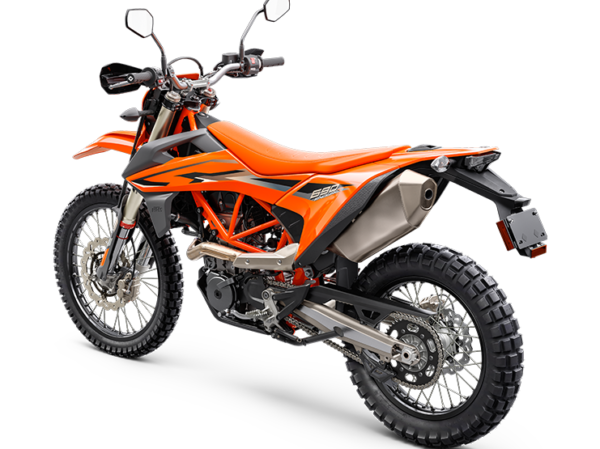

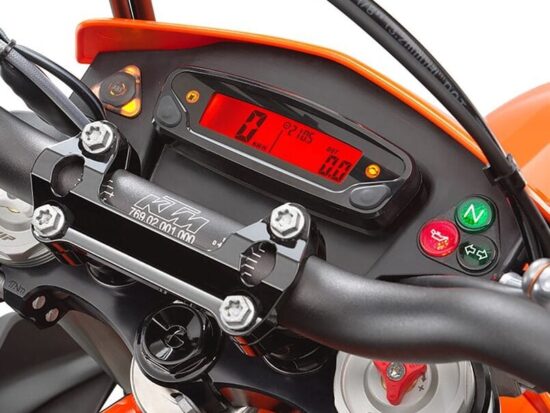

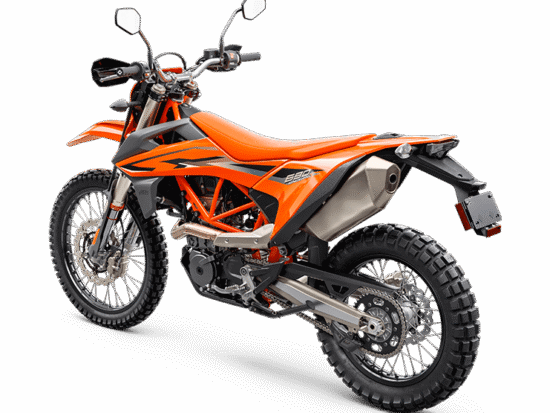

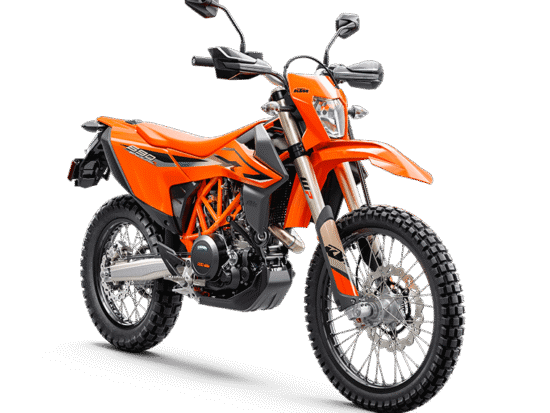

KTM 690 SMC R 2021 dashboard KTM 690 Enduro R 2023 front KTM 690 Enduro R 2023 back
