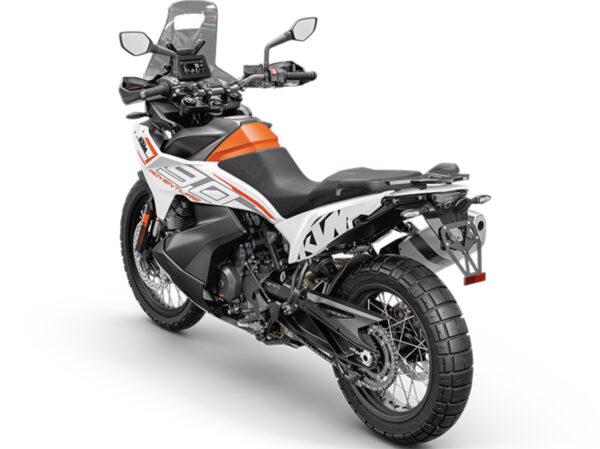

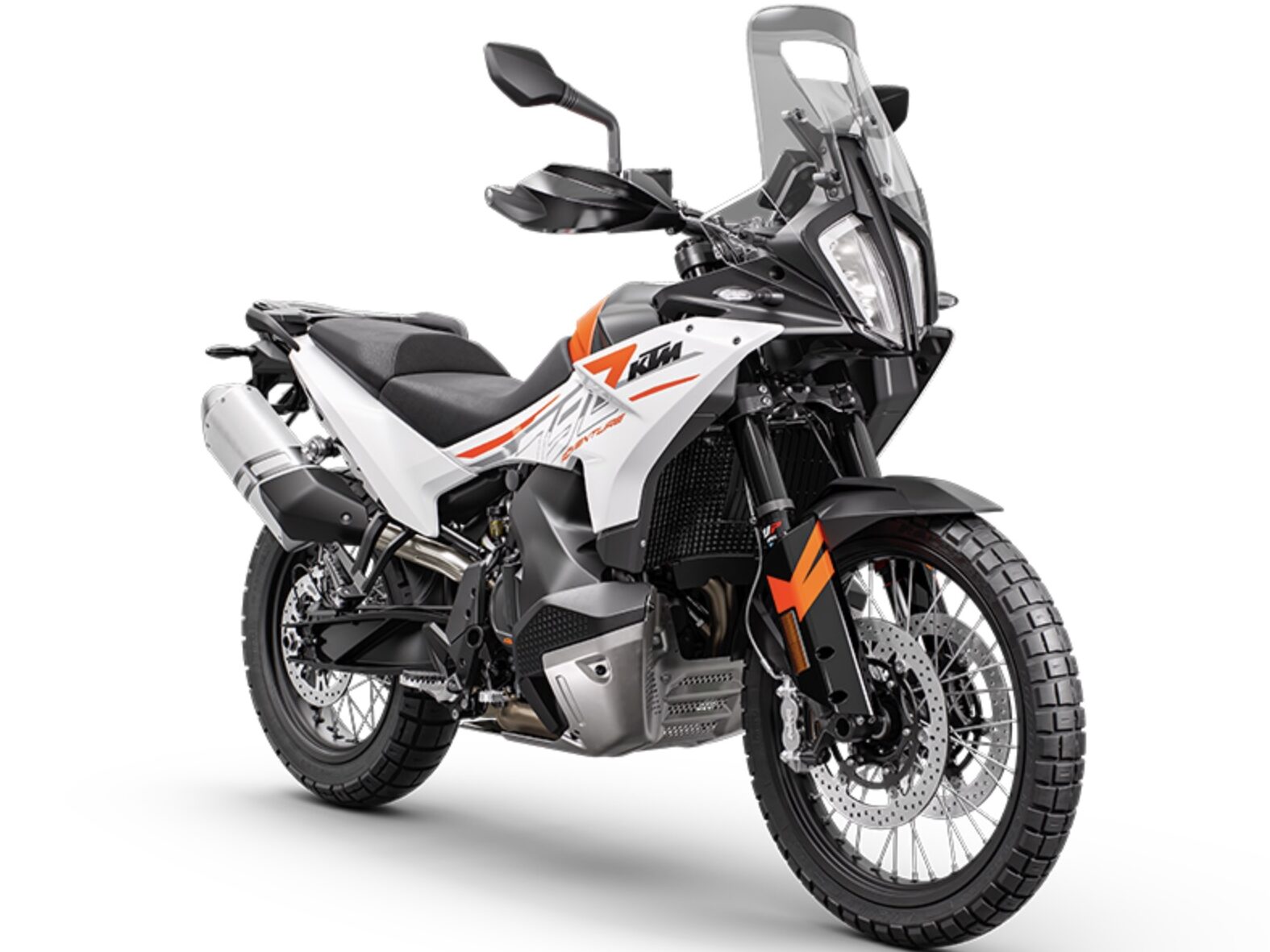

KTM 790 Adventure (2023+)

Name: KTM 790 Adventure (2023+)
SKU: 1157
Price: 95 MOP
Availability: InStock

I love how KTM is like “The engine is more important and it should come before the model, and I don’t care if nobody will ever say its name right.”

—

Category: KTM Tag: Adventure

Specifications

Engine	799 cc Parallel-twin, liquid-cooled
Power	95 hp @ 9000 rpm
Torque	87 Nm @ 8000 rpm
Transmission	6-speed, assist/slip clutch, chain final drive
Fuel Capacity	20 liters
Length	2191 mm (estimated)
Width	–
Height	1430 mm (estimated)
Weight	199 kg wet
Seat Height	840-860 mm
Suspension	– Front: 43 mm inverted fork, 200 mm travel – Rear: single shock, adjustable preload, 200 mm travel
Tyres	– Front: 90/90-21 – Rear: 150/70-18
Brakes	– Front: 320 mm discs, 4-piston radial caliper – Rear: 260 mm disc, 2-piston floating caliper – cornering ABS available

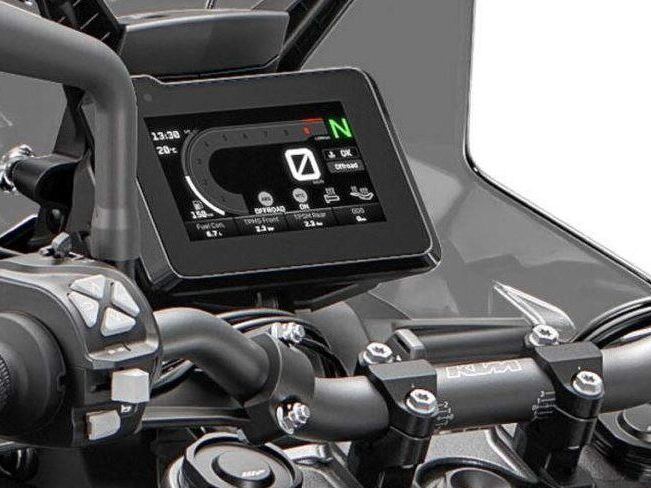

Instruments	TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clock
Other	LED lights, cornering traction control, riding modes, off-road ABS, adjustable brake and clutch levers, steering damper, smartphone connectivity

Dashboard / Support us

T-shirts, mugs, stickers and more:

clutch band motorycle white black t-shirt

Quick Comparison

Settings	KTM 790 Adventure (2023+) remove	KTM 390 Adventure (2022+) remove	BMW F 750 GS Sport (2018+) remove	Honda Africa Twin (2020+) remove	Honda CB500X (2019-2021) remove	Honda CB500X (2022+) remove
Name	KTM 790 Adventure (2023+) remove	KTM 390 Adventure (2022+) remove	BMW F 750 GS Sport (2018+) remove	Honda Africa Twin (2020+) remove	Honda CB500X (2019-2021) remove	Honda CB500X (2022+) remove

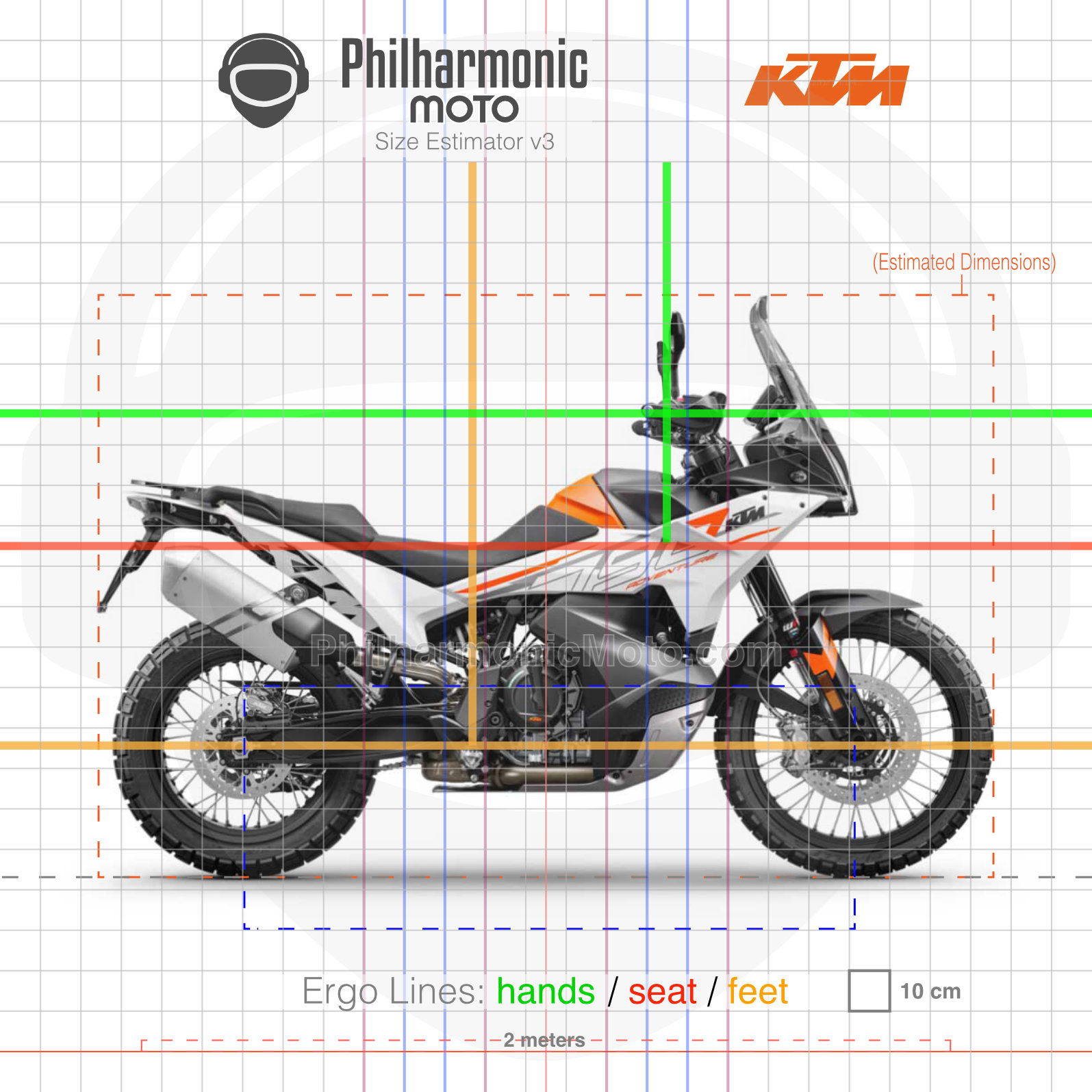

Size Estimator (see "About" page to learn more)
Length	2191 mm (estimated)	2154 mm	2255 mm	2330 mm	2155 mm	2155 mm
Width	-	900 mm	922 mm	960 mm	825 mm	830 mm
Height	1430 mm (estimated)	1400 mm	1225 mm	1395 mm	1410 mm / 1445 mm (Low/High screen position)	1410 mm / 1445 mm (Low/High screen position)
Seat Height	840-860 mm	855 mm	815 mm	850/870 mm	830 mm	830 mm
Weight	199 kg wet	177 kg wet	227 kg wet	226 kg (manual), 236 kg (DCT) wet	197 kg wet	199 kg wet
Engine	799 cc Parallel-twin, liquid-cooled	373cc Single cylinder, liquid-cooled	853 cc Parallel-twin, liquid-cooled	1084 cc Parallel Twin, liquid cooled	471cc Parallel Twin, liquid cooled	471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank
Power	95 hp @ 9000 rpm	43 hp @ 9500 rpm	77 hp @ 7500 rpm	100 hp @ 7500 rpm	47 hp @ 8500 rpm	47 hp @ 8600 rpm
Torque	87 Nm @ 8000 rpm	37 Nm @ 7000 rpm	83 Nm @ 6000 rpm	105 Nm @ 6250 rpm	43 Nm @ 7000 rpm	43 Nm @ 6500 rpm
Transmission	6-speed, assist/slip clutch, chain final drive	6-speed, assist/slip clutch, chain final drive	6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive	6-speed manual, Wet multi-plate assist/slip clutch or DCT automatic, chain final drive	6-speed, Wet multi-plate assist/slipper clutch, chain final drive	6-speed, Wet multi-plate assist/slip clutch, chain final drive
Fuel Capacity	20 liters	14,5 liters	15 liters	18,8 liters	17,5 liters	17,5 liters
Suspension	- Front: 43 mm inverted fork, 200 mm travel - Rear: single shock, adjustable preload, 200 mm travel	- Front: 43 mm inverted forks, 170 mm travel - Rear: single shock, adjustable preload, 177 mm travel	- Front: 41 mm telescopic fork, 170 mm travel - Rear: single shock, adjustable preload and rebound damping, 170 mm travel	- Front: 45 mm inverted forks, pre-load and DF adjustable, 230 mm travel - Rear: Pro-link mono shock, pre-load and rebound adjustable, 220 mm travel	- Front: 41mm telescopic forks, pre-load adjustable, 150 mm travel - Rear: mono-shock with 9 stage preload adjuster, 135 mm travel	- Front: Showa 41 mm SFF-BP USD forks, pre-load adjustable, 135 mm travel - Rear: Prolink mono with 5 stage preload adjuster, 135 mm travel
Tyres	- Front: 90/90-21 - Rear: 150/70-18	- Front: 100/90-19 - Rear: 130/80-17	- Front: 110/80-19 - Rear: 150/70-17	- Front: 90/90-21 - Rear: 150/70-18	- Front: 110/80-19 - Rear: 160/60-17	- Front: 110/80-19 - Rear: 160/60-17
Brakes	- Front: 320 mm discs, 4-piston radial caliper - Rear: 260 mm disc, 2-piston floating caliper - cornering ABS available	- Front: 320 mm disc, 4-piston caliper - Rear: 230 mm disc, single piston floating caliper - Cornering ABS available	- Front: 305 mm floating discs, 2-piston floating calipers - Rear: 265 mm disc, 1-piston floating caliper - cornering ABS available	- Front: 310 mm floating discs, 4-piston calipers - Rear: 256 mm disc, single-piston caliper - ABS available	- Front: 310 mm wavy disc, 2-piston caliper - Rear: 240 mm wavy disc, single-piston caliper	- Front: Dual 296 mm disc, Nissin radial-mount 2-piston calipers - Rear: 240 mm disc, single-piston caliper
Instruments	TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clock	TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clock	TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock	- LCD display with speedometer, odometer, gear indicator - TFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modes, Apple CarPlay, Android Auto	LCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, adjustable shift-up indicator	LCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP Indicator
Other	LED lights, cornering traction control, riding modes, off-road ABS, adjustable brake and clutch levers, steering damper, smartphone connectivity	LED lights, lean-angle sensitive traction control, off-road mode, off-road ABS	LED lights, riding modes, traction control, engine brake control, USB port, mobile phone connectivity, self-canceling indicators, navigation preparation, tire pressure monitor, cruise control, heated grips, luggage rack	LED lights, traction control, cruise control, wheelie control, USB socket, self-canceling indicators, riding modes, switchable cornering ABS	LED lights, emergency braking blinking lights	LED lights, emergency braking blinking lights, "cam chain has the surface of its pins treated with Vanadium"
